VOC & Formaldehyde Emission Test Chamber

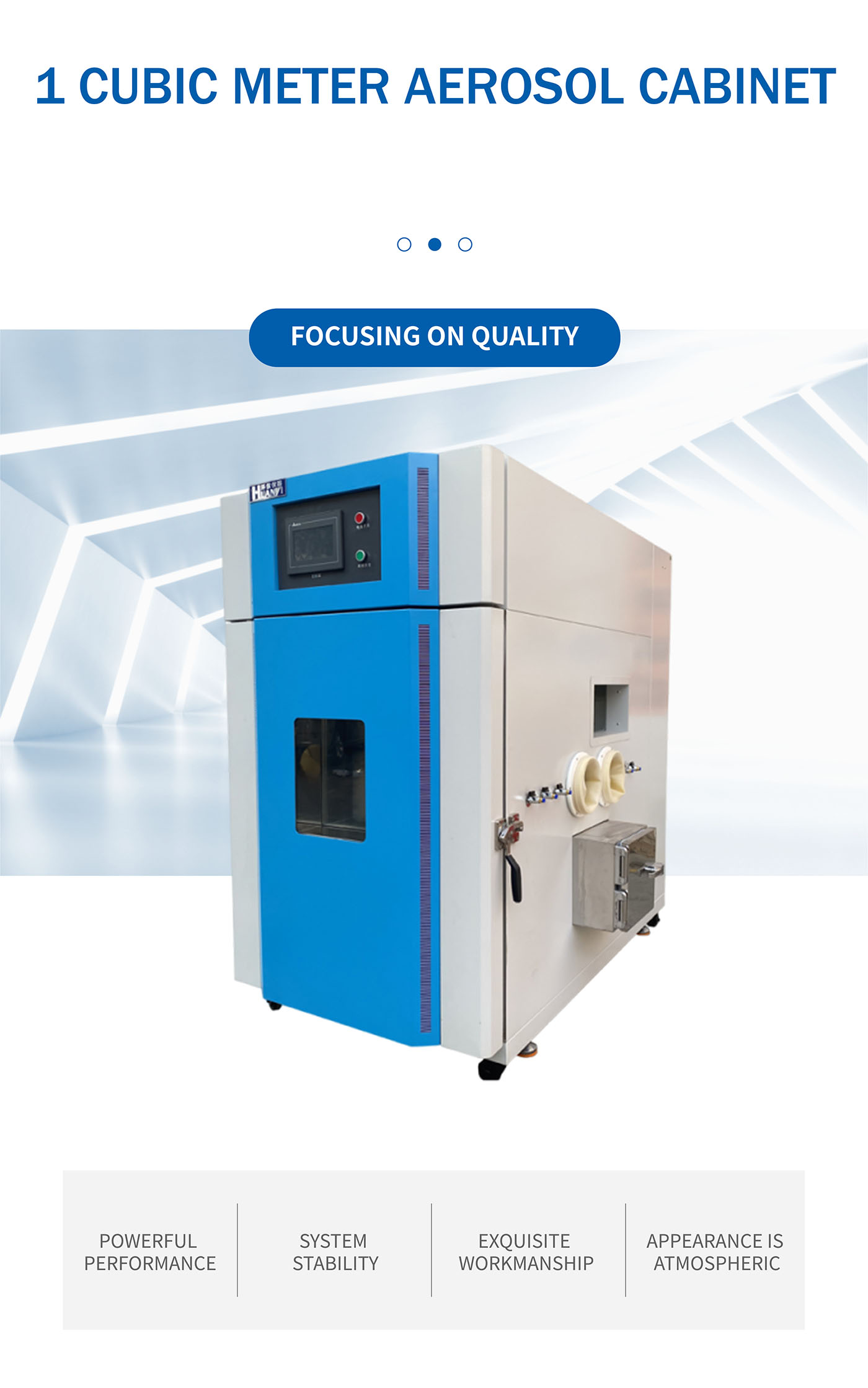

1 cubic meter aerosol cabinet

1m³ bacterial aerosol cabinet is mainly used to evaluate the antibacterial and sterilization ability of products with antibacterial and sterilization properties on microorganisms (bacteria) in the air.

Volume 1000L
Temperature range 15℃~40℃, adjustable
Humidity range 40%~80%RH, adjustable
Temperature fluctuation ≤±0.5℃

product details

product description

Video

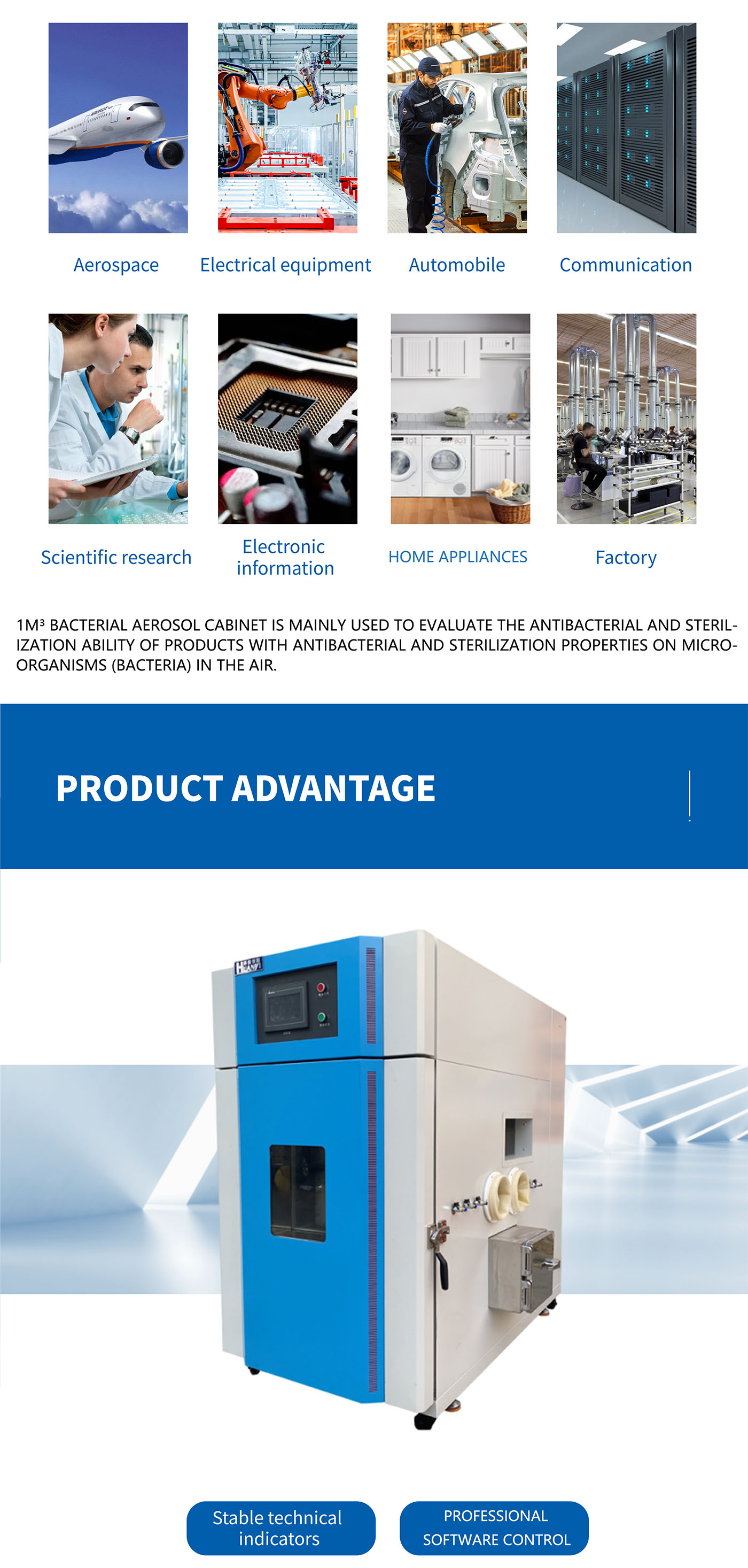

Application

1.Used in medical equipment, surgical instruments, packaging materials, etc., 5 types of round metal sheets (stainless steel, carbon steel, copper, aluminum, zinc), 24mm in diameter, 1mm thick, 3 pieces of each type. If it is a small material, a 1 cubic meter metal corrosion aerosol cabinet can be used.

2.1m³ bacterial aerosol cabinet is mainly used to evaluate the antibacterial and sterilization ability of products with antibacterial and sterilization properties on microorganisms (bacteria) in the air.

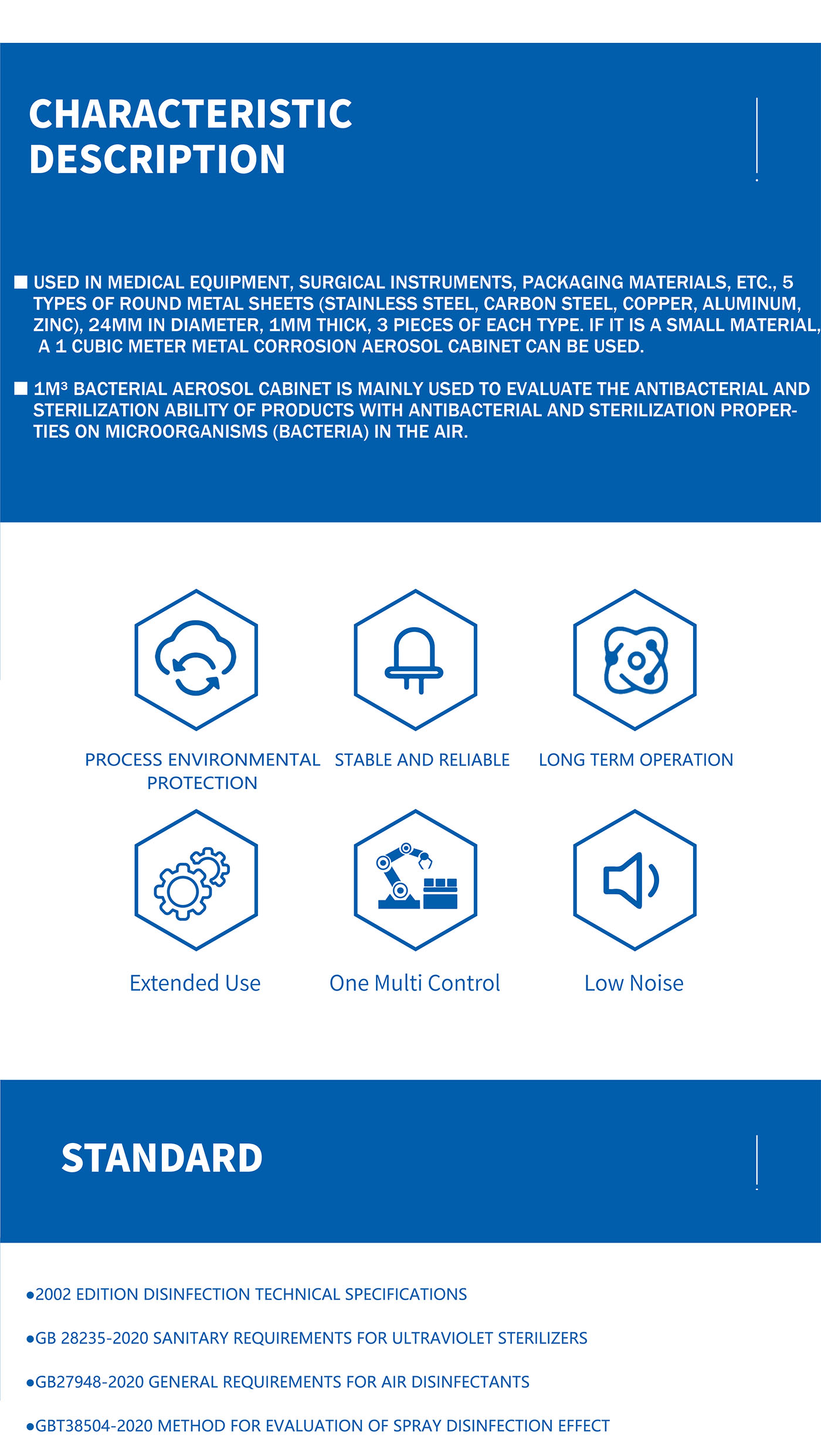

Meet the standards

● 2002 Edition Disinfection Technical Specifications
● GB 28235-2020 Sanitary Requirements for Ultraviolet Sterilizers
● GB27948-2020 General Requirements for Air Disinfectants
● GBT38504-2020 Method for Evaluation of Spray Disinfection Effect

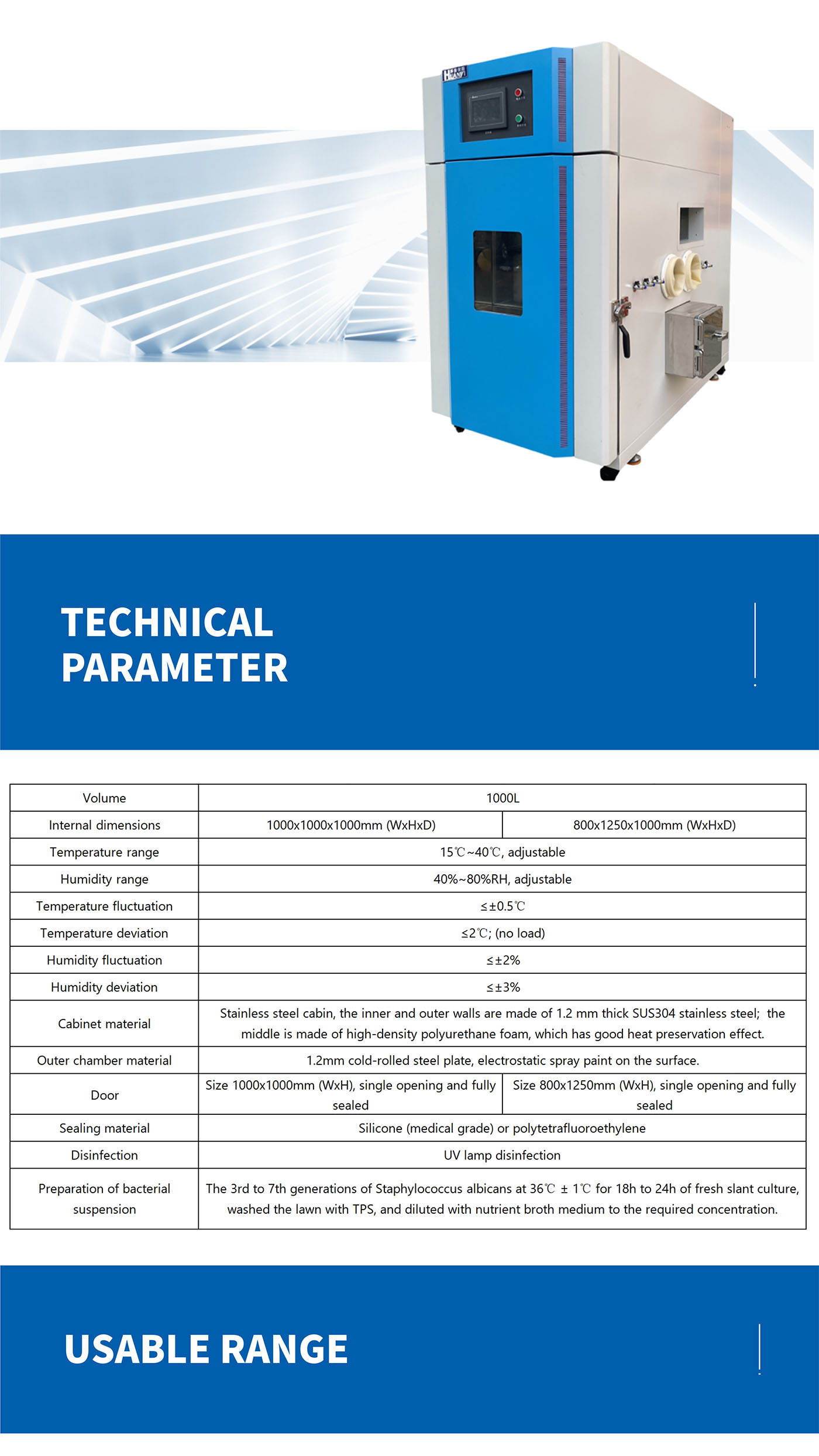

Technical parameters

Volume	1000L
Internal dimensions	1000x1000x1000mm (WxHxD)	800x1250x1000mm (WxHxD)
Temperature range	15℃~40℃, adjustable
Humidity range	40%~80%RH, adjustable
Temperature fluctuation	≤±0.5℃
Temperature deviation	≤2℃; (no load)
Humidity fluctuation	≤±2%
Humidity deviation	≤±3%
Cabinet material	Stainless steel cabin, the inner and outer walls are made of 1.2 mm thick SUS304 stainless steel; the middle is made of high-density polyurethane foam, which has good heat preservation effect.
Outer chamber material	1.2mm cold-rolled steel plate, electrostatic spray paint on the surface.
Door	Size 1000x1000mm (WxH), single opening and fully sealed	Size 800x1250mm (WxH), single opening and fully sealed
Sealing material	Silicone (medical grade) or polytetrafluoroethylene
Disinfection	UV lamp disinfection
Preparation of bacterial suspension	The 3rd to 7th generations of Staphylococcus albicans at 36℃ ± 1℃ for 18h to 24h of fresh slant culture, washed the lawn with TPS, and diluted with nutrient broth medium to the required concentration.
