Air Filter Test Machine

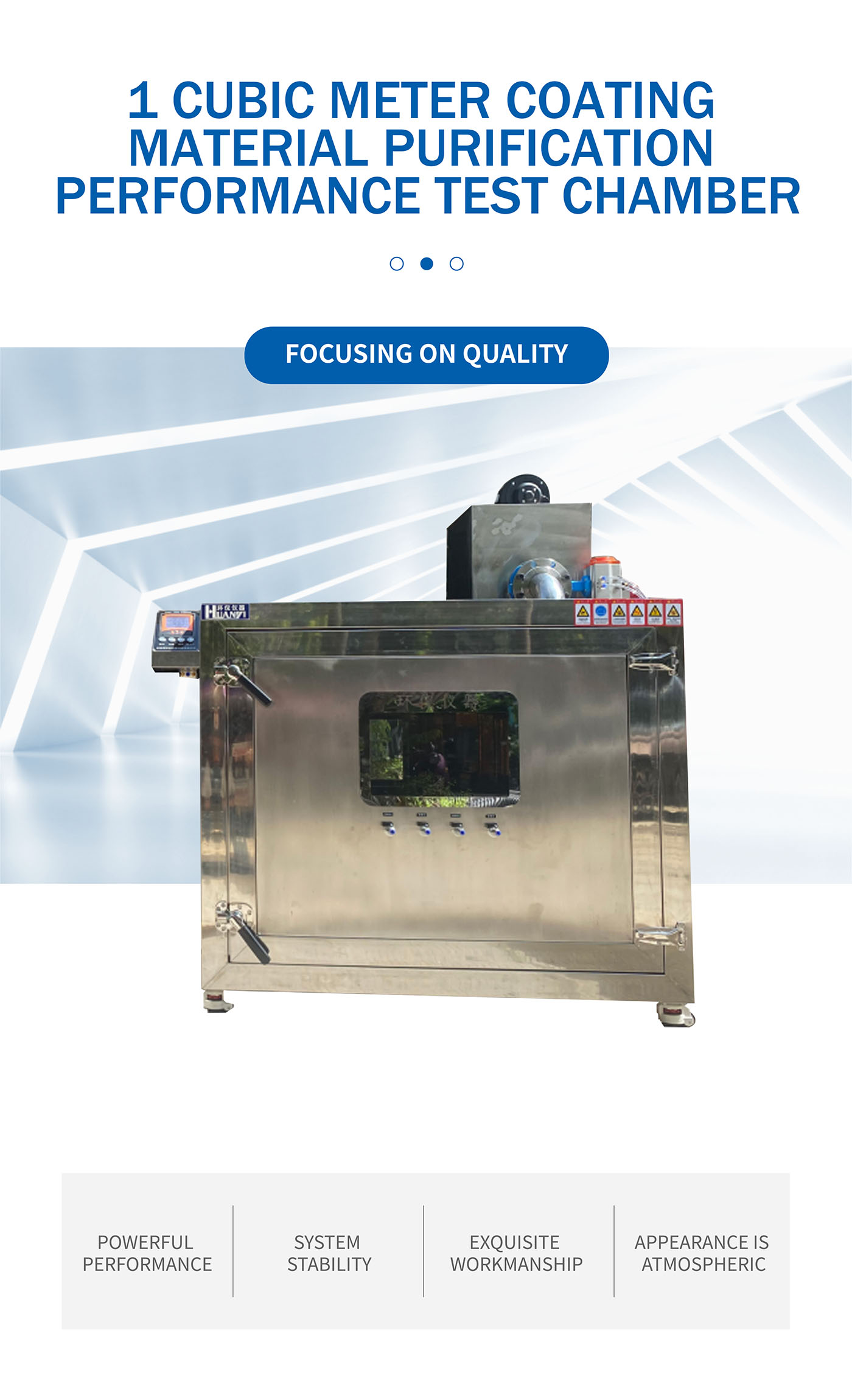

1 cubic meter coating material purification performance test chamber
Application fields
Product introduction and use: The paint environmental test chamber is developed by our company based on the ASTM E1333-96 (2002) formaldehyde testing standard requirements and other related standards, with reference to domestic and foreign technology and the continuous innovation and progress of all the company's technical staff. The high-end VOC environmental test box ranks first in the industry in terms of its internal and external design, temperature and humidity tolerance, and precise performance. The release of formaldehyde is a hot environmental issue of widespread concern around the world. This product is suitable for interior decoration. The amount of material released (coatings, wallpapers, artificial panels, carpets, automotive interior parts, curtains, plastic parts, etc.) is an important indicator of product quality and is directly related to human health and environmental pollution.
Meet the standards
JC/T1074-2008: Indoor air purification function coating material purification performance, Testing method for purification performance of coating materials-----Environmental test chamber method
JC/T2188-2017: Indoor air purification adsorption material purification performance
GB/T18883-2002: Indoor Air Quality Standard

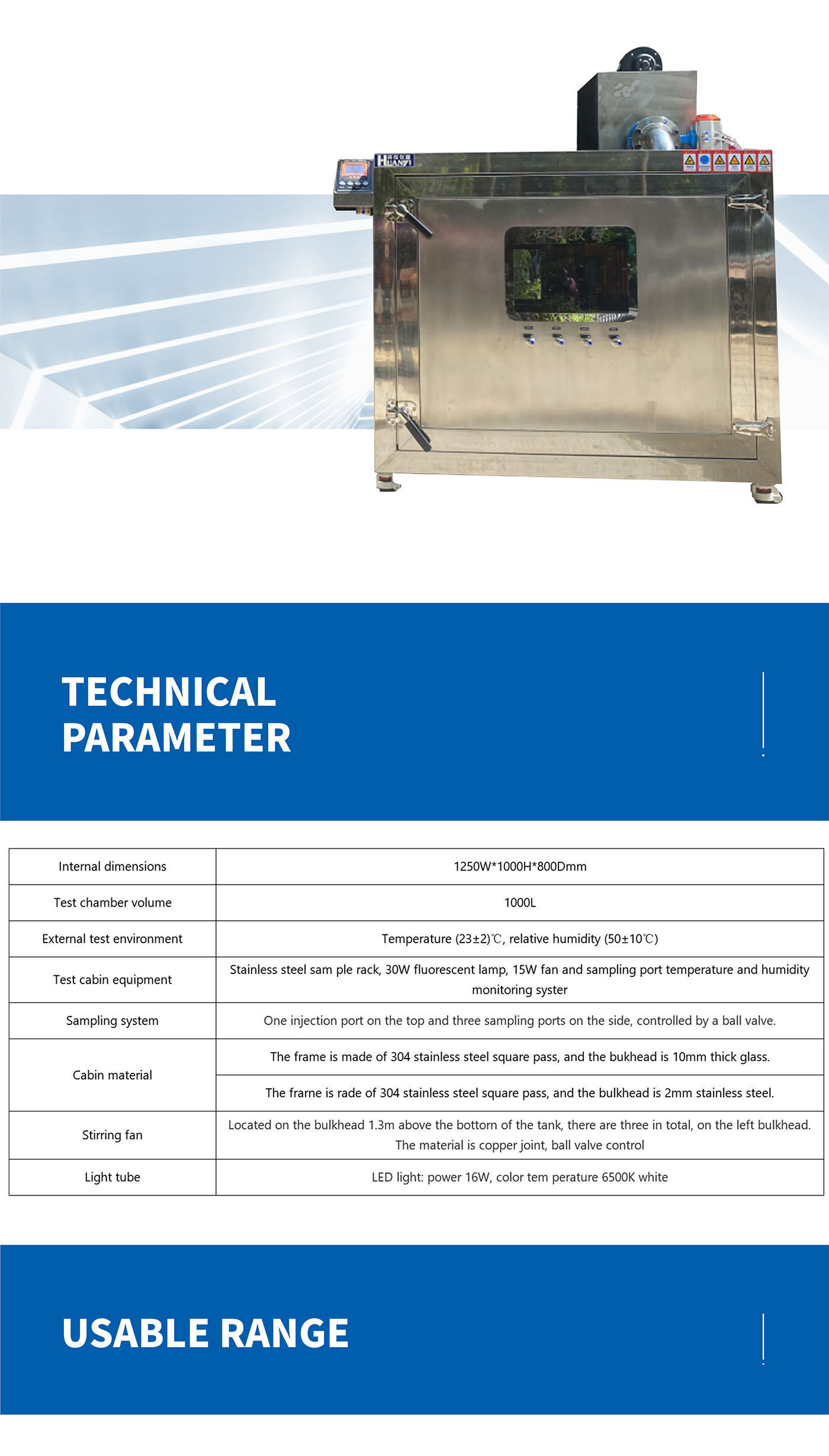

Technical parameters
|
Internal dimensions |
1250W*1000H*800Dmm |
|
Test chamber volume |
1000L |
|
External test environment |
Temperature (23±2)℃, relative humidity (50±10℃) |
|
Test cabin equipment |
Stainless steel sam ple rack, 30W fluorescent lamp, 15W fan and sampling port temperature and humidity monitoring syster |
|
Sampling system |
One injection port on the top and three sampling ports on the side, controlled by a ball valve. |
|
Cabin material |
The frame is made of 304 stainless steel square pass, and the bukhead is 10mm thick glass. |
|
The frarne is rade of 304 stainless steel square pass, and the bulkhead is 2mm stainless steel. |
|
|
Stirring fan |
Located on the bulkhead 1.3m above the bottorn of the tank, there are three in total, on the left bulkhead. The material is copper joint, ball valve control |
|
Light tube |
LED light: power 16W, color tem perature 6500K white |
