VOC & Formaldehyde Emission Test Chamber

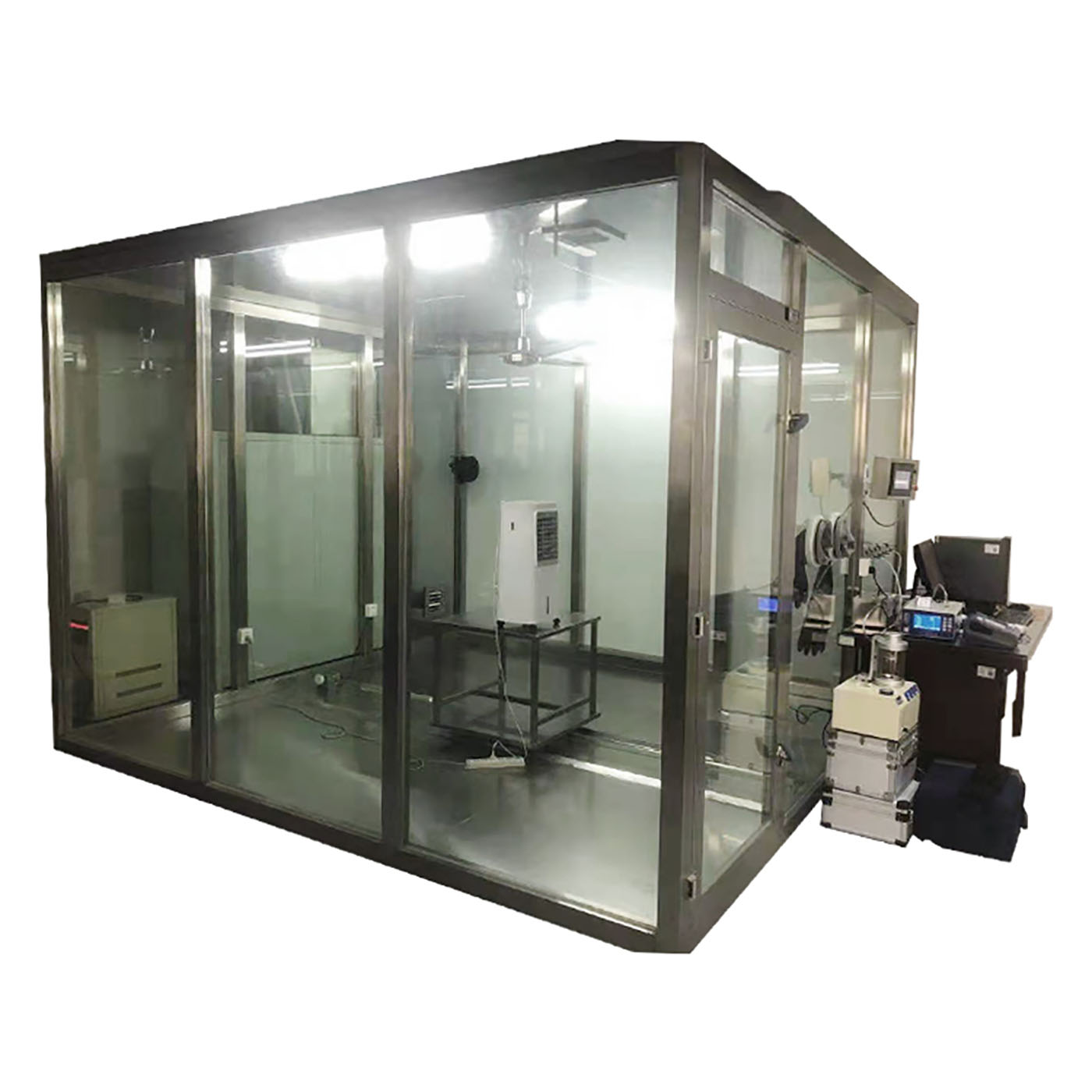

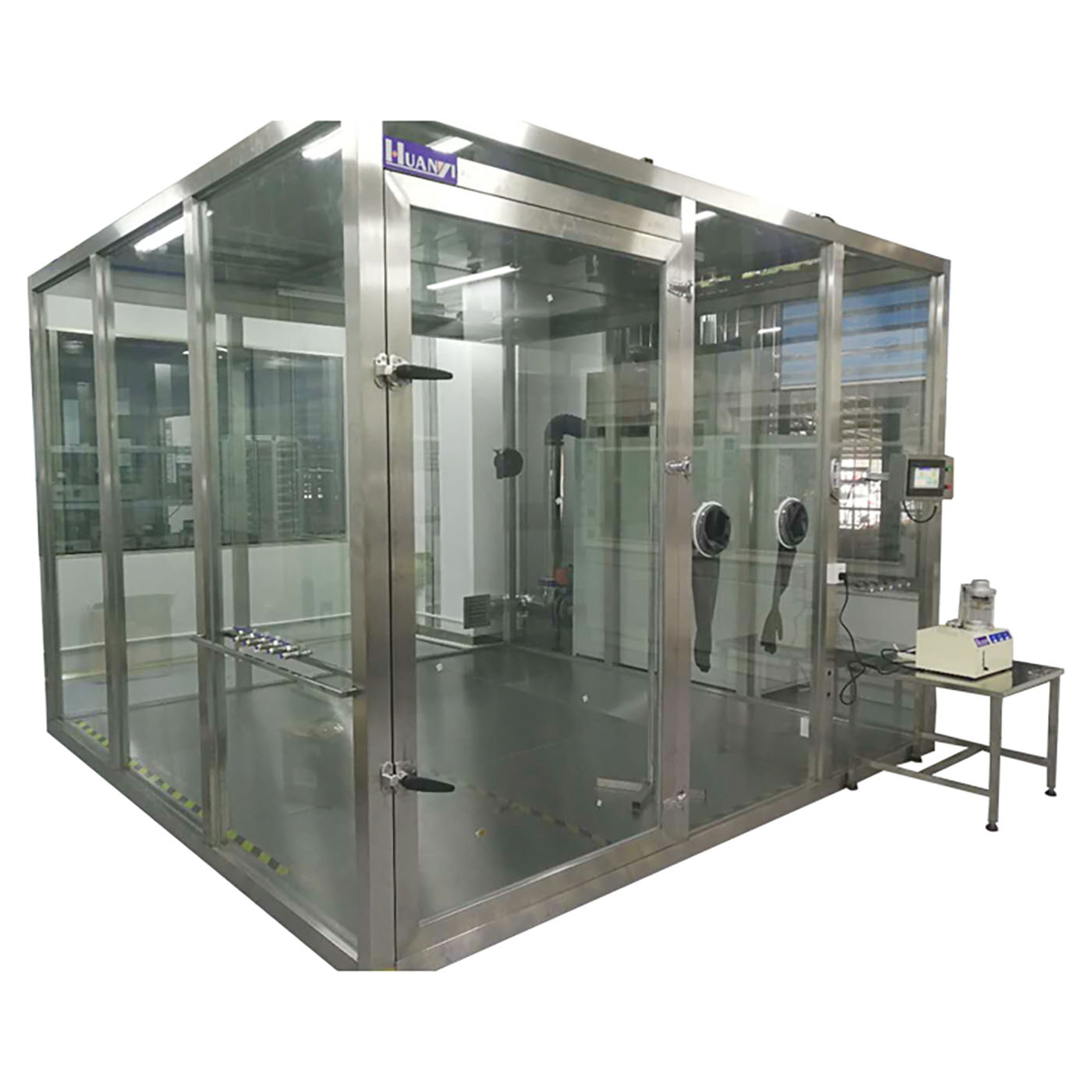

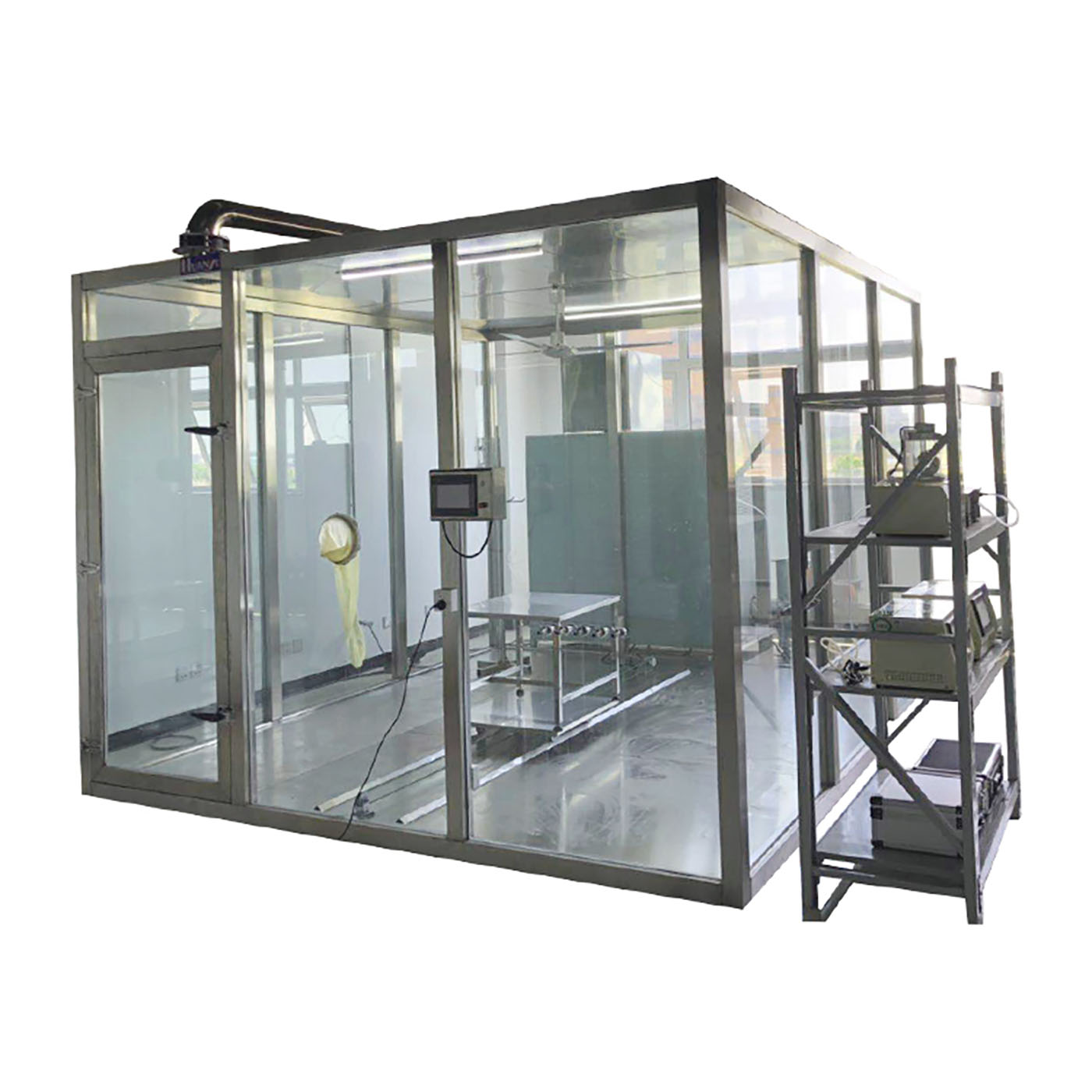

10/20/30 cubic aerosol chamber

Bacterial aerosol cabinets are mainly used to evaluate the antibacterial and sterilization capabilities of products with antibacterial properties against microorganisms (bacteria) in the air.

product details

product description

Video

Product Description

This aerosol chamber is designed for use with fresh air purifiers that have an internal circulation and disinfection function. It has been tested and meets the T/CAQI 180-2021 Technical Requirements and Test Methods for Fresh The aerosol chamber for disinfection function of the fresh air purifier is applicable to fresh air purifiers with internal circulation and disinfection functions. This aerosol chamber meets the test standard of "T/CAQI 180-2021 Technical Requirements and Test Methods for Fresh Air Purifier with Disinfection Function".

Meet the standards

● 2002 Edition Disinfection Technical Specifications
● GB 28235-2020 Sanitary Requirements for Ultraviolet Sterilizers
● GB27948-2020 General Requirements for Air Disinfectants
● GBT38504-2020 Method for Evaluation of Spray Disinfection Effect

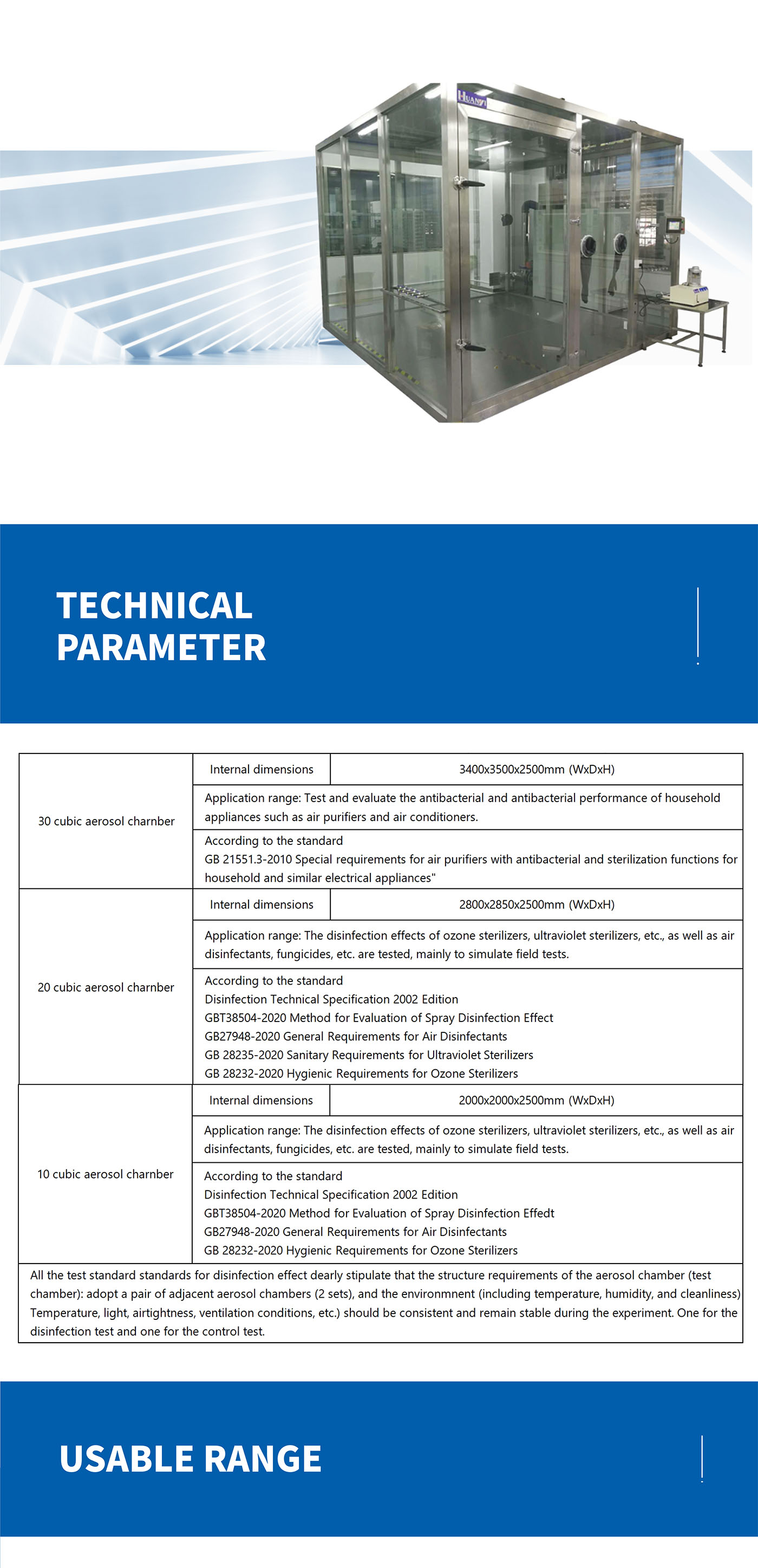

Technical parameters

30 cubic aerosol charnber	Internal dimensions	3400x3500x2500mm (WxDxH)
	Application range: Test and evaluate the antibacterial and antibacterial performance of household appliances such as air purifiers and air conditioners.
	According to the standard GB 21551.3-2010 Special requirements for air purifiers with antibacterial and sterilization functions for household and similar electrical appliances"
20 cubic aerosol charnber	Internal dimensions	2800x2850x2500mm (WxDxH)
	Application range: The disinfection effects of ozone sterilizers, ultraviolet sterilizers, etc., as well as air disinfectants, fungicides, etc. are tested, mainly to simulate field tests.
	According to the standard Disinfection Technical Specification 2002 Edition GBT38504-2020 Method for Evaluation of Spray Disinfection Effect GB27948-2020 General Requirements for Air Disinfectants GB 28235-2020 Sanitary Requirements for Ultraviolet Sterilizers GB 28232-2020 Hygienic Requirements for Ozone Sterilizers
10 cubic aerosol charnber	Internal dimensions	2000x2000x2500mm (WxDxH)
	Application range: The disinfection effects of ozone sterilizers, ultraviolet sterilizers, etc., as well as air disinfectants, fungicides, etc. are tested, mainly to simulate field tests.
	According to the standard Disinfection Technical Specification 2002 Edition GBT38504-2020 Method for Evaluation of Spray Disinfection Effedt GB27948-2020 General Requirements for Air Disinfectants GB 28232-2020 Hygienic Requirements for Ozone Sterilizers
All the test standard standards for disinfection effect dearly stipulate that the structure requirements of the aerosol chamber (test chamber): adopt a pair of adjacent aerosol chambers (2 sets), and the environmnent (including temperature, humidity, and cleanliness) Temperature, light, airtightness, ventilation conditions, etc.) should be consistent and remain stable during the experiment. One for the disinfection test and one for the control test.
