Air Filter Test Machine

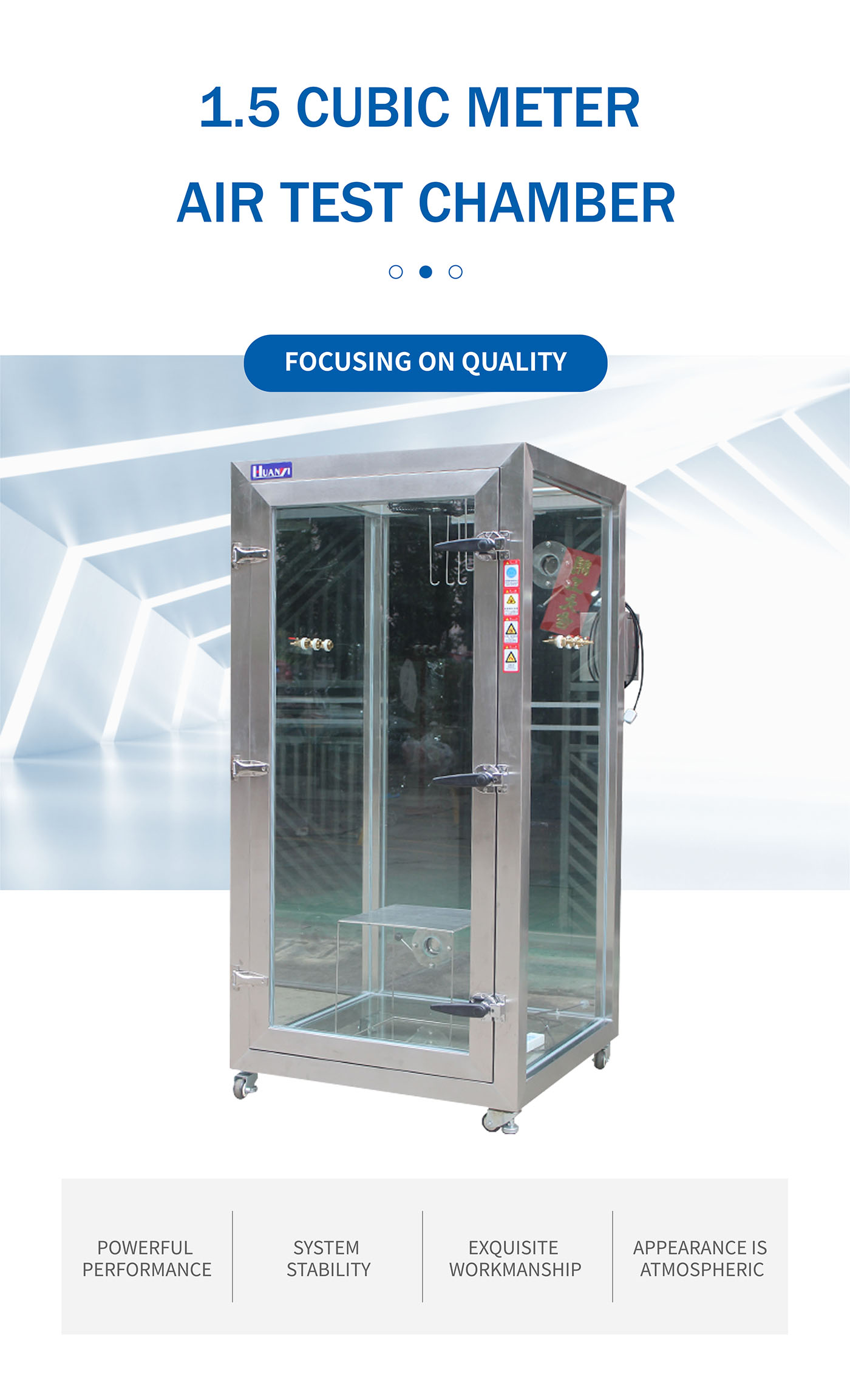

1.5 cubic meter air test chamber
Meet the standard
QB/T 2761-2006 "Determination method of purification effect of indoor air purification products"
GB/T 18883-2002 Air Indoor Quality Standards

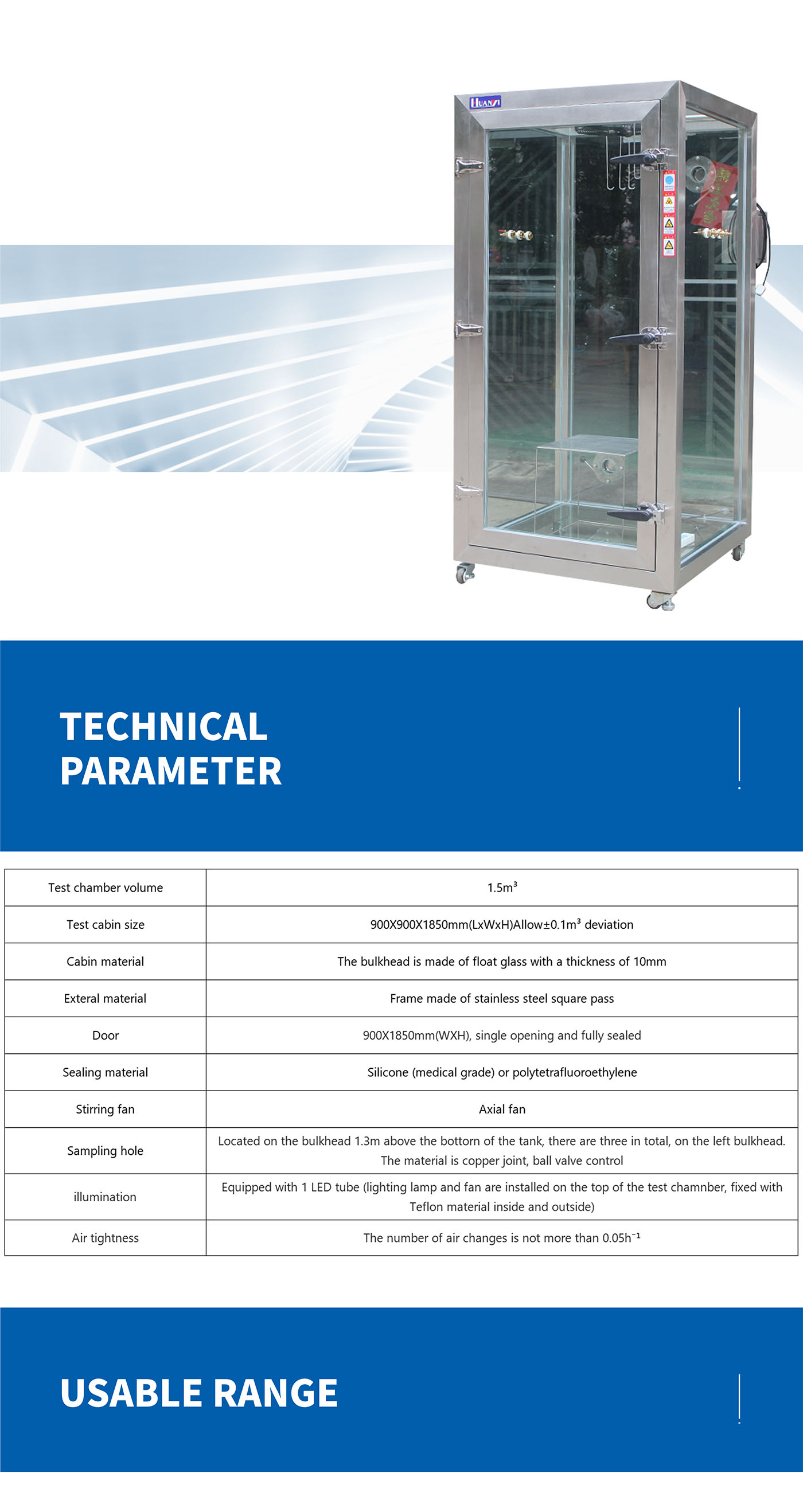

Technical parameters
|
Test chamber volume |
1.5m³ |
|
Test cabin size |
900X900X1850mm(LxWxH)Allow±0.1m³ deviation |
|
Cabin material |
The bulkhead is made of float glass with a thickness of 10mm |
|
Exteral material |
Frame made of stainless steel square pass |
|
Door |
900X1850mm(WXH), single opening and fully sealed |
|
Sealing material |
Silicone (medical grade) or polytetrafluoroethylene |
|
Stirring fan |
Axial fan |
|
Sampling hole |
Located on the bulkhead 1.3m above the bottorn of the tank, there are three in total, on the left bulkhead. The material is copper joint, ball valve control |
|
illumination |
Equipped with 1 LED tube (lighting lamp and fan are installed on the top of the test chamnber, fixed with Teflon material inside and outside) |
|
Air tightness |
The number of air changes is not more than 0.05h⁻¹ |
