Impact Test Machine

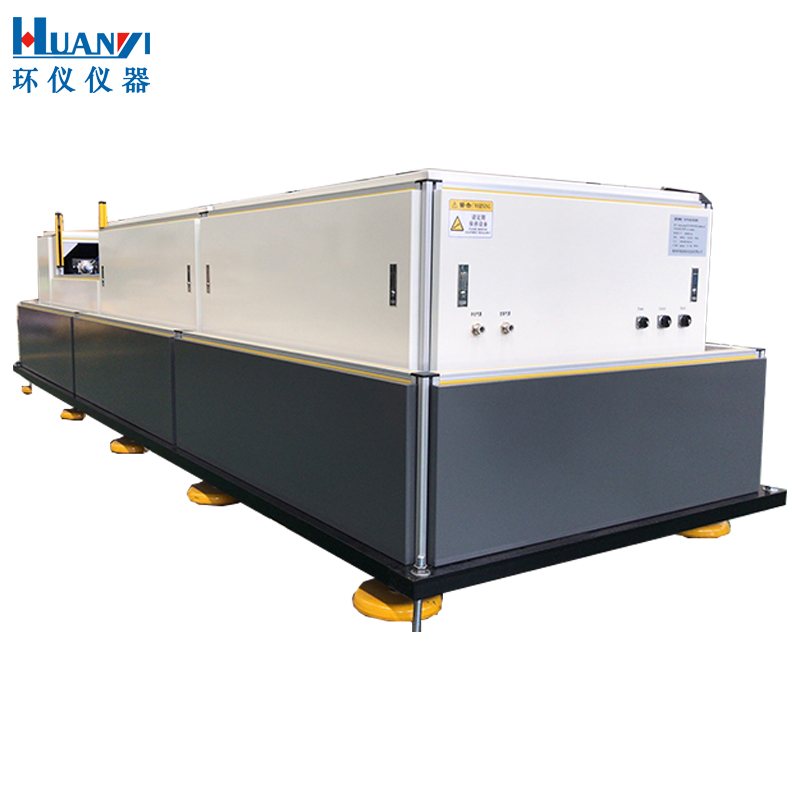

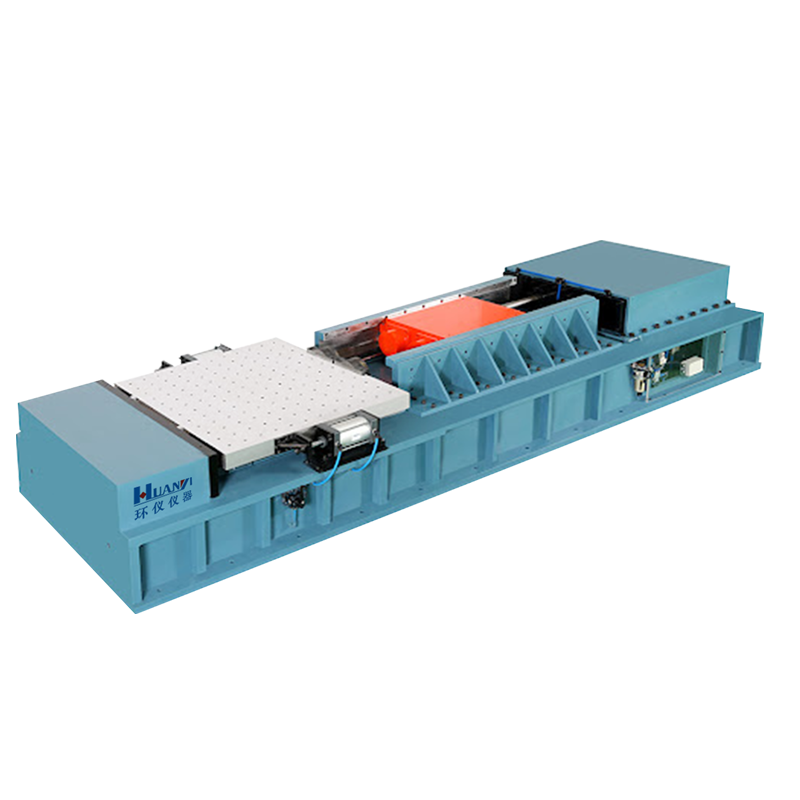

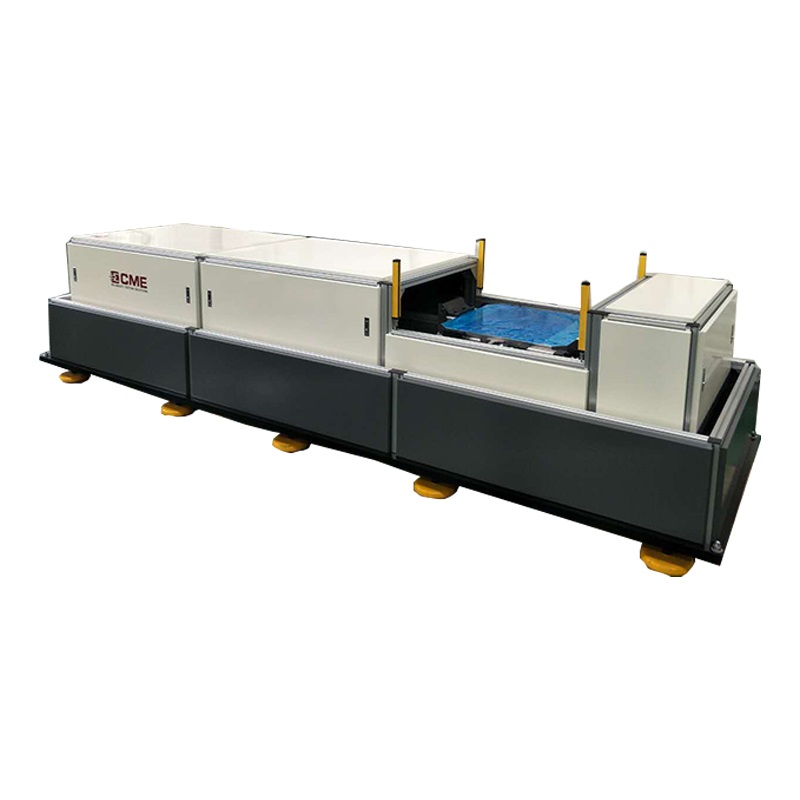

Aerodynamic Horizontal Impact Response Spectrum Tester
Product Description
Impact response spectrum is a series of different intrinsic frequency, by the same impact excitation response of the single degree of freedom linear system of the total results. When subjected to the same impact excitation, the interaction between the components of different intrinsic frequency will make the product undergo greater stress, more really simulate and reflect the response state of the product undergoes impact, so the impact response spectrum testing machine can be more realistic assessment of various types of products or packaging impact resistance, assessment of the reliability of the product in the impact environment and the integrity of the structure.
Technical parameters
|
Model |
HYCJ-50 |
HYCJ-100 |
HYCJ-200 |
HYCJ-500 |
HYCJ-1000 |
|
|
Load(kg) |
50 |
100 |
200 |
500 |
1000 |
|
|
Countertop dimensions(mm) |
500x500 |
600x600 |
800x800 |
1000x1000 |
1200x1200 |
|
|
Frequency range(Hz) |
10~10000 |
|||||
|
Max. acceleration(g) |
15000 |
12000 |
10000 |
8000 |
6000 |
|
|
Rise slope(dB/Otc) |
6~9 |
|||||
|
Tolerance range(tdB) |
±6~9 |
|||||
|
Overall dimensions(WxDxH) |
3700x1200x850 |
4000x1200x850 |
4300x1440x850 |
4500x1640x850 |
4700x1840x850 |
|
|
Installation conditions |
Environment |
Temperature 0~40℃; Humidity ≤80%RH. (Condensation-free) |
||||
|
Power supply |
AC220V±10V 50Hz |
|||||
|
Air source |
≤1MPa |
|||||
|
Site |
No foundation is required for installation, flat cement floor with a working passage of 0.8-1m around the equipment. |
|||||
|
Weight(kg) |
4000 |
5000 |
6000 |
7000 |
8000 |
|
|
Fulfil the criteria |
MIL-SID-810, GB/T2423, GJB150A |
|||||
