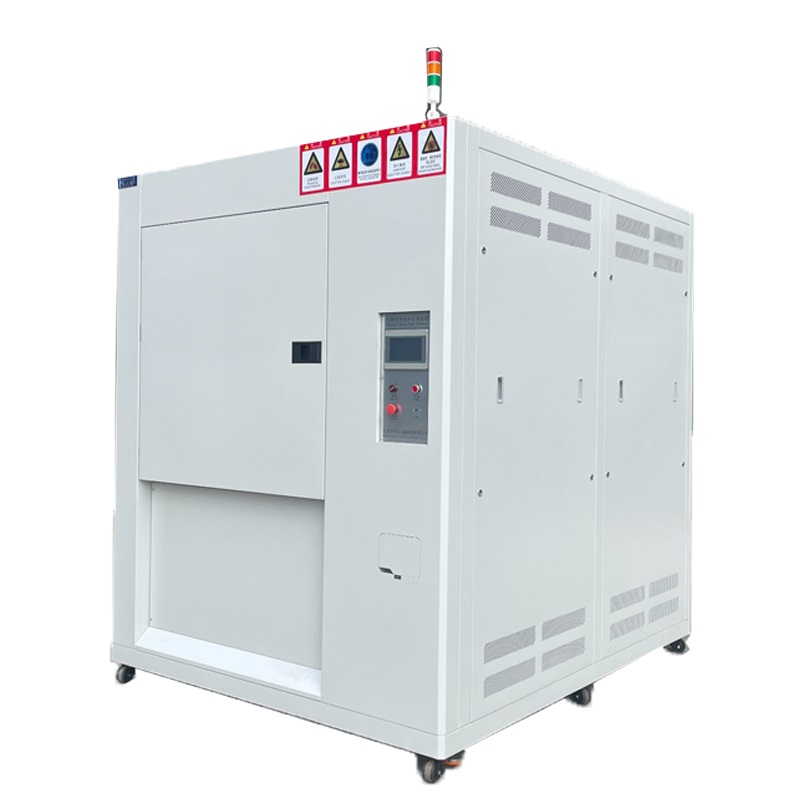

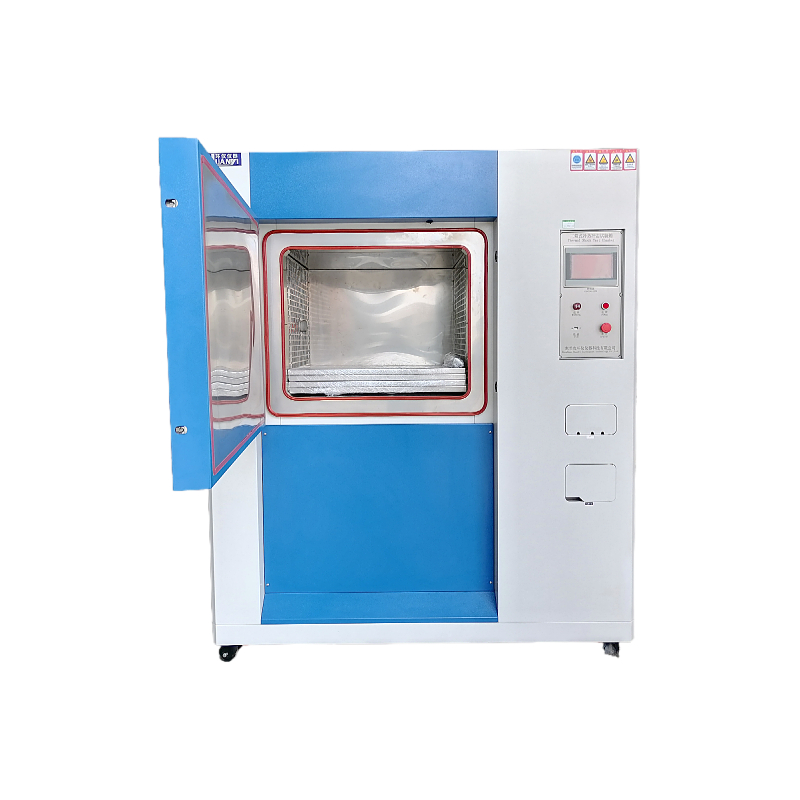

Air to Air Thermal Shock Chamber

Air to Air thermal shock chamber is designed and manufactured according to user requirements. It is suitable for high and low temperature shock tests of complete machines and parts of aviation, aerospace, military, shipbuilding, electrical, electronic and other products, as well as storage and testing in high or low temperature environments.

    Contact us
    product details
    product description

    Product Video

    applications

    Mainly used in aerospace, aviation, military units, electronics, and other industries for adaptability tests of test products under the conditions of rapid atmospheric temperature and humidity, and safety performance tests of electronic components, parts, and products (complete machines).

    meet the standard

    1. GB/T2423.1-1989 low temperature test method;
    2. GB/T2423.2-1989 high temperature test method;
    3. GB/T2423.22-1989 temperature change test;
    4. GJB150.5-86 temperature shock test;
    5. GJB360.7-87 temperature shock test;
    6. GJB367.2-87 405 temperature shock test.

    Description Of Product Features

    ① It uses a color Chinese and English LCD touch-screen graphic control interface, which is easy to operate.

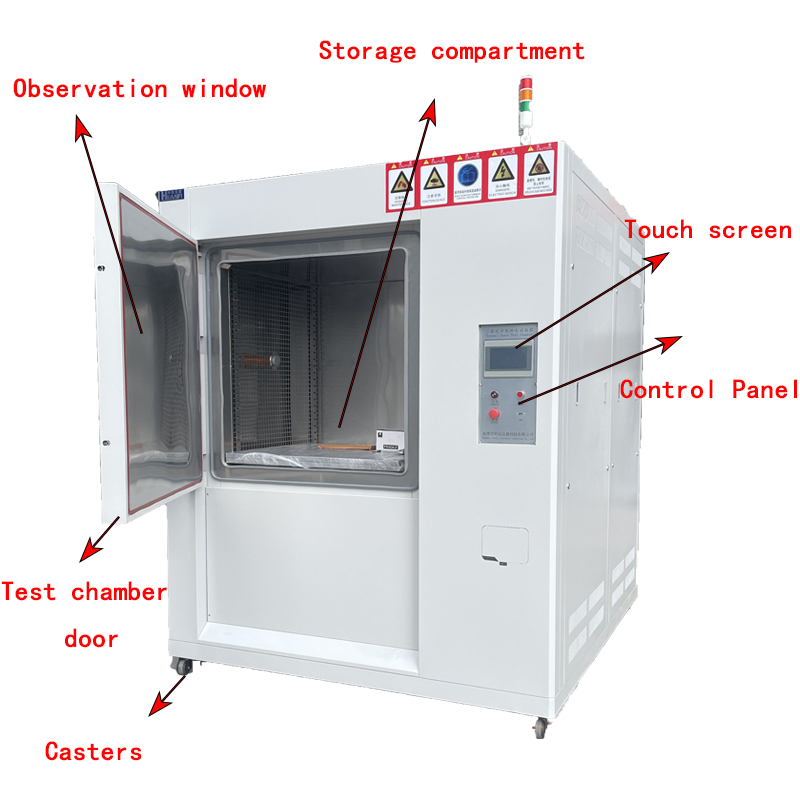

    ② The equipment is divided into three parts: high temperature zone, low temperature zone, and test zone. The cabinet of each zone adopts a unique thermal insulation structure.
    ③ The impact method uses the air path switching method to introduce the temperature into the test area for hot and cold impact tests.
    ④ When high temperature impact or low temperature impact, the maximum time can reach 9999 minutes, and the maximum cycle can reach 9999 times.
    ⑤ The system can be used for automatic cycle impact or manual selective impact, and can set two-zone or three-zone impact and cold impact and hot impact start.
    ⑥ The cooling adopts a binary refrigeration system, which has a fast cooling effect. The cooling method is air cooling or water cooling.
    ⑦ It can be connected to a computer, and the recorder is only an optional part .

    Technical Parameters

    Model

    HYTS

    80A

    80B

    100A

    100B

    150A

    150B

    252A

    252B

    448A

    448B

    1000A

    1000B

    Volume(L)

    80

    100

    150

    252

    448

    1000

    Internal size(WxHxD)cm

    40x50x40

    50x45x40

    50x60x50

    70x60x60

    80x70x80

    100x100x100

    External size (WxHxD)cm

    135x185x175

    145x180x165

    145x195x175

    182x213x217

    192x244x232

    195x235x225

    Temp change rate

     -45/-55/-65~150℃

    High temp zone range

     +60~200℃

    Low temp zone range

     -70~0℃

    Recovery time

    Temperature recovery time within 5 minutes

    High temp exposure time

    High temperature exposure for 30 minutes

    Low temp exposure time

    Low temperature exposure for 30 minutes

    Temp fluctuation

    ±0.5℃

    Temp departure

    ≤+2.0℃

    Temp uniformity

    ≤2.0℃

    Interior material

    SUS304 stainless steel

    External material

    High-grade steel paint treatment or SUS304 stainless steel

    Insulation material

    Germany Bayer refractory grade high strength PU polyurethane foam insulation material + ultra-fine glass fiber

    Refrigeration system

    Laminated semi-closed compressor, environmental protection R404A, R23 refrigerant

    Refrigerating method

    Air cold/Water cold

    Power

    AC 380V+10%, 50HZ, three-phase five-wire
