Air Filter Test Machine

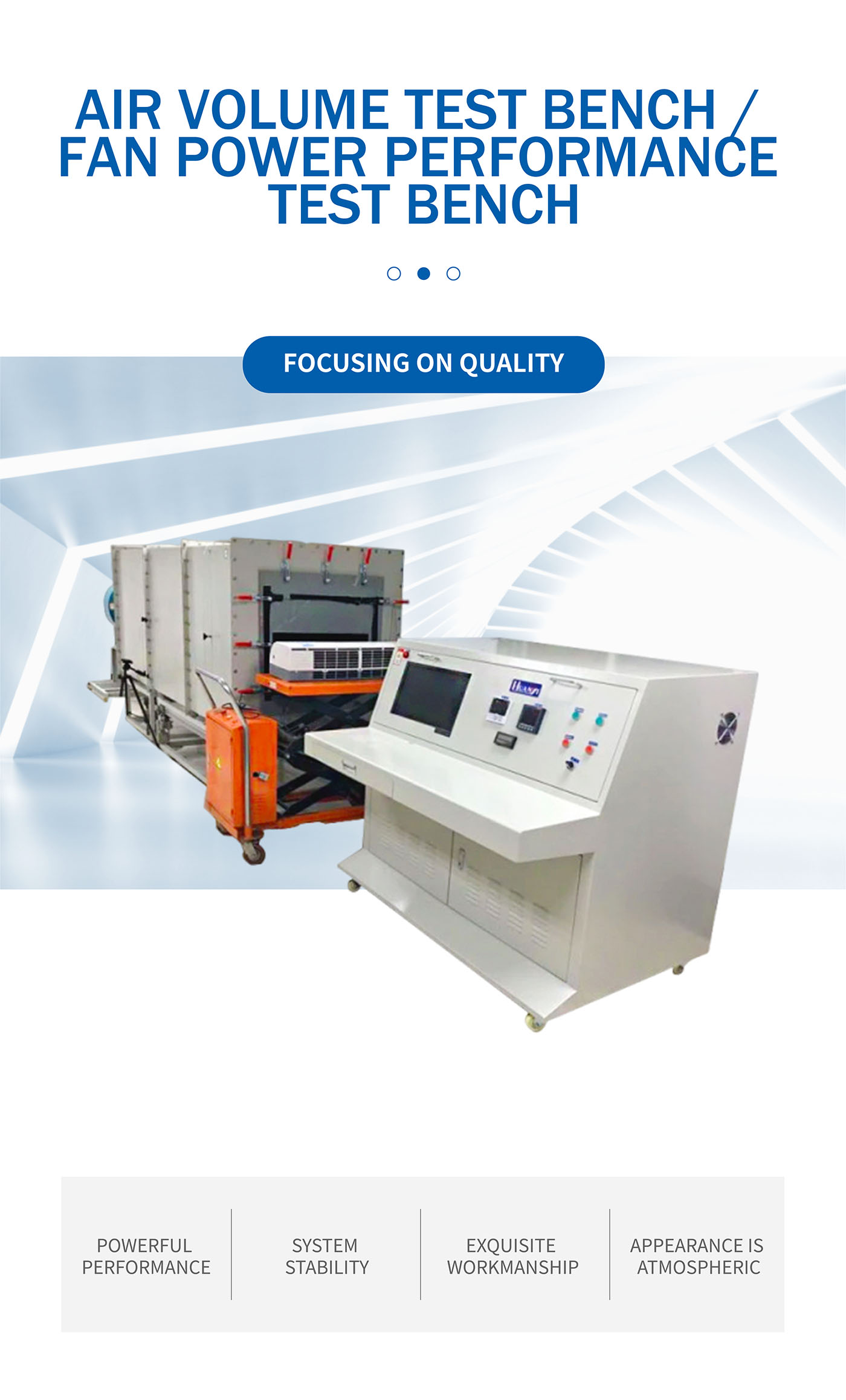

Air volume test bench / fan power performance test bench

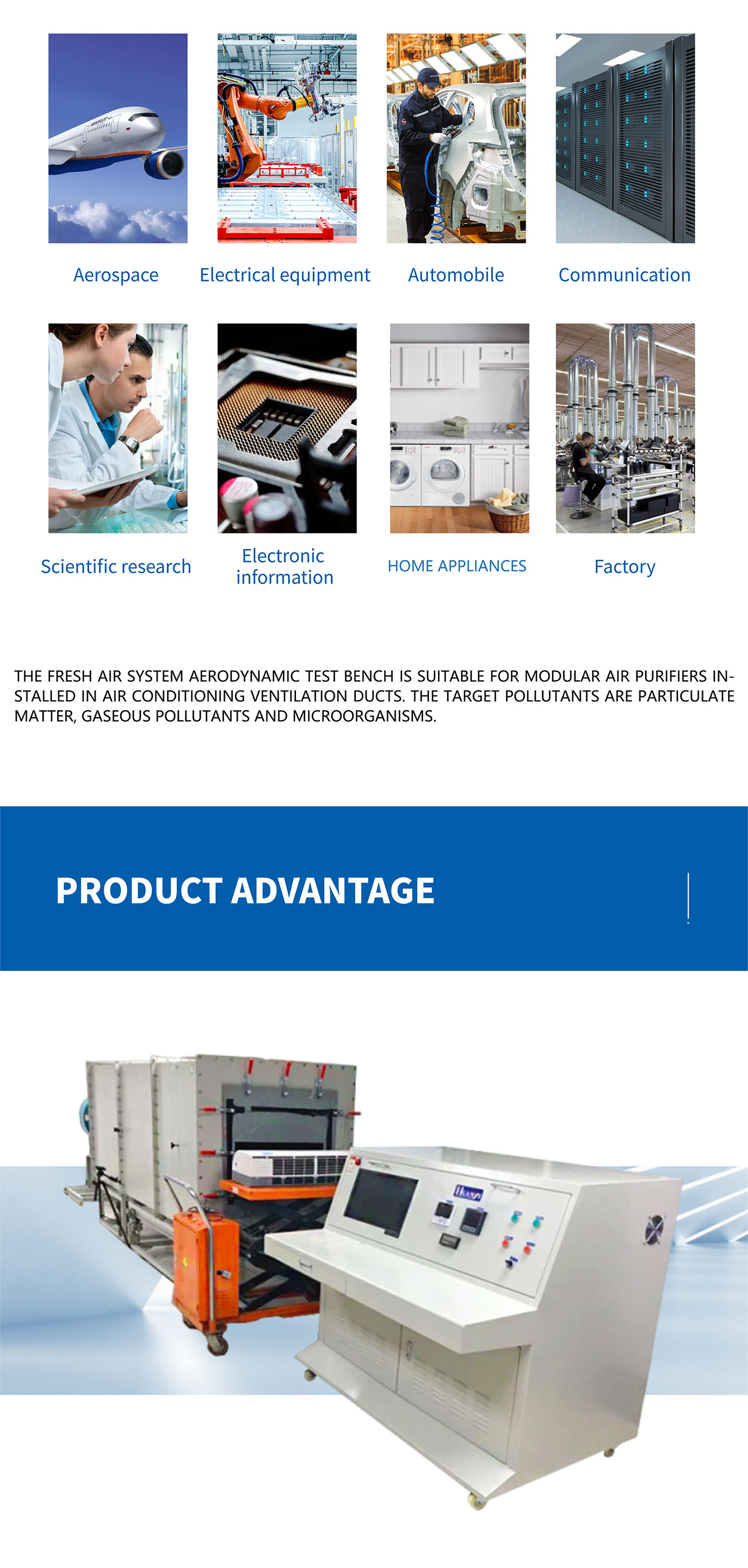

applications

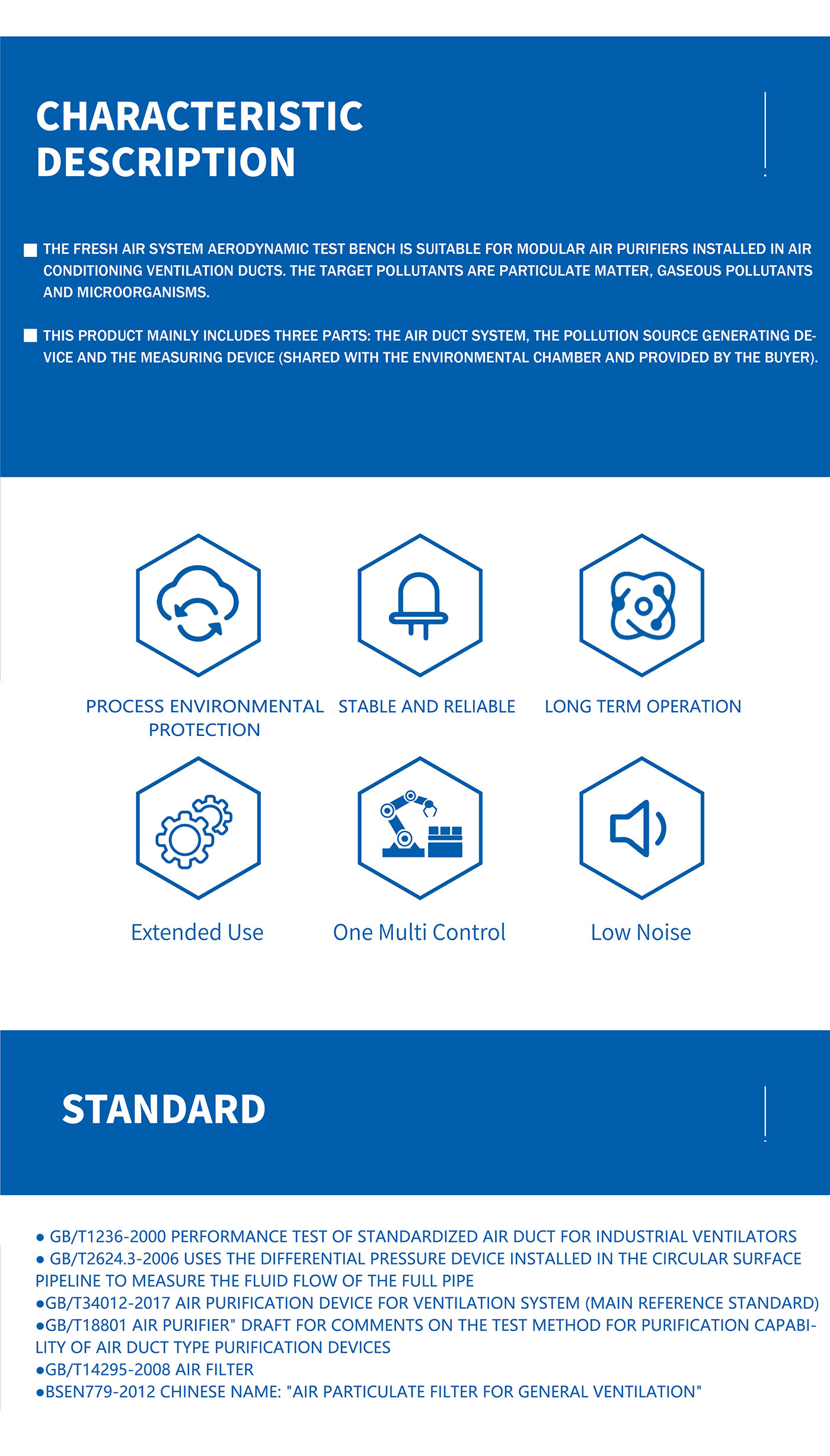

The purifier outlet air volume test bench is suitable for modular air purifiers installed in air conditioning ventilation ducts. The target pollutants are particulate matter, gaseous pollutants, and microorganisms. This product mainly includes: air duct system, pollution source generation device and measurement device (shared with the environmental chamber, provided by the buyer).
Meet the standards
● GB/T1236-2000 Industrial ventilators use standardized ducts for performance tests
● GB/T2624.3-2006 Measure the flow of fluid in a full pipe with a diffe rential pressure set installed in a circular carrying surface pipe
● GB/T14806-2003Household and similar AC ventilating fans and speed regulators
● IEC61591 Test Method for Range Hood Performance

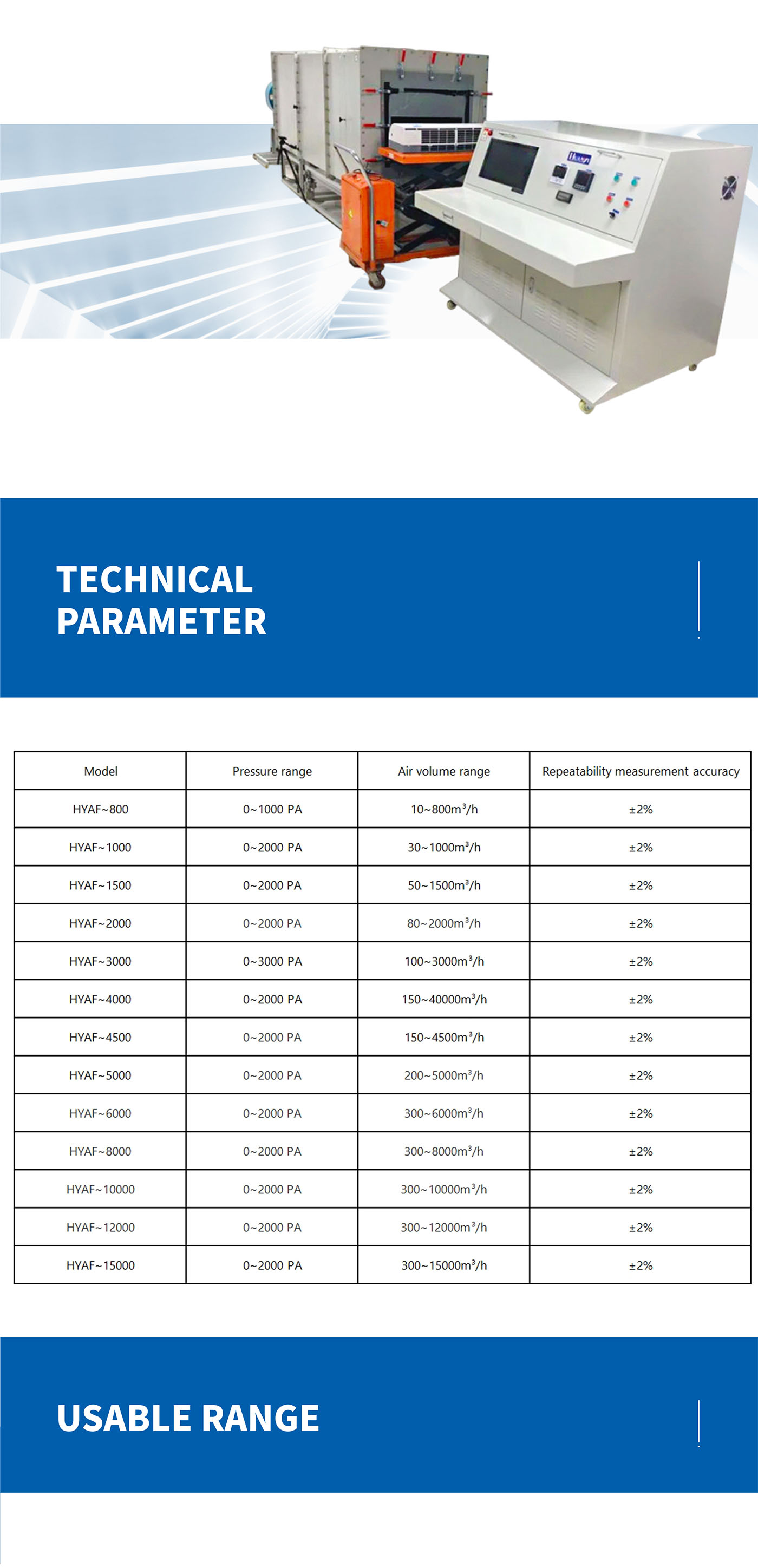

Technical parameters
|
Model |
Pressure range |
Air volume range |
Repeatability measurement accuracy |
|
HYAF~800 |
0~1000 PA |
10~800m³/h |
±2% |
|
HYAF~1000 |
0~2000 PA |
30~1000m³/h |
±2% |
|
HYAF~1500 |
0~2000 PA |
50~1500m³/h |
±2% |
|
HYAF~2000 |
0~2000 PA |
80~2000m³/h |
±2% |
|
HYAF~3000 |
0~3000 PA |
100~3000m³/h |
±2% |
|
HYAF~4000 |
0~2000 PA |
150~40000m³/h |
±2% |
|
HYAF~4500 |
0~2000 PA |
150~4500m³/h |
±2% |
|
HYAF~5000 |
0~2000 PA |
200~5000m³/h |
±2% |
|
HYAF~6000 |
0~2000 PA |
300~6000m³/h |
±2% |
|
HYAF~8000 |
0~2000 PA |
300~8000m³/h |
±2% |
|
HYAF~10000 |
0~2000 PA |
300~10000m³/h |
±2% |
|
HYAF~12000 |
0~2000 PA |
300~12000m³/h |
±2% |
|
HYAF~15000 |
0~2000 PA |
300~15000m³/h |
±2% |
