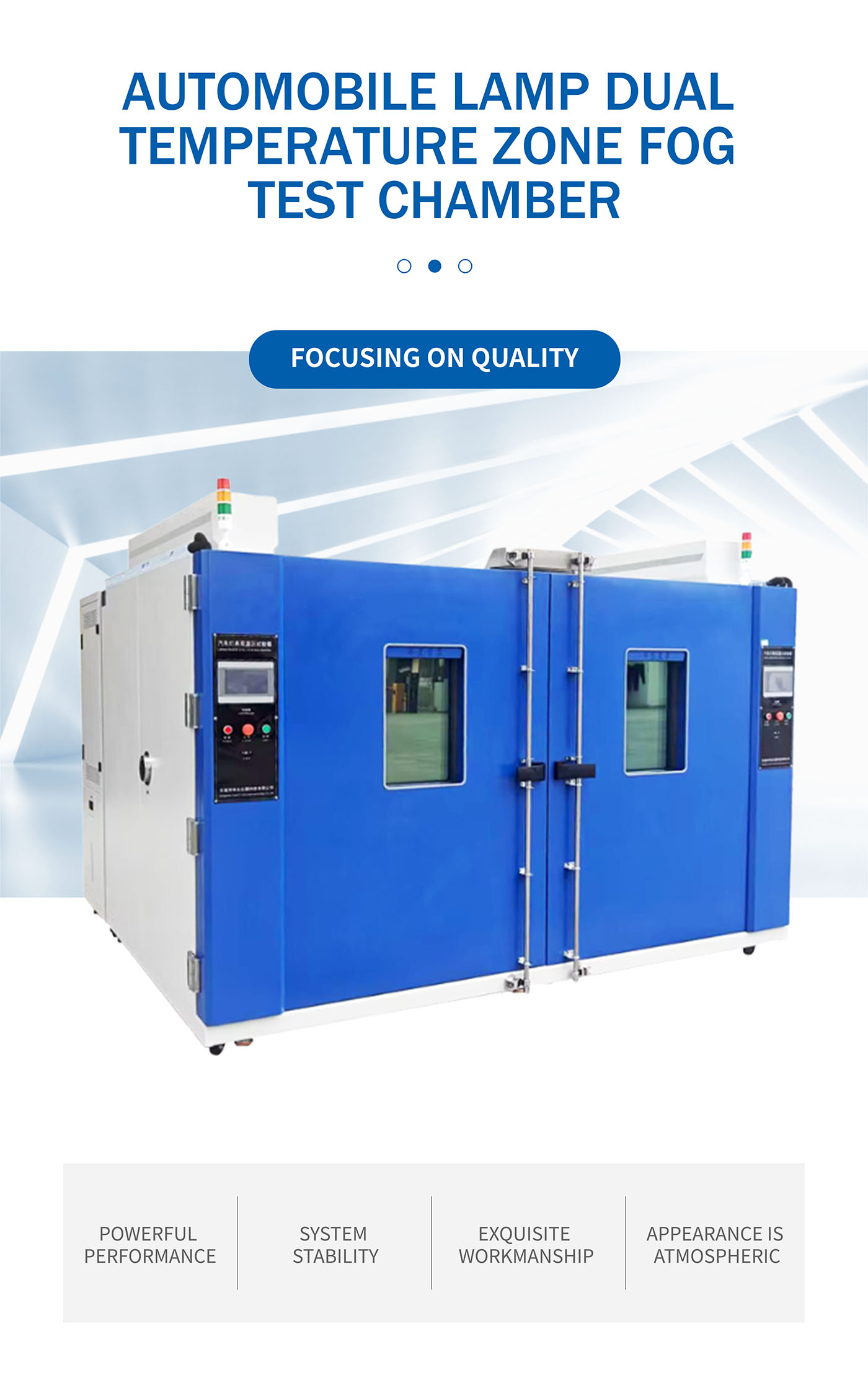

Automobile lamp dual temperature zone fog test chamber

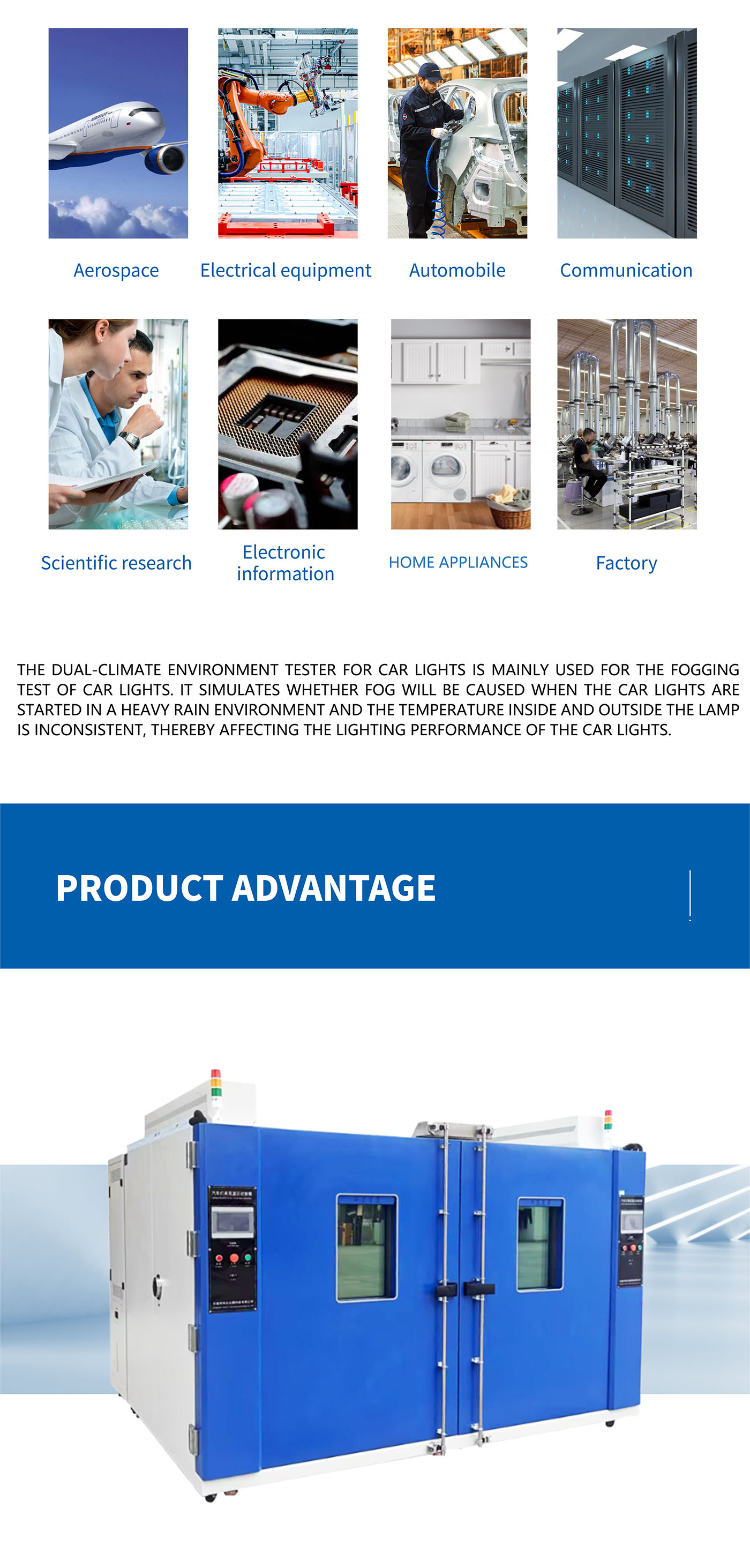

The dual-climate environment tester for car lights is mainly used for the fogging test of car lights. It simulates whether fog will be caused when the car lights are started in a heavy rain environment and the temperature inside and outside the lamp is inconsistent, thereby affecting the lighting performance of the car lights.

Temperature range -50℃~+150℃(left and right zones)
Humidity range 10%~98%R.H(left and right zones)
Temperature and humidity resolution 0.01℃/0.1%
Temperature and humidity fluctuation ≤±0.5℃/≤±3%RH

product details

product description

Video

Product Description

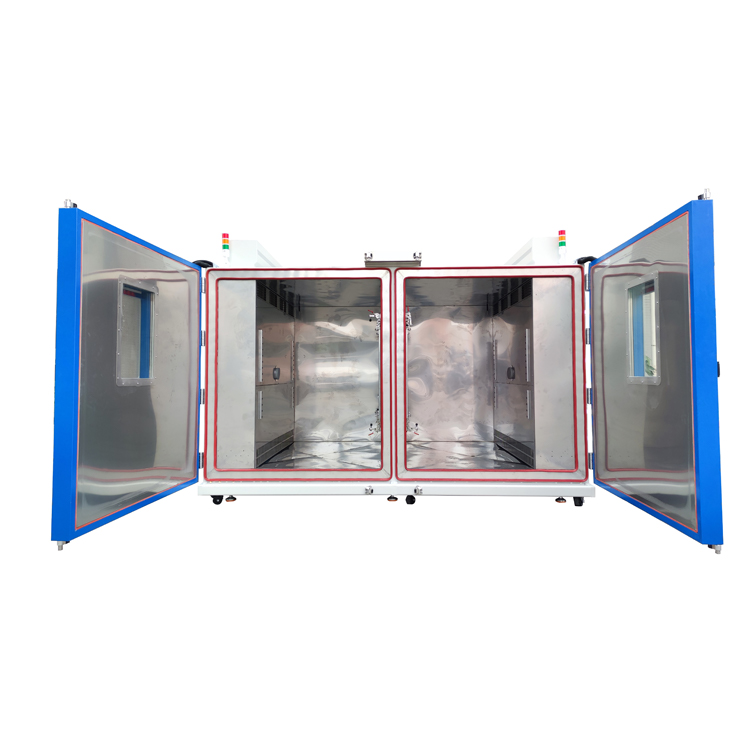

The dual-zone test chamber is a device specially designed to simulate the fogging of automotive lamps under different temperature and humidity conditions. The main structural features of the test chamber include two independent temperature zones, which simulate the temperature and humidity conditions of the surface (outdoor environment) and back (engine environment) of the automotive lamp respectively.

The main structural features of the test chamber include two independent temperature zones, which simulate the temperature and humidity conditions on the surface (outdoor environment) and back (engine environment) of the car lamp. By precisely controlling the temperature and humidity of each temperature zone, the test chamber can simulate a variety of complex actual use environments, thereby comprehensively evaluating the anti-fogging performance of car lamps.

Standard

Article 16 of the draft for comments on GB/T 10485 "Environmental durability of external lighting and light signal devices for road vehicles" completes the fog test project

Geely Automobile Q/JLYJ7110230E-2020 Technical requirements for passenger car headlights and front fog lights 5.8 Dual temperature box fog verification requirements

Geely Automobile Q/JYJ7110231C-2019 Technical requirements for passenger car signal lights 5.10 Fog verification test
SAIC General Motors GMW14906 APR2007 Lighting Category-Development Confirmation Test
Toyota Motors TSC3000G Headlight Environmental Reliability Test 4.4.6 Headlamp Fog Test.

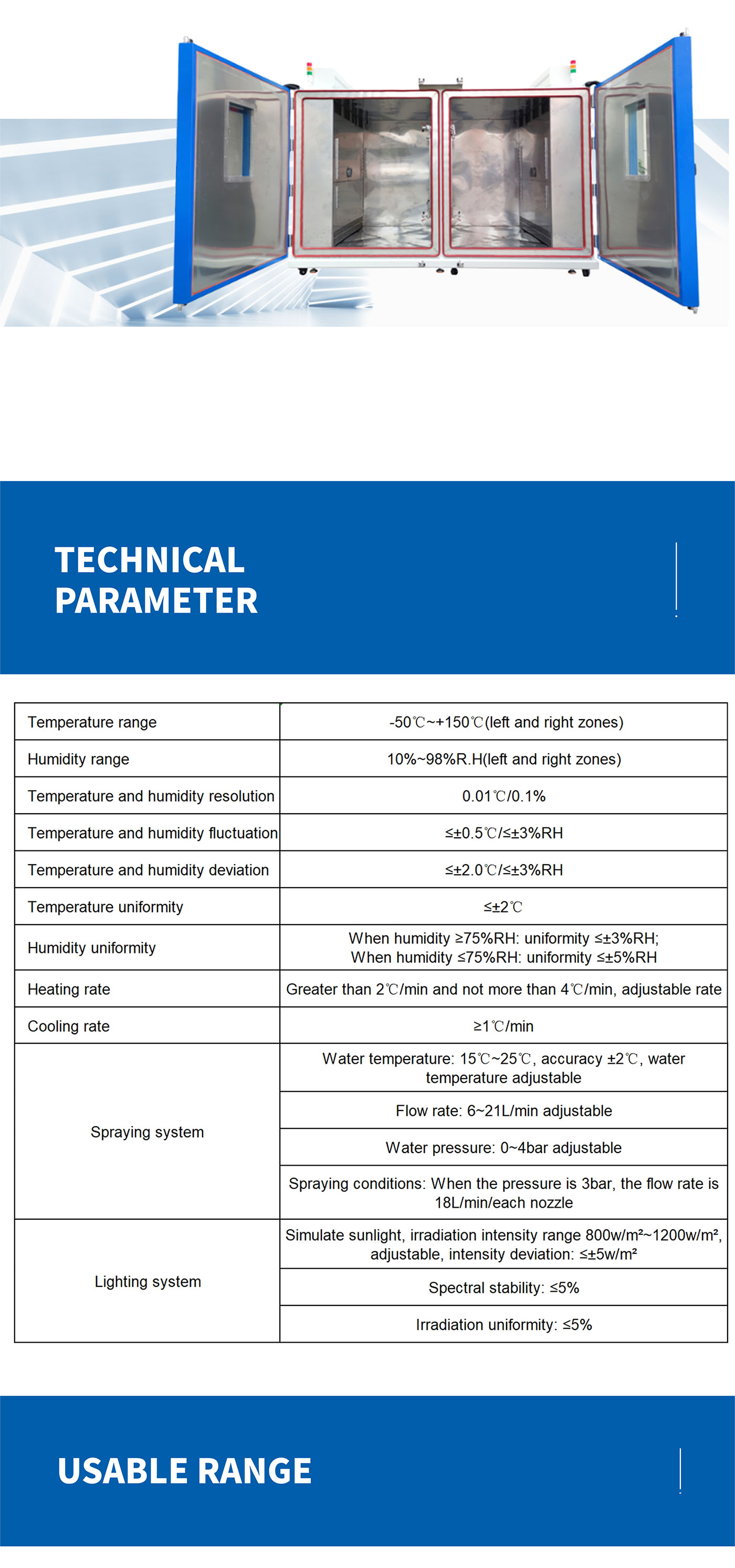

Technical parameters

Temperature and humidity resolution	0.01℃/0.1%
Temperature and humidity fluctuation	≤±0.5℃/≤±3%RH
Temperature and humidity deviation	≤±2.0℃/≤±3%RH
Temperature uniformity	≤±2℃
Humidity uniformity	When humidity ≥75%RH: uniformity ≤±3%RH; When humidity ≤75%RH: uniformity ≤±5%RH
Heating rate	Greater than 2℃/min and not more than 4℃/min, adjustable rate
Cooling rate	≥1℃/min
Spraying system	Water temperature: 15℃~25℃, accuracy ±2℃, water temperature adjustable
	Flow rate: 6~21L/min adjustable
	Water pressure: 0~4bar adjustable
	Spraying conditions: When the pressure is 3bar, the flow rate is 18L/min/each nozzle
Lighting system	Simulate sunlight, irradiation intensity range 800w/m²~1200w/m², adjustable, intensity deviation: ≤±5w/m²
	Spectral stability: ≤5%
	Irradiation uniformity: ≤5%
