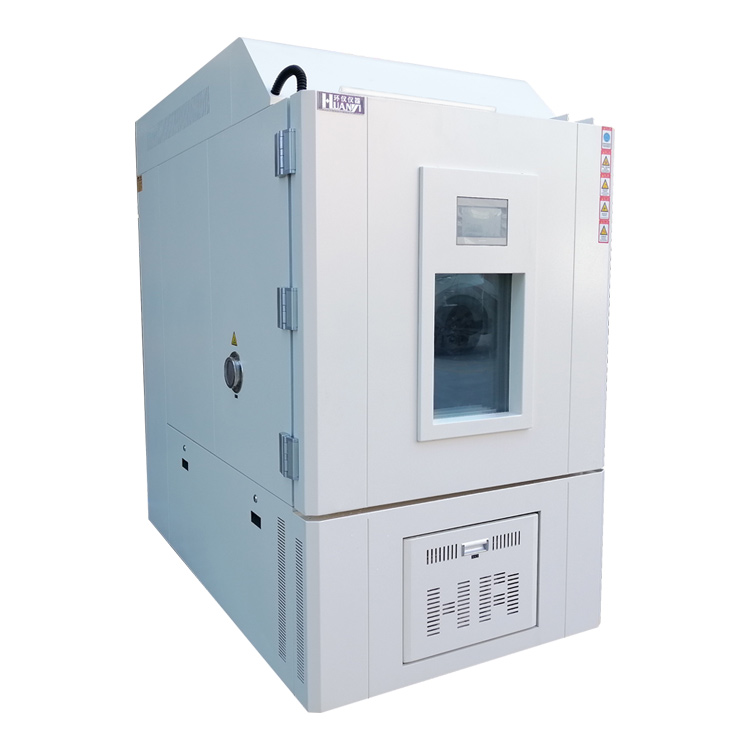

Biological Mold Culture Test Chamber
Product Description
Mold incubators are suitable for scientific research, colleges and production departments such as environmental protection, health and epidemic prevention, drug testing, agricultural livestock, and aquatic products. It is a special constant temperature equipment for water analysis and BOD determination, culture and preservation of bacteria, molds and microorganisms, plant cultivation and breeding experiments.
Applicable standards
GB10586-89 Technical conditions for heat and humidity test chamber.
GB2423.1-2001 Test A High Temperature Test Method.
GB2423.3-93 Test Ca Constant Damp Heat Test Method.
GB2423.16-93 Test method for mold growth.
Technical parameters
|
Time setting range |
1~60000M |
|
Humidity uniformity |
+2%-3% RH |
|
Humidity fluctuation |
±2% |
|
Heating rate |
1.0~3.0℃/min |
|
Cooling rate |
0.7~1.0℃/min |
|
Wind speed |
≤1m/s |
|
Best growth environment |
Temperature: 25℃~29℃ Humidity: 95% |
|
Mold growth time |
About 4~6H |
|
Test hole |
The left side of the machine is used for external test power line or signal line |
|
Observation window |
210x275mm or 395x395mm (effective field of view) |
|
Outer box material |
High-quality A3 steel plate electrostatic spraying |
|
Inner box material |
Imported high-grade stainless steel SUS304 |
|
Insulation material |
Hard polyurethane foam + glass fiber |
|
Temperature and humidity controller |
Original imported brand temperature and humidity meter |
|
Temperature and humidity sensor |
PT100 platinum resistance temperature sensor |
|
Cooling method |
Single machine cooling |
Product Details Diagram
