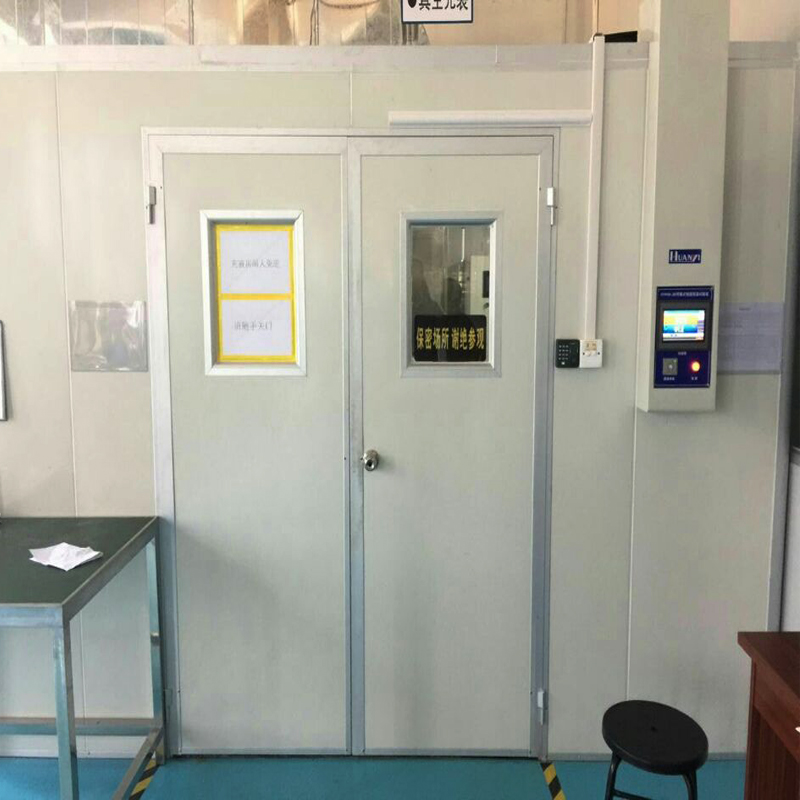

Burn-in Environmental Test Chamber High Temperature Aging System

Aging room (burning room) is a device for simulating high temperature and harsh environment testing for high-performance electronic products (such as: computer, display, terminal, power supply, motherboard, monitor, exchange charger, etc.). It is an important production process for manufacturers to improve product quality and competitiveness. This equipment is widely used in electronics, computers, communications, biopharmaceuticals and other fields.

GB/T 2423.2-2001 "Environmental testing of electrical and electronic products" Part 2: Test methods Test B: High temperature
GB/T 3797-2005 "Electrical Control Equipment"
JB/T 6174-1992 "Instrument function circuit board aging process specification"
GB/T11158-2008 "Technical conditions for high temperature test chamber"

The product area and load area are isolated, and split loads are used to facilitate maintenance and temperature control.
Temperature range: 40~70℃, ±3℃/±5℃
Accuracy:±0.5℃
Temperature uniformity:±5℃&±3℃
Test frame material: painted or formed aluminum combination
Thermal insulation: Use PU foam (double-glazed door) for thermal insulation, so that the internal temperature is not affected by external factors and achieves power saving effect.
The products are placed in layers, and the height between layers is selected according to requirements, making it easy to pick and place.
A computer monitoring system can be installed according to customer requirements. Noise control:<75dB
