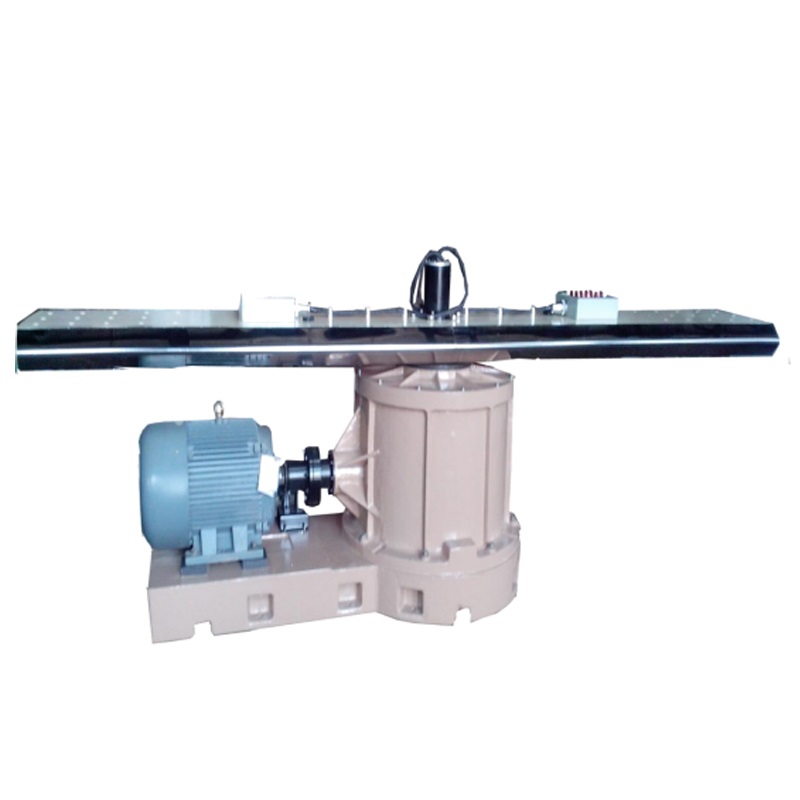

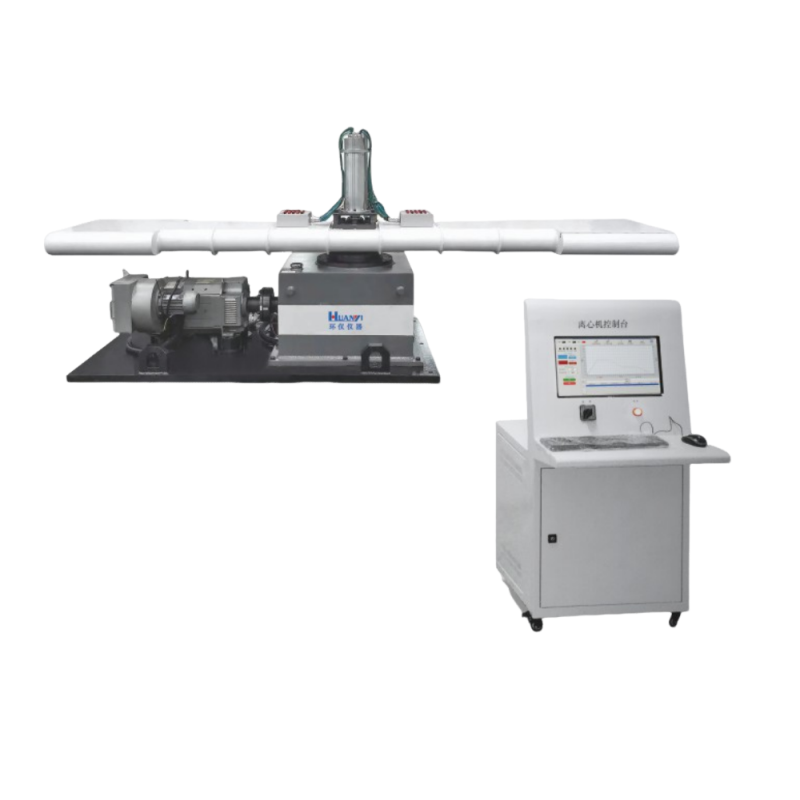

Centrifugal Constant Acceleration Testing Machine (Rotary Arm Type)
Characteristic description
Strong load-bearing capacity: The rotating arm centrifugal constant acceleration tester has a high load-bearing capacity.
Multi-stage acceleration test: The equipment can realize multi-stage acceleration test, can simulate different acceleration changes, and is suitable for testing the performance of components under different acceleration conditions.
Automatic control: The rotating arm centrifugal constant acceleration tester is usually equipped with a computer real-time control system, which can automatically generate a test report.
Protection function: The equipment also has open circuit, over-limit, and overspeed protection functions to ensure the safety of the test process.
Application scenario: It is mainly used to test components installed on aircraft and missiles. These components must withstand the effect of steady-state acceleration stress in the use environment and need to undergo steady-state acceleration tests.
Technical parameters
|
Model |
HYZD-20 |
HYZD-50 |
HYZD-100 |
HYZD-200 |
HYZD-500 |
HYZD-1000 |
|
|
Max. load per side(kg) |
20 |
50 |
100 |
200 |
500 |
1000 |
|
|
Acceleration(m/s²) |
30-1000 |
30-1000 |
30-1000 |
30-2000 |
30-500 |
30-500 |
30-500 |
|
Max. dimensions of test sample(WXDXH)mm |
200x200x200 |
300x300x200 |
450x450x400 |
700x700x700 |
1000x1000x1000 |
||
|
Calculation radius for specimen center installation(mm) |
600 |
750 |
7500 |
2500 |
3000 |
3500 |
|
|
Start-up time(mins) |
≤5 |
≤8 |
≤10 |
||||
|
Continuous working time(mins) |
60 |
30 |
|||||
|
Power supply and consumption |
AC380V 10KVA |
AC380V 40KVA |
AC380V 40KVA |
AC380V 55KVA |
AC380V 120KVA |
AC380V 250KVA |
|
|
Power connection device |
30 rings 500V 5A |
||||||
|
Overall dimensions (LXWXH)(mm) |
1800X1500X1200 |
Ф2500X1400 |
Ф4000x1400 |
Ф6000X1600 |
Ф7000X1600 |
Ф8000X1800 |
|
|
Dimensions of control cabinet(WXDXH)mm |
850X1000X1300 (Inverter cabinet 100kg or less: 600X600X1800, more than 100kg: 1200X600X2100) |
||||||
|
Weight(kg) |
800 |
2800 |
3000 |
3500 |
6000 |
8000 |
10000 |
|
Control system |
Industrial computer control |
||||||
|
Satisfy requirements |
MIL-STD-202F, MIL-STD-810F, MIL-STD-883C, IEC68-2-27, GJB150, GJB360, GJB548, GB/T423 |
||||||
|
Remarks |
The power connection device can be configured according to user requirements, the arm size can be manufactured according to the user's test product size in accordance with relevant standards, and the foundation map will be provided to the user separately |
||||||
