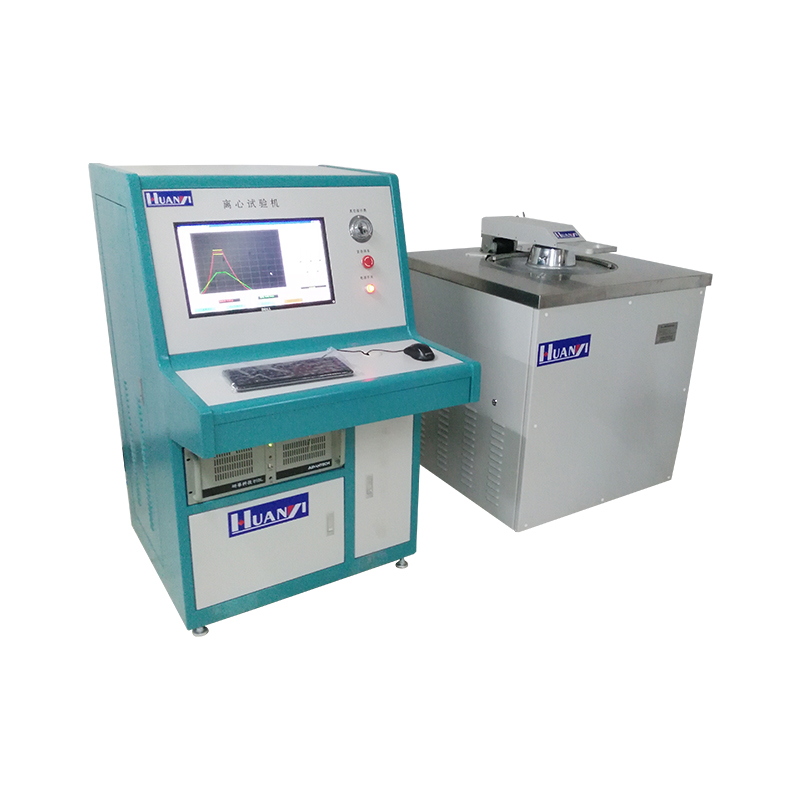

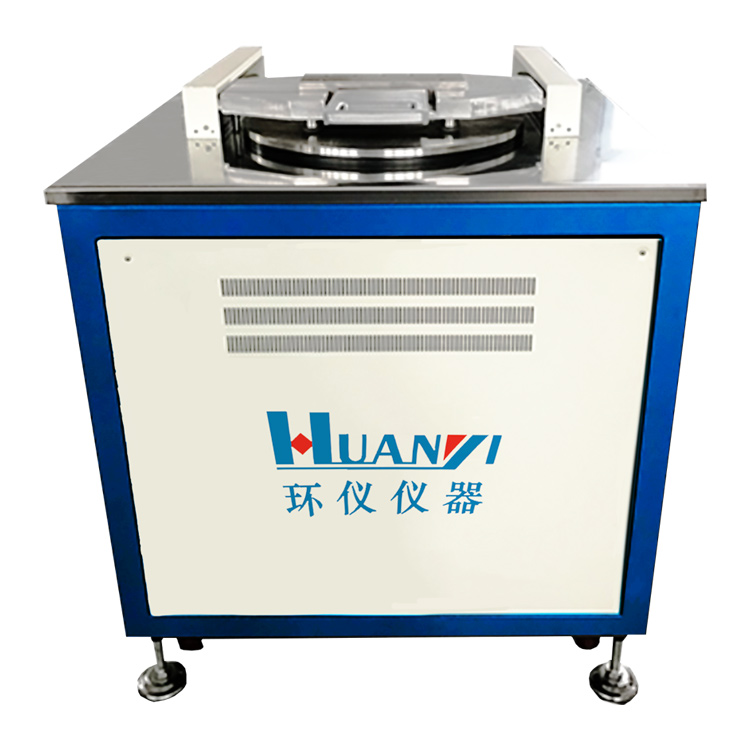

Centrifugal Constant Acceleration Testing Machine (Rotary Table Type)
Features
High-precision control: Rotating disc centrifugal constant acceleration testing machines are usually equipped with advanced control systems that can achieve fully automatic computer remote real-time control.
Versatility: The equipment can perform multi-order acceleration continuous tests and is suitable for test scenarios with different requirements.
Protection measures: It has reliable protection measures such as open circuit, over-limit, and overspeed protection to ensure the safety of the test process.
Result output: After the test, the system will automatically generate a test report and print it out, which is convenient and fast.
Dynamic electrical parameter test: During the test, the tested product can be powered and an electrical signal can be applied to capture the dynamic electrical parameters of the test product.
Technical parameters
|
Model |
HYZP-3 |
HYZP-5 |
HYZP-10 |
HYZP-20 |
HYZP-005 |
HYZP-004 |
HYZP-003 |
|
Max. load(kg) |
3 |
5 |
10 |
20 |
0.05 |
0.04 |
0.03 |
|
Total load(kg) |
15 |
20 |
20 |
40 |
0.5 |
0.4 |
0.3 |
|
Acceleration(m/s²) |
30~2000 |
30~2000 |
50~1000 |
50~1000 |
5000~200000 |
5000~400000 |
5000~800000 |
|
Permitted height of the specimen(mm) |
200 |
200 |
300 |
300 |
300 |
300 |
300 |
|
Direction of test specimen |
x, y, z three directions respectively |
x, y, z three coordinates six directions |
|||||
|

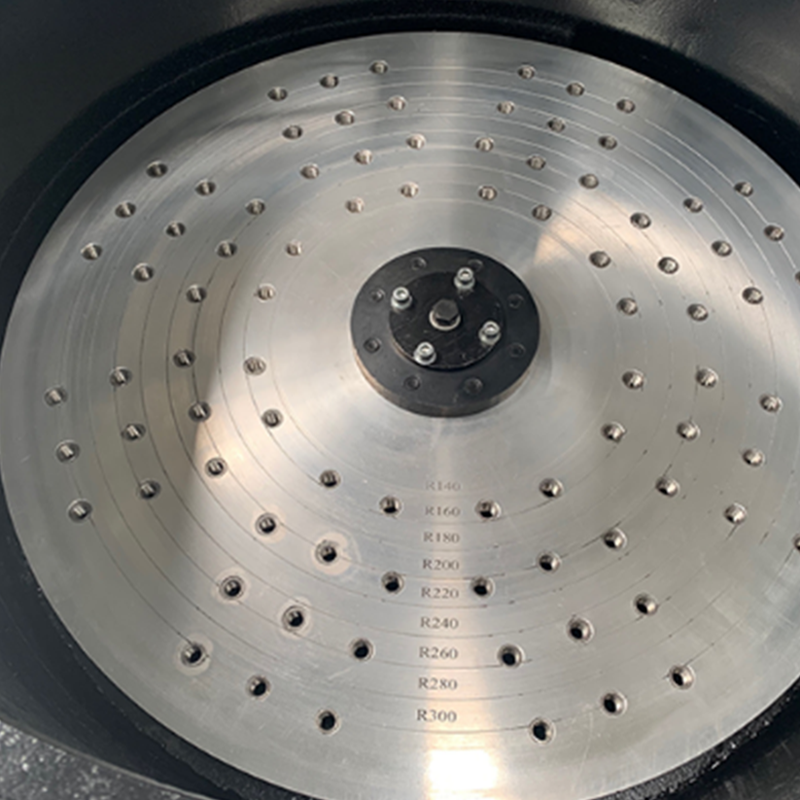

Calculation of the mounting radius of the specimen centre on the turntable(mm) |
200 |
200 |
750 |
750 |
100 |
80~100 |
|
|
Start-up time(mins) |
≤3 |
≤4 |
≤3 |
≤3 |
≤4 |
≤5 |
≤5 |
|
Continuous working time(mins) |
60 |
60 |
60 |
60 |
30 |
5 |
5 |
|
Power supply and consumption |
AC 380V 1.5KVA |
AC 380V 5KVA |
AC 380V 4KVA |
AC 380V 6.5KVA |
|||
|
Overall dimensions(LXWXH)(mm) |
924X910X1242 |
1953x470x993 |
800x800x800 |
||||
|

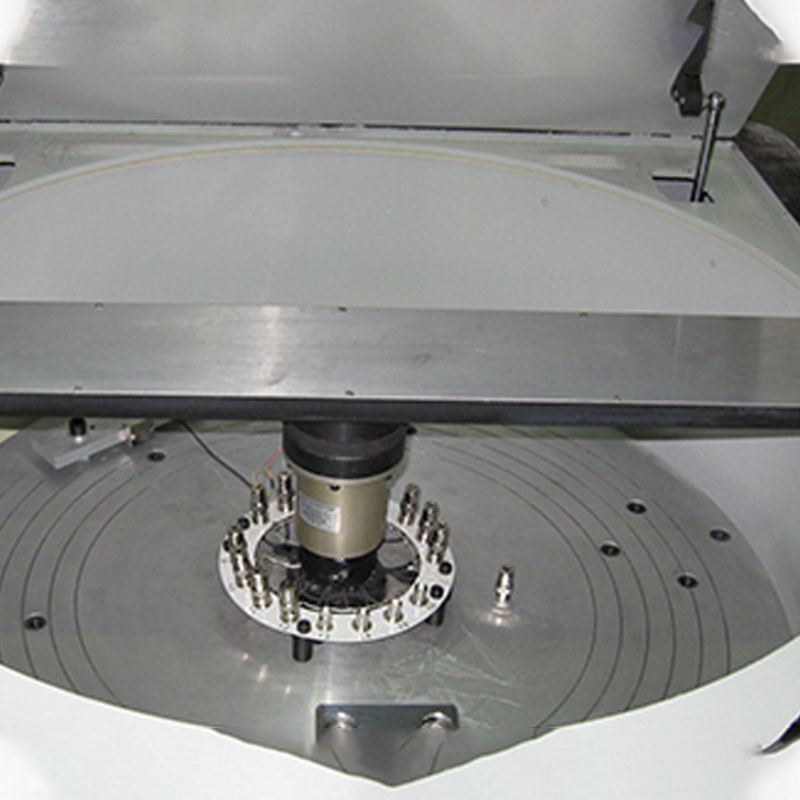

Power supply device |
15 rings 500V 5A |
12 rings 500V5A |
|||||
|
Weight(kg) |
1500 |
1700 |
2300 |
2300 |
2500 |
1500 |
1000 |
|
Control system |
Industrial computer control |
||||||
|
Fulfil the criteria |
MIL-STD-810F, MIL-STD-202F, MIL-STD-883C, IEC60068-2-7, GB/T2423, GJB150, GJB360 |
||||||
|
Remarks |
Electrical connection device and control accuracy can be configured according to relevant standards or user requirements |
||||||
