Comprehensive Drug Stability Test Chamber
Product Description
The drug stability test chamber is used for intensive research in the pharmaceutical industry, medicine, biotechnology industry and all related industries including life sciences. It is the main test equipment in the field of stability test systems in the pharmaceutical industry, mainly simulating temperature, humidity and light tests in environmental climates.
Meet the new version of the drug stability test guidelines：
1.Long-term test: 25℃±2℃/60%RH±5%RH, or 30℃±2℃/65%RH±5%RH (placed for 12 months)
2.Accelerated test: 40℃±2℃/75%RH±5%RH, or 30℃±2℃/65%RH±5%RH (placed for 6 months)
3.Strong light irradiation test: 4500±500LX (placed for 11 days)
4.Meet the irradiation test requirements of Q1B in ICH; total illumination ≥1.2*10^6LUX.hr
5.Near-ultraviolet energy ≥200W.hr/㎡
Meet the new version of the drug stability test guidelines：
1.Long-term test: 25℃±2℃/60%RH±5%RH, or 30℃±2℃/65%RH±5%RH (placed for 12 months)
2.Accelerated test: 40℃±2℃/75%RH±5%RH, or 30℃±2℃/65%RH±5%RH (placed for 6 months)
3.Strong light irradiation test: 4500±500LX (placed for 11 days)
4.Meet the irradiation test requirements of Q1B in ICH; total illumination ≥1.2*10^6LUX.hr
5.Near-ultraviolet energy ≥200W.hr/㎡
Features
1. Programmable touch screen temperature and humidity controller, PID automatic adjustment function. ( 99 cycles * 30 segments * 1 ~ 9999 hours or minutes )
2. Fully imported industrial compressor with environmentally friendly fluorine-free refrigerant (R404a) to promote energy saving.
3. Imported low noise roller fan and unique air duct design to ensure even temperature and humidity distribution in the working chamber.
4. Bypass cooling capacity control technology and dynamic precision constant temperature and humidity control system ensure uninterrupted and reliable operation for a long time.
5. Built-in quick mixing device: automatically adjust the height of the water level, with alarm function, to ensure stable humidification capacity and long time reliable operation.
6. Imported high temperature and high humidity resistant sensor, high sensitivity, resulting in small error, avoiding high frequency replacement of dry and wet balls.
7. The LHH series has a print function (data printing) and a USB interface (data backup) to print and record changes in temperature and humidity in real time. (Already fitted)
8. Set up an independent temperature-limiting alarm system, which is automatically interrupted when the temperature exceeds the limiting temperature to ensure the safe operation of the experiment without accidents. (Already equipped)
9. 25mm diameter test hole on the left side of the chamber, convenient for experimental operation and temperature measurement. (Already equipped)
2. Fully imported industrial compressor with environmentally friendly fluorine-free refrigerant (R404a) to promote energy saving.
3. Imported low noise roller fan and unique air duct design to ensure even temperature and humidity distribution in the working chamber.
4. Bypass cooling capacity control technology and dynamic precision constant temperature and humidity control system ensure uninterrupted and reliable operation for a long time.
5. Built-in quick mixing device: automatically adjust the height of the water level, with alarm function, to ensure stable humidification capacity and long time reliable operation.
6. Imported high temperature and high humidity resistant sensor, high sensitivity, resulting in small error, avoiding high frequency replacement of dry and wet balls.
7. The LHH series has a print function (data printing) and a USB interface (data backup) to print and record changes in temperature and humidity in real time. (Already fitted)
8. Set up an independent temperature-limiting alarm system, which is automatically interrupted when the temperature exceeds the limiting temperature to ensure the safe operation of the experiment without accidents. (Already equipped)
9. 25mm diameter test hole on the left side of the chamber, convenient for experimental operation and temperature measurement. (Already equipped)

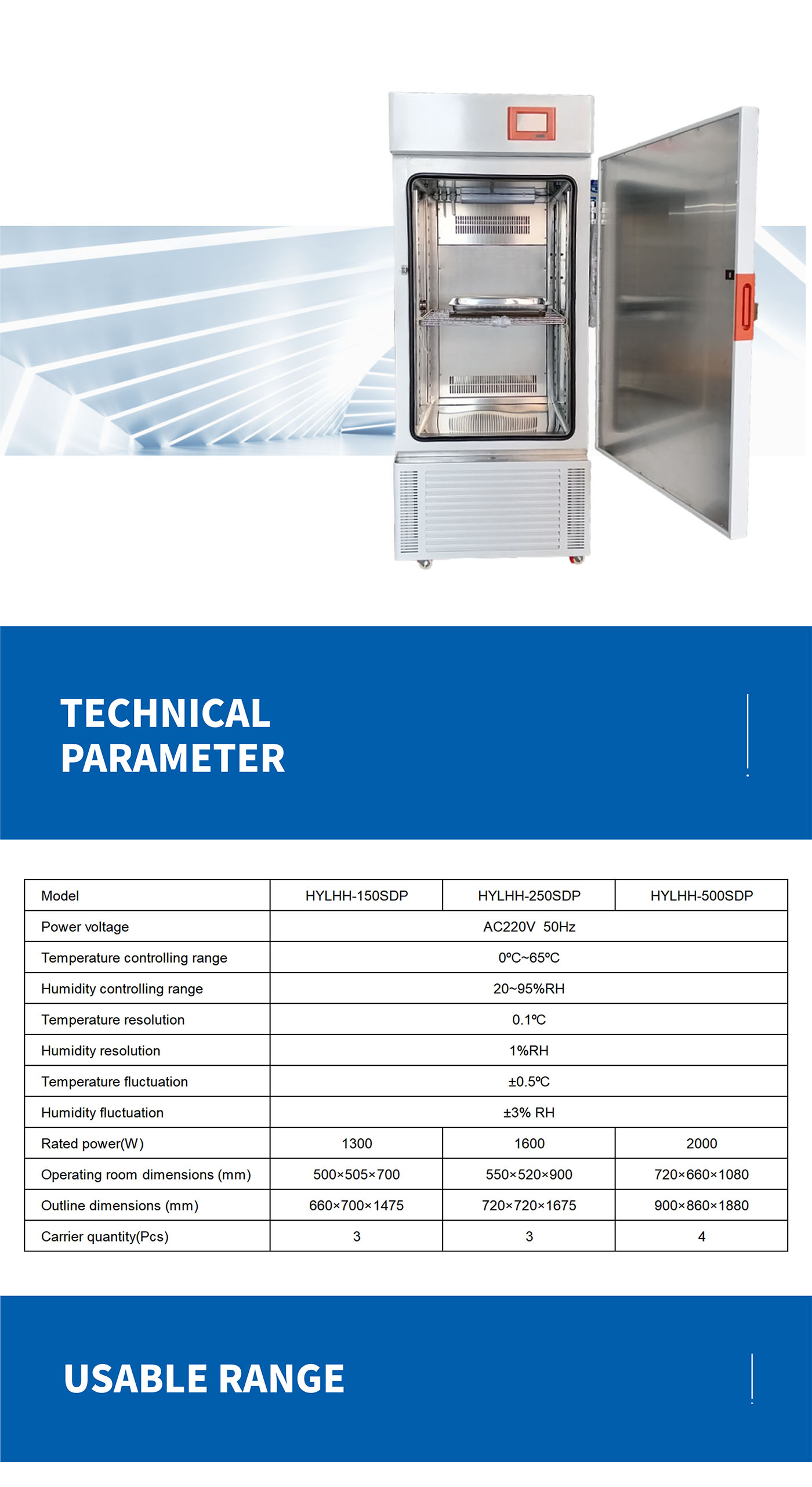

Technical parameters
|
Model |
HYLHH-150SDP |
HYLHH-250SDP |
HYLHH-500SDP |
|
Power voltage |
AC220V 50Hz |
||
|
Temperature controlling range |
0ºC~65ºC |
||
|
Humidity controlling range |
20~95%RH |
||
|
Temperature resolution |
0.1ºC |
||
|
Humidity resolution |
1%RH |
||
|
Temperature fluctuation |
±0.5ºC |
||
|
Humidity fluctuation |
±3% RH |
||
|
Rated power(W) |
1300 |
1600 |
2000 |
|
Operating room dimensions (mm) |
500×505×700 |
550×520×900 |
720×660×1080 |
|
Outline dimensions (mm) |
660×700×1475 |
720×720×1675 |
900×860×1880 |
|
Carrier quantity(Pcs) |
3 |
3 |
4 |

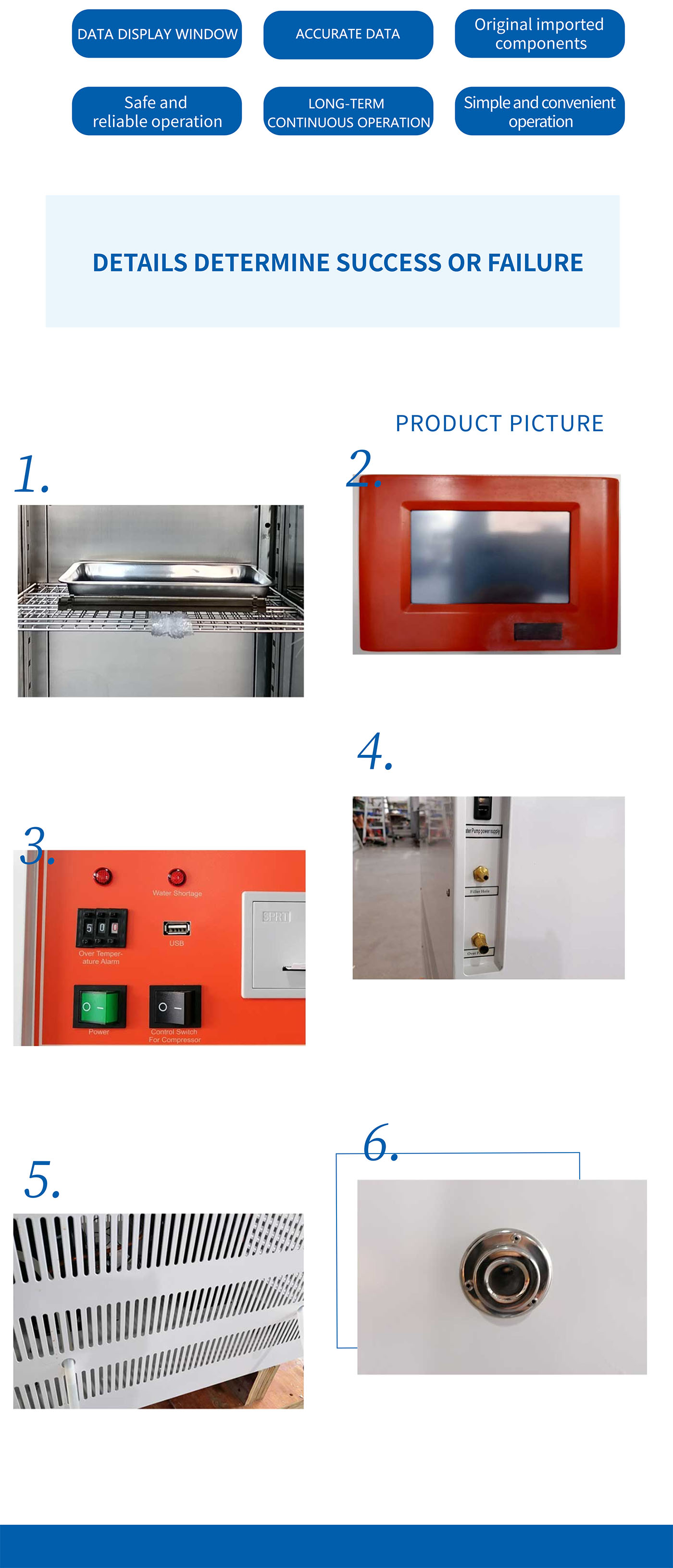

Product Details Diagram
