Drop Test Machine

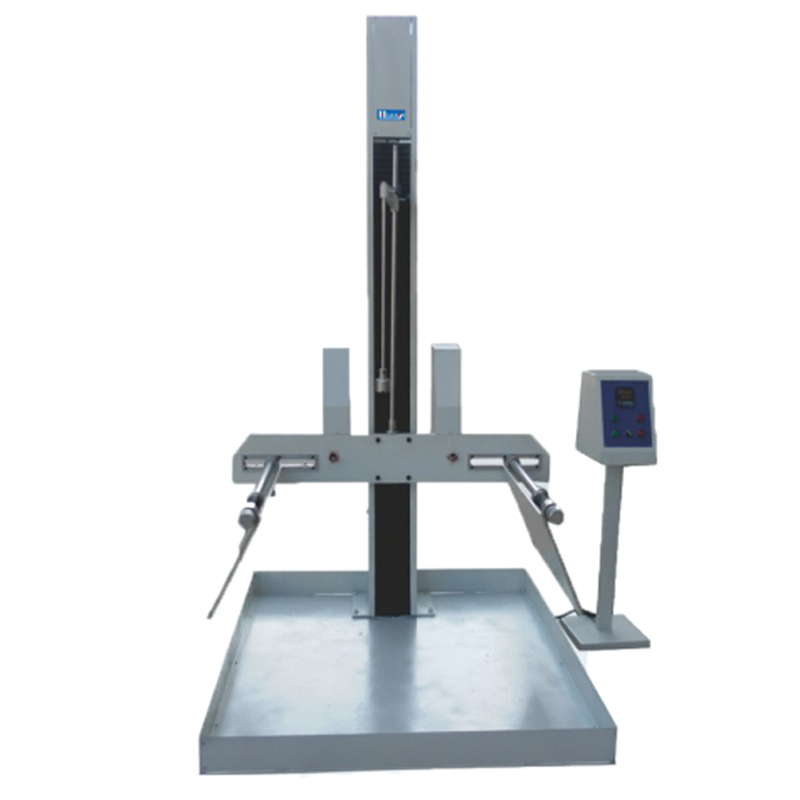

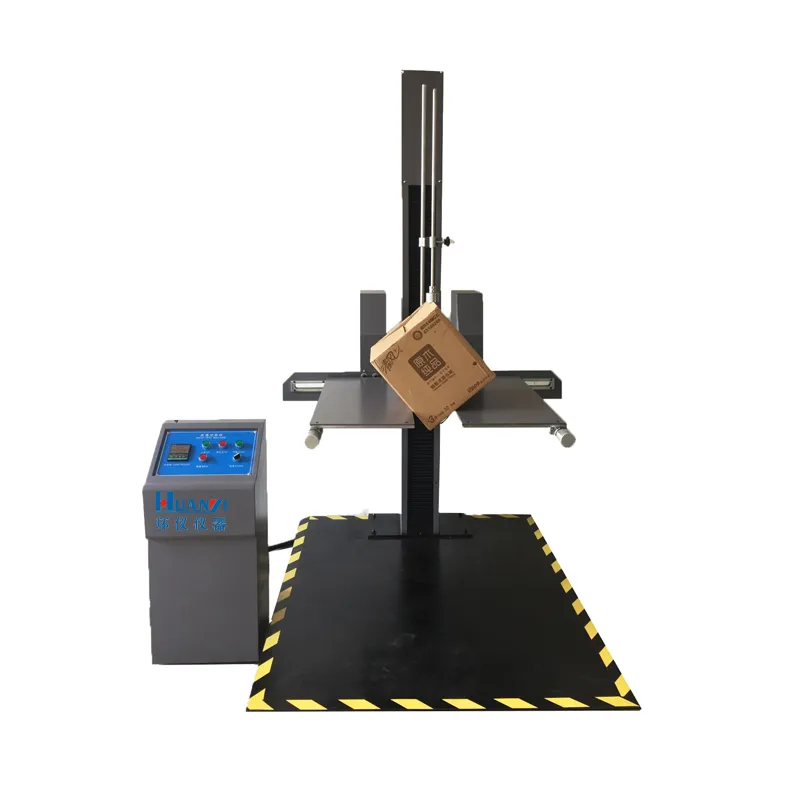

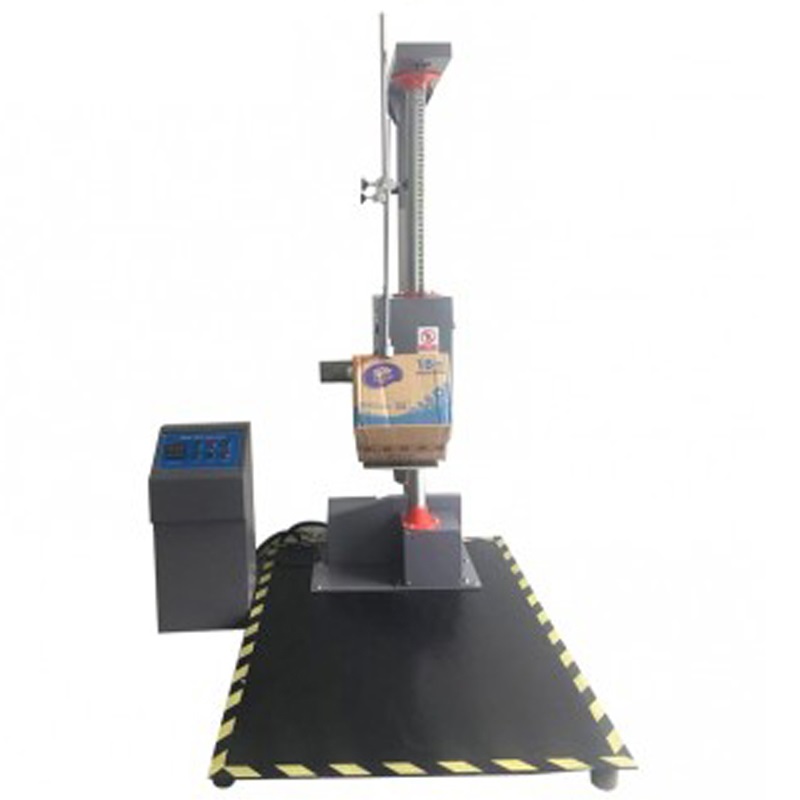

Drop Test Machine Single Dual Wing Drop Tester
Features
· Drop test machine is suitable for verifying the shock resistance of packaging materials and the impact resistance of the product itself.
· Mainly adopts double-column guidance, the number of height drops can be set, and the edges, faces and comers can be dropped.
· The built-in photoelectric height control processor has fast and accurate positioning, and the LED height display.
· Double-column guidance, hydraulic buffer absorbs the residual function of the swing arm.
· Damping screw lifting mechanism prevents the machine from sliding down by itself.
· Automatic air pressure interlocking prevents the swing arm from abnormally disengaging due to air pressure loss.
· The hard anodized aluminum alloy table and the tough, lightweight swing arm, combined with the innovative high-speed bracket
slide design, the bracket disengagement speed exceeds 3g/sec.
Technical parameters
|
Model |
HY-315A(B) |
HY-320A(B) |
|
Drop height(mm) |
300~1500 |
300~1500(2000) |
|
Max. specimen weight(kg) |
85 |
85 |
|
Max. specimen size(WxDxH)mm |
1000x1000x800 |
1000x1000x800 |
|
Impact panel size(WxDxH)mm |
1500x1000x20 |
1500x1000x20 |
|
Motor power(kVA) |
0.65 |
0.65 |
|
Overall dimensions(WxDxH)mm |
Pneumatic/electric |
Pneumatic/electric |
|
Dimensions(mm) |
1500x1000x2250 |
1500x1000x2250 |
|
Net weight(kg) |
480 |
550 |
|
Fulfil the criteria |
ISO 2248-72(E), JIS Z0202-87, GB/T4857, 5-92 |
|
|
Power supply |
Three-phase AC 380V±10%50Hz 2KVA |
|
