Aging Test Chamber

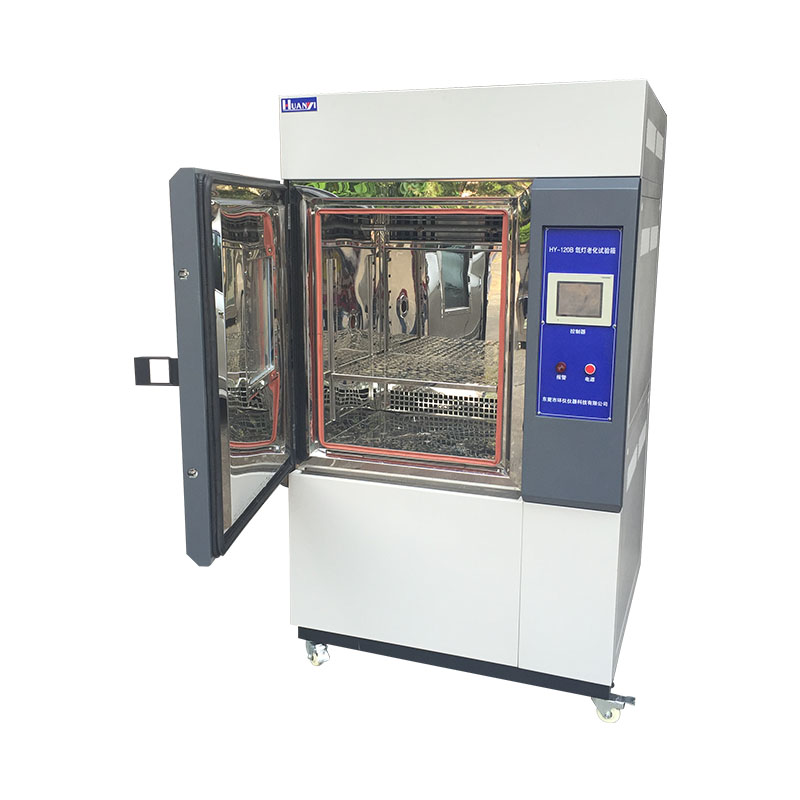

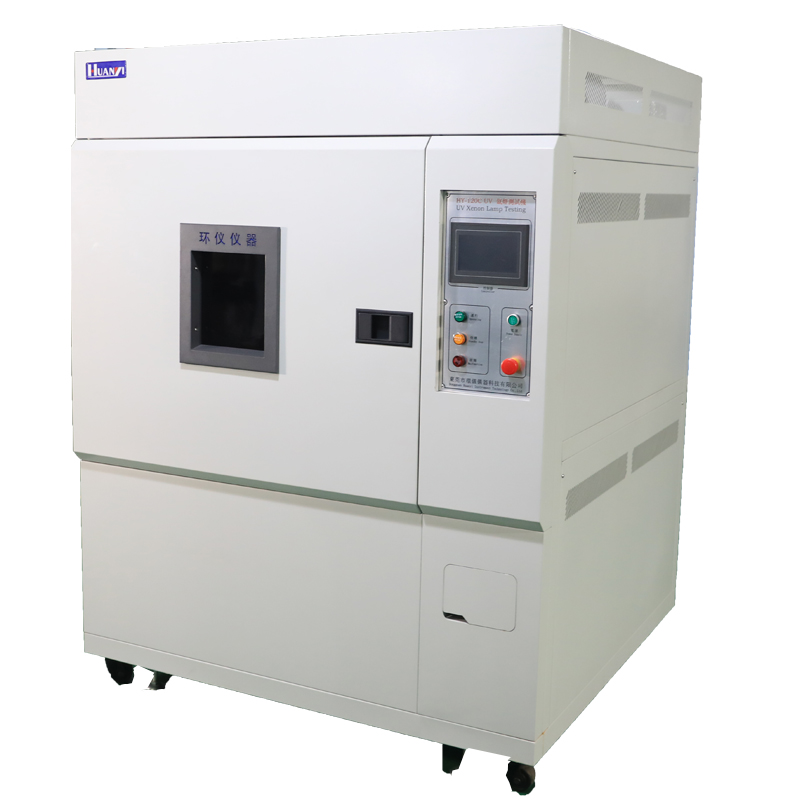

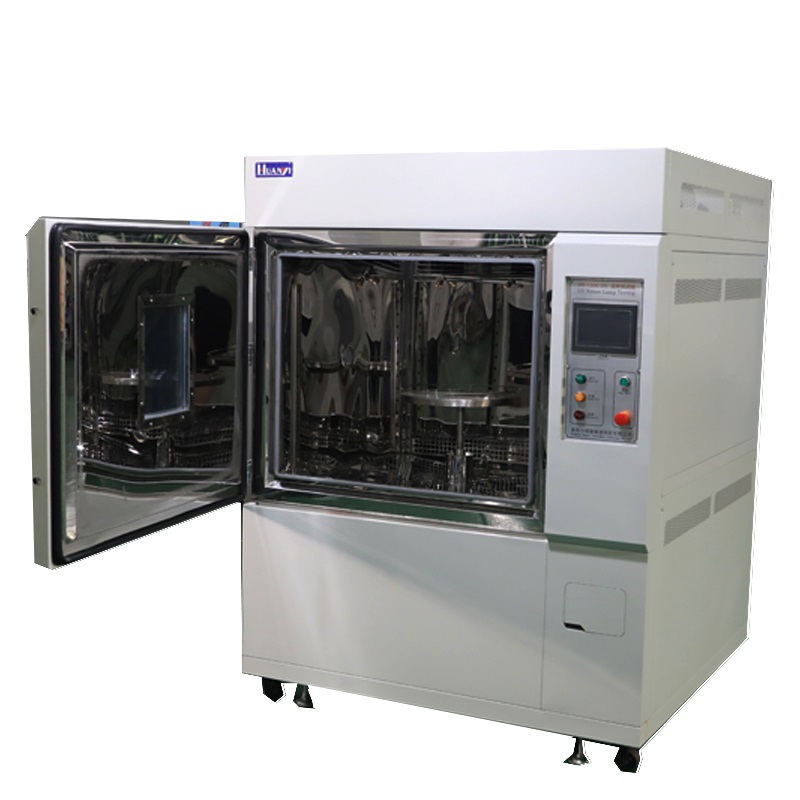

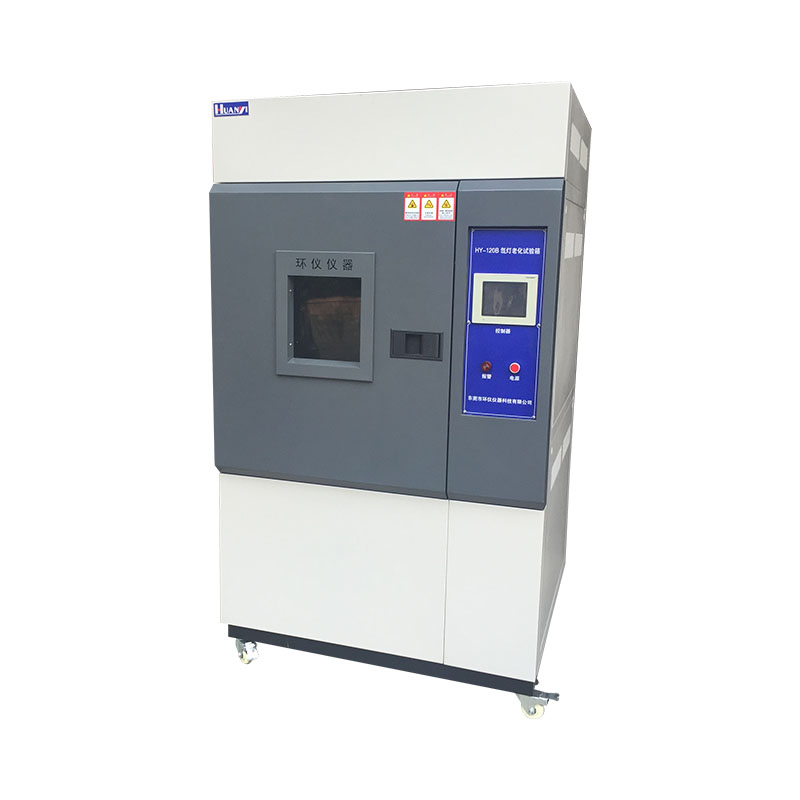

Electronic Accelerated Aging Chamber Xenon lamp weathering test chamberㅤ
Features
1. Ventilation and cooling device: The temperature ventilation and cooling system of the test chamber is automatically controlled by the temperature controller.
2. Shower system: The shower system of the equipment consists of a water pump, a time relay, a nozzle, etc., and the spraying cycle is adjustable.
3. The control blackboard thermometer adopts wireless transmission technology, which effectively improves the control accuracy.
4. Optical fiber transmission is used to measure the radiation intensity of the xenon lamp to avoid the problem of measurement value error caused by temperature.
Technical Parameters
|
Model |
HY-120(Hub type) |
HY-125(Flat type) |
|
Internal size(WxHxD)cm |
95x95x85 |
60x60x80 |
|
Temp range |
RT+10℃ ~90℃ |
|
|
Humid range |
30 ~98%RH (dark)/20%~60%RH (light) |
|
|
Temp and Humid deviatior |
Temperature ±20C, humidity ±3%RH |
|
|
Rainfall time |
0~9999 hours 59 minutes adjustable |
|
|
Rainfall cycle |
0~240 minutes, interval (break) adjustable |
|
|
Wavelength range |
280nm~800nm |
|
|
Xenon lamp power |
1.8/3/6KWLifespan: 1000 hours |
|
|
Irradiation intensity |
0.30-0.57W/m² (adjustable at 340nm) 0.66-1.22W/m² (adjustable at 420mm)35-70W/m² (adjustable at300-400nm) |
|
|
Exposure area |
2200-6400m² |
3760-7500m² |
|
Cooling method |
Water cooling |
Air cooling |
|
Blackboard temperature |
63-100℃、±3℃ |
|
|
Light intensity |
500w/m²-1200w/m² |
|
|
Resolution accuracy |
Temperature 0.01℃, humidity 0.1%RH |
|
