Four Barrels VOC Emission Test Chamber for Plastic Runway Surface

VOC & Formaldehyde Emission Test Chamber

Four Barrels VOC Emission Test Chamber for Plastic Runway Surface (3).jpg
Four Barrels VOC Emission Test Chamber for Plastic Runway Surface (1).jpg
Four Barrels VOC Emission Test Chamber for Plastic Runway Surface (2).jpg
Four Barrels VOC Emission Test Chamber for Plastic Runway Surface (1).png

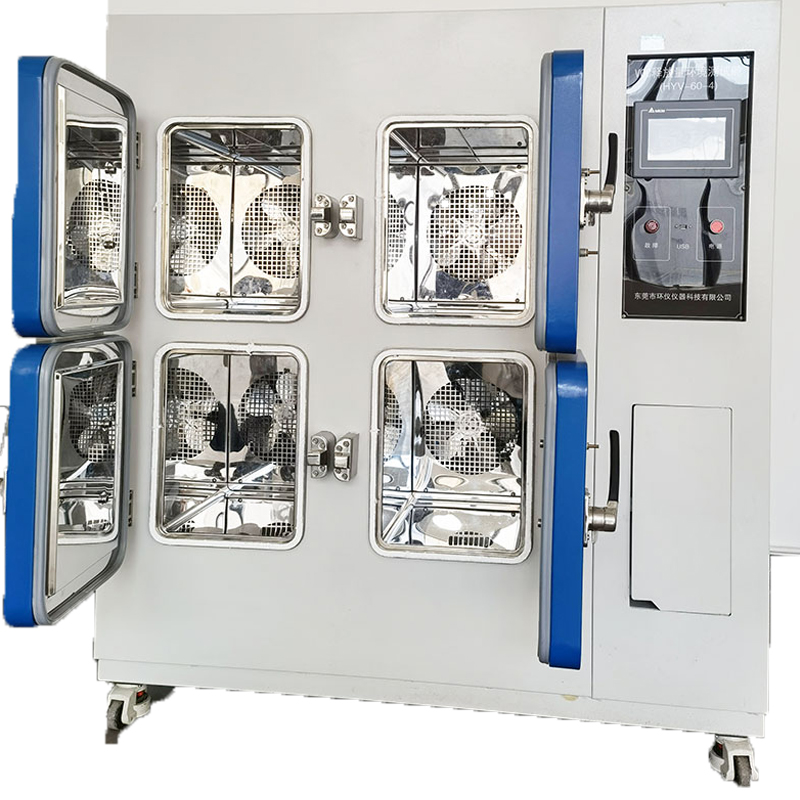

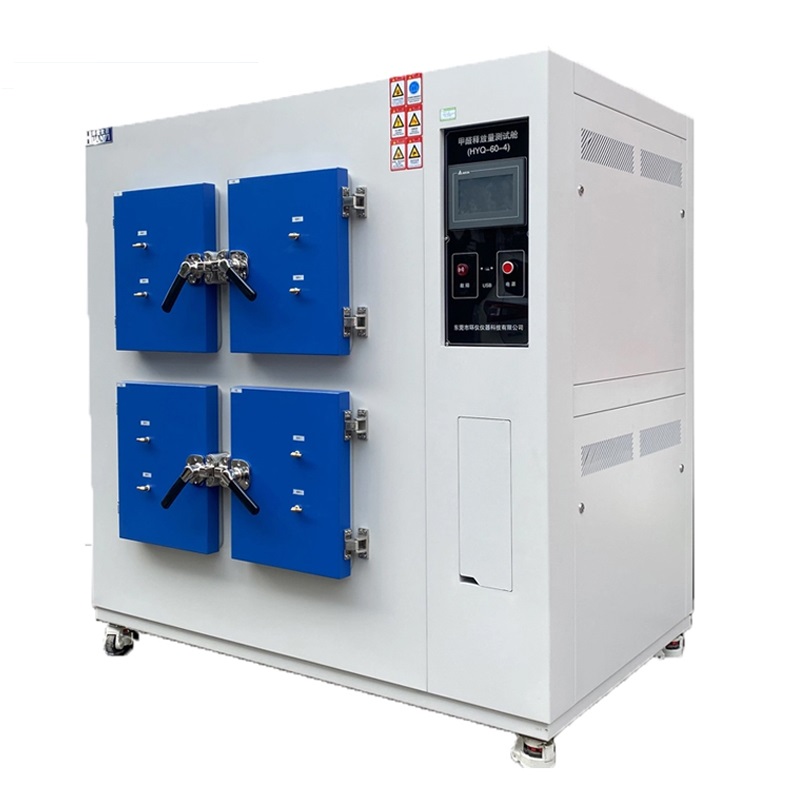

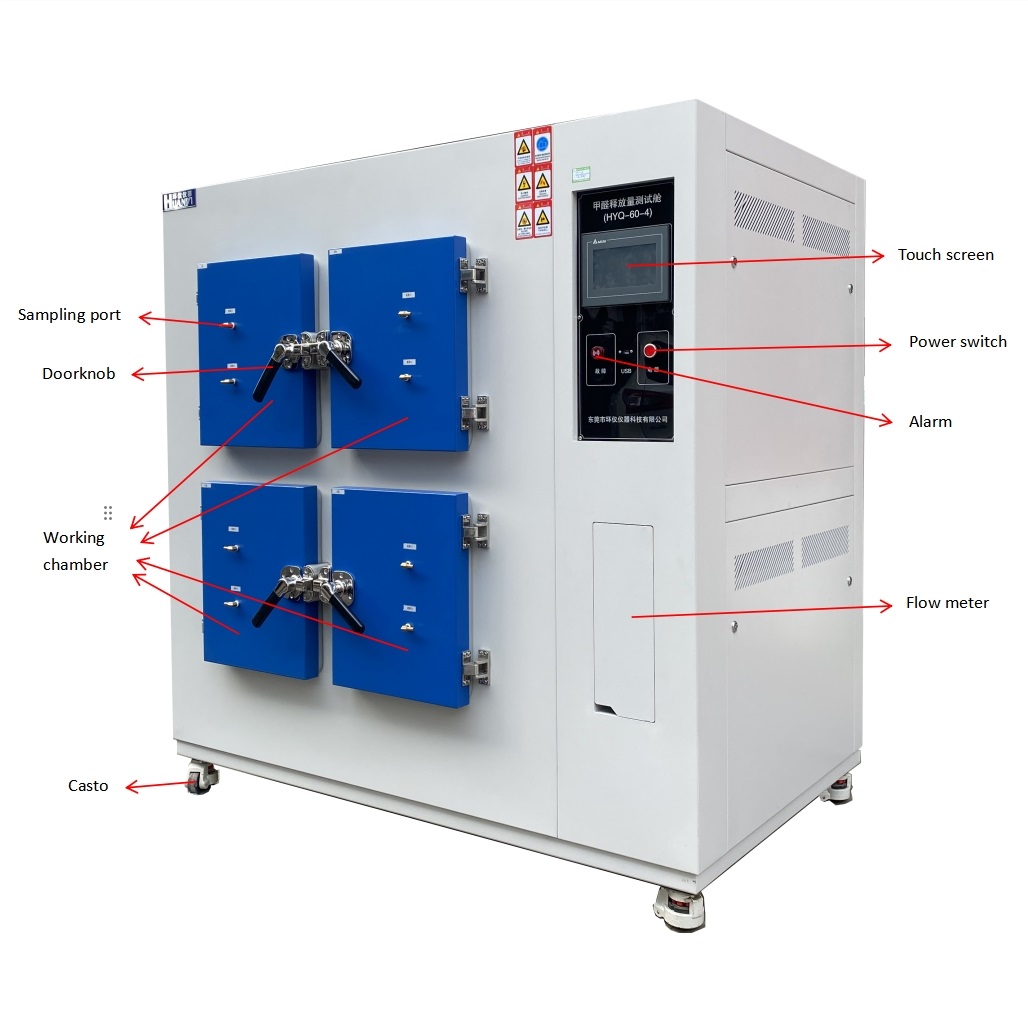

Four Barrels VOC Emission Test Chamber for Plastic Runway Surface

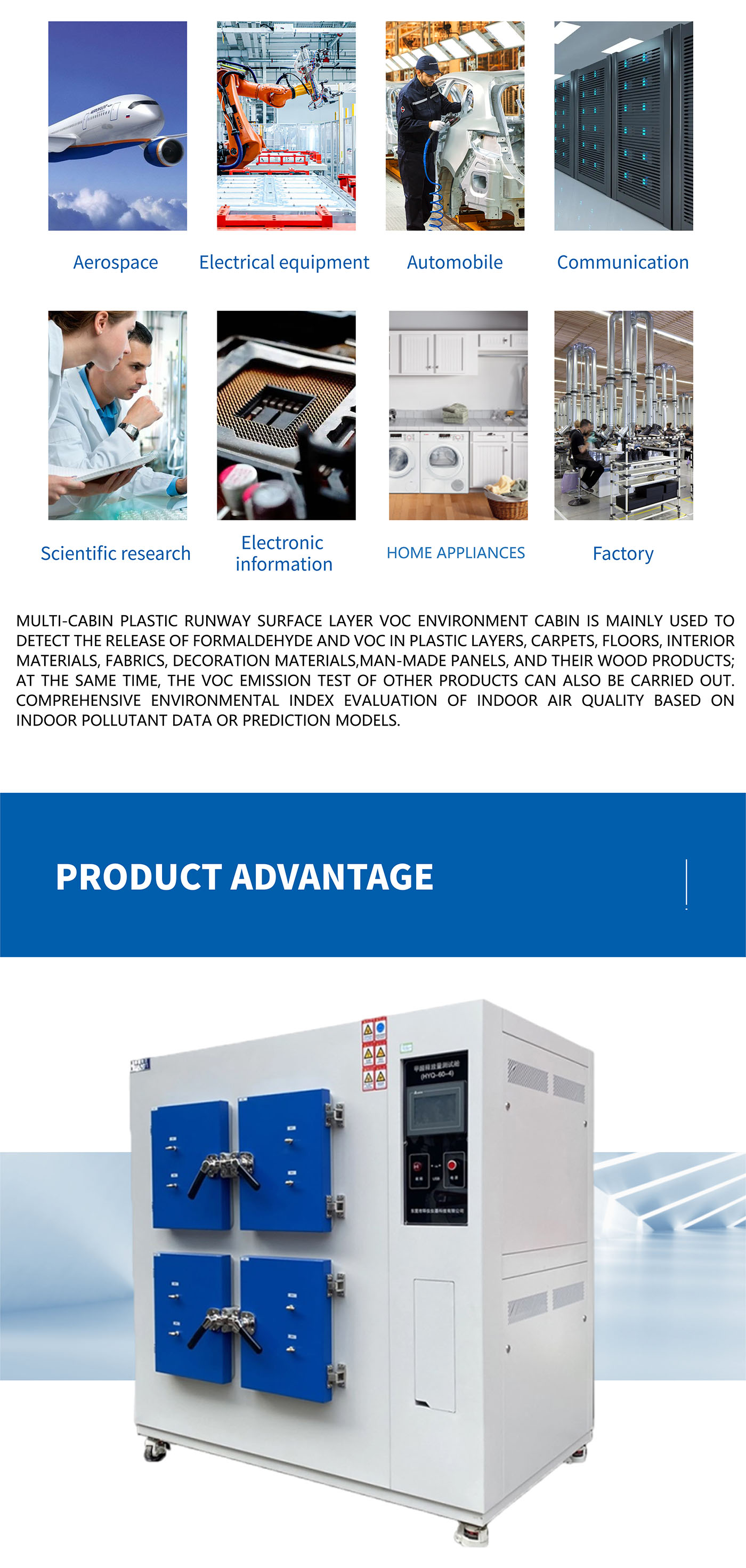

Multi-cabin plastic runway surface layer VOC environment cabin is mainly used to detect the release of formaldehyde and VOC in plastic layers, carpets, floors, interior materials, fabrics, decoration materials, man-made panels, and their wood products; at the same time, the VOC emission test of other products can also be carried out. Comprehensive environmental index evaluation of indoor air quality based on indoor pollutant data or prediction models.

    Contact us
    product details
    product description
    Video

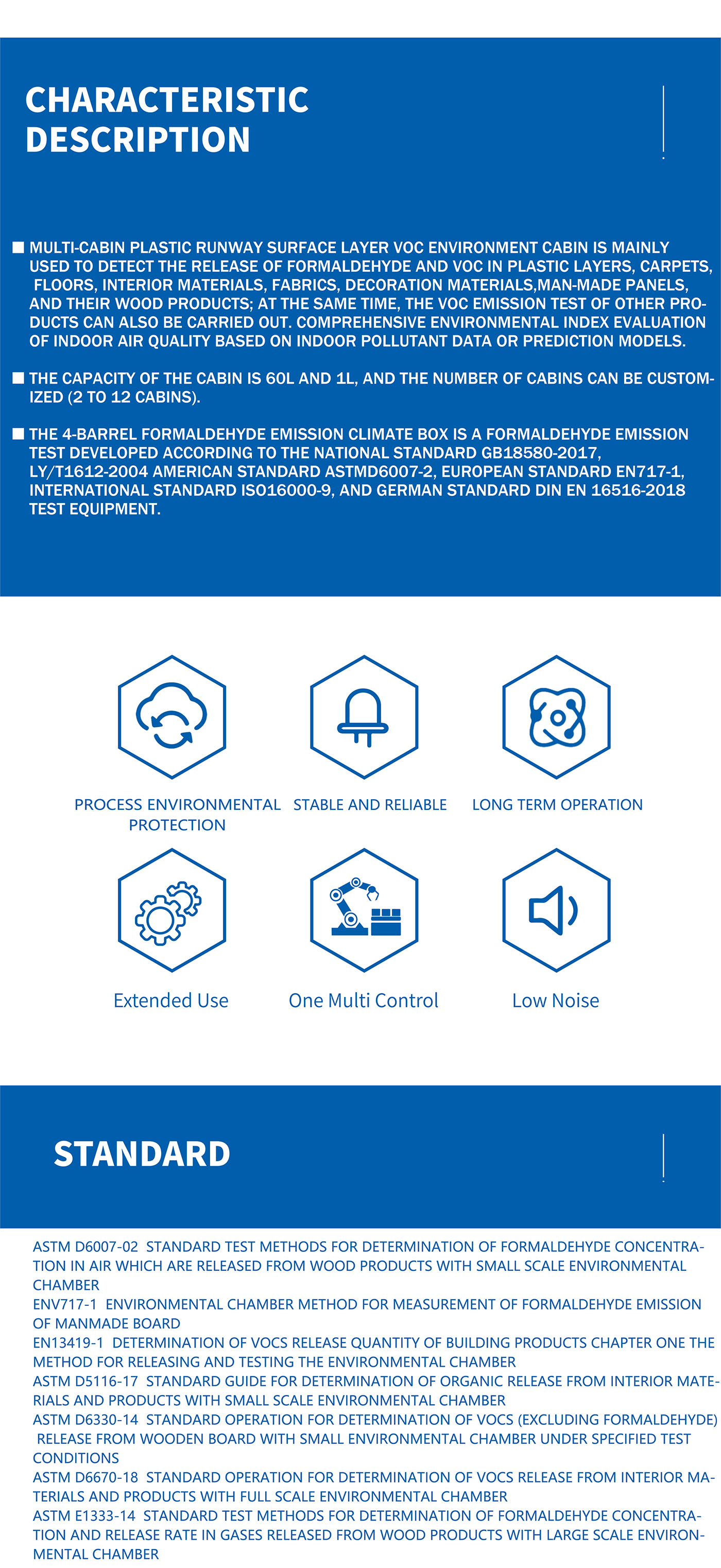

    Product Description

    The 4-barrel formaldehyde emission climate box is a formaldehyde emission test developed according to the national standard GB18580-2017, LY/T1612-2004 American standard ASTMD6007-2, European standard EN717-1, international standard ISO16000-9, and German standard DIN EN 16516-2018 test equipment.It is suitable for the determination of formaldehyde emission of various wood-based panels, composite wood floors, carpets, carpet pads and carpet adhesives and other interior decoration materials, furniture, automotive interiors, building decoration materials and other materials. The constant temperature and constant humidity balance treatment of wood or wood-based panels can also be used for the detection of volatile harmful gases in other building materials.

    Meet the standards

    ● ASTM D6007-02  Standard Test Methods for Determination of Formaldehyde Concentration in air which are released from Wood Products with Small Scale Environmental Chamber
    ● ENV717-1  Environmental Chamber Method for Measurement of Formaldehyde Emission of Manmade Board
    ● EN13419-1  Determination of VOCs Release quantity of Building products Chapter One The Method for Releasing and Testing the Environmental Chamber
    ● ASTM D5116-17  Standard Guide for Determination of Organic Release from Interior Materials and Products with Small Scale Environmental Chamber
    ● ASTM D6330-14  Standard Operation for Determination of VOCs (Excluding Formaldehyde) Release from Wooden Board with Small Environmental Chamber under Specified Test Conditions
    ● ASTM D6670-18  Standard Operation for Determination of VOCs Release from Interior Materials and Products with Full Scale Environmental Chamber
    ● ASTM E1333-14  Standard Test Methods for Determination of Formaldehyde Concentration and Release Rate in Gases Released from Wood Products with Large Scale Environmental Chamber
    ● GB 18580-2017  Limits of Formaldehyde Release from Artificial Panel Machine Products of Interior Decoration Materials
    ● GB/T 31107-2014  General Technical Requirements for Climate Chambers for Testing Volatile Organic Compounds in Furniture

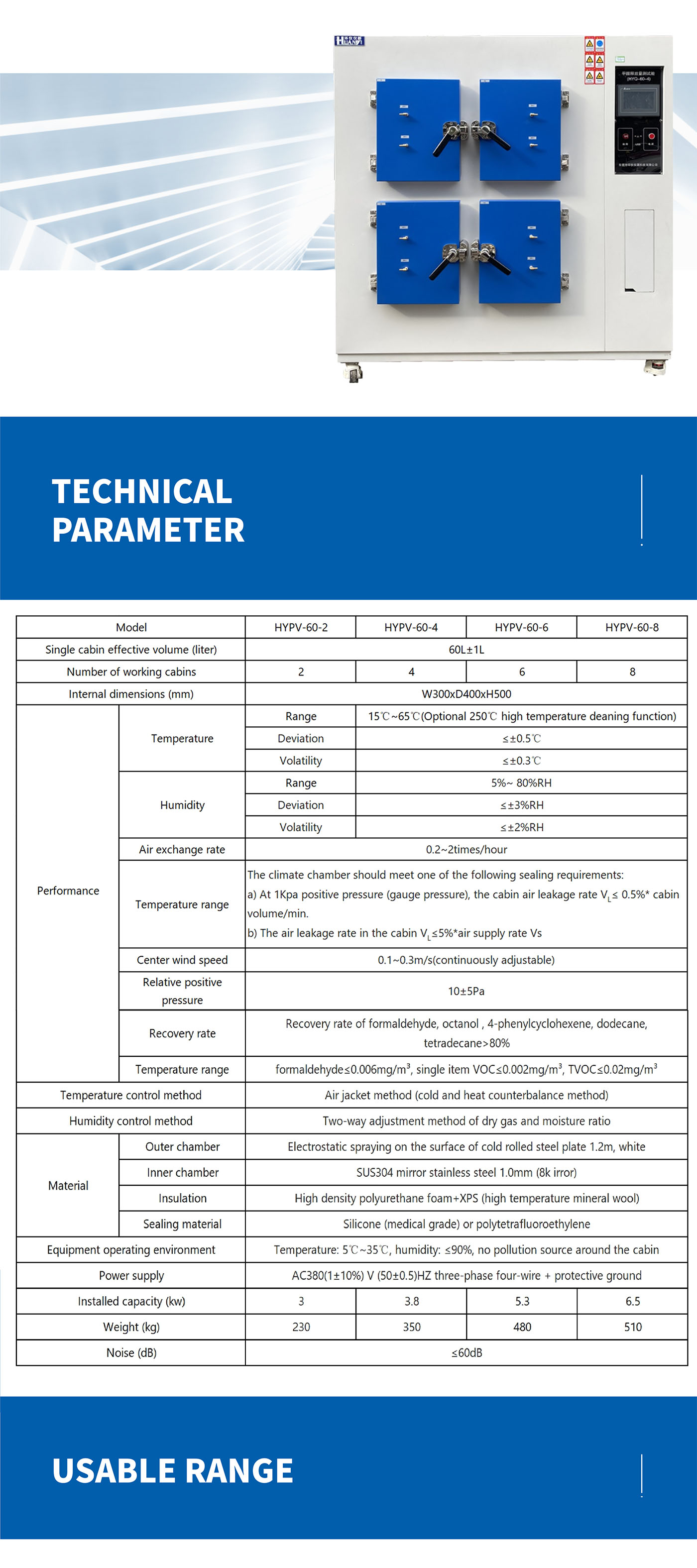

    Technical parameters

    Model

    HYPV-60-2

    HYPV-60-4

    HYPV-60-6

    HYPV-60-8

    Single cabin effective volume (liter)

    60L±1L

    Number of working cabins

    2

    4

    6

    8

    Internal dimensions (mm)

    W300xD400xH500

    Performance

    Temperature

    Range

    15℃~65℃(Optional 250℃ high temperature deaning function)

    Deviation

    ≤±0.5℃

    Volatility

    ≤±0.3℃

    Humidity

    Range

    5%~ 80%RH

    Deviation

    ≤±3%RH

    Volatility

    ≤±2%RH

    Air exchange rate

    0.2~2times/hour

    Temperature range

    The climate chamber should meet one of the following sealing requirements: a) At 1Kpa positive pressure (gauge pressure), the cabin air leakage rate VL≤ 0.5%* cabin volume/min. b) The air leakage rate in the cabin VL≤5%*air supply rate Vs

    Center wind speed

    0.1~0.3m/s(continuously adjustable)

    Relative positive pressure

    10±5Pa

    Recovery rate

    Recovery rate of formaldehyde, octanol , 4-phenylcyclohexene, dodecane, tetradecane>80%

    Temperature range

    formaldehyde≤0.006mg/m³, single item VOC≤0.002mg/m³, TVOC≤0.02mg/m³

    Temperature control method

    Air jacket method (cold and heat counterbalance method)

    Humidity control method

    Two-way adjustment method of dry gas and moisture ratio

    Material

    Outer chamber

    Electrostatic spraying on the surface of cold rolled steel plate 1.2m, white

    Inner chamber

    SUS304 mirror stainless steel 1.0mm (8k irror)

    Insulation

    High density polyurethane foam+XPS (high temperature mineral wool)

    Sealing material

    Silicone (medical grade) or polytetrafluoroethylene

    Equipment operating environment

    Temperature: 5℃~35℃, humidity: ≤90%, no pollution source around the cabin

    Power supply

    AC380(1±10%) V (50±0.5)HZ three-phase four-wire + protective ground

    Installed capacity (kw)

    3

    3.8

    5.3

    6.5

    Weight (kg)

    230

    350

    480

    510

    Noise (dB)

    ≤60dB
    Four Barrels VOC Emission Test Chamber for Plastic Runway Surface (1)Four Barrels VOC Emission Test Chamber for Plastic Runway Surface (2)Four Barrels VOC Emission Test Chamber for Plastic Runway Surface (3)Four Barrels VOC Emission Test Chamber for Plastic Runway Surface (4)Four Barrels VOC Emission Test Chamber for Plastic Runway Surface (5)
