Air Filter Test Machine

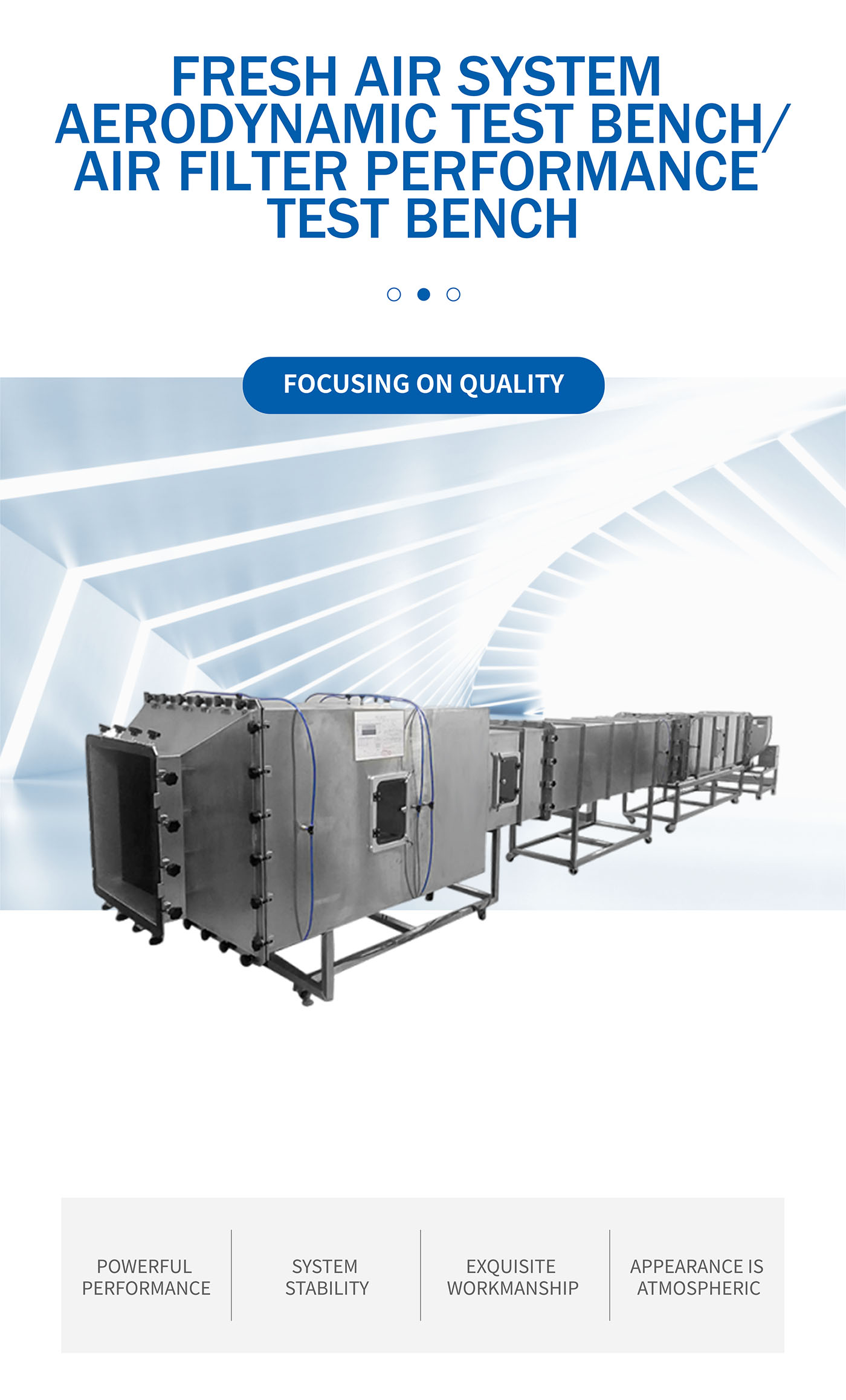

Fresh air system aerodynamic test bench/air filter performance test bench
Product Description
①Air duct system
②Pollutantgenerating device (KCL solid aerosol, gaseous pollutant, microorganism)
③Nozzle box air volume measuring device
④Upstream and downstream sampling ports
⑤Pollutant concentration tester
Purpose: In the process of product development and design, it can quickly and easily analyze the purification effect of the tested part on various pollutants (particulate matter, toluene, formaldehyde, TVOC and other pollutants), and can determine the air volume, resistance, one-time effectiveness and other properties parameters to facilitate the selection of raw materials, product process optimization and prototype performance.
Meet the standards
●GB/T18801-2015Air Purifier
●GB1236-2000 Industrial Ventilator
●GB/T14295-2019 Air Filter
●GB/T21087-2007 Air Air Energy Recovery Device
●GB/T 34012-2017Air purification device for ventilation system
●EN779:2012 Air Particulate Filter for General Ventilation
●ISO 16890 Test Standard for Air Filters for General Ventilation
●C96401-2017 Household and similar use fresh air system (device)certification technical specifications
●T/CAQI 10-2016 Fresh Air Purifier

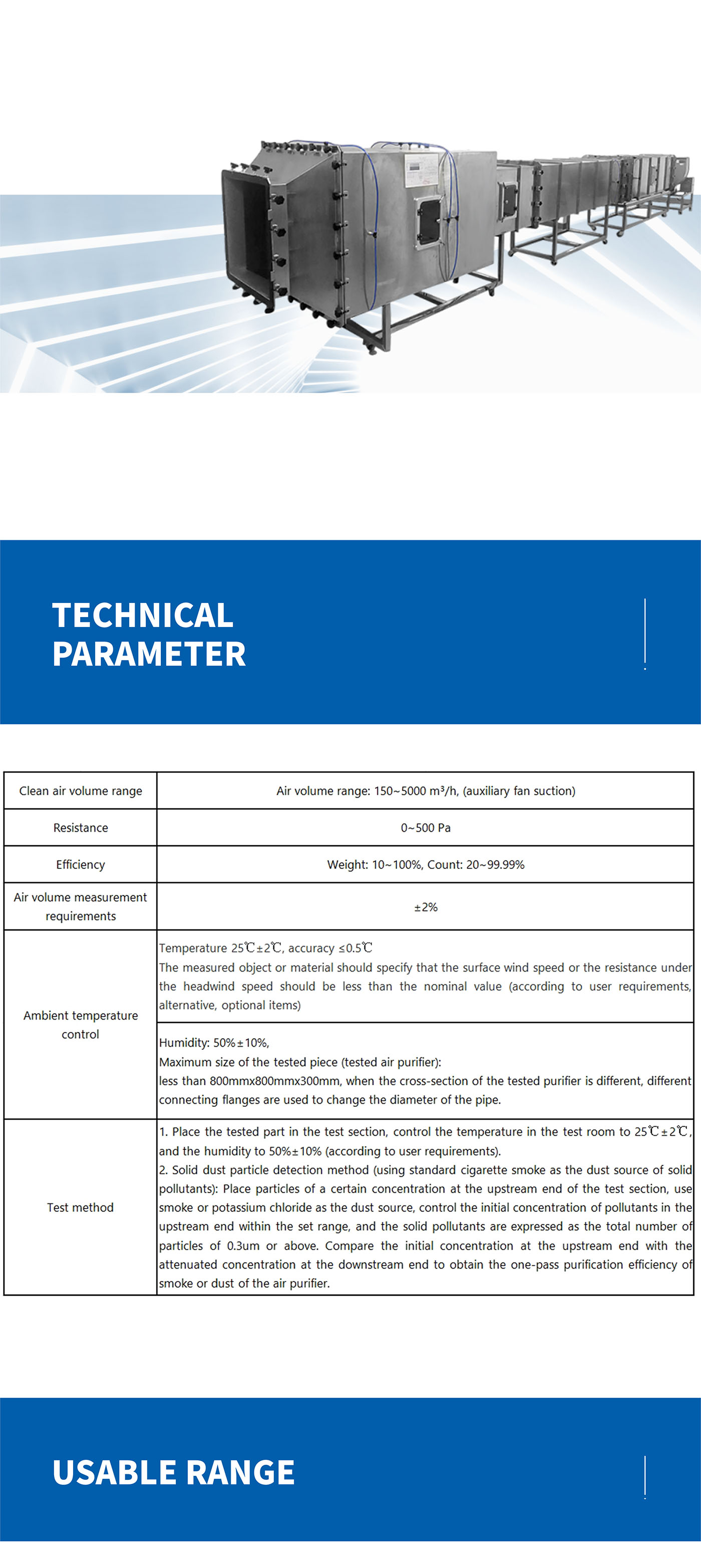

Technical parameters
|
Clean air volume range |
Air volume range: 150~5000 m³/h, (auxiliary fan suction) |
|
Resistance |
0~500 Pa |
|
Efficiency |
Weight: 10~100%, Count: 20~99.99% |
|
Air volume measurement requirements |
±2% |
|
Ambient temperature control |
Temperature 25℃±2℃, accuracy ≤0.5℃ The measured object or material should specify that the surface wind speed or the resistance under the headwind speed should be less than the nominal value (according to user requirements, alternative, optional items)
|
|
Humidity: 50%±10%, Maximum size of the tested piece (tested air purifier):
less than 800mmx800mmx300mm, when the cross-section of the tested purifier is different, different connecting flanges are used to change the diameter of the pipe.
|
|
|
Test method |
1. Place the tested part in the test section, control the temperature in the test room to 25℃±2℃, and the humidity to 50%±10% (according to user requirements). 2. Solid dust particle detection method (using standard cigarette smoke as the dust source of solid pollutants): Place particles of a certain concentration at the upstream end of the test section, use smoke or potassium chloride as the dust source, control the initial concentration of pollutants in the upstream end within the set range, and the solid pollutants are expressed as the total number of particles of 0.3um or above. Compare the initial concentration at the upstream end with the attenuated concentration at the downstream end to obtain the one-pass purification efficiency of smoke or dust of the air purifier.
|
