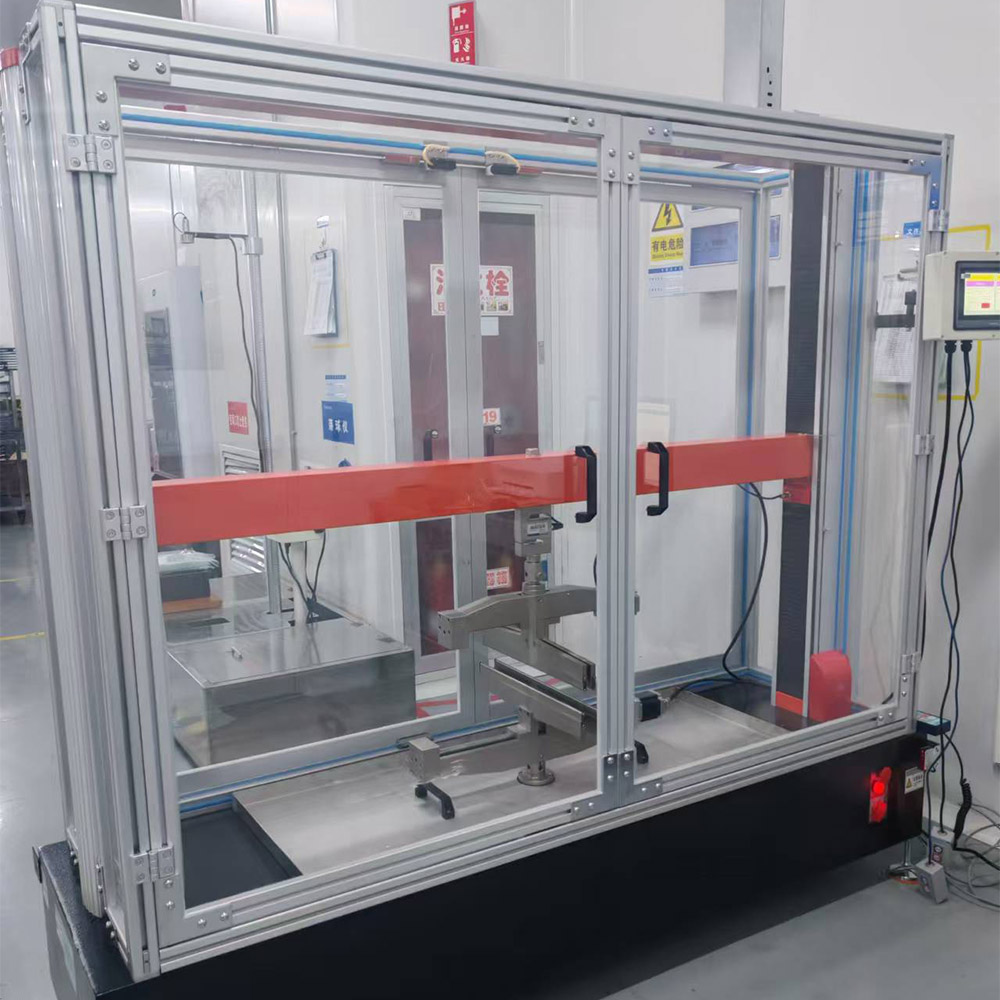

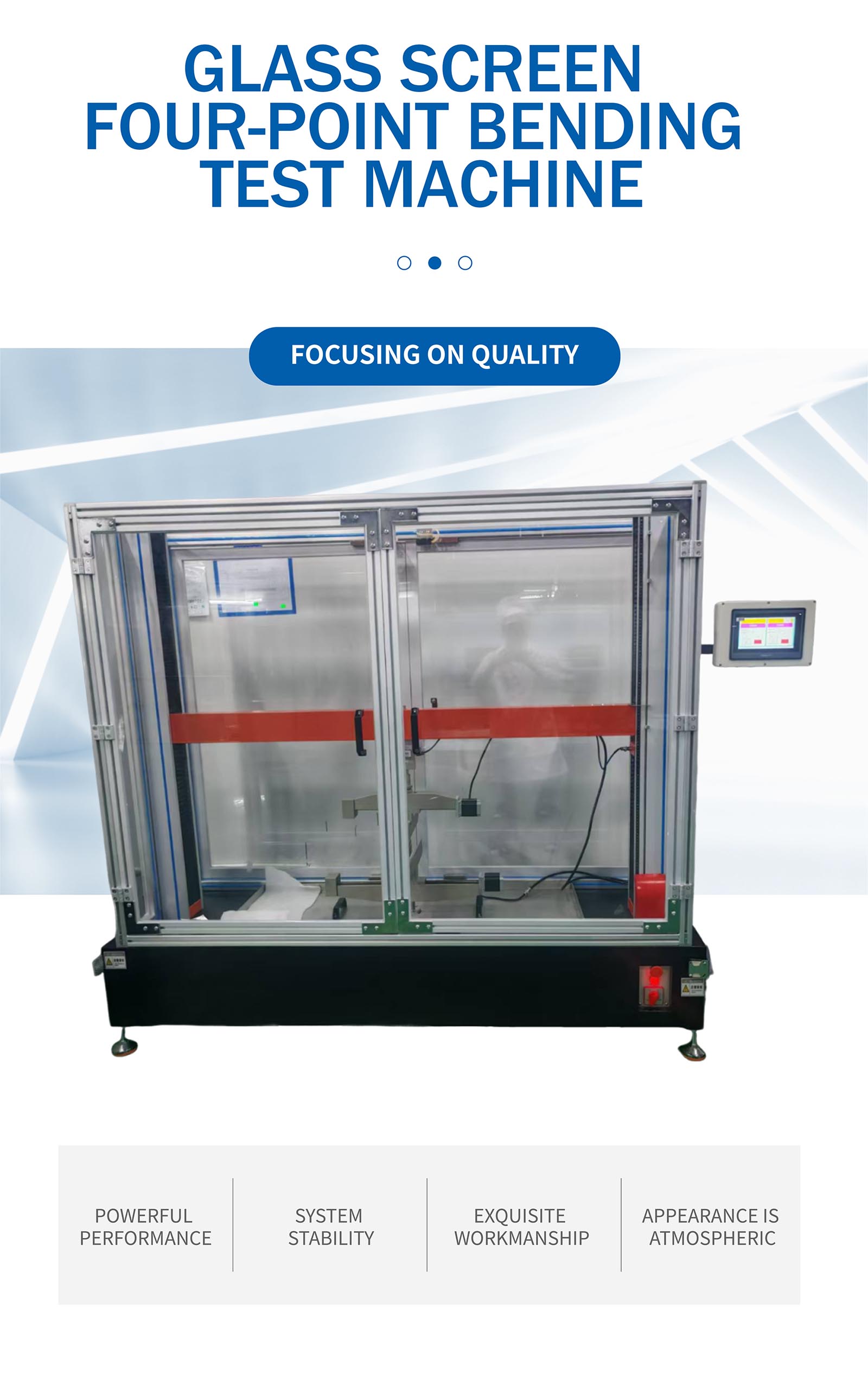

Glass screen four-point bending test machine
Description
Features
2.Each length, force unit and display digit are dynamically interchangeable
3.The test results can be output in the form of data in EXCEL format
4.It uses high-precision, gap-free ball screw
5.Fully computerized data acquisition and motion control

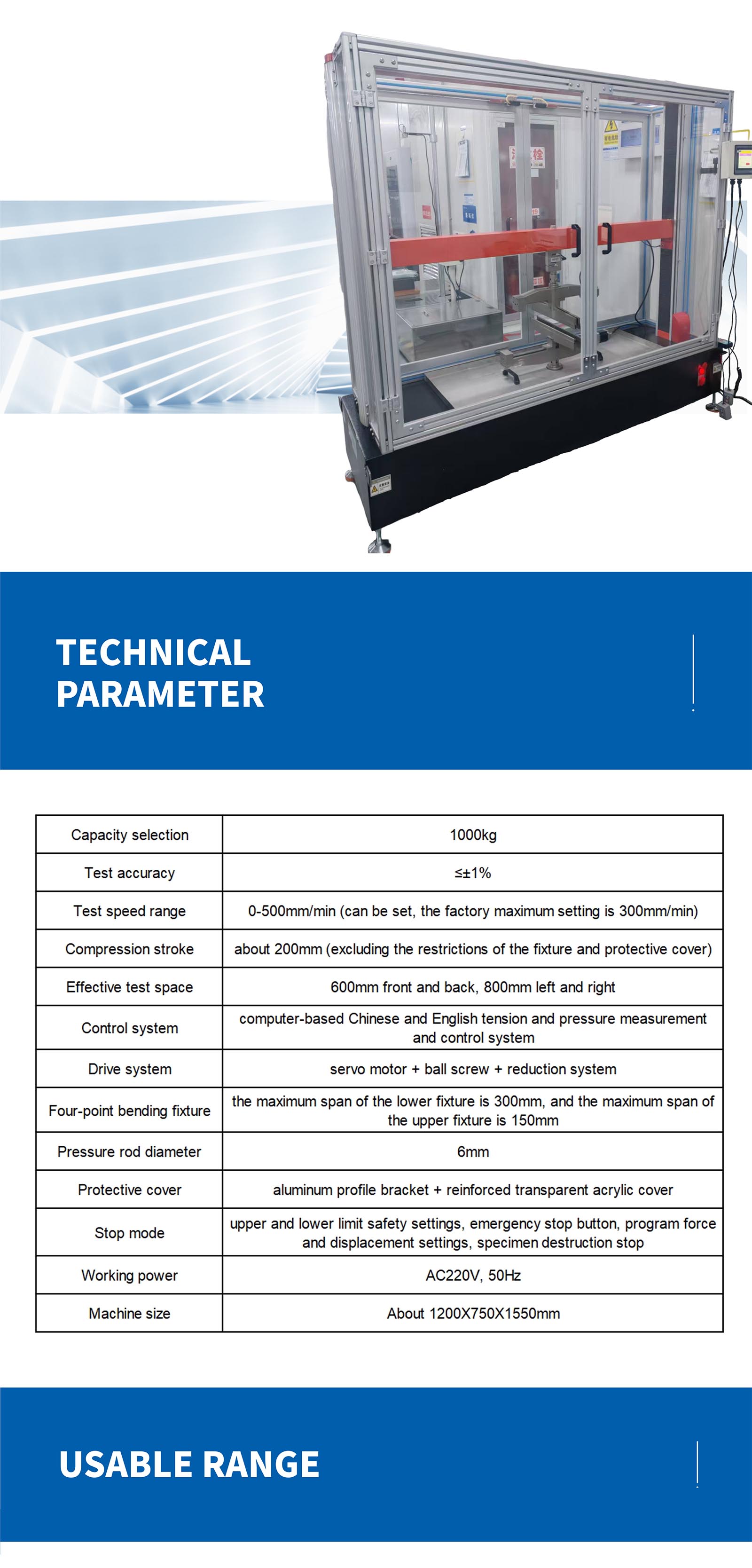

Technical parameters
|
Capacity selection |
1000kg |
|
Test accuracy |
≤±1% |
|
Test speed range |
0-500mm/min (can be set, the factory maximum setting is 300mm/min) |
|
Compression stroke |
about 200mm (excluding the restrictions of the fixture and protective cover) |
|
Effective test space |
600mm front and back, 800mm left and right |
|
Control system |
computer-based Chinese and English tension and pressure measurement and control system |
|
Drive system |
servo motor + ball screw + reduction system |
|
Four-point bending fixture |
the maximum span of the lower fixture is 300mm, and the maximum span of the upper fixture is 150mm |
|
Pressure rod diameter |
6mm |
|
Protective cover |
aluminum profile bracket + reinforced transparent acrylic cover |
|
Stop mode |
upper and lower limit safety settings, emergency stop button, program force and displacement settings, specimen destruction stop |
|
Working power |
AC220V, 50Hz |
