Tensile Test Machine

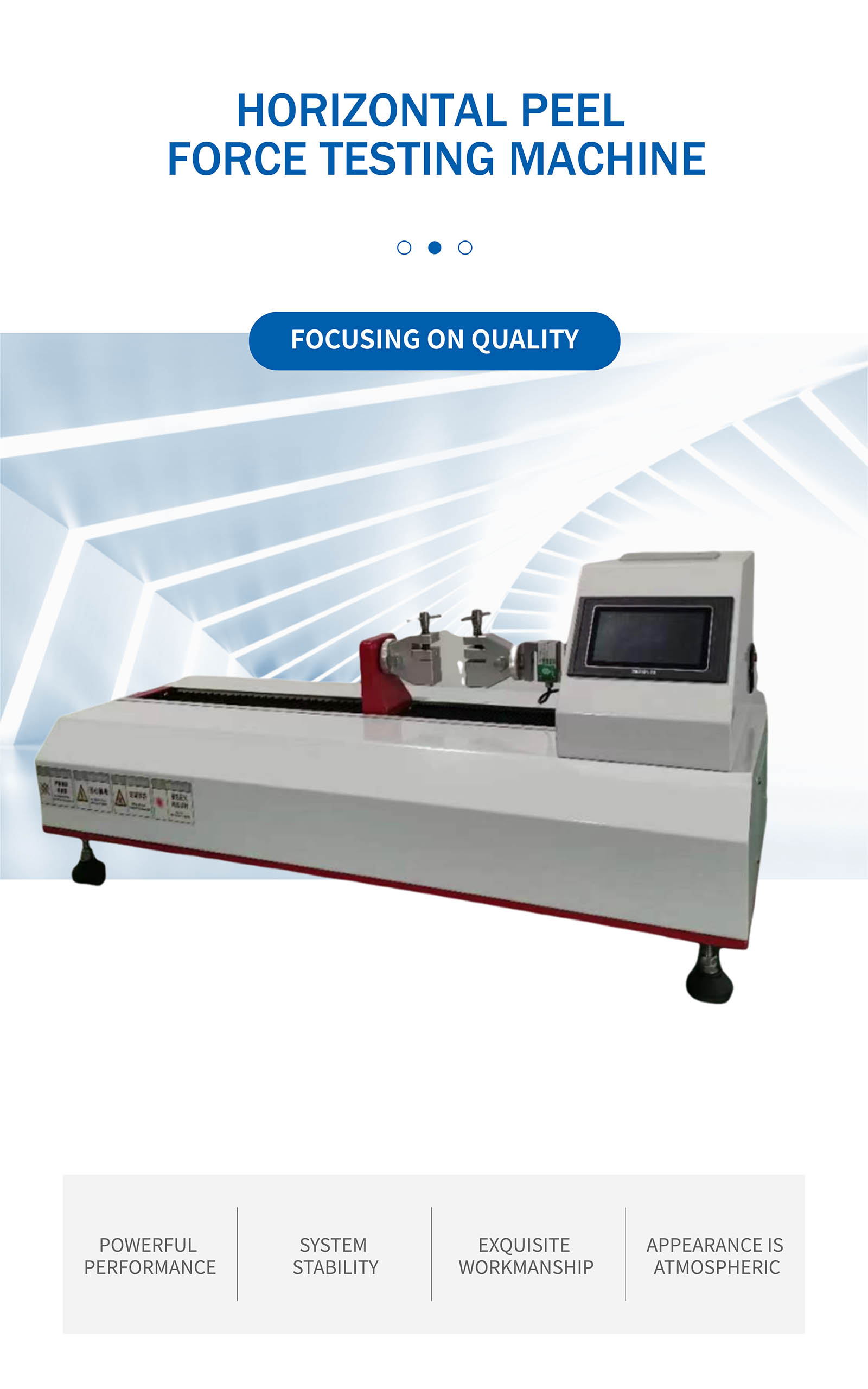

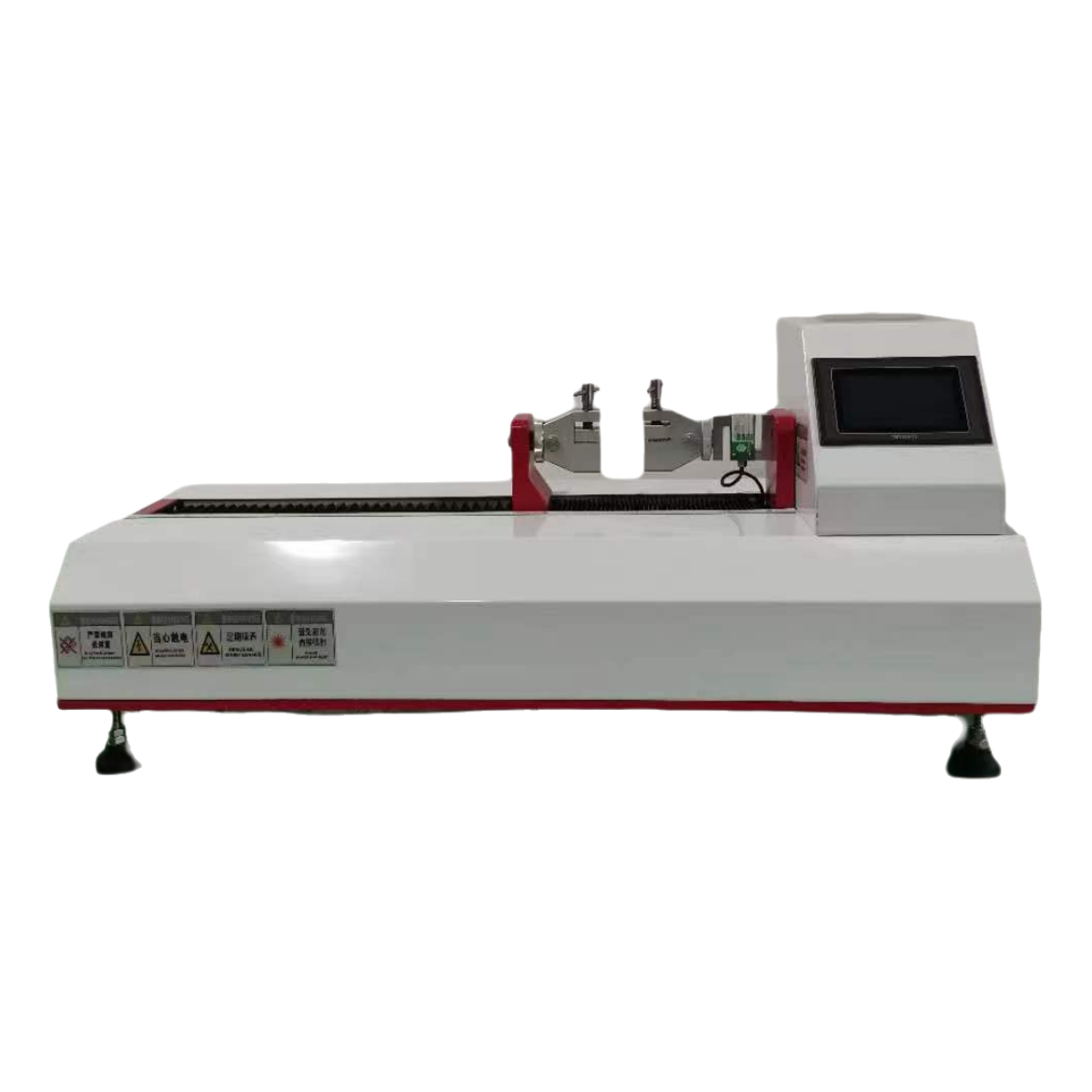

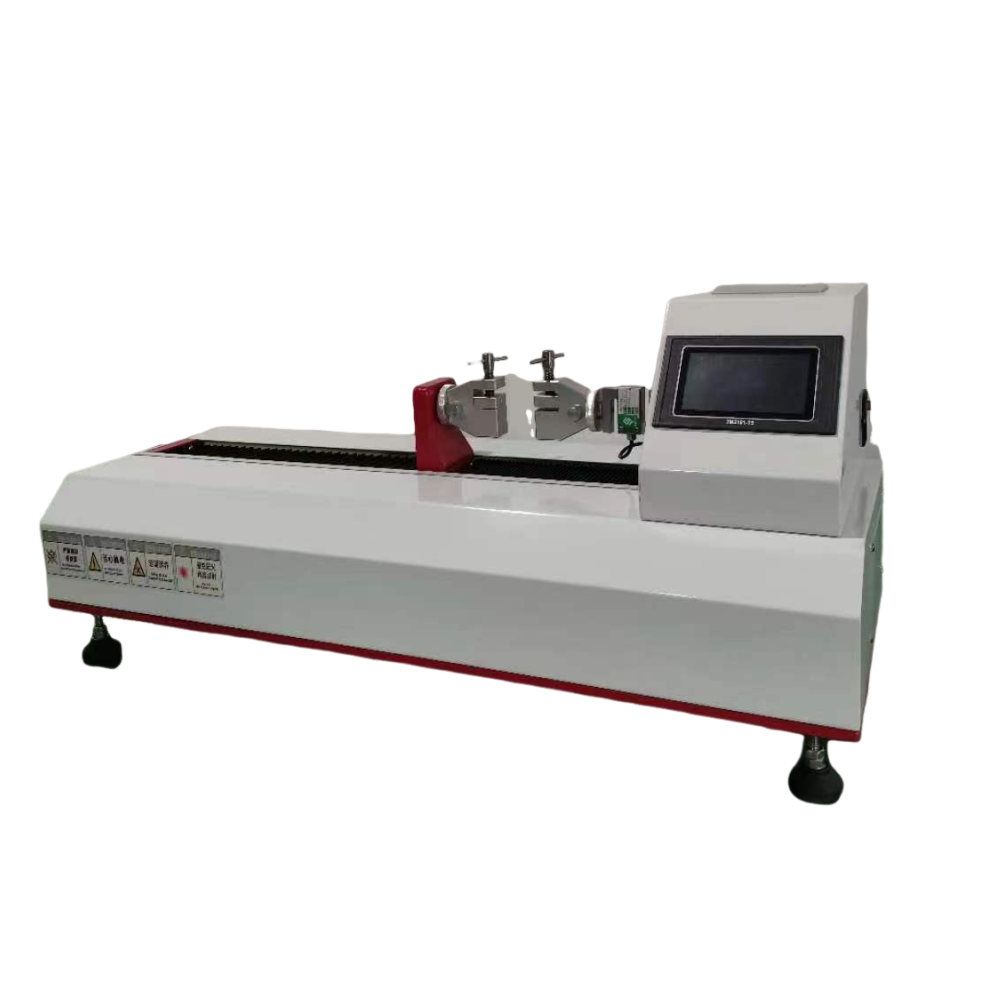

Horizontal peel force testing machine
Description

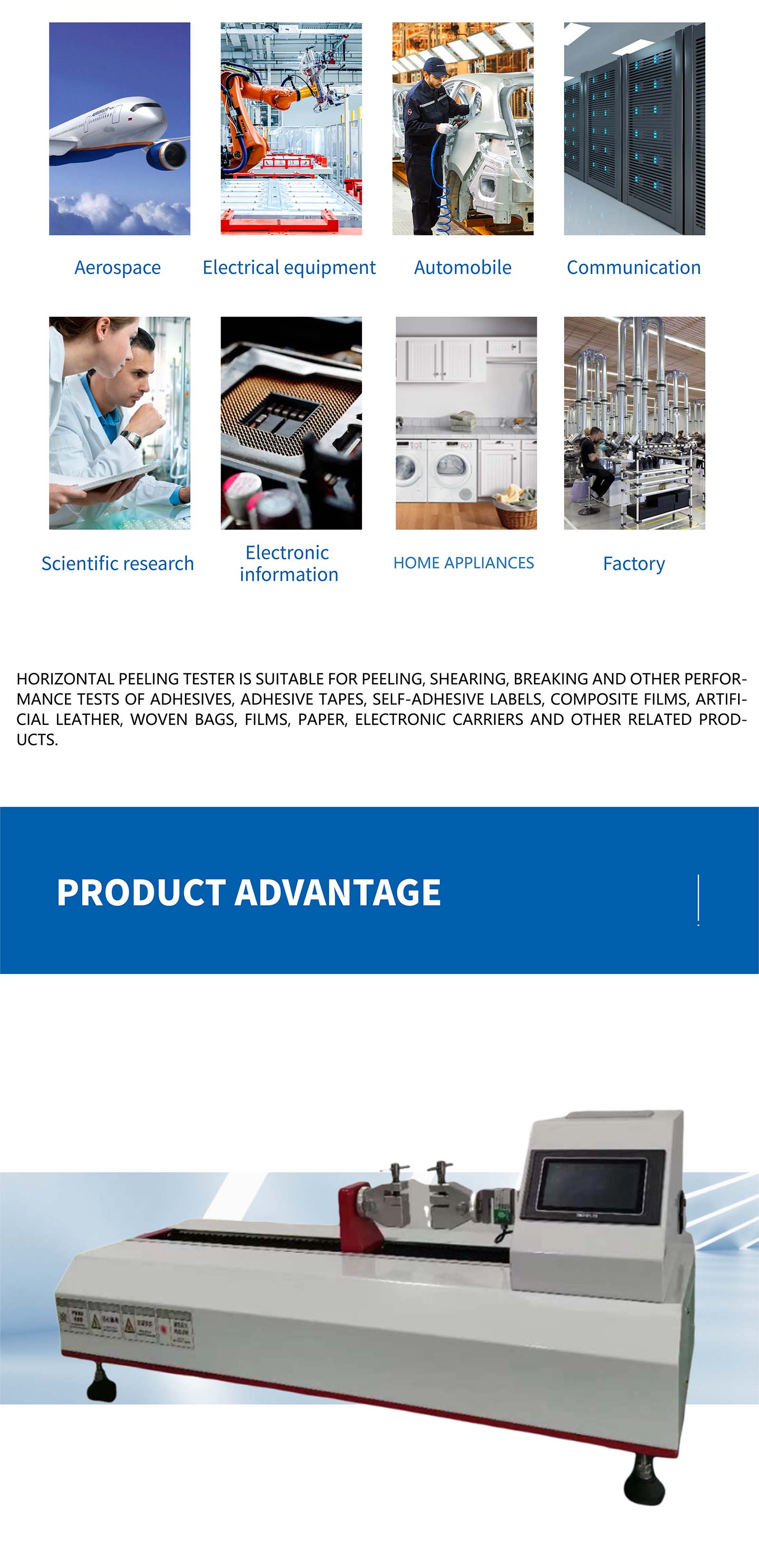

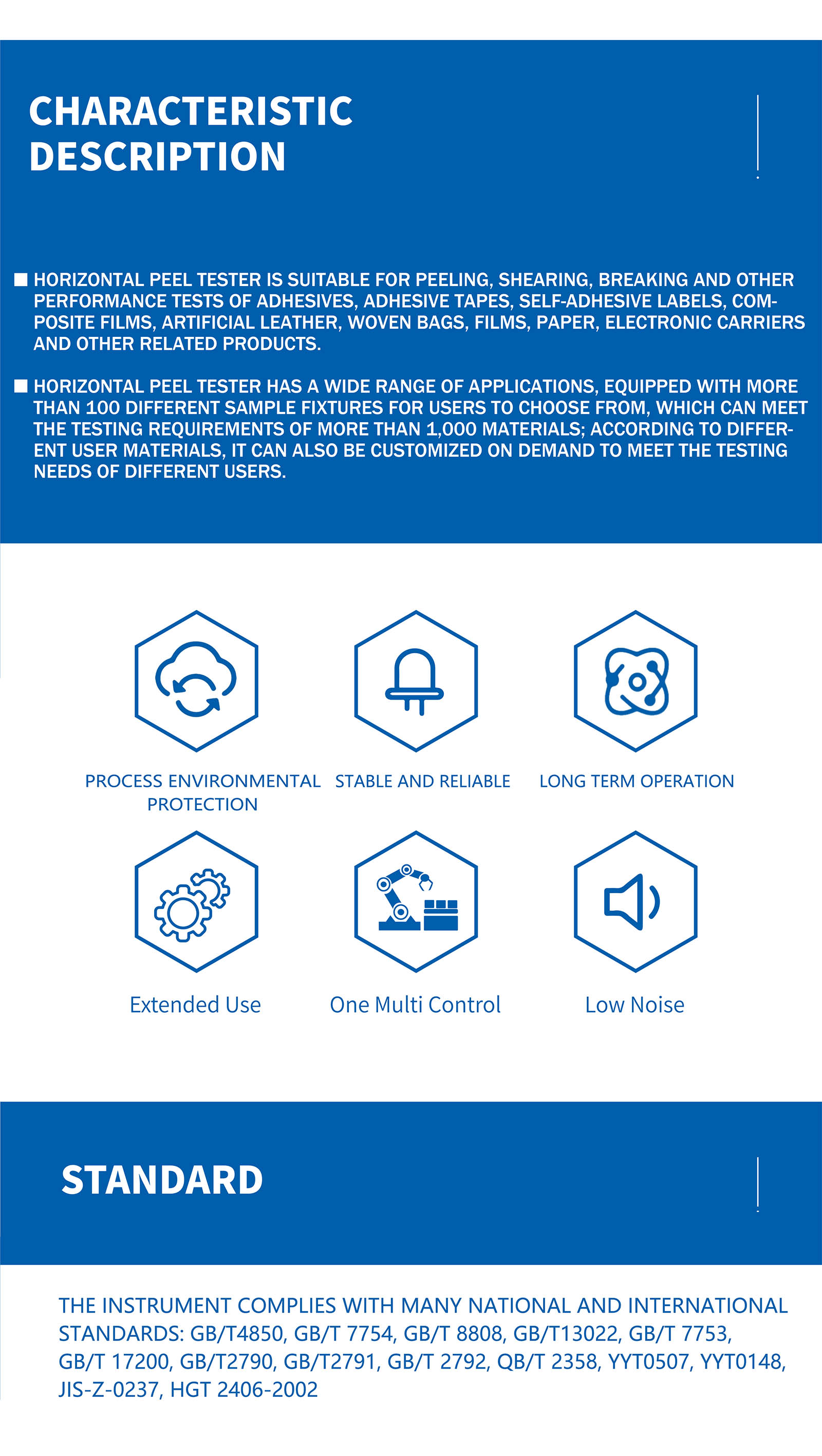

The Horizontal Peeling Force Tester is suitable for peeling, shearing, breaking and other performance tests of adhesives, adhesive tapes, self-adhesive labels, composite films, artificial leather, woven bags, films, paper, electronic carriers and other related products. The peeling test of materials can reflect the bonding strength of materials. It is an important test indicator for controlling adhesive products to prevent debonding and falling off, and can effectively help enterprises and institutions improve product performance.
Standards
The instrument complies with many national and international standards: GB/T4850, GB/T 7754, GB/T 8808, GB/T13022, GB/T 7753, GB/T 17200, GB/T2790, GB/T2791, GB/T 2792, QB/T 2358, YYT0507, YYT0148, JIS-Z-0237, HGT 2406-2002

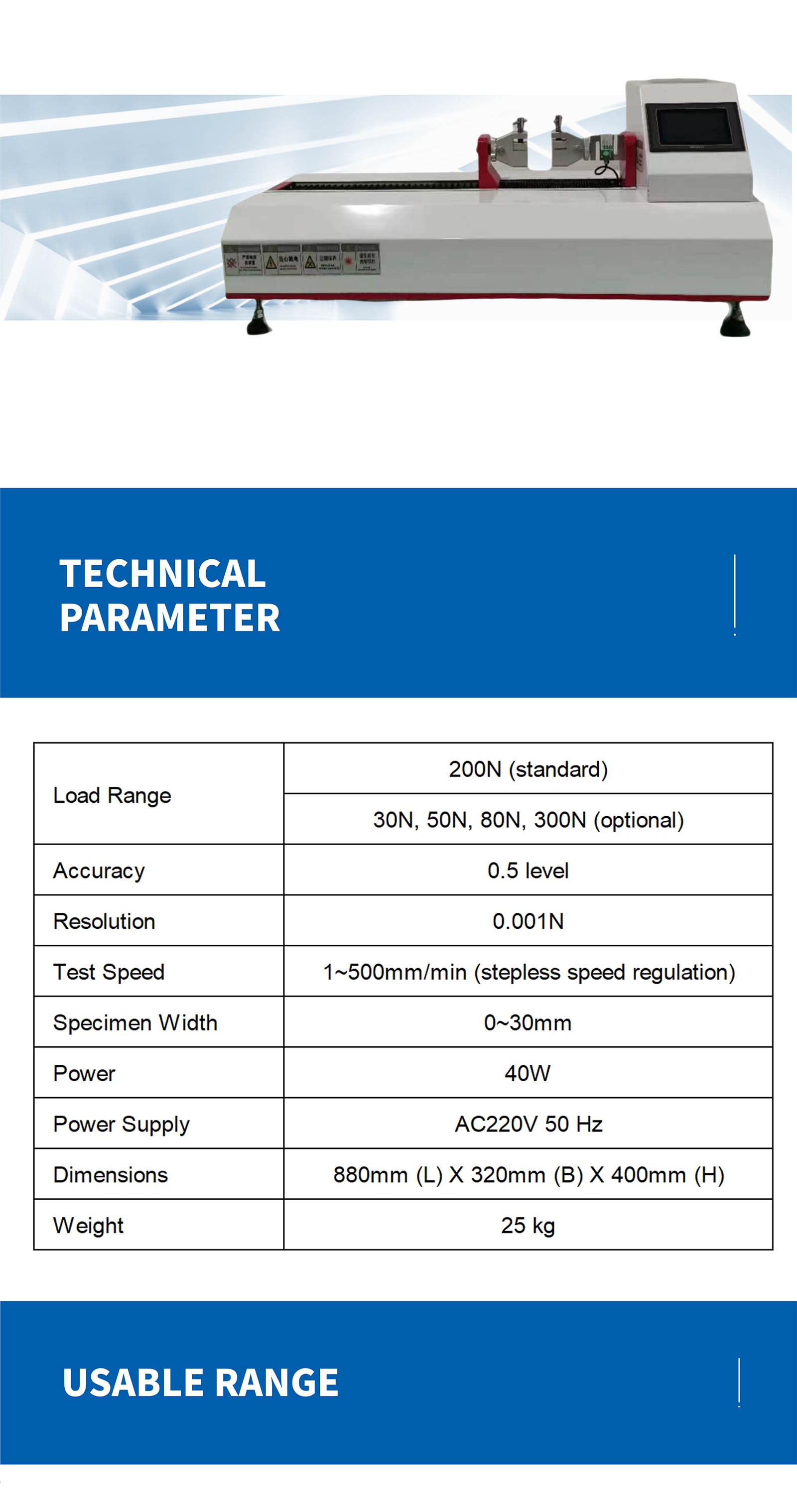

Technical parameters
|
Load Range |
200N (standard) |
|
30N, 50N, 80N, 300N (optional) |
|
|
Accuracy |
0.5 level |
|
Resolution |
0.001N |
|
Test Speed |
1~500mm/min (stepless speed regulation) |
|
Specimen Width |
0~30mm |
|
Power |
40W |
|
Power Supply |
AC220V 50 Hz |
|
Dimensions |
880mm (L) X 320mm (B) X 400mm (H) |
|
Weight |
25 kg |
