Industrial Oven
Hot Air Precision Oven High Temperature Vacuum Oven
Applications
It is mainly used for aerospace equipment or equipment in the new space field, and is used for adaptation tests when subjected to the combined effects of humidity and altitude at high altitude or high altitude areas. This series of products can meet the comprehensive test of humidity and altitude, and can be equipped with rapid pressure reduction test and explosive decompression test functions.
Features

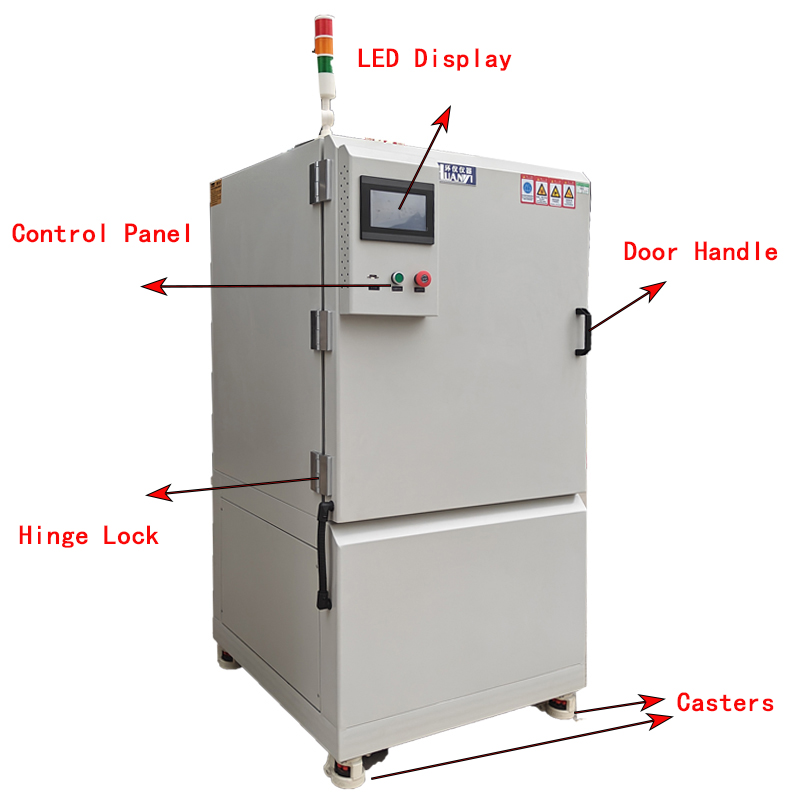

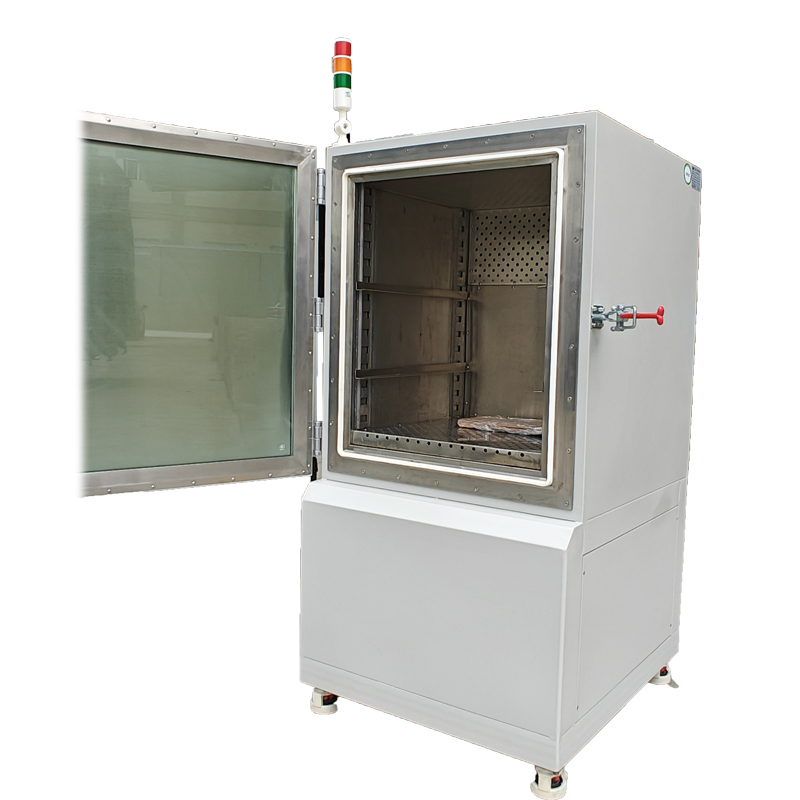

· The vacuum oven is composed of a high vacuum pump, a box, a working room, an electric heater and a digital temperature controller.
· The whole content adopts TIG seamless welding, which has good pressure bearing effect.
· Install a heat-resistant rubber sealing ring to ensure the airtightness of the box.
Technical parameters
|
Model |
HYUO-27 |
HYUO-72 |
HYUO-100 |
HYUO-290 |
|
Temp range |
+60℃~200℃/300℃/400℃/500℃ |
|||
|
Internal size(WxHxD)cm |
30x30x30 |
40x45x40 |
45x50x45 |
60x95x50 |
|
Pressure range |
Normal pressure ~0.133kpa |
|||
|
Pressure recovery time |
≤10kpa/min |
|||
|
Note |
Other sizes can be customized according to requirements |
|||
