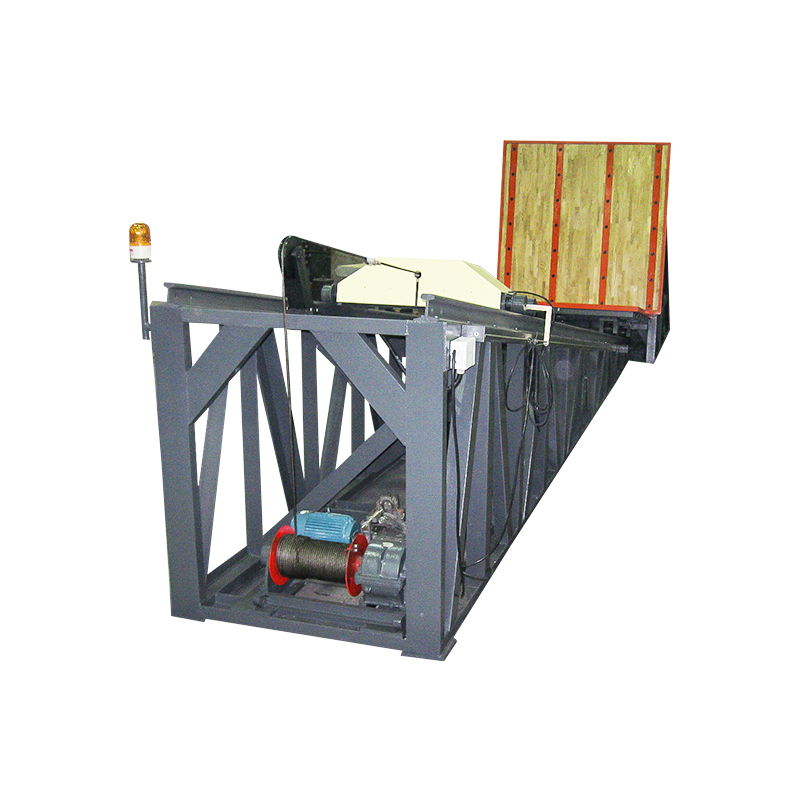

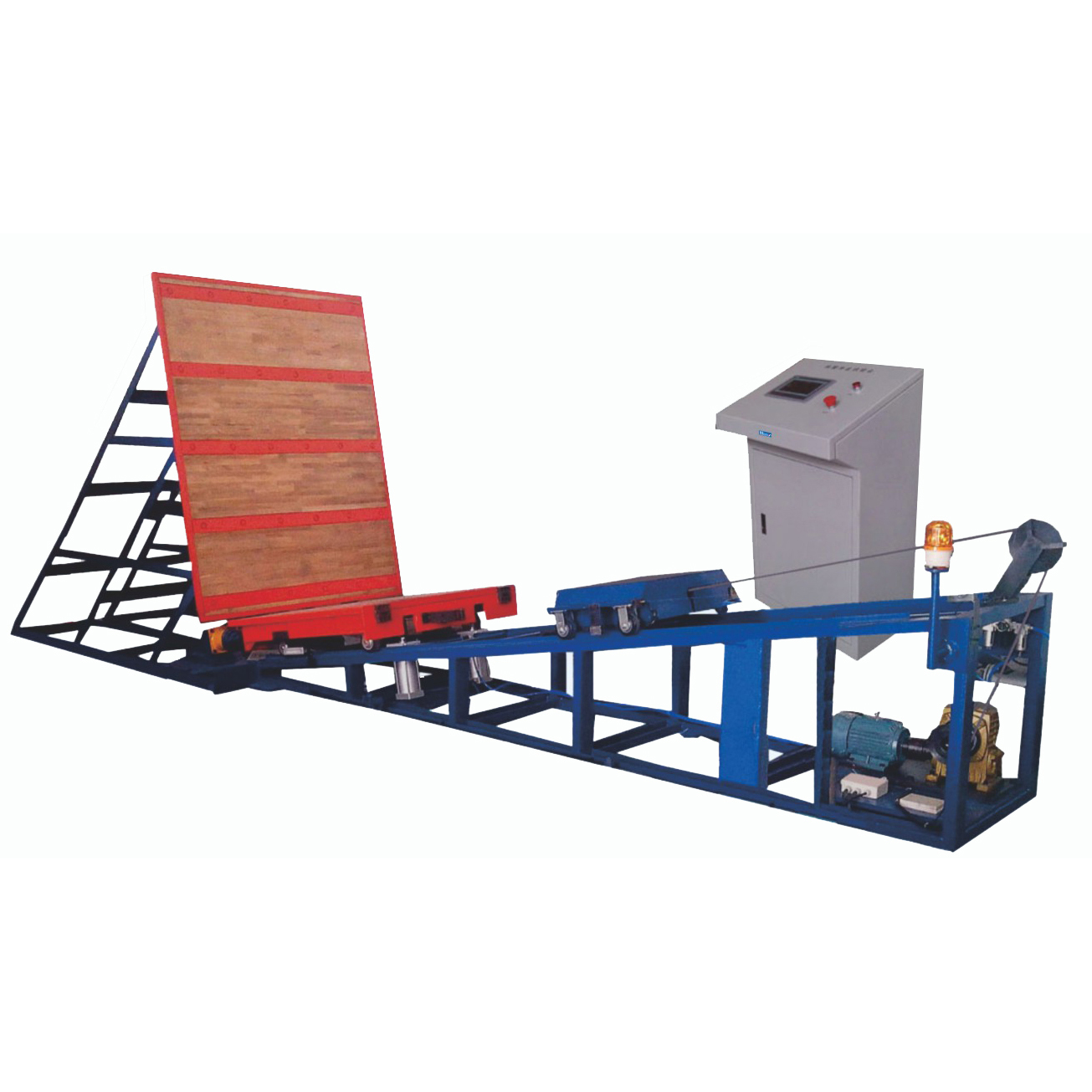

Inclined Impact Tester
Working conditions
Working Principle of Incline Impact Tester : Test principle of incline impact tester. By using the principle of transforming the potential energy of the object into kinetic energy, when the package slides to the end according to the predetermined position, the impact velocity is perpendicular to the impact plate.
Features
· The table can be adjusted to a horizontal level, which is convenient for customers to install test pieces.
· It adopts PLC+ human-machine interface control, which is simple tooperate and integrates control and measurement.
· It can display data such as the number of small impacts and the final impact velocity.
Technical parameters
|
Model |
HYXK-200 |
HYXK-300 |
HYXK-500 |
HYXK-2000 |
|
Load(kg) |
200 |
300 |
500 |
2000 |
|
Size of working table(mm) |
1100x1100 |
1300x1300 |
||
|
Impact panel size(mm) |
1300x1300 |
1500x1700 |
1600x1800 |
|
|
Max. sliding length and width(mm) |
4000 (to agreed value) |
4000 (to agreed value) |
||
|
Impact speed range(m/s) |
1.2~3.87 |
1.2~3.87 |
1.2~3.87 |
0.59~2.35 |
|
Impact error |
≤±5% |
≤±5% |
||
|
Overall dimensions (WxDxH)mm |
7000x1400x1700 |
7000x1500x2150 |
7500x1600x2300 |
|
|
Power supply |
Three-phase 380V, 50/60Hz |
|||
|
Fulfil the critena |
ISO 2244, GB/T4857, GJB/T6868 |
|||
|
Environment |
Temperature:0~40℃; Humidity≤80%RH. (Condensation-free) |
|||
