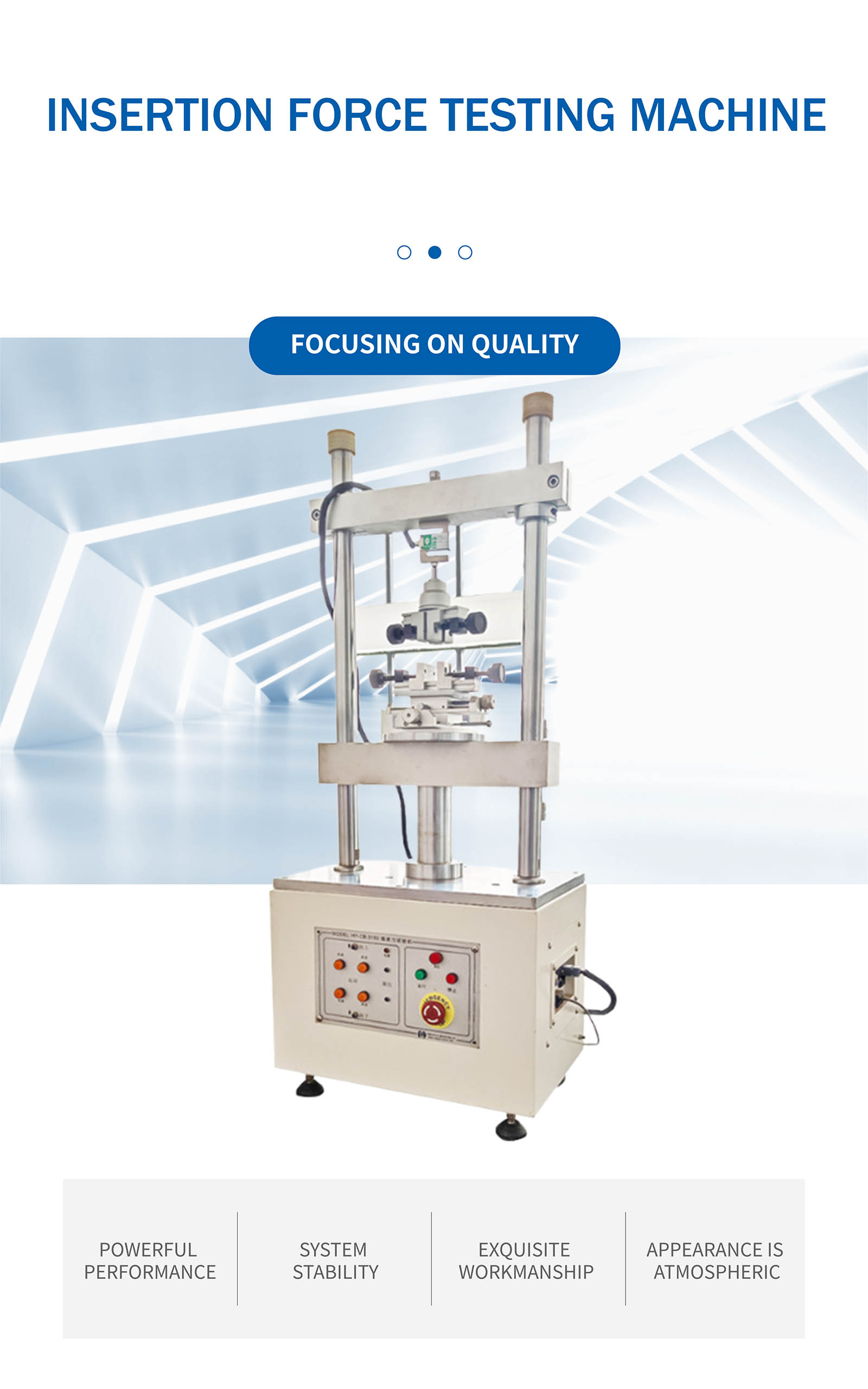

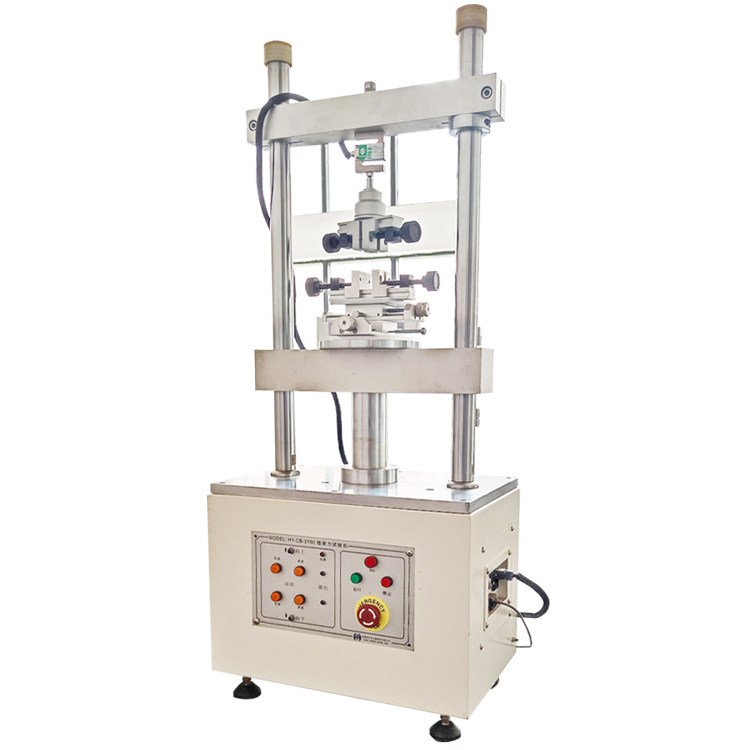

Insertion force testing machine

The plugging and pulling force testing machine is suitable for plugging and pulling tests of various connectors. It can display the continuous change value and peak value of the plugging and pulling force, and has the function of setting the number of times, adjusting the speed and pulling stroke, and displaying the numerical value.

Model HY-CB series
Capacity selection 5kgf,10kgf,20kgf,50kgf,100kgf
Unit switching kgf,N,Lb,gf
Load accuracy ±0.5%

product details

product description

Video

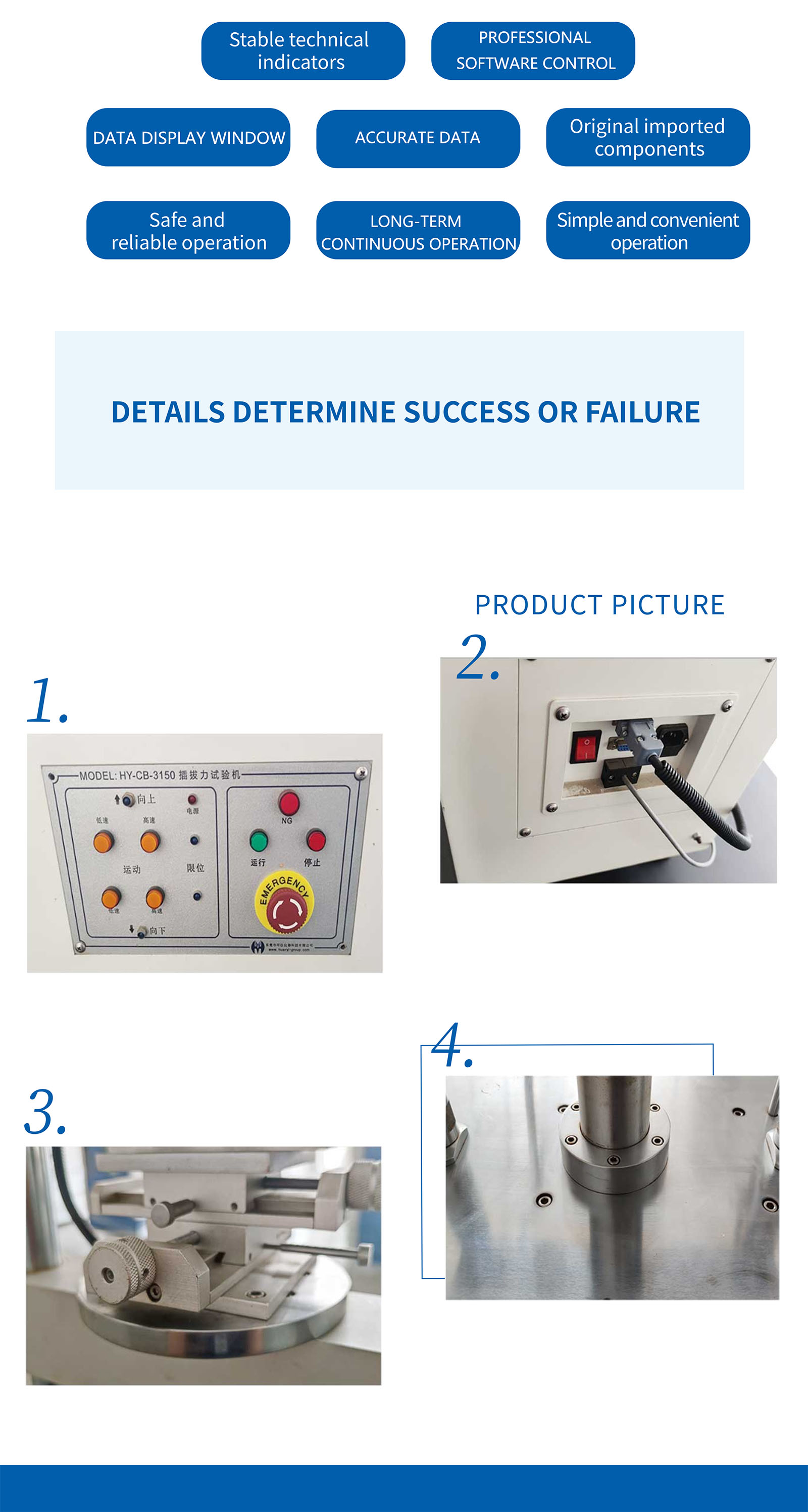

Features

1. This machine is suitable for various connectors for insertion and extraction force testing. It is equipped with an automatic centering device and special fixtures for various connectors to obtain completely accurate insertion and extraction force results.

2. This machine uses Windows Chinese window program settings, which is easy to operate. It automatically stores test data load-stroke curve, load attenuation life curve, test results, and all test conditions can be stored.

3. This machine uses high-precision load cell measurement and servo motor drive to obtain accurate insertion and extraction force results. It is indeed an essential testing instrument for connector manufacturers and finished product manufacturers for research and development and quality inspection.

Fulfil the criteria

There are GB/T20234 series standards, including GB/T20234.1-2015, GB/T20234.2-2015 and GB/T20234.3-2015 and other standards.

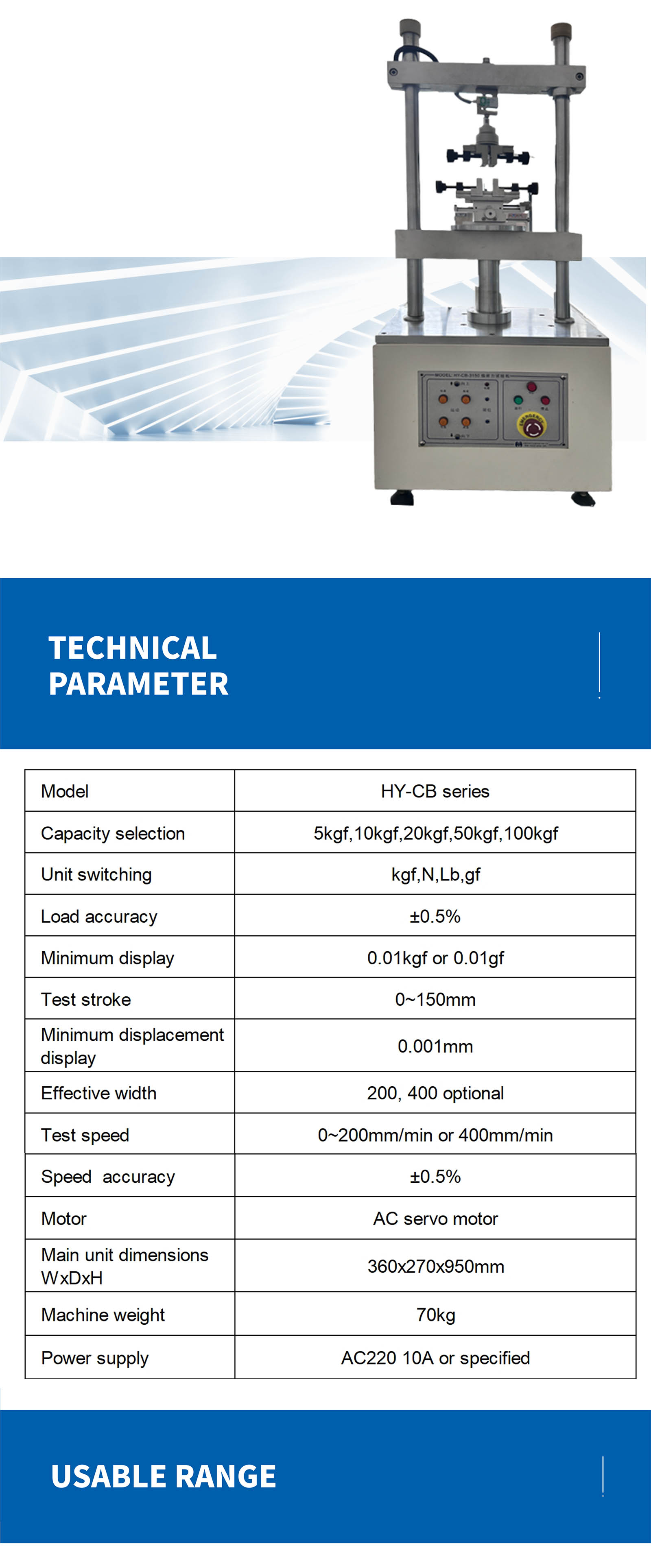

Technical parameters

Model	HY-CB series
Capacity selection	5kgf,10kgf,20kgf,50kgf,100kgf
Unit switching	kgf,N,Lb,gf
Load accuracy	±0.5%
Minimum display	0.01kgf or 0.01gf
Test stroke	0~150mm
Minimum displacement display	0.001mm
Effective width	200, 400 optional
Test speed	0~200mm/min or 400mm/min
Speed accuracy	±0.5%
Motor	AC servo motor
Main unit dimensions WxDxH	360x270x950mm
Machine weight	70kg
Power supply	AC220 10A or specified
