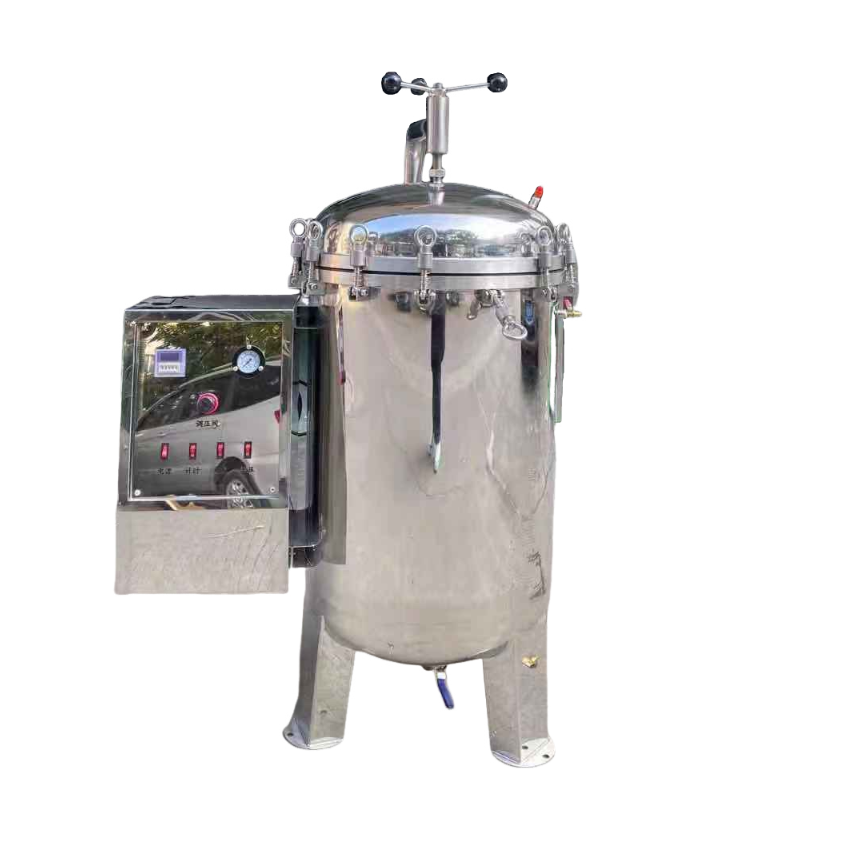

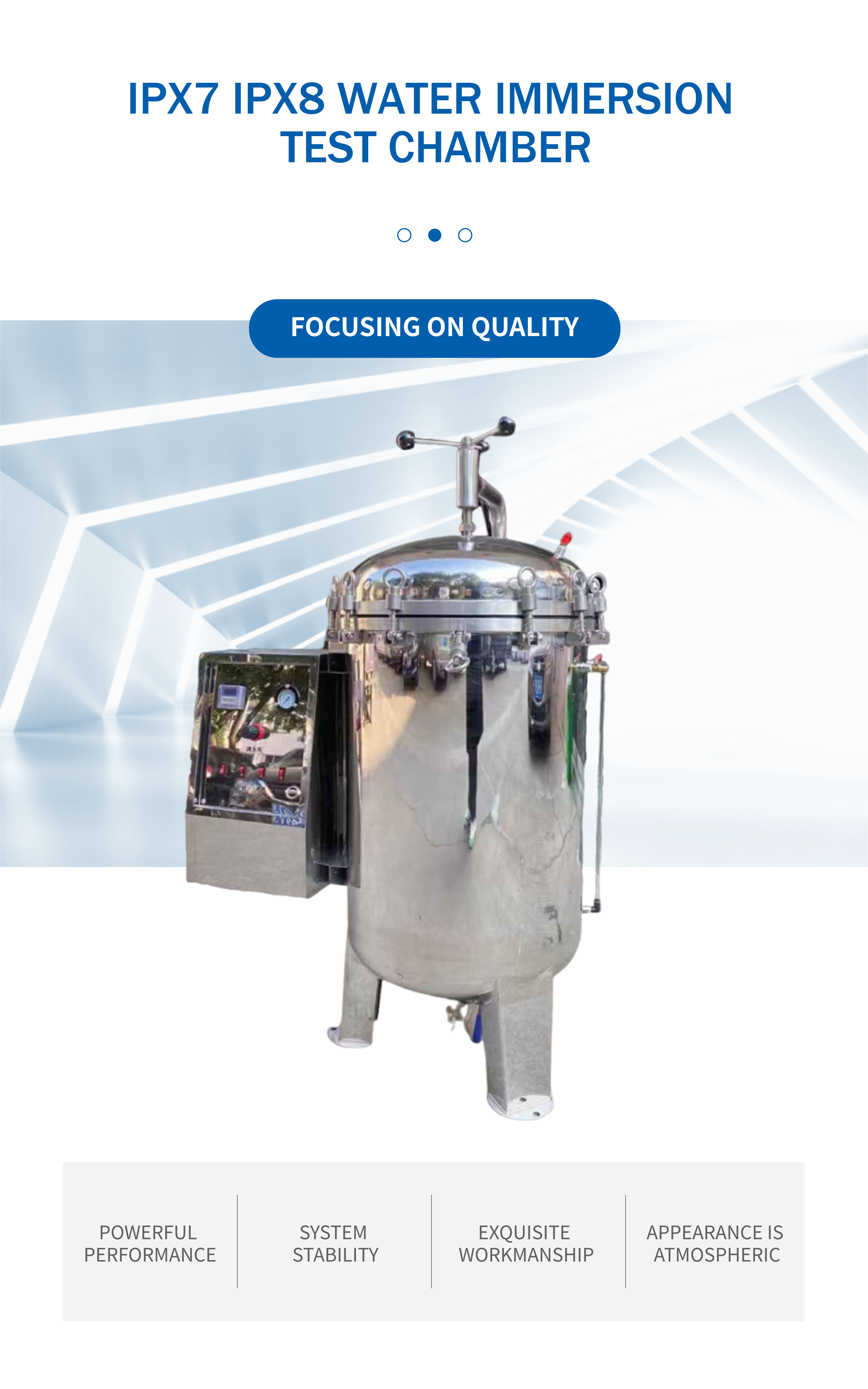

IPx7 IPx8 Water Immersion Test Chamber
applications
led IPX7 8 Water Immersion Test Chamber is suitable for electric products assessment, shell and seal in the rain enviroment can ensure that equipment and components good performance test. This product uses scientific design, makes the equipment can realistic simulation drop of water, splash water, water spray, jetting and immersion, etc., various kinds of enviroment. they can be automatic control.
Characteristic
IPX7 and IPX8 functions on one test chamber;
Simulate 50m water depth pressure;
Protection against water immersion test;
Eliminates water consumption by circulation unit;
Automatic water supply;
Programmable color display touch screen controller;
Safety protection system;
SUS304 # stainless steel plate and high-precision overall sub-arc welding, outer mirror polishing, inner layer rough throw, beautiful appearance, convenient cleaning and durability;
Special silicone sealing ring (elasticity, never aging, the tube used for ten years);
The electronic control components are all imported LG, Panasonic, Omron, Anliang and other brands;
Time control function, set the time 0-999 minutes, automatically stop when the set time is reached, and automatically drain the air inside the tank, the tester can open the can lid to take out the test sample;
Bottom of the tank body has a water inlet valve and a drain valve, and a 5 meter water hose is provided;
The base is equipped with 4 activities with brake casters, easy to move.

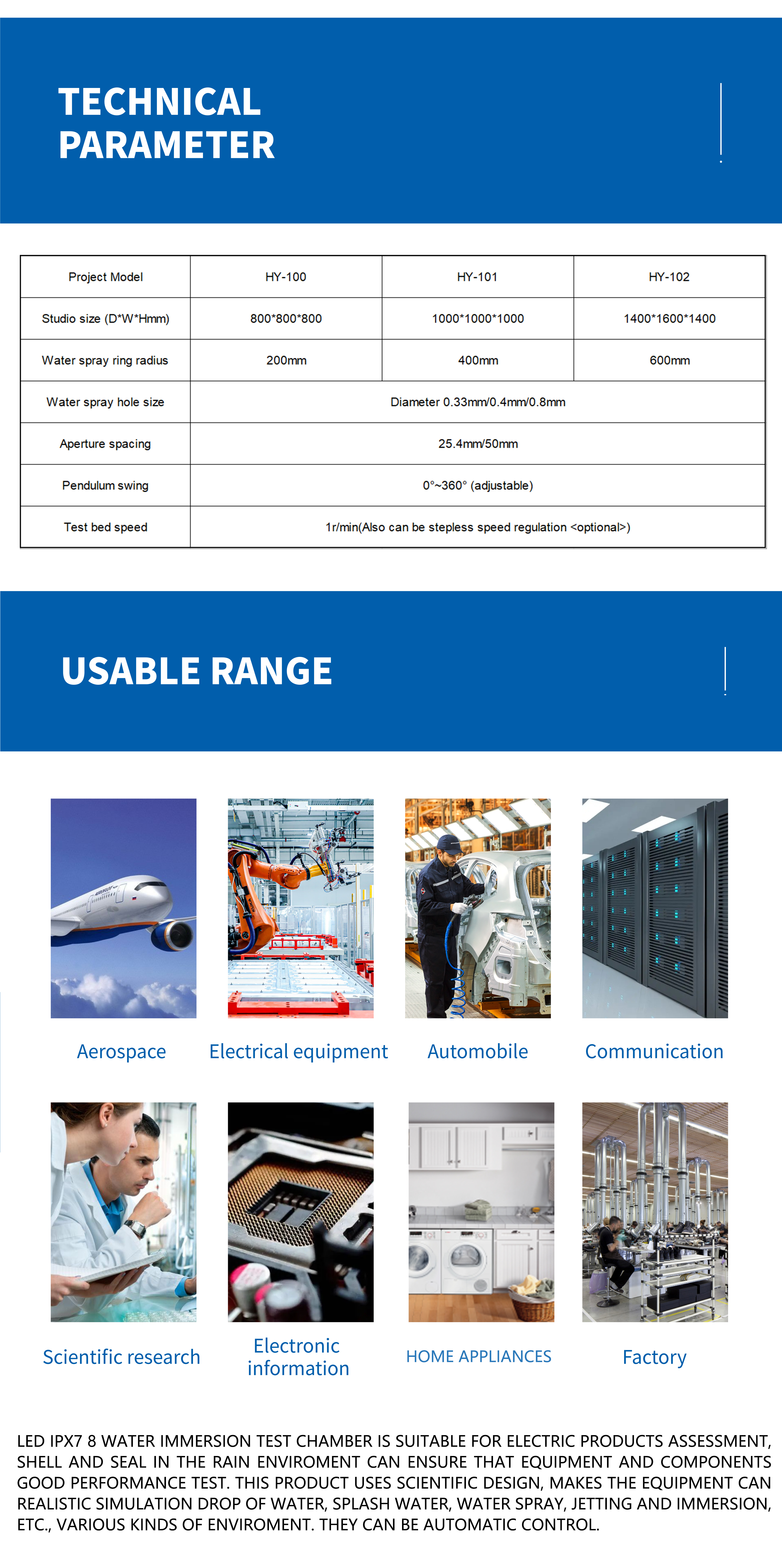

Technical parameters
| Project Model | HY-100 | HY-101 | HY-102 |
| Studio size (D*W*Hmm) | 800*800*800 | 1000*1000*1000 | 1400*1600*1400 |
| Water spray ring radius | 200mm | 400mm | 600mm |
| Water spray hole size | Diameter 0.33mm/0.4mm/0.8mm | ||
| Aperture spacing | 25.4mm/50mm | ||
| Pendulum swing | 0°~360° (adjustable) | ||
| Test bed speed | 1r/min(Also can be stepless speed regulation <optional>) | ||

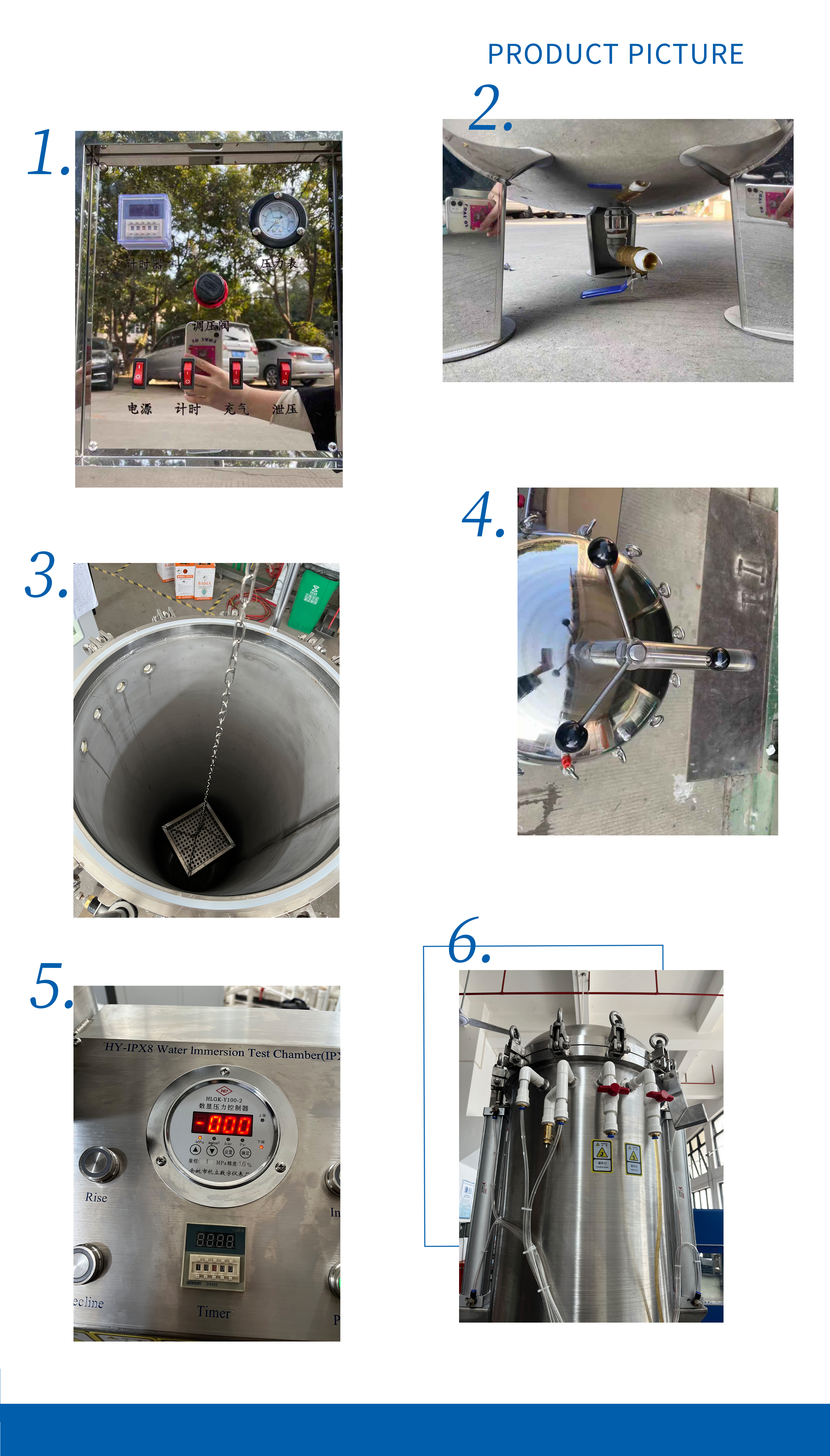

Product Details Diagram
