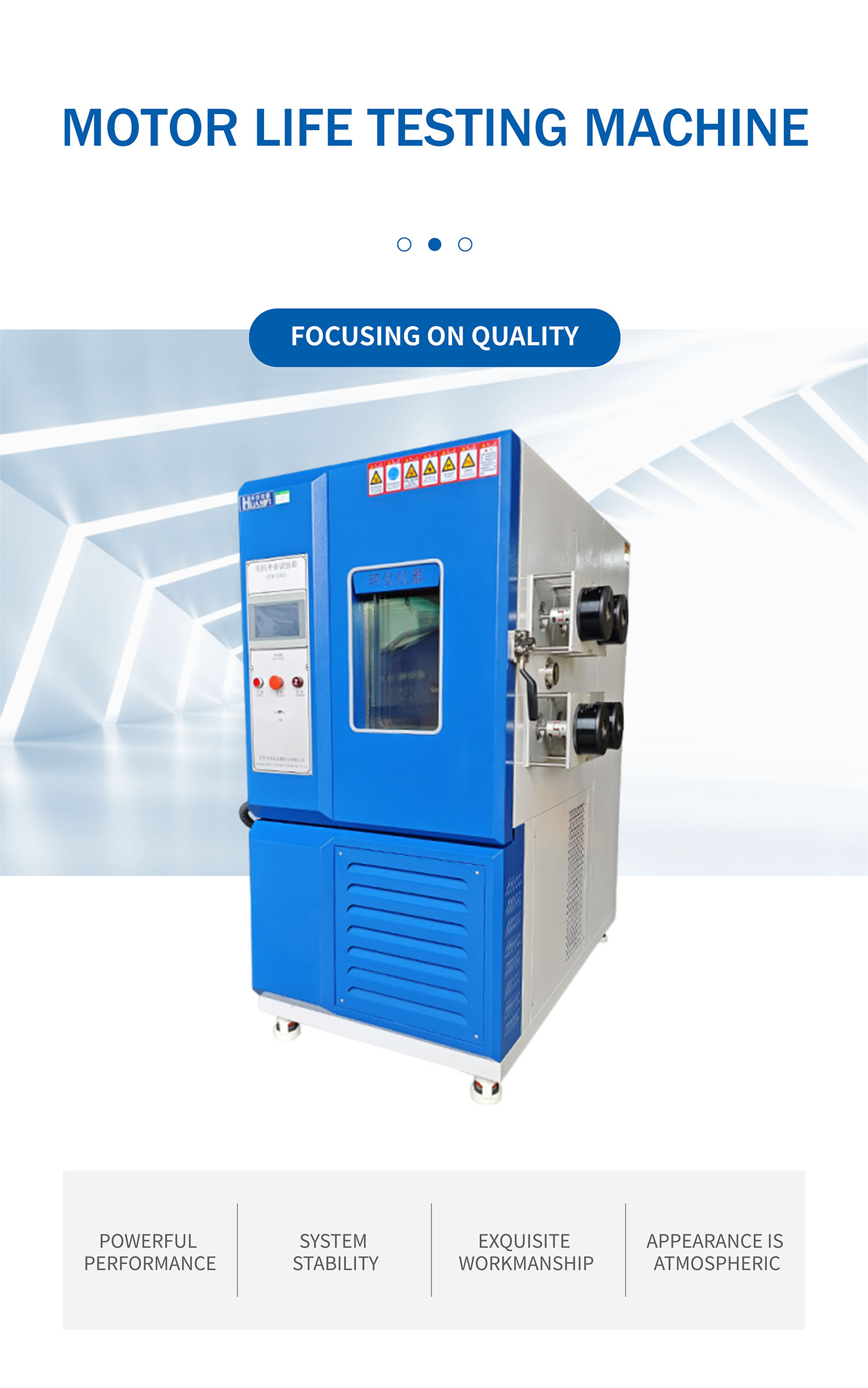

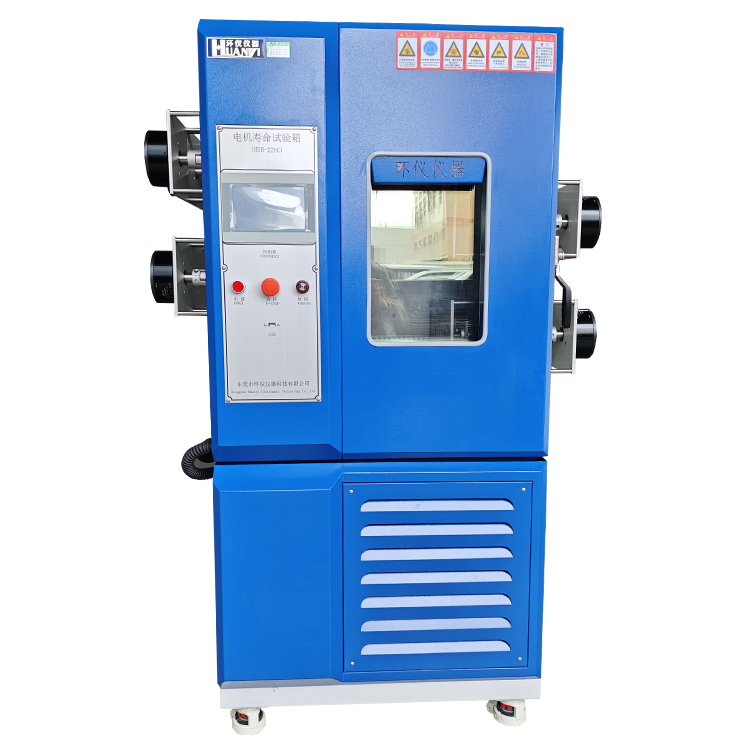

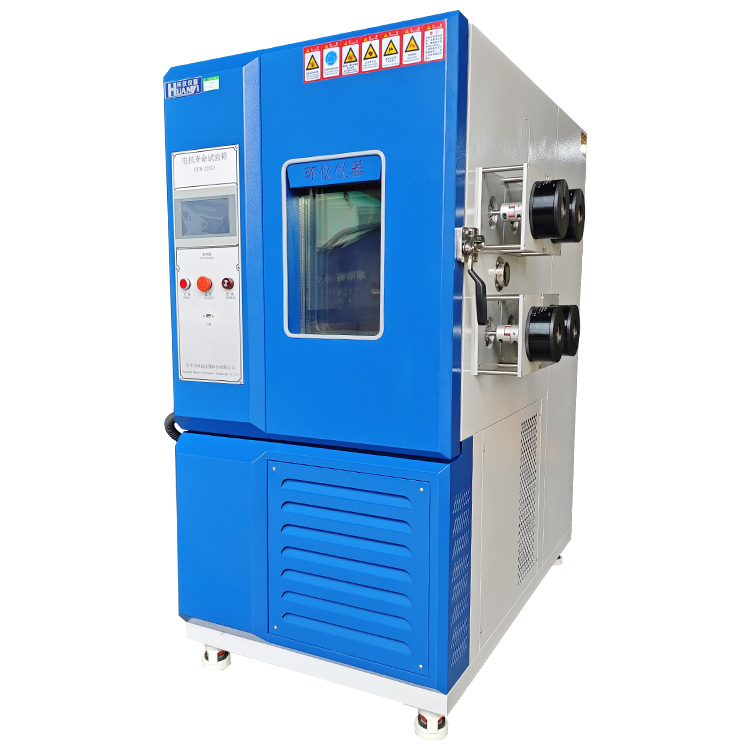

Motor life testing machine
Product Description

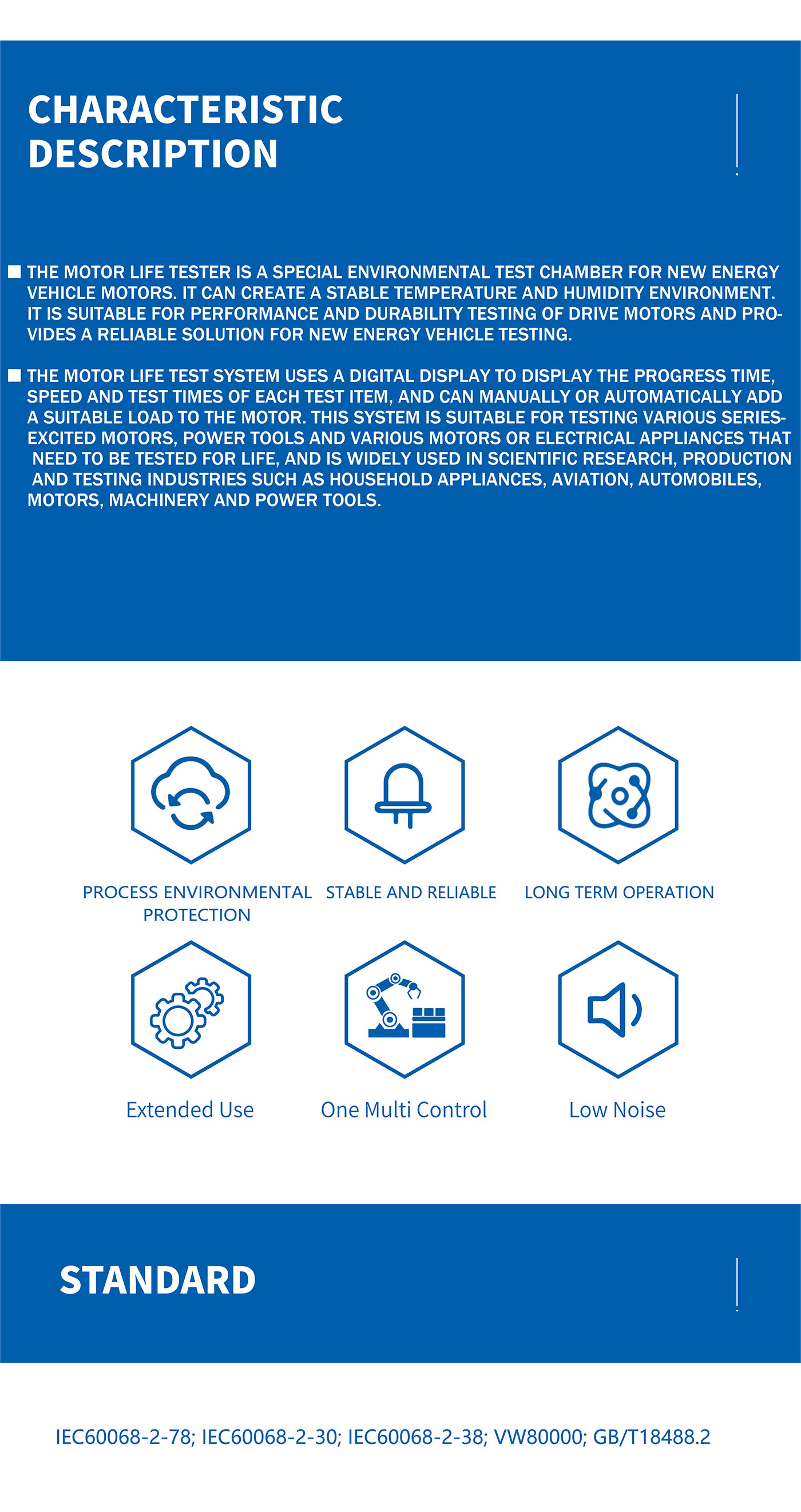

The motor life tester is a special environmental test chamber for new energy vehicle motors. It can create a stable temperature and humidity environment. It is suitable for performance and durability testing of drive motors and provides a reliable solution for new energy vehicle testing.
The motor life test system uses a digital display to display the progress time, speed and test times of each test item, and can manually or automatically add a suitable load to the motor. This system is suitable for testing various series-excited motors, power tools and various motors or electrical appliances that need to be tested for life, and is widely used in scientific research, production and testing industries such as household appliances, aviation, automobiles, motors, machinery and power tools.Features
1. The life test system adopts special simulated load, high speed and high power, small size, light inertia, smooth braking, no impact, low noise and other characteristics, suitable for high-speed motor testing.
2. The whole machine has high sensitivity, convenient load adjustment and control, and good stability.
3. The voltage, current, input power, power factor, frequency, speed, output power and number of cycles are displayed digitally, with high resolution, stable display and reliable operation.
4. Simple structure, few auxiliary equipment, easy to use and maintain.
5. The whole machine is controlled by a single-chip microcomputer, which can smoothly carry out automatic loading (unloading) and automatic cycle testing, and the test time can be set.
6. It can communicate with a computer and each test can be controlled.
2. The whole machine has high sensitivity, convenient load adjustment and control, and good stability.
3. The voltage, current, input power, power factor, frequency, speed, output power and number of cycles are displayed digitally, with high resolution, stable display and reliable operation.
4. Simple structure, few auxiliary equipment, easy to use and maintain.
5. The whole machine is controlled by a single-chip microcomputer, which can smoothly carry out automatic loading (unloading) and automatic cycle testing, and the test time can be set.
6. It can communicate with a computer and each test can be controlled.

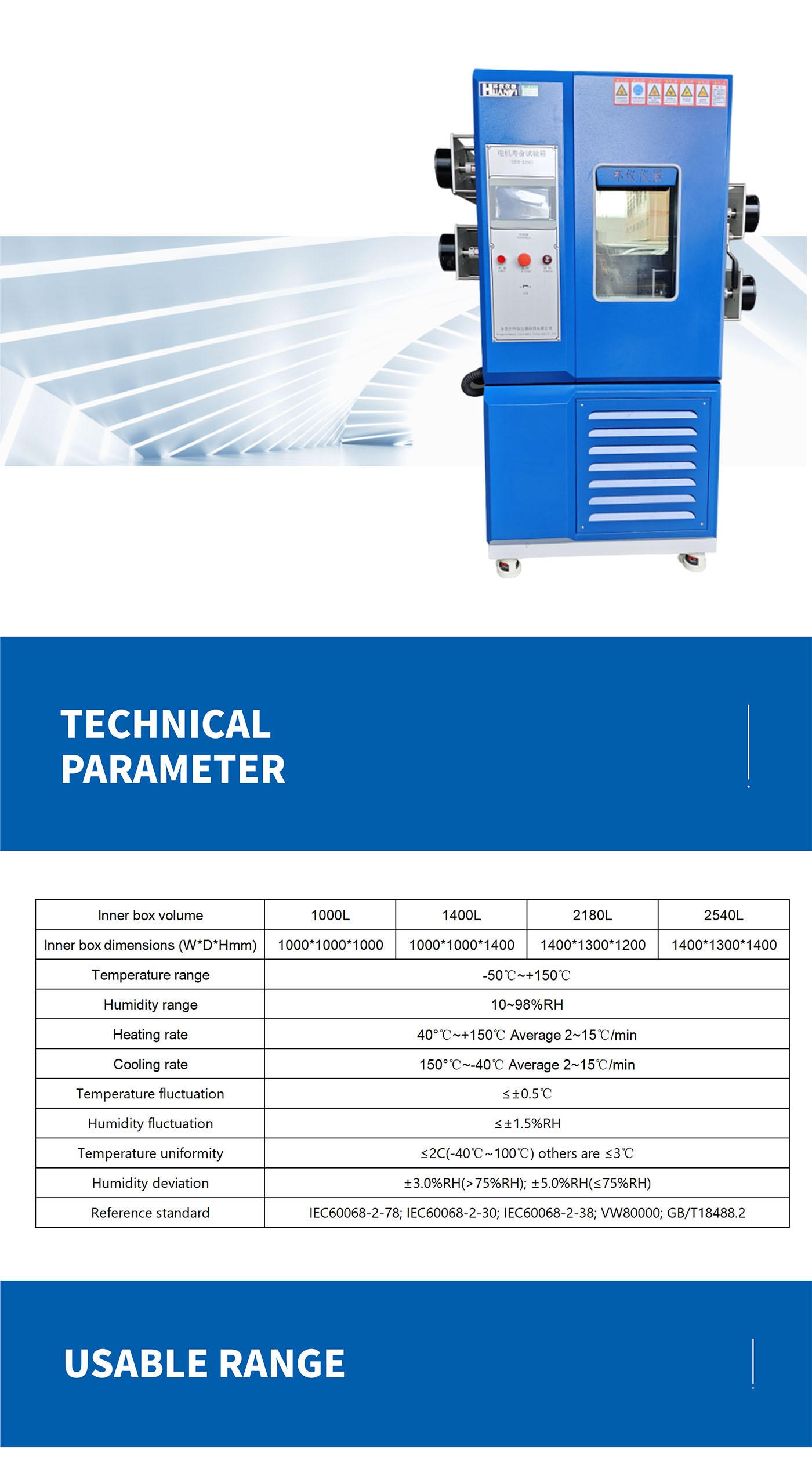

Technical parameters
|
Inner box volume |
1000L |
1400L |
2180L |
2540L |
|
Inner box dimensions (W*D*Hmm) |
1000*1000*1000 |
1000*1000*1400 |
1400*1300*1200 |
1400*1300*1400 |
|
Temperature range |
-50℃~+150℃ |
|||
|
Humidity range |
10~98%RH |
|||
|
Heating rate |
40°℃~+150℃ Average 2~15℃/min |
|||
|
Cooling rate |
150°℃~-40℃ Average 2~15℃/min |
|||
|
Temperature fluctuation |
≤±0.5℃ |
|||
|
Humidity fluctuation |
≤±1.5%RH |
|||
|
Temperature uniformity |
≤2C(-40℃~100℃) others are ≤3℃ |
|||
|
Humidity deviation |
±3.0%RH(>75%RH); ±5.0%RH(≤75%RH) |
|||
|
Reference standard |
IEC60068-2-78; IEC60068-2-30; IEC60068-2-38; VW80000; GB/T18488.2 |
|||

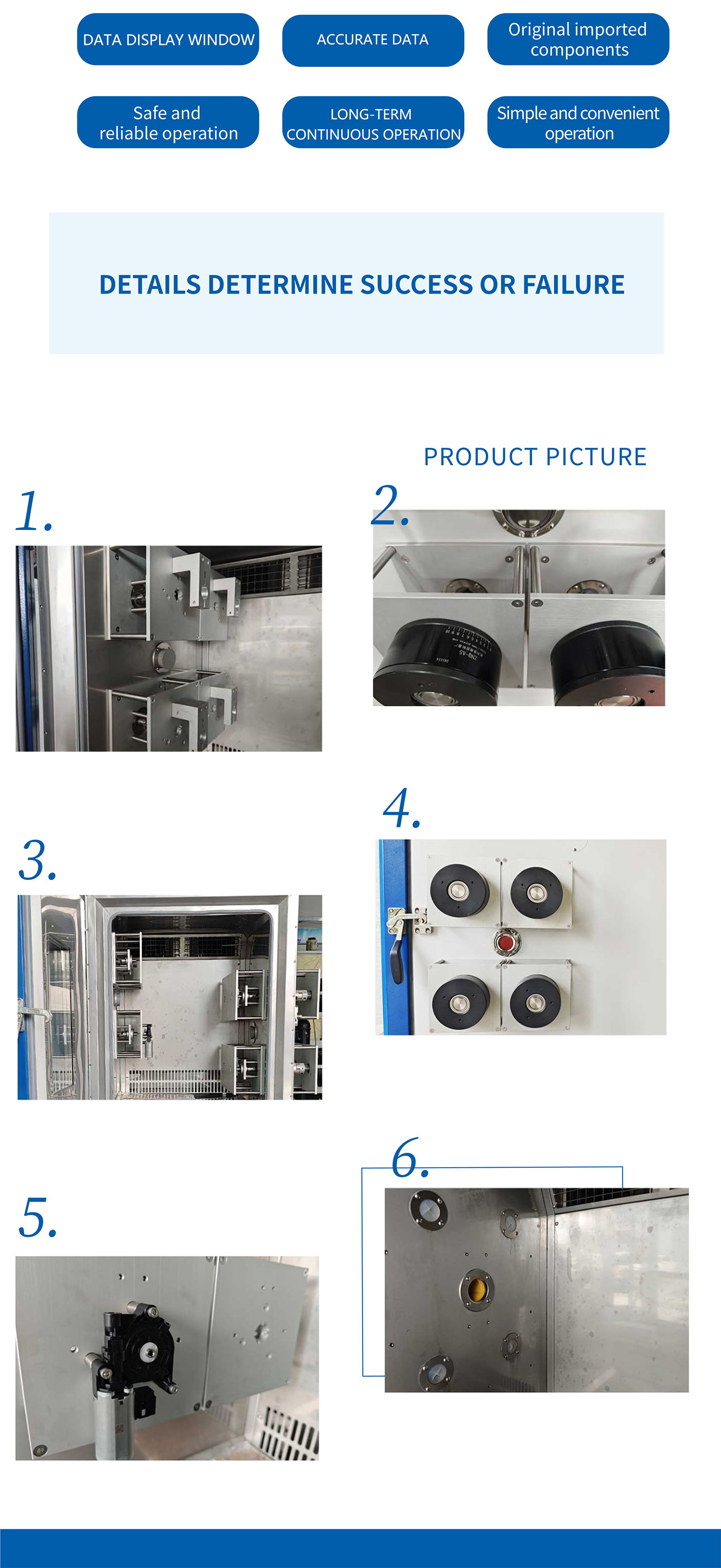

Product Details Diagram
