What are the factors that affect the solderability of SMT products?

1. Definition and connotation of solderability
Solderability refers to the ability of a metal surface to be fully wetted by molten solder and form a strong metal bond with it under specific welding conditions. This property is crucial to the manufacture of electronic products because it is directly related to the quality, reliability and service life of the soldered joints.
(1). Wettability: Wettability is one of the important indicators for measuring solderability. It refers to the ability of molten solder to spread on the metal surface. When the solder forms a uniform, smooth and continuous adhesion film on the metal surface, it means that the metal has good wettability.
(2). Metal bonding: Metal bonding refers to the chemical bond formed between molten solder and the metal substrate. This bond is the main source of strength of the soldered joint and the key to ensuring soldering quality.

2. Factors affecting the solderability of SMT products

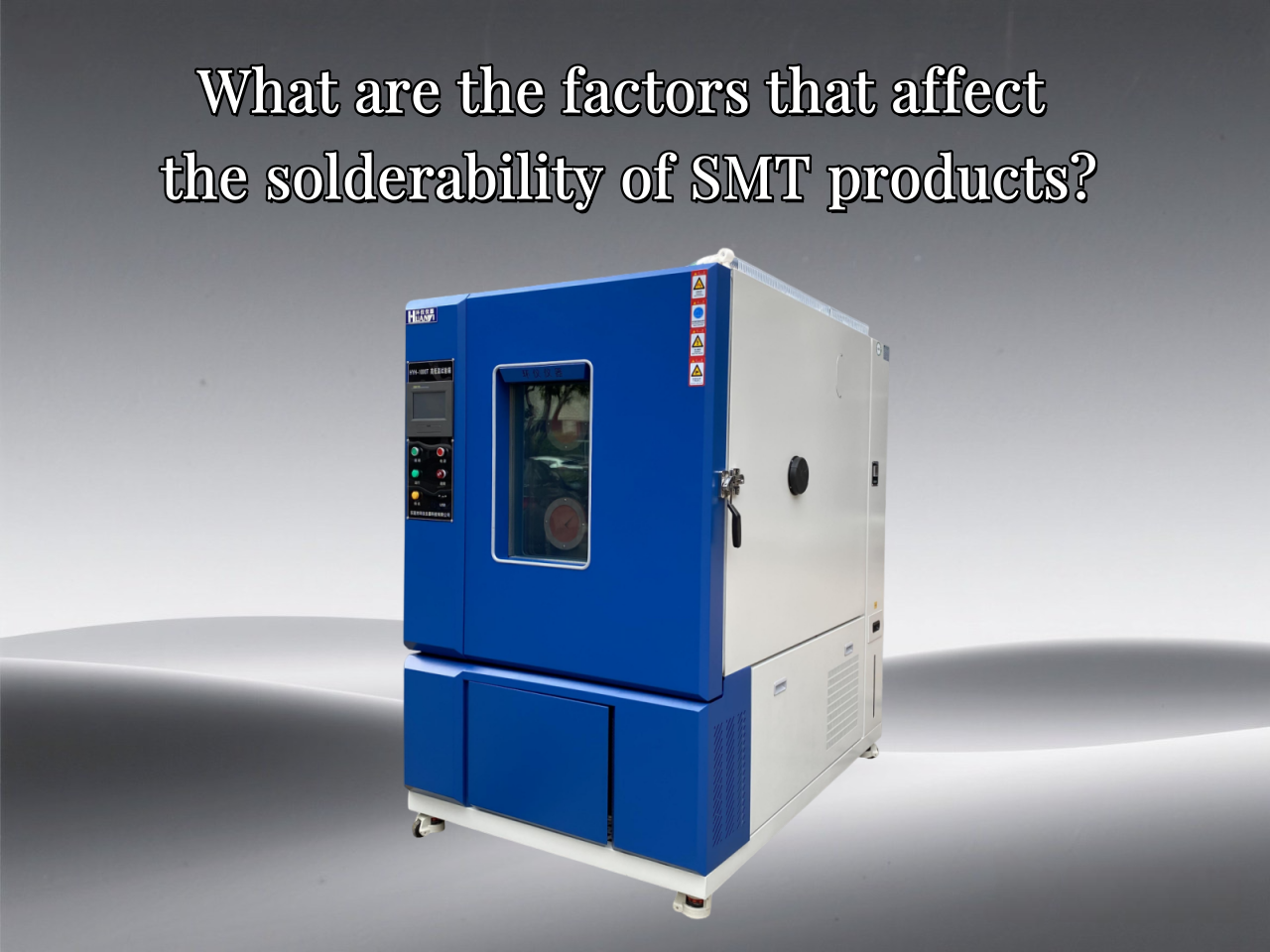

Solderability is affected by many factors, including the chemical composition, physical state, environmental factors and welding process parameters of the metal surface. For example, a SMT product, a constant temperature and humidity chamber.
(1). Chemical composition of the metal surface of the box: impurities such as oxides, oil, dust, etc. on the metal surface will seriously affect its solderability. These impurities will hinder the contact between the solder and the metal substrate, thereby reducing the wettability and metal bonding strength.
(2). Physical state of the metal surface of the box: The roughness, flatness and microstructure of the metal surface will also affect its solderability. For example, a surface that is too rough will increase the contact area between the solder and the metal substrate, but it will also increase the difficulty of wetting; while a surface that is too flat may reduce the strength of the welded joint due to the lack of sufficient mechanical bite.
(3). Environmental factors: The temperature, humidity, gas composition, etc. in the welding environment will also affect the solderability. For example, high temperature will accelerate the oxidation and evaporation of the solder, thereby reducing its wettability; while excessive humidity may cause the solder to become damp, thereby affecting the welding quality.
(4). Welding process parameters: The selection of process parameters such as welding temperature, welding time, and welding pressure will also affect the weldability. Too high welding temperature may cause the metal substrate to overheat and deform or damage; too long welding time may cause excessive oxidation of the solder and reduce its wettability; and the size of the welding pressure directly affects the contact area and wetting effect between the solder and the metal substrate.

3. Testing and Evaluation
In order to ensure the welding quality of the product, it is usually necessary to test and evaluate the solderability of the metal material. The following are some commonly used test methods and evaluation standards:
(1). Wetting balance test: The wetting balance test is a commonly used method to evaluate the solderability of metal surfaces. This test evaluates the wettability of molten solder by measuring the spreading area and spreading speed of molten solder on the metal surface. The larger the spreading area and the faster the spreading speed, the better the solderability of the metal surface.
(2). Solderability test standards: In the electronics industry, a series of standardized test methods are usually used to evaluate the solderability of metal materials. For example, standards such as EIA/IPC/JEDEC J-STD-002 and 003 specify various test methods and evaluation standards. These standards cover multiple aspects from wettability testing to solder joint strength testing, providing a strong guarantee for the soldering quality of the product.
(3). Thermal shock test: Thermal shock test is a method used to evaluate the thermal stability of solder joints. This test evaluates the thermal stability of a welded joint by placing it in a high or low temperature environment and observing abnormalities such as deformation and cracking. This test is important for ensuring the reliability of products in extreme environments.

4. Improvement measures
A series of measures can be taken to improve the weldability of metal materials of products in view of various factors affecting weldability.
(1). Surface treatment: The metal surface can be treated by cleaning, pickling, sandblasting, electroplating and other methods to remove impurities such as oxides and oil stains on its surface, thereby improving its wettability and metal bonding strength. For example, electroplating nickel or tin can form a dense metal layer on the metal surface, thereby improving its weldability.
(2). Choose the right solder: Different types of solder have different wettability and metal bonding capabilities. Therefore, when choosing solder, it is necessary to comprehensively consider factors such as the type, thickness and welding requirements of the metal material. For example, for some high melting point metals or metal surfaces that are difficult to wet, solders containing active elements can be selected to improve their wettability.
(3). Optimize welding process parameters: By adjusting process parameters such as welding temperature, welding time, and welding pressure, the welding process can be optimized, thereby improving the weldability of metal materials. For example, appropriately lowering the welding temperature can reduce overheating and deformation of the metal substrate; while increasing the welding pressure can increase the contact area and wetting effect between the solder and the metal substrate.
(4). Use advanced welding technology: With the development of science and technology, some advanced welding technologies such as laser welding and ultrasonic welding are gradually being used in the manufacture of electronic products. These technologies have the advantages of fast welding speed, small heat-affected zone, and high welding quality, which can significantly improve the weldability of metal materials and the reliability of products.

5. Conclusion
In summary, solderability is an important concept in the field of electronic engineering and materials science. It involves many aspects such as the chemical composition, physical state, environmental factors and welding process parameters of the metal surface. In order to ensure the welding quality and reliability of the product, it is necessary to test and evaluate the solderability of metal materials and take a series of measures to improve their solderability. At the same time, with the development and innovation of science and technology, solderability will continue to play an important role and promote the continuous progress and development of electronic product manufacturing technology.
In the process of electronic product manufacturing, we should attach great importance to the solderability of metal materials, strengthen the research and analysis of its influencing factors, and continuously optimize the welding process and technical parameters to improve the welding quality and reliability of the product. At the same time, we also need to strengthen technological innovation and R&D efforts to promote the continuous innovation and development of welding technology to meet the higher requirements of electronic products for welding quality and reliability.
