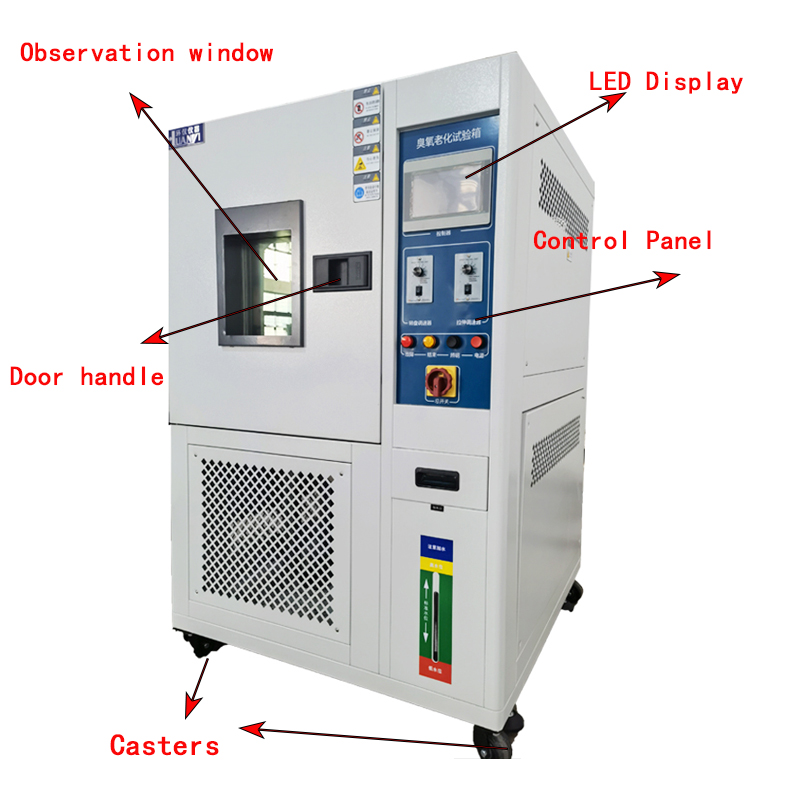

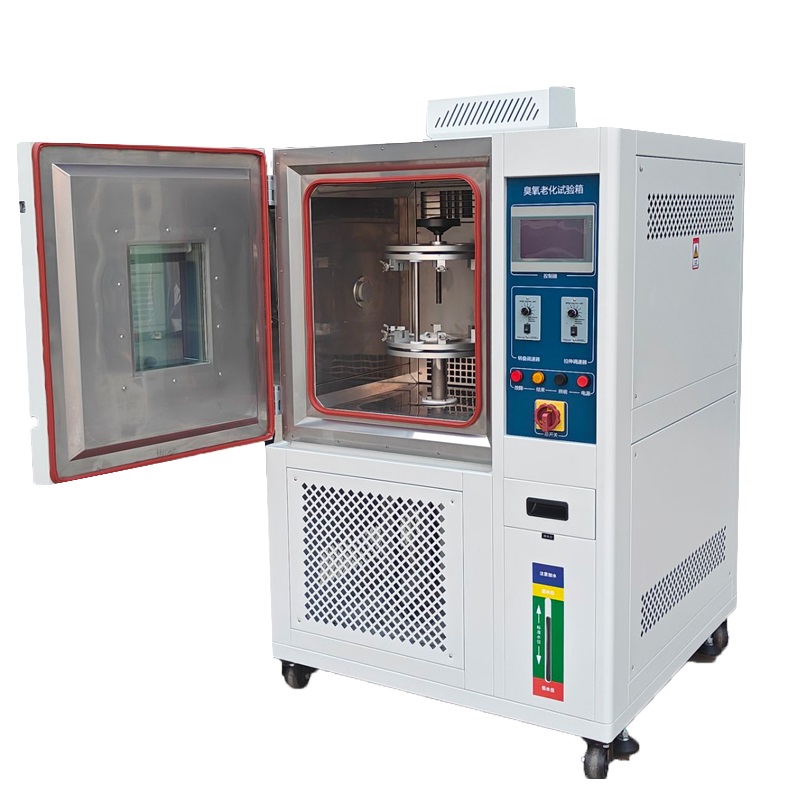

Ozone Aging Test Chamber
Applications
Ozone aging chamber is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.
Meet the standards
• GB/T7762-2014 "Ozone Aging Resistance Test of Vulcanized Rubber - Static Tensile Test Method";
• GB/T13642-2015 "Ozone Aging Resistance Test of Vulcanized Rubber - Dynamic Tensile Test Method";
• ASTM1149 Standard "Test Methods for Rubber Deterioration - Cracking in an Ozone Controlled Environment";
• ASTM D3041-79 "Method of Testing Coated Fabrics-Ozone Cracking in a Chamber";
• ASTM D1171-18 "Standard Test Method for Rubber Deterioration-Surface Ozone Cracking Outdoors";
• ISO1431-1 and "ISO1431-3 Rubber, vulcanized or thermoplastic - Resistance to ozone cracking".
Technical parameters
|
Model |
HYQL-150 |
HYQL-225 |
HYQL-408 |
HYQL-1000 |
|
Internal size(WxHxD)cm |
50x60x50 |
50x75x60 |
60x85x60 |
100x100x100 |
|
External size(WxHxD)cm |
105x150x110 |
105x165x120 |
115x175x140 |
160x190x160 |
|
Ozone concentration range |
50pphm~1000pphm |
|||
|
Ozone concentration deviation |
±10% |
|||
|
Temp.range |
0℃~+100℃ |
|||
|
Humid.range |
30%~80%RH |
|||
|
Interior material |
High-grade steel plate with paint treatment or SUS/304 stainless steel |
|||
|
Exterior material |
SUS304 stainless steel |
|||
|
Insulation material |
German Bayer fire-resistant high-strength PU polyurethane foam insulation geomaterial + ultra-fine glass fiber |
|||
|
Circulation device |
Aluminum alloy multi-wing air supply |
|||
|
Heater |
SUS304 imported finned heating tube |
|||
|
Refrigeration system |
Air-cooled European and American imported fully enclosed compressor unit |
|||
|
Control method |
Balanced temperature control system(BTHC), PID control+S.S.R |
|||
|
Other configurations |
Dynamic and static fixtures / static fixtures |
|||
|
Power |
AC 3Φ 220V/380V+10%,50/60HZ |
|||
