VOC & Formaldehyde Emission Test Chamber

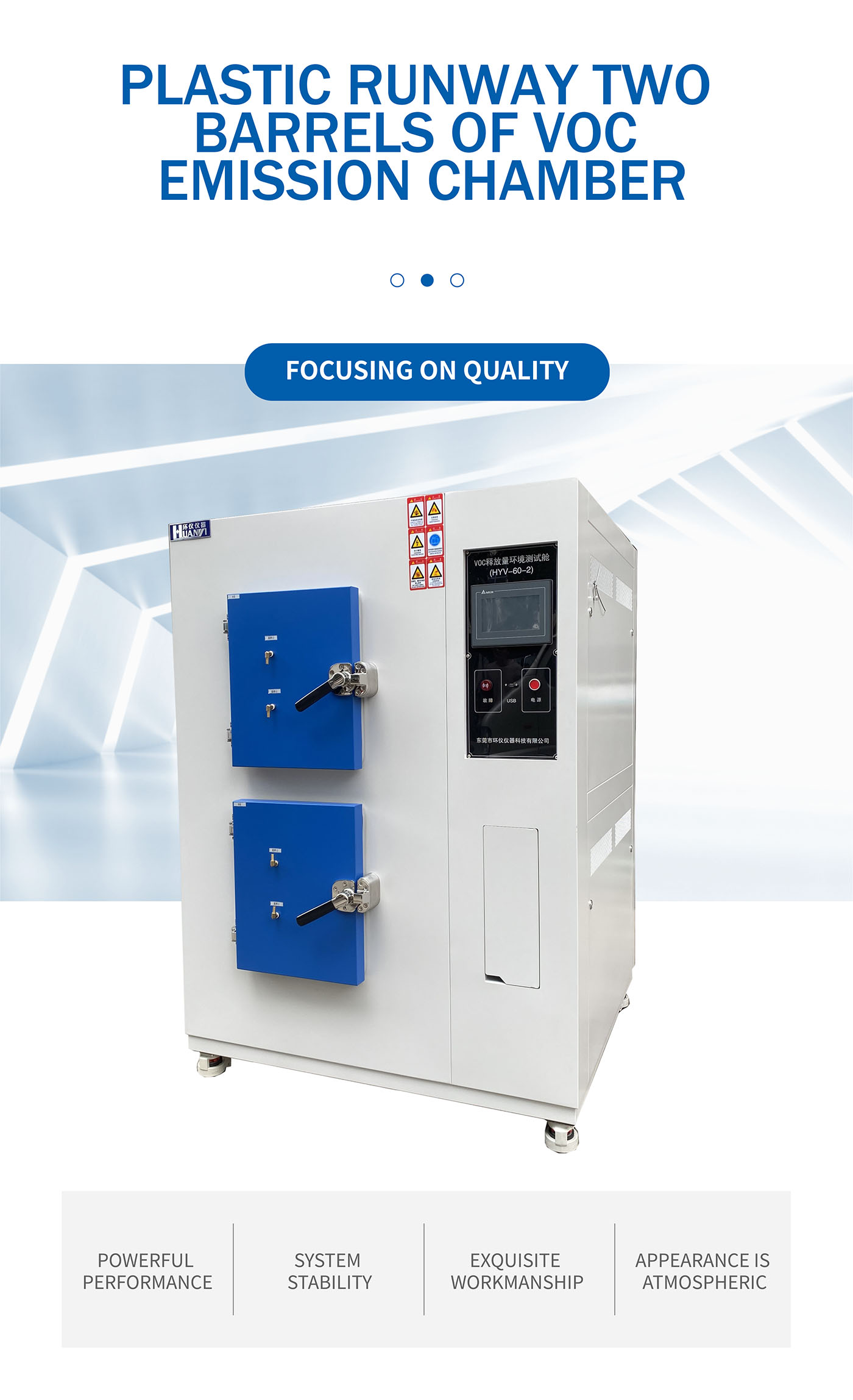

Plastic Runway Two Barrels of VOC Emission Chamber

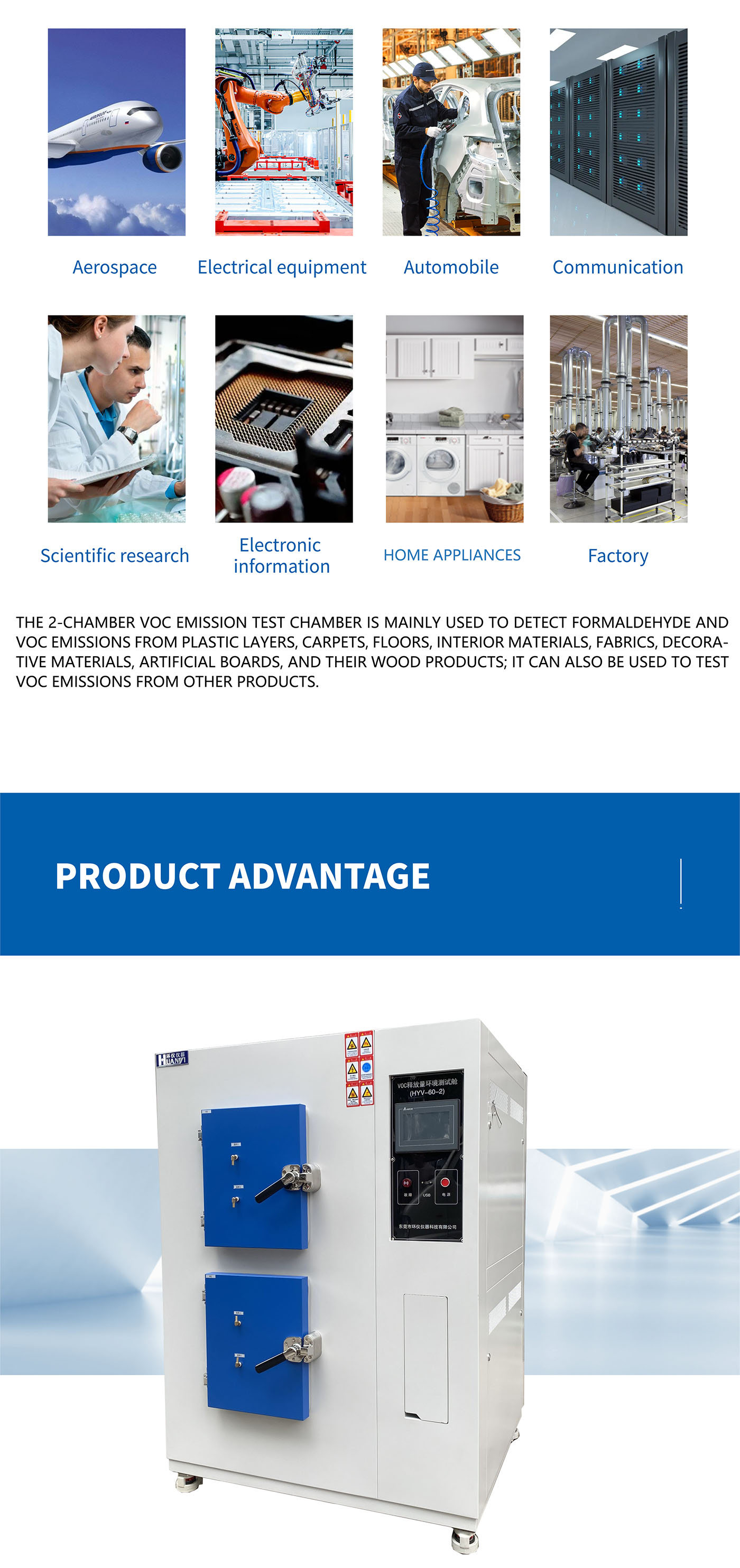

Product Application

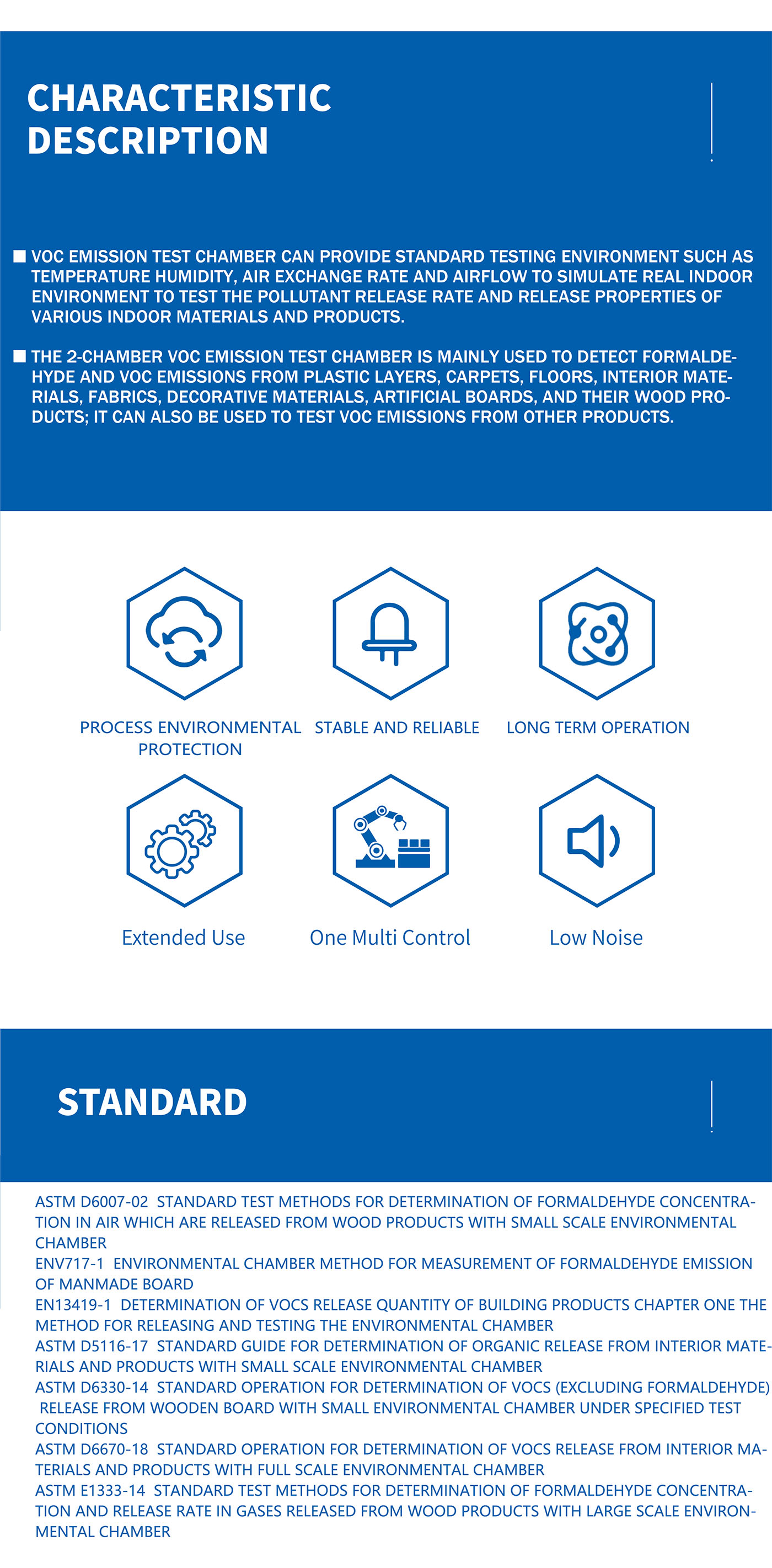

Meet the standards
● ENV717-1 Environmental Chamber Method for Measurement of Formaldehyde Emission of Manmade Board
● EN13419-1 Determination of VOCs Release quantity of Building products Chapter One The Method for Releasing and Testing the Environmental Chamber
● ASTM D5116-17 Standard Guide for Determination of Organic Release from Interior Materials and Products with Small Scale Environmental Chamber
● ASTM D6330-14 Standard Operation for Determination of VOCs (Excluding Formaldehyde) Release from Wooden Board with Small Environmental Chamber under Specified Test Conditions
● ASTM D6670-18 Standard Operation for Determination of VOCs Release from Interior Materials and Products with Full Scale Environmental Chamber
● ASTM E1333-14 Standard Test Methods for Determination of Formaldehyde Concentration and Release Rate in Gases Released from Wood Products with Large Scale Environmental Chamber
● GB 18580-2017 Limits of Formaldehyde Release from Artificial Panel Machine Products of Interior Decoration Materials
● GB/T 31107-2014 General Technical Requirements for Climate Chambers for Testing Volatile Organic Compounds in Furniture

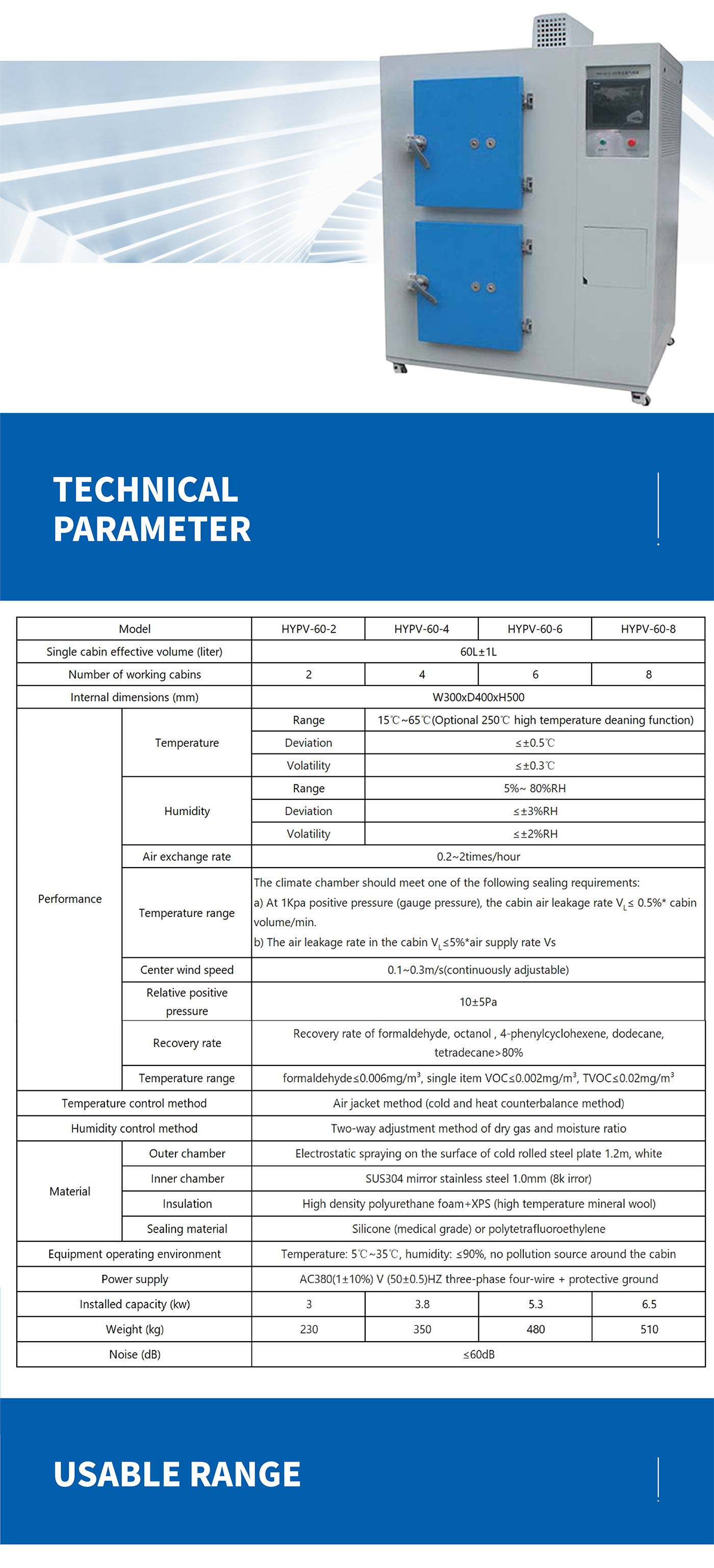

Technical parameters
|
Model |
HYPV-60-2 |
HYPV-60-4 |
HYPV-60-6 |
HYPV-60-8 |
|
|
Single cabin effective volume (liter) |
60L±1L |
||||
|
Number of working cabins |
2 |
4 |
6 |
8 |
|
|
Internal dimensions (mm) |
W300xD400xH500 |
||||
|
Performance |
Temperature |
Range |
15℃~65℃(Optional 250℃ high temperature deaning function) |
||
|
Deviation |
≤±0.5℃ |
||||
|
Volatility |
≤±0.3℃ |
||||
|
Humidity |
Range |
5%~ 80%RH |
|||
|
Deviation |
≤±3%RH |
||||
|
Volatility |
≤±2%RH |
||||
|
Air exchange rate |
0.2~2times/hour |
||||
|
Temperature range |
The climate chamber should meet one of the following sealing requirements: a) At 1Kpa positive pressure (gauge pressure), the cabin air leakage rate VL≤ 0.5%* cabin volume/min. b) The air leakage rate in the cabin VL≤5%*air supply rate Vs |
||||
|
Center wind speed |
0.1~0.3m/s(continuously adjustable) |
||||
|
Relative positive pressure |
10±5Pa |
||||
|
Recovery rate |
Recovery rate of formaldehyde, octanol , 4-phenylcyclohexene, dodecane, tetradecane>80% |
||||
|
Temperature range |
formaldehyde≤0.006mg/m³, single item VOC≤0.002mg/m³, TVOC≤0.02mg/m³ |
||||
|
Temperature control method |
Air jacket method (cold and heat counterbalance method) |
||||
|
Humidity control method |
Two-way adjustment method of dry gas and moisture ratio |
||||
|
Material |
Outer chamber |
Electrostatic spraying on the surface of cold rolled steel plate 1.2m, white |
|||
|
Inner chamber |
SUS304 mirror stainless steel 1.0mm (8k irror) |
||||
|
Insulation |
High density polyurethane foam+XPS (high temperature mineral wool) |
||||
|
Sealing material |
Silicone (medical grade) or polytetrafluoroethylene |
||||
|
Equipment operating environment |
Temperature: 5℃~35℃, humidity: ≤90%, no pollution source around the cabin |
||||
|
Power supply |
AC380(1±10%) V (50±0.5)HZ three-phase four-wire + protective ground |
||||
|
Installed capacity (kw) |
3 |
3.8 |
5.3 |
6.5 |
|
|
Weight (kg) |
230 |
350 |
480 |
510 |
|
|
Noise (dB) |
≤60dB |
||||
