Impact Test Machine

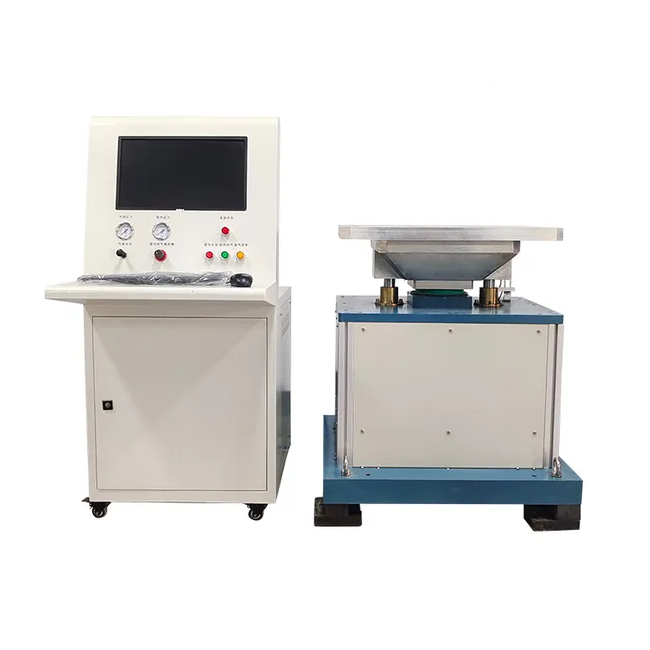

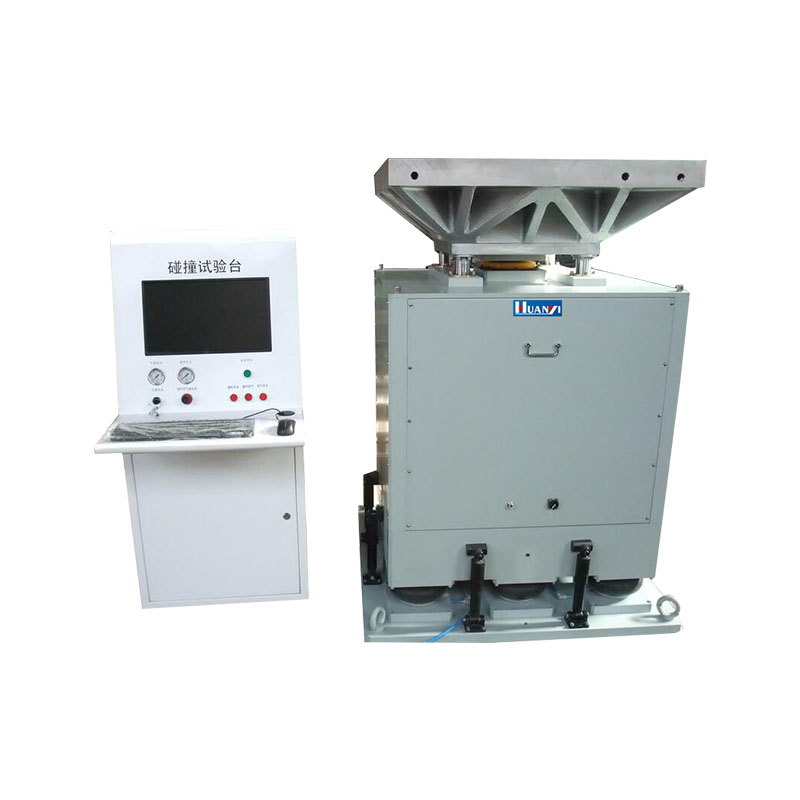

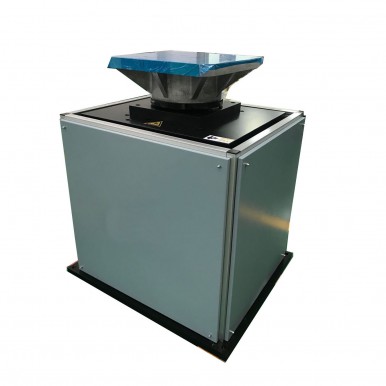

Pneumatic Impact Crash Test Bench
Selection factors
Sample information: max. dimensions, max. weight.
Test conditions: acceleration, pulse width, collision frequency, test axis, etc.
Features
· Fully pneumatically driven.
· Control the collision frequency by adjusting the gas pressure to achieve continuous high-frequency collision.
· The test time and number of collisions can be set arbitrarily, and the machine will automatically stop after the test is completed.
Equipment advantages
1. High collision frequency and energy
Pneumatic impact crash test bench has a high-performance collision function, the large free fall height of up to 280mm, in the 40mm free fall height, the large collision frequency up to 120 times / min.
2. Small acceleration collision waveform, high repeatability
Pneumatic impact crash test bench small collision acceleration can be as low as 30m/s2, the traditional collision table can only do 50m/s2.
3. Strong non-standard product design capability
Pneumatic impact crash test bench has a strong index expandability, our technical department is ready to undertake high-frequency, high-energy non-standard collision test system design, will be based on the user's requirements for the size of the table, load capacity, impact acceleration, pulse width, frequency and other requirements to do the optimization of the design, have the ability to meet the user's special requirements.
Technical parameters
|
Model |
HYB-50A |
HYB-50B |
HYB-100A |
HYB-100B |
HYB-250 |
HYB-500 |
HYB-1000 |
|
Max. load(kg) |
50 |
50 |
100 |
100 |
250 |
500 |
1000 |
|
Pulse waveform |
Half sine wave |
||||||
|
Peak acceleration(m/s²) |
50~1500 |
50~1000 |
50~400 |
50~1000 |
40~400 |
50~250 |
50~200 |
|
Pulse duration(ms) |
30~2 |
30~2 |
30~6 |
30~2 |
30~6 |
30~6 |
30~6 |
|
Pulse repetition frequency (times/minute) |
0~80(120) |
0~80(120) |
0~80(120) |
0~80(120) |
0~80(120) |
0~80 |
0~80 |
|
Forms of pulse |
Free fall |
||||||
|
Tabletop dimensions(mm) |
400x400 |
400x400 |
600x600 |
600x600 |
800x800 |
1000x1000 |
1000x1000 |
|
Overall dimensions (WxDxH)mm |
780x650x960 |
786x720x1140 |
786x720x1140 |
786x720x1140 |
1066x10001260 |
1066x10001260 |
1066x10001260 |
|
Dimensions of control cabinet(WxDxH)mm |
654x560x1100 |
654x560x1100 |
654x560x1100 |
654x560x1100 |
654x560x1100 |
600x600x1100 |
600x600x1100 |
|
Power supply and consumption |
AC380V±10V 50Hz |
||||||
|
Fulfil the criteria |
IEC 60068-2-29, GJB150, GJB360, GB/T2423 |
||||||
