Air Filter Test Machine

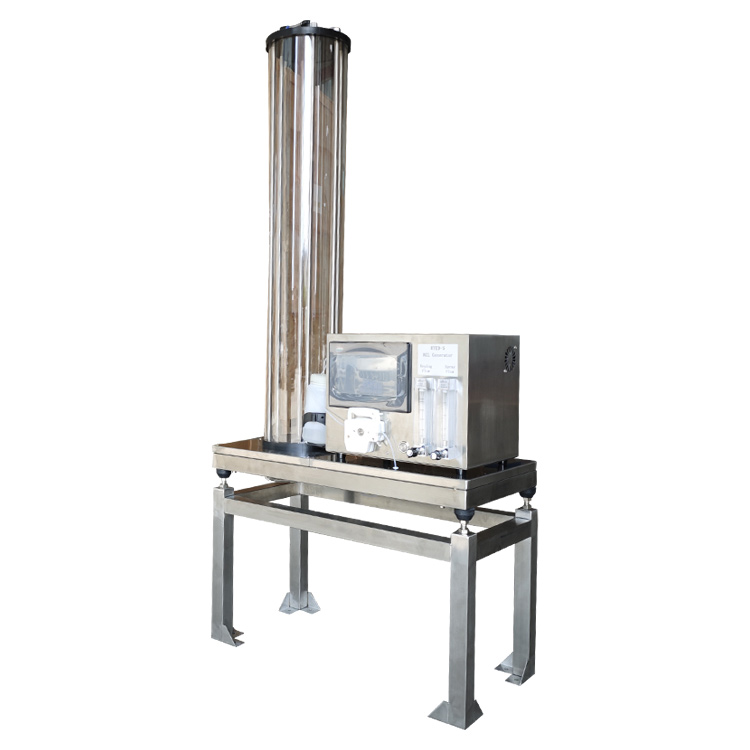

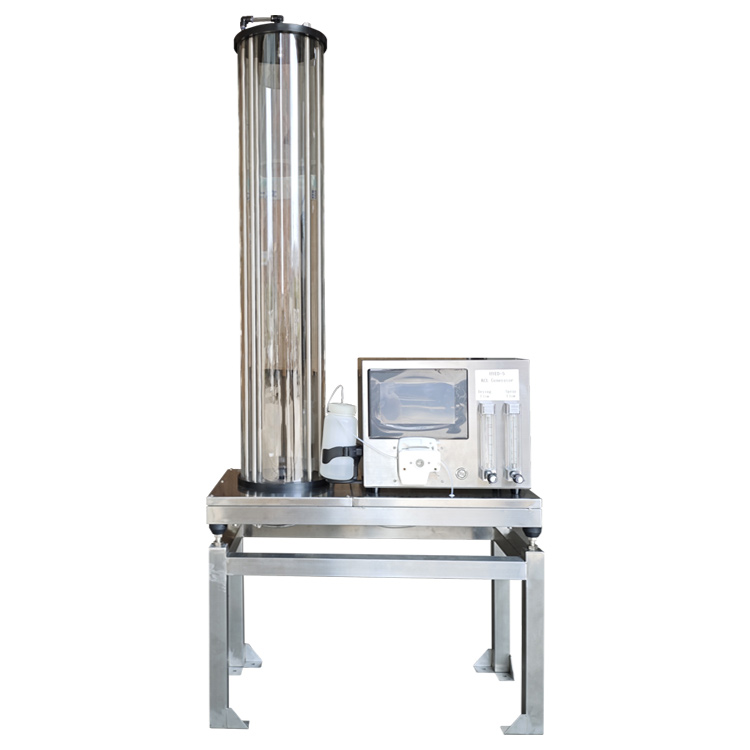

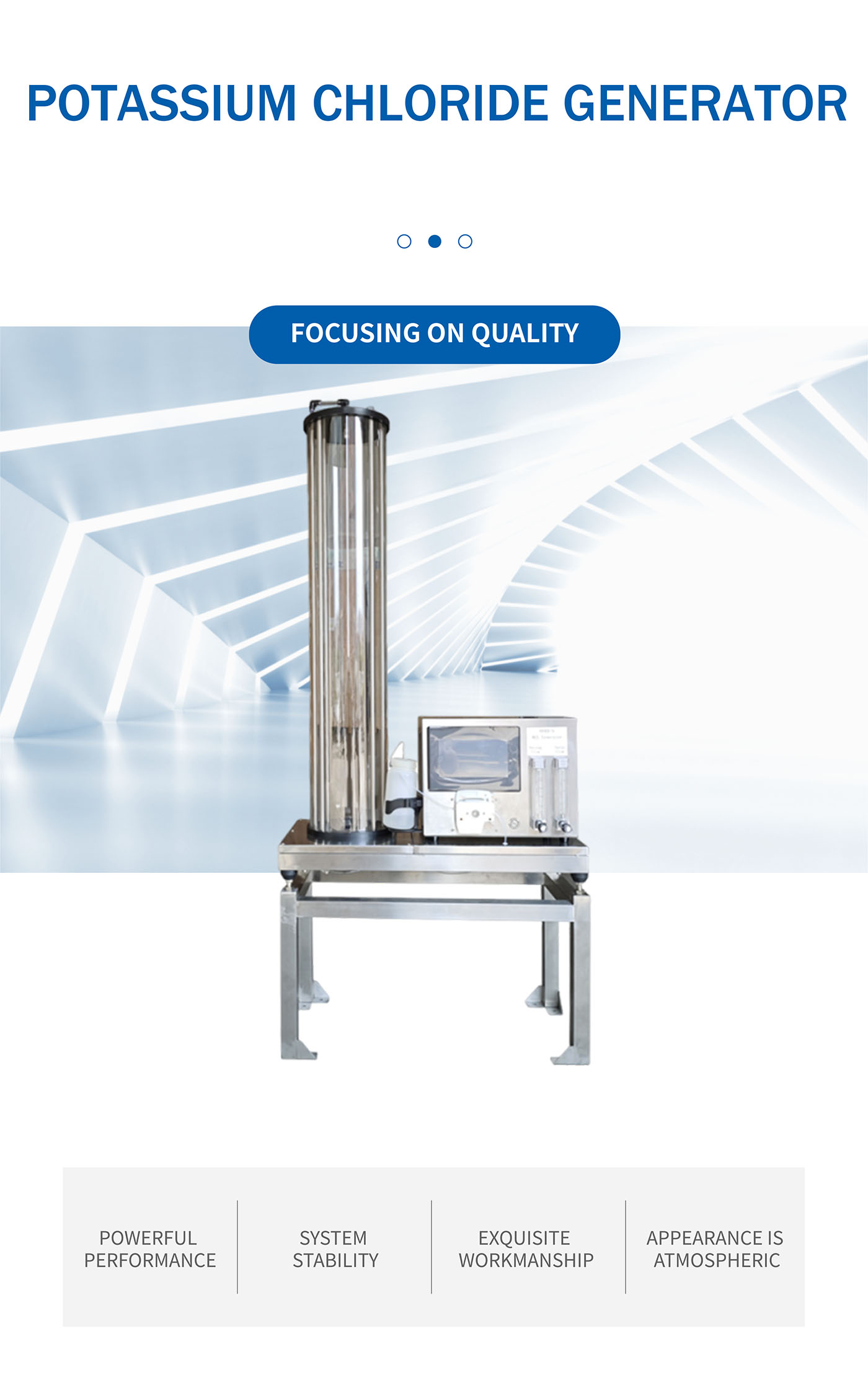

Potassium Chloride Generator
Description
Potassium chloride generators are suitable for automotive cabin and ventilation air filter testing, vacuum cleaner performance testing and other industrial air filtration research.
Potassium chloride generators are capable of producing high concentration salt aerosols with diameters from 0.1 to 10 microns, meeting the requirements of established ISO/TS 11155-1 and ASHRAE 52.2 test specifications and the proposed ISO 16890 Part 2 specification.
Potassium chloride generators are capable of producing high concentration salt aerosols with diameters from 0.1 to 10 microns, meeting the requirements of established ISO/TS 11155-1 and ASHRAE 52.2 test specifications and the proposed ISO 16890 Part 2 specification.

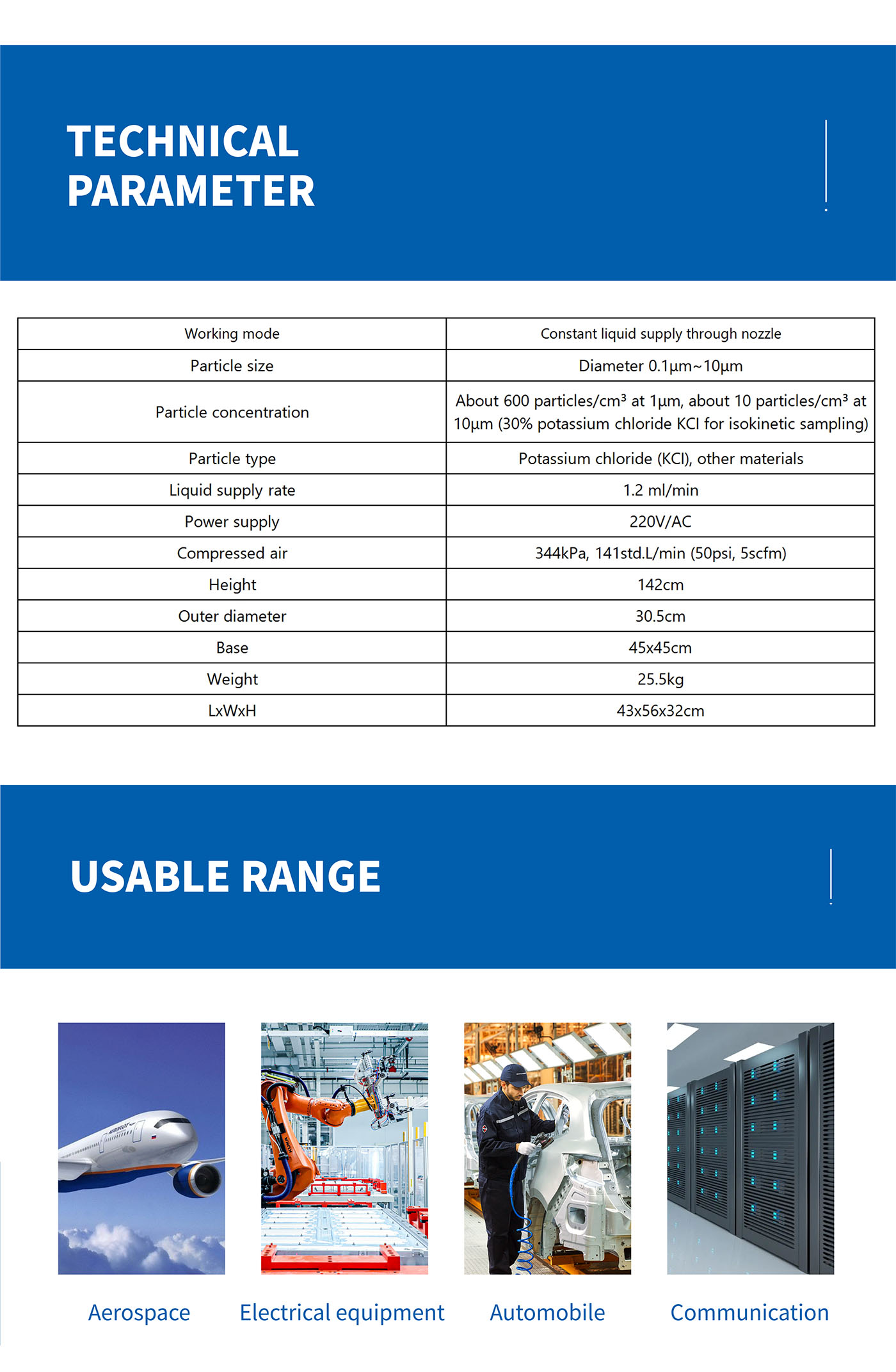

Technical parameters
|
Working mode |
Constant liquid supply through nozzle |
|
Particle size |
Diameter 0.1μm~10μm |
|
Particle concentration |
About 600 particles/cm³ at 1μm, about 10 particles/cm³ at 10μm (30% potassium chloride KCI for isokinetic sampling) |
|
Particle type |
Potassium chloride (KCI), other materials |
|
Liquid supply rate |
1.2 ml/min |
|
Power supply |
220V/AC |
|
Compressed air |
344kPa, 141std.L/min (50psi, 5scfm) |
|
Height |
142cm |
|
Outer diameter |
30.5cm |
|
Base |
45x45cm |
|
Weight |
25.5kg |
|
LxWxH |
43x56x32cm |
