Composite Environmental Test Chamber

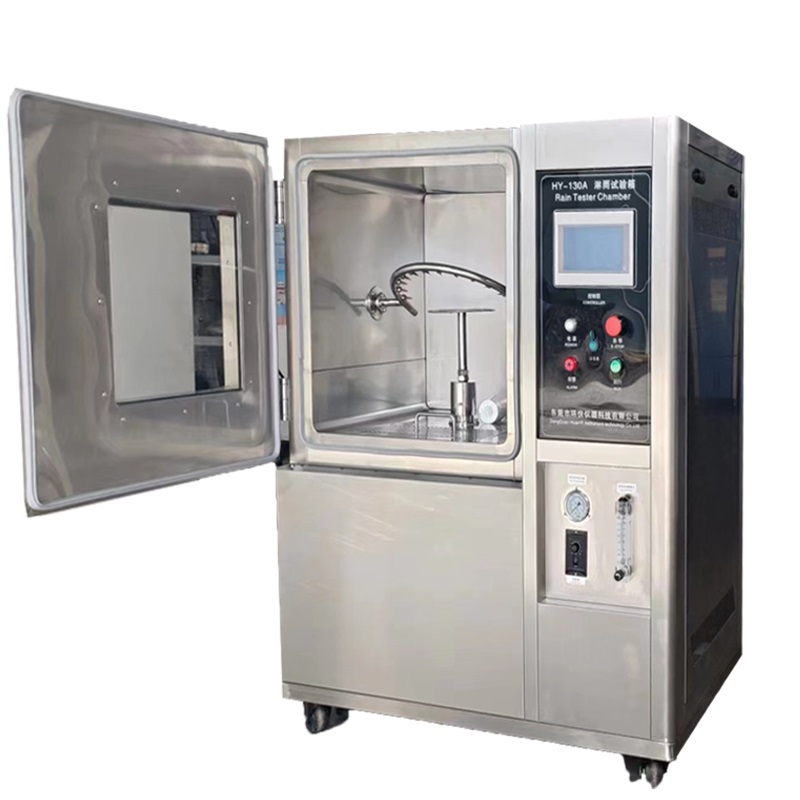

Rain Test Chamber Water Shower Test Chamber
Working principle
This equipment is composed of a working room and a closed test area. The temperature and humidity are controlled by the heater and refrigeration system through the air circulation through the balanced temperature and humidity control method (BTHC). The instrument then performs PID operation for closed-loop control to maintain the temperature and humidity. Reach the set control range. In addition, according to the test requirements, simulation tests such as ice accumulation, freezing rain, and rain can be conducted separately to meet the purpose of combining different test items.

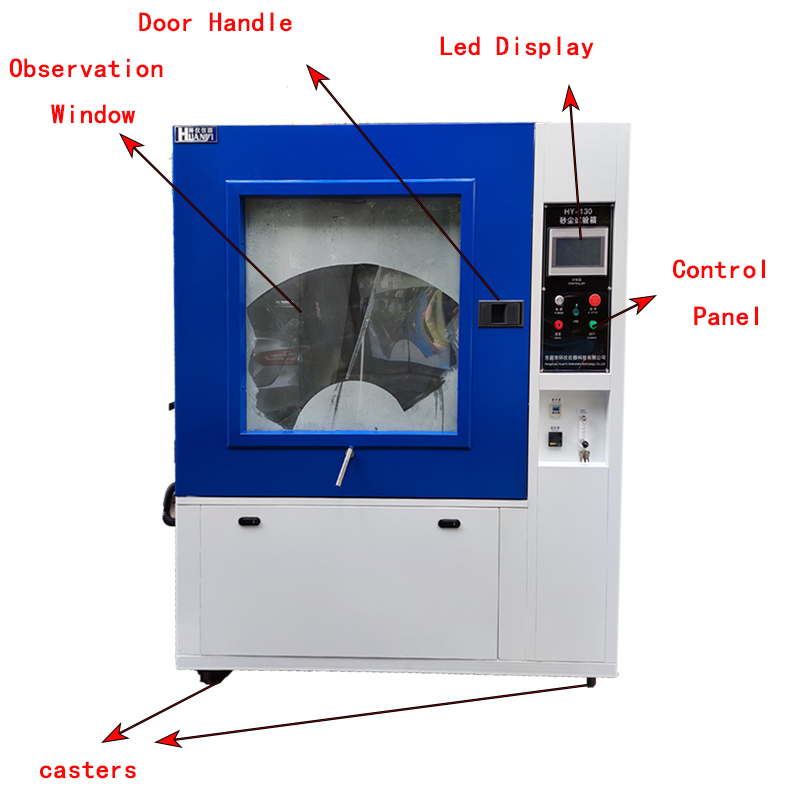

Auxiliary Structure
1. There is a water tank at the bottom of the test box, a test water spray system, a workbench rotation system, and a swing tube swing drive device.
2. Sealing: A double-layer high-temperature resistant and high-tension sealing strip is used between the door and the box to ensure the airtightness of the test area.
3. Door handle: A non-reaction door handle is used, which makes operation easier.
4. Casters: The bottom of the machine uses high-quality fixed PU movable wheels.
Technical parameters
|
Model |
HY-103 |
HY-103A |
HY-103B |
|
Internal size(WxHxD)cm |
80x80x80 |
100x100x100 |
140x140x140 |
|
Water spray ring radius(mm) |
200 |
400 |
600 |
|
Water spray hole size |
Ф0.33mm/Ф0.4mm/Ф0.8mm |
||
|
Aperture spacing |
25.4mm/50mm |
||
|
Swing pipe swing amplitude |
0°~320°(can be set arbitrarily) |
||
|
Test bench speed |
2-10r/min(adjustable) |
||
|
Note |
Other studio sizes can be customized according to requirements, main parameters and configurations can be obtained separately |
||
