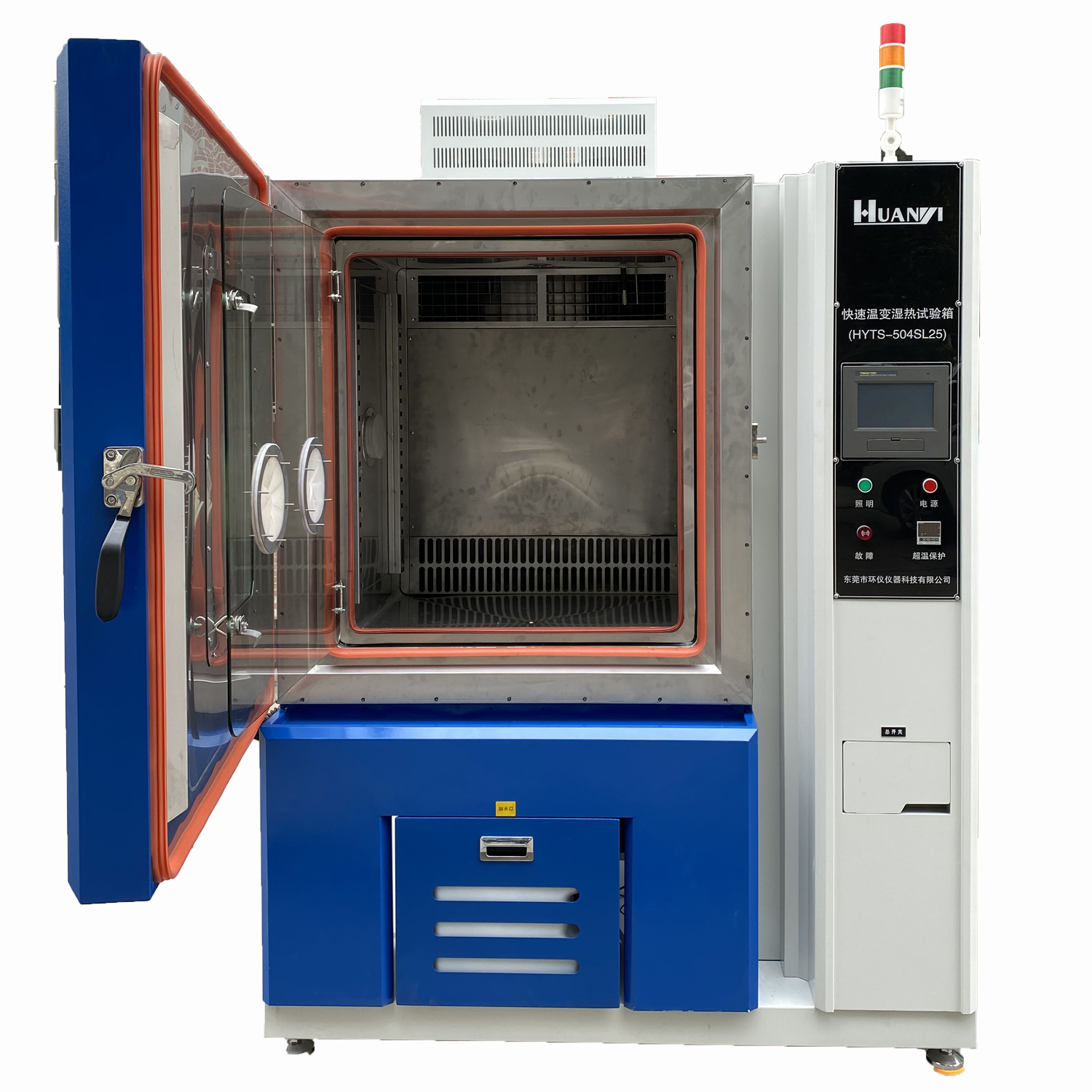

Rapid Rate Thermal Cycle Chamber (2).jpg

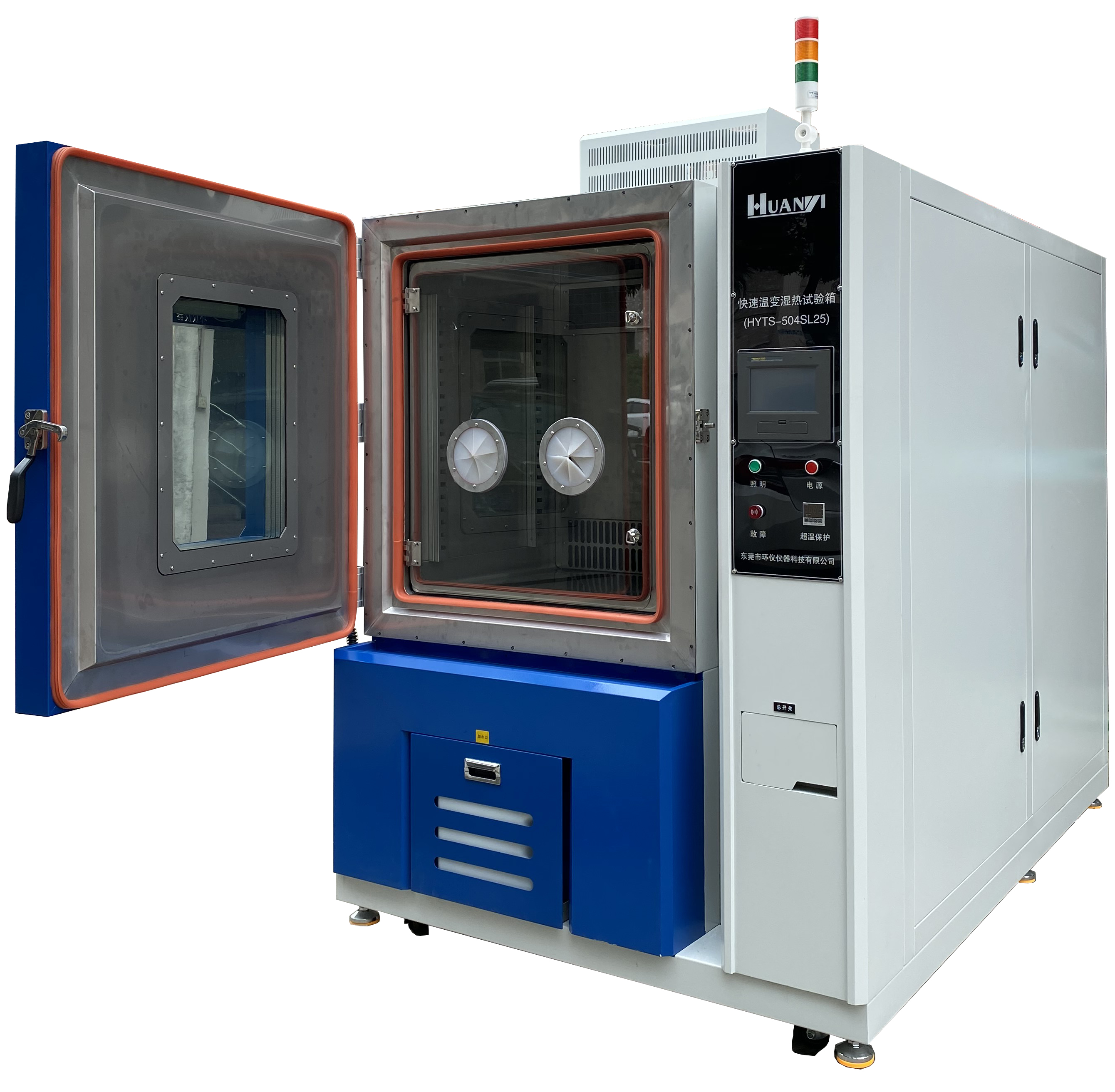

Rapid Rate Thermal Cycle Chamber (3).JPG

Rapid-Rate Thermal Cycle Chamber

Rapid temperature change test chamber is a device used to simulate the climate environment. This equipment is suitable for testing the performance indicators of aerospace products, information electronic instruments, materials, electrical, electronic products, and various electronic components under the condition of rapid temperature change.

product details

product description

applications

Mainly used in aerospace, electronics, instrumentation, electrical products, material components, complete machines and equipment for alternating humidity and heat tests, constant humidity and heat tests, as well as high and low temperature routine tests, cold resistance tests, low-temperature storage, adaptability tests under rapid or gradual temperature changes. It is particularly suitable for conducting environmental stress screening (ESS) tests on electrical and electronic products or for improving production efficiency.

Meet the standard

The rapid temperature change test chamber complies with GB/T2423.1-98, GB/T2423.4--93 Db, GJB150.4-86, GB/T2423.1-89 and other standards.

Features

Uniformity, reproducibility wind simulation allows achieving minimum temperature variations of the specimen, for accurate and quick temperature changes. Specimen temperature ramp rate is 15°C/min, air temperature ramp rate is 23°C/min. Greater temperature ramp control.

High precision of the specimen temperature control achieved thanks to a sensor for temperature specimen measurement, and the embedded high-speed controller.

Technical parameters

Model		HYQT
		150	225	408	800	1000
Chamber volume(L)		150	225	408	800	1000
Internal size(WxHxD)cm		50x60x50	60x75x50	80x85x60	100x100x80	100x100x100
External size(WxHxD)cm		70x167x170	80x175x170	140x185x180	160x195x200	160x195x220
Temp change rate		SL5:5C/min SL10:10℃/min SL15:15℃/min SL20:20℃/min SL25:25℃/min
Temp change range		-40℃~ +85℃/-55℃~+85℃
Performance	Temp range	-70℃~150℃(Linear temp range:-40℃~125℃)
	Temp fluctuation	±0.5℃
	Temp uniformity	≤2.0℃
	Temp deviation	±2.0℃
	Humid.range	20%~98%RH
	Humid deviation	±5%RH (≤75%RH)
Materials	Internal material	SUS304 Stainless steel
	Outer material	Advanced steel plate baked paint treatment or SUS304 stainless steel
	Insulation material	German Bayer refractory grade high-strength PU polyurethane foam insulation material+ultra-fine glass fiber
Refrigerating system	Freezing system	Mechanical compressor binary cascade refrigeration
	Refrigerator	Imported compressor
	Freezing medium	R404A/R23(Assignable)
	Cooling method	Air cold/Water cold
Observation window		Insulating glass coated with heating film
