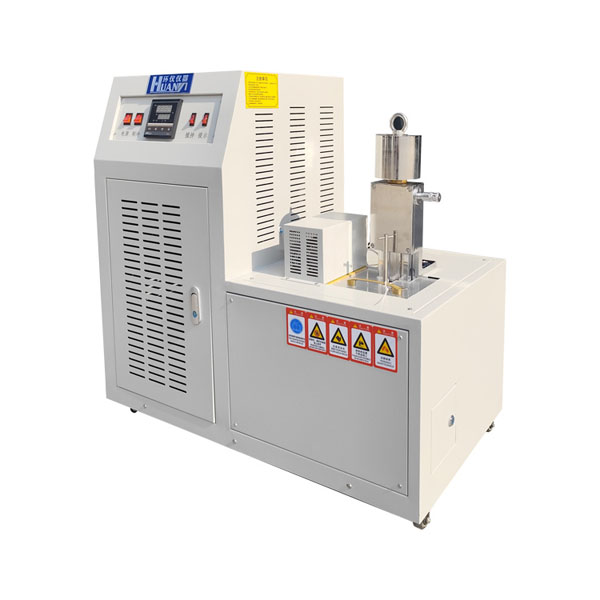

Rubber low temperature brittleness testing machine
Product Details
The rubber and plastic low temperature brittleness tester is used to measure the highest temperature of rubber and plastic samples when they are damaged by impact under specified conditions, that is, the brittle temperature. It can be used to compare the performance of non-rigid plastics and other elastic materials under low temperature conditions, and the advantages and disadvantages of temperature and low temperature performance.
This equipment adopts cascade compressor refrigeration technology, uses the principle of heat balance and circulating stirring method to achieve automatic uniform cooling and constant temperature of the sample.
This equipment adopts cascade compressor refrigeration technology, uses the principle of heat balance and circulating stirring method to achieve automatic uniform cooling and constant temperature of the sample.Sample standard
1. Specifications:
1.1 Rubber
The length of the sample is 25.0±0.5mm, the width is 6.0±1mm, and the thickness is 2.0±0.2mm.
1.2 Plastic
A: The length of the sample is 20.0±0.25mm, the width is 2.5±0.1mm, and the thickness is 2.0±0.1mm.
B: The length of the sample is 31.75±6.35mm, the width is 6.35±0.51mm, and the thickness is 1.91±0.13mm
2. Requirements
The surface of the sample should be smooth, free of foreign matter and damage. The finished product should be molded or polished and cut to the corresponding size.
1.1 Rubber
The length of the sample is 25.0±0.5mm, the width is 6.0±1mm, and the thickness is 2.0±0.2mm.
1.2 Plastic
A: The length of the sample is 20.0±0.25mm, the width is 2.5±0.1mm, and the thickness is 2.0±0.1mm.
B: The length of the sample is 31.75±6.35mm, the width is 6.35±0.51mm, and the thickness is 1.91±0.13mm
2. Requirements
The surface of the sample should be smooth, free of foreign matter and damage. The finished product should be molded or polished and cut to the corresponding size.

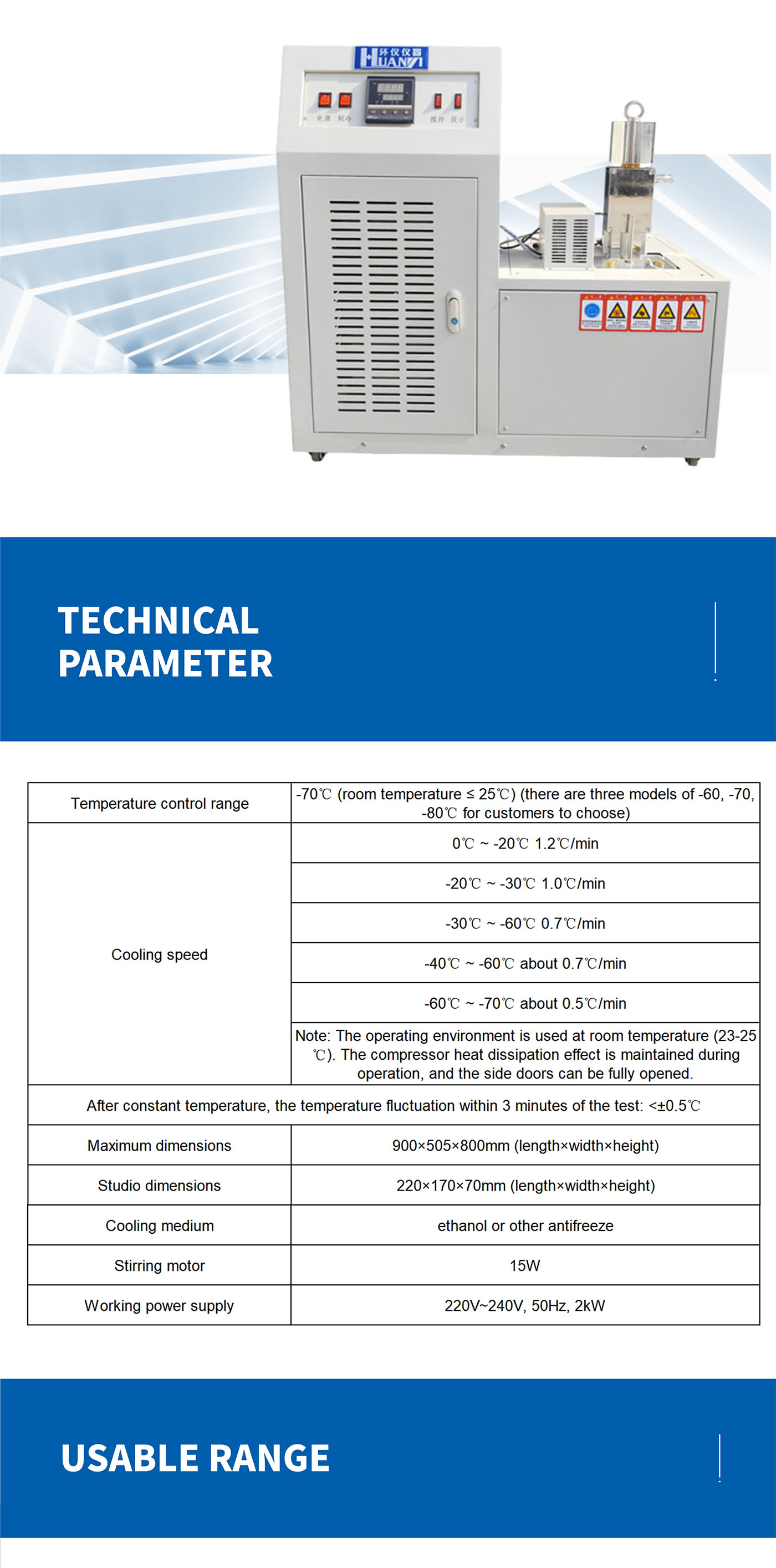

Technical parameters
|
Temperature control range |
-70℃ (room temperature ≤ 25℃) (there are three models of -60, -70, -80℃ for customers to choose) |
|
Cooling speed |
0℃ ~ -20℃ 1.2℃/min |
|
-20℃ ~ -30℃ 1.0℃/min |
|
|
-30℃ ~ -60℃ 0.7℃/min |
|
|
-40℃ ~ -60℃ about 0.7℃/min |
|
|
-60℃ ~ -70℃ about 0.5℃/min |
|
|
Note: The operating environment is used at room temperature (23-25℃). The compressor heat dissipation effect is maintained during operation, and the side doors can be fully opened. |
|
|
After constant temperature, the temperature fluctuation within 3 minutes of the test: <±0.5℃ |
|
|
Maximum dimensions |
900×505×800mm (length×width×height) |
|
Studio dimensions |
220×170×70mm (length×width×height) |
|
Cooling medium |
ethanol or other antifreeze |
|
Stirring motor |
15W |
|
Working power supply |
220V~240V, 50Hz, 2kW |

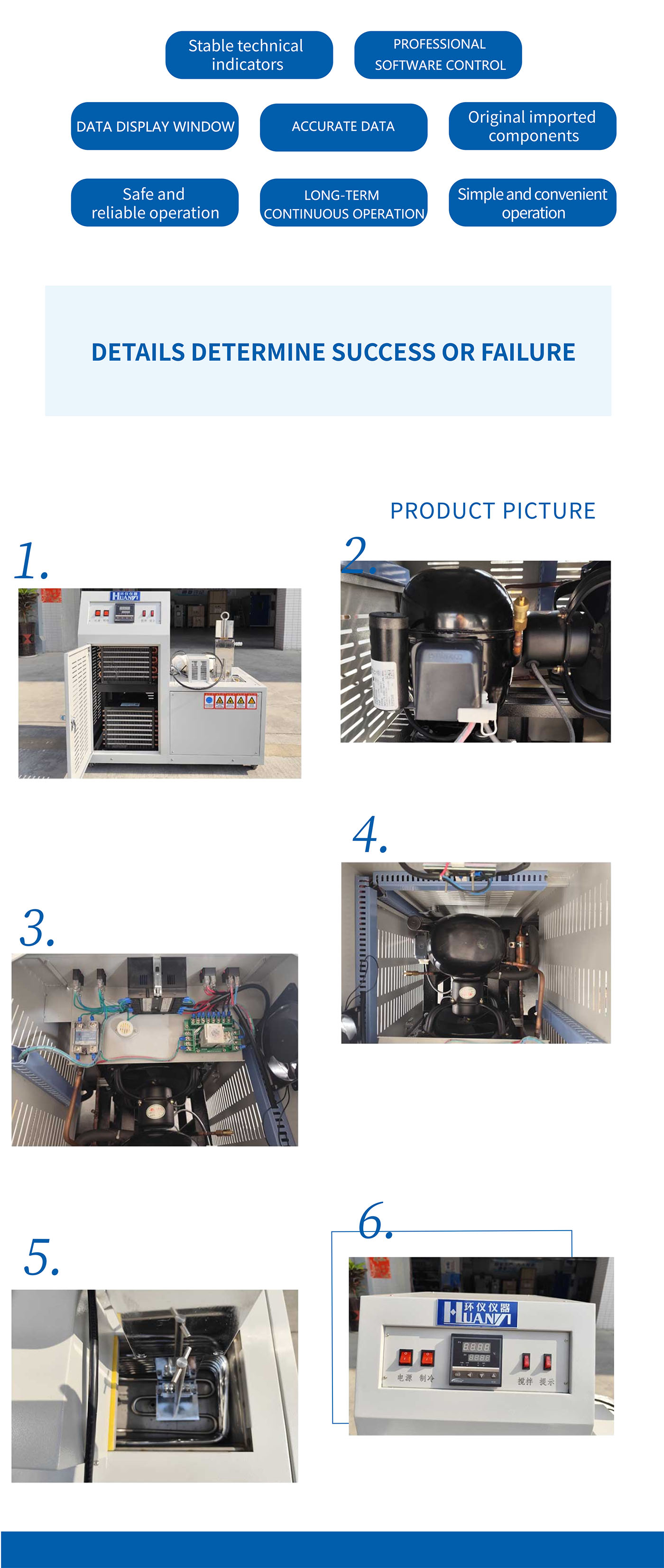

Product Details Diagram
