Vibration Test Mahcine

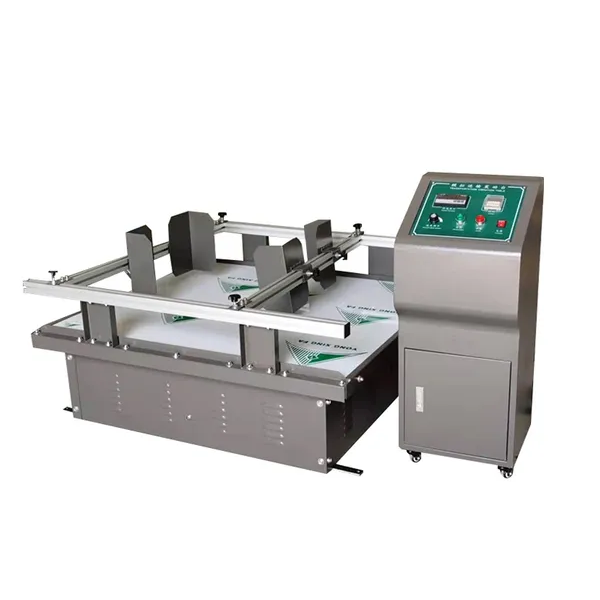

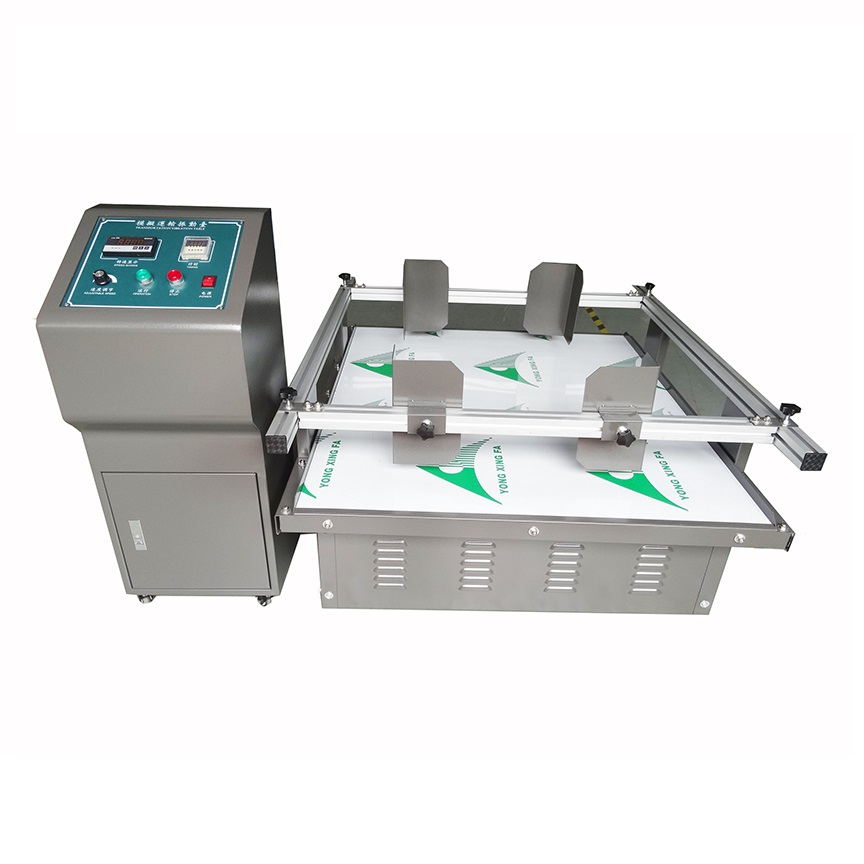

Simulated Automobile Transportation Vibration Table
Features
The frequency band approach method is used to simulate broadband random vibration. Each frequency band contains a main natural frequency and satisfies the power spectrum of the frequency band. The vibration level and operation time of the test bench are consistent with the actual road spectrum.
· Using truck chassis suspension technology, the acceleration factor can be adjusted.
· AC variable frequency control.
· No special foundation is required, and no other complicated operations or installations are required.
Technical parameters
|
Model |
HYMN-200 |
HYMN-300 |
HYMN-600 |
HYMN-1000 |
HYMN-2000 |
HYMN-3000 |
HYMN-4000 |
HYMN-6000 |
|
Max. load(kg) |
200 |
300 |
600 |
1000 |
2000 |
3000 |
4000 |
6000 |
|
Vibration waveform |
Broadband random vibration |
|||||||
|
Instantaneous probability density function |
Approximate normal distribution |
|||||||
|
Total RMS value of acceleration(g) |
0.32 |
|||||||
|
Simulation of vehicle speed(km/h) |
20~80 |
|||||||
|
Simulation of road surfaces |
Intermediate road surface of third-class highway and intermediate and low-class road surface of fourth-class highway |
|||||||
|
Reinforcement level |
1:1 |
|||||||
|
Height of center of gravity of specimen(mm) |
<500 |
<600 |
<700 |
<800 |
<900 |
<1000 |
<1200 |
<1500 |
|
Size of working table(mm) |
1500x700 |
2000x1200 |
2200x1200 |
2700x1650 |
2700x1800 |
3600x2600 |
4000x2800 |
5000x3500 |
|
Power consumption(kVA) |
6 |
10 |
12 |
25 |
30 |
40 |
70 |
90 |
|
Overall dimensions (WxDxH)(mm) |
1700x850x950 |
2000x1500x950 |
2200x1500x950 |
2900x2200x1250 |
2950x2250x1250 |
3600x2600x1450 |
4000x2800x1550 |
5000x3500x1750 |
|
Weight of table(kg) |
1600 |
2500 |
3000 |
5000 |
6000 |
8000 |
10000 |
15000 |
|
Environment |
Temperature 0~40℃ Humidity ≤80%RH. (condensation~free) |
|||||||
|
Site |
No foundation is required for installation, flat cement floor, 800~1000mm working channel is reserved around the equipment. |
|||||||
