SSD Solid State Drive Aging Chamber

Aging Test Chamber

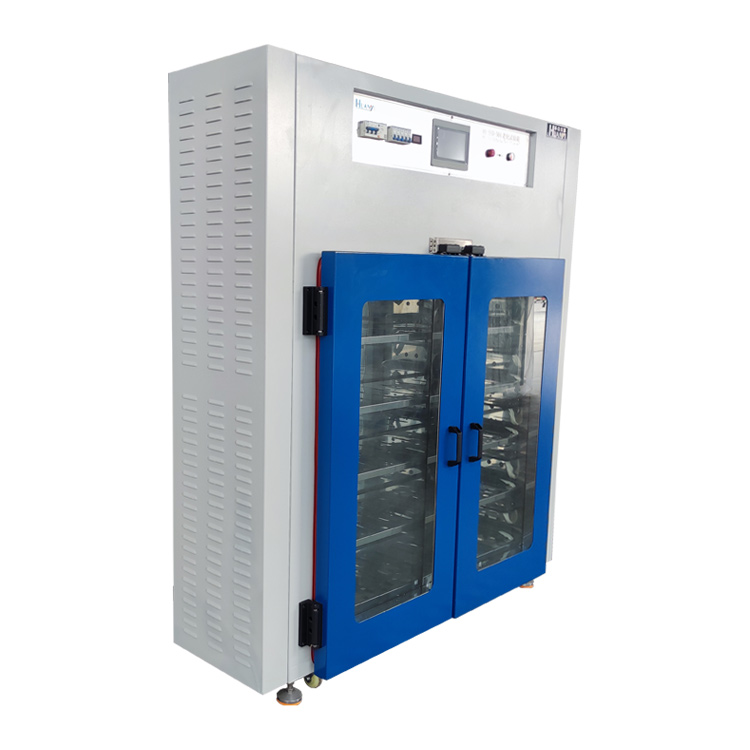

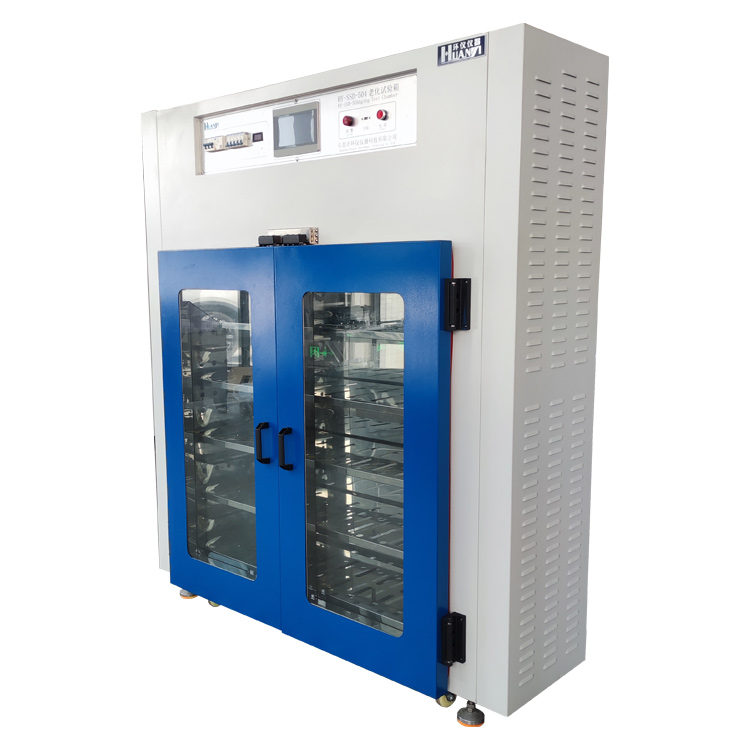

SSD Solid State Drive Aging Chamber

SSD Solid State Drive Aging Chamber is a device specially designed for testing SSD solid state drives. It is mainly used to simulate extreme environmental conditions and accelerate the aging process of SSD to evaluate their reliability and durability.

    Contact us
    product details
    product description

    applications

    1. Equipment used to test the performance of materials in various environments and test the heat resistance, cold resistance, dryness resistance and moisture resistance of various materials.
    2. Suitable for quality testing of electronic, electrical appliances, mobile phones, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products.

    Design Features

    1. In terms of the box structure, the constant temperature and humidity test box is processed by CNC machine tools. It has a beautiful and novel shape, and adopts a non-reaction handle for easy operation.
    2. The studio is made of imported mirror panel high-grade stainless steel, and the outer shell of the box is made of A3 steel plate sprayed.
    3. Ultra-fine thermal insulation cotton is filled between the outer shell and the inner shell, which has a good insulation effect and effectively reduces the temperature fluctuation rate in the test box.

    Meet the standard

    GB/T2423.1-2008 Low temperature test chamber test method
    IEC60068-2-1.1990 Low temperature test chamber test method
    IEC60068-2-2.1974 High temperature test chamber test method
    GJB150.3 High temperature test
    GJB150.4 Low temperature test
    GJB150.9 Wet heat test

    Technical parameters

    Model

    HYH

    80A

    150A

    225A

    408A

    1000A

    80B

    150B

    225B

    408B

    1000B

    80C

    150C

    225C

    408C

    1000C

    80D

    150D

    225D

    408D

    1000D

    Internal size
    (WxHxD)cm

    40X50X40(80L), 50X60X50(150L), 60X75X50(225L), 80X85X60(408L), 100X100X80(800L), 100X100X100(1000L)

    External size
    (WxHxD)cm

    60X159X137(80L), 70X167X150(150L), 80X175X150(225L), 100X185X160(408L), 120X195X175(800L), 120X195X195(1000L)

    Controller

    7 inch LED touch screen, Fixed value and program control

    Temp range

    A: 0~150℃

    B: -20~150℃

    C: -40~150℃

    D: -70~150℃

    Humid range

    20%~98%RH

    Fluctuation

    Temperature: +0.5℃, Humidity: +2.5%RH

    Uniformity

    ≤2℃/≤3%RH

    Deviation

    ±2℃、±3.0%RH(>75%RH) ±5.0%RH (≤75%RH)

    Heating rate

    About 3℃/min( Everage nolinear, No load)

    Cooling rate

    About 1℃/min(Everage nolinear, No load)
    Materials

    Internal: SUS304 Stainless steel

    Outer: Advanced steel plate baked paint treatment or SUS304 stainless steel

    Insulation: German Bayer refractory grade
    high-strength PU polyurethane foam insulation material+ultra-fine glass fiber

    Freezing system

    Mechanical compressor binary cascade refrigeration

    Cooling method

    Air cold/Water cold

    Power

    AC 220V/AC 380V+10% 50HZ three-phase five wire

    Product Details Diagram

    Full thermal break around doorframe (1)
    Full thermal break around doorframe (2)
    Full thermal break around doorframe (3)
    Full thermal break around doorframe (6)
    Full thermal break around doorframe (5)
    Full thermal break around doorframe (4)
    Technical parameters (1)Technical parameters (2)Technical parameters (3)Technical parameters (4)Technical parameters (5)Technical parameters (6)
