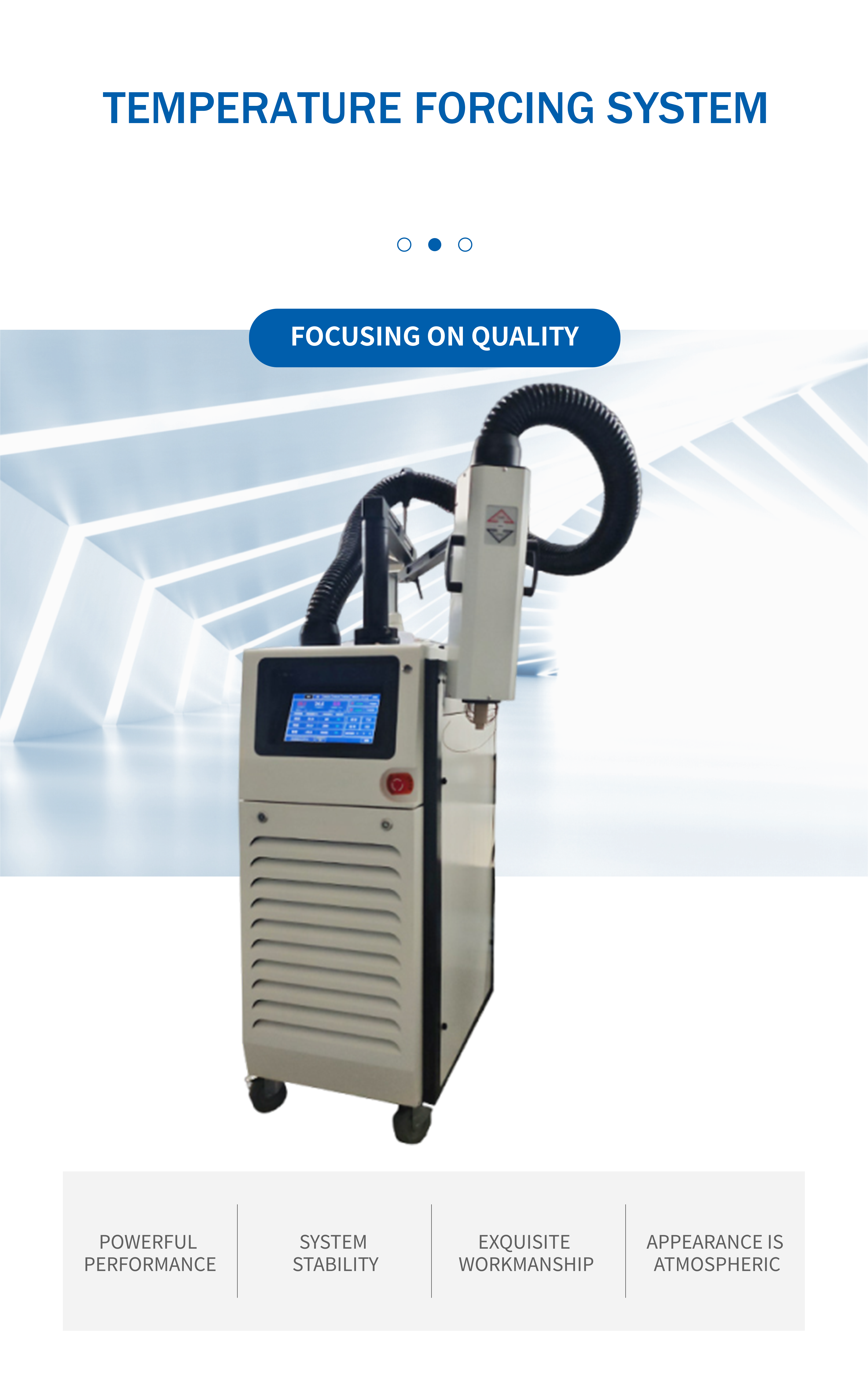

Temperature Forcing System

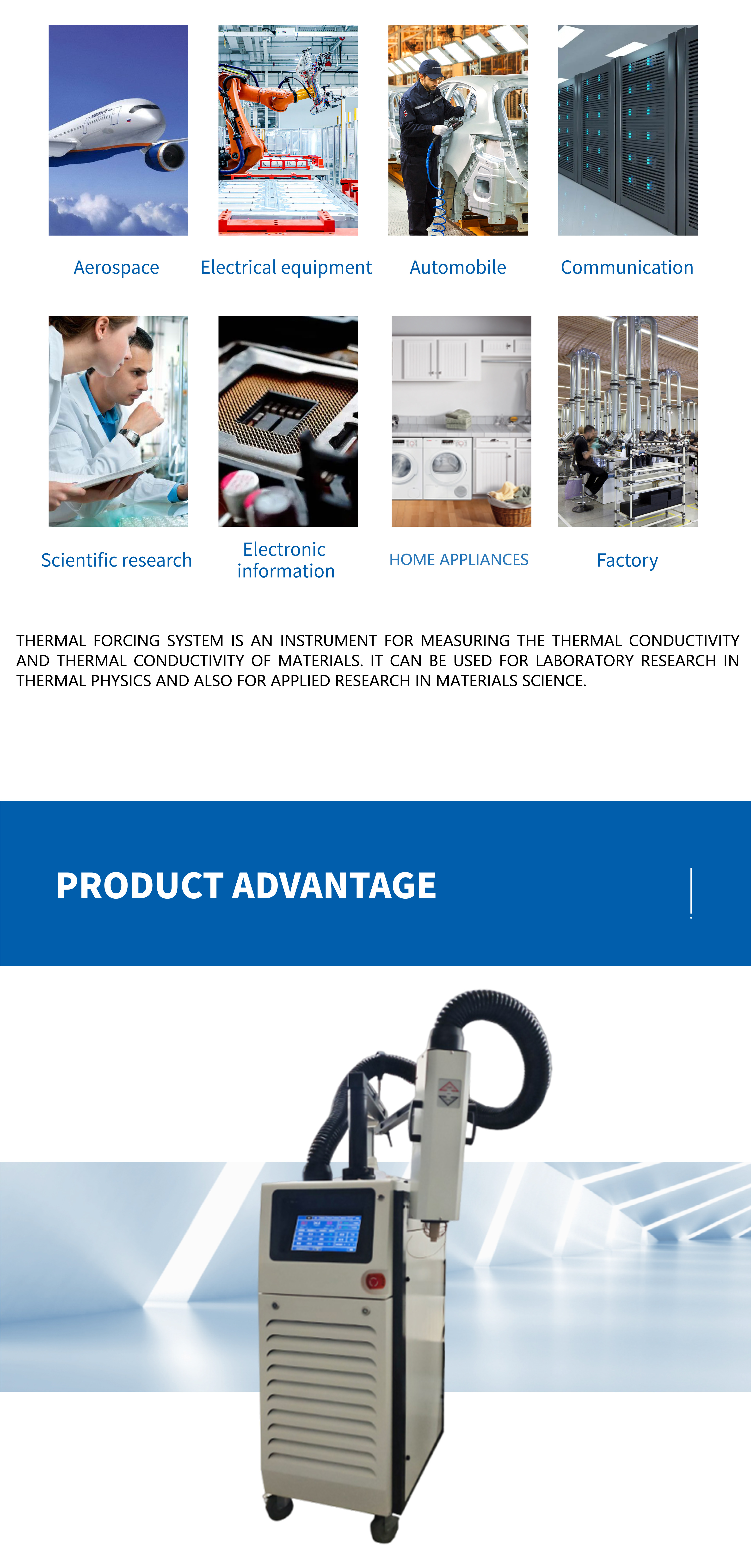

applications
Thermal Forcing System is an instrument for measuring the thermal conductivity and thermal conductivity of materials. It can be used for laboratory research in thermal physics and also for applied research in materials science.
Characteristic
JESD22-A106B Thermal Shock Test
MIL-STD-883 Method No. 1011 Thermal Shock
MIL-STD-750 Temperature Cycling (Methods 1010 & 1051)

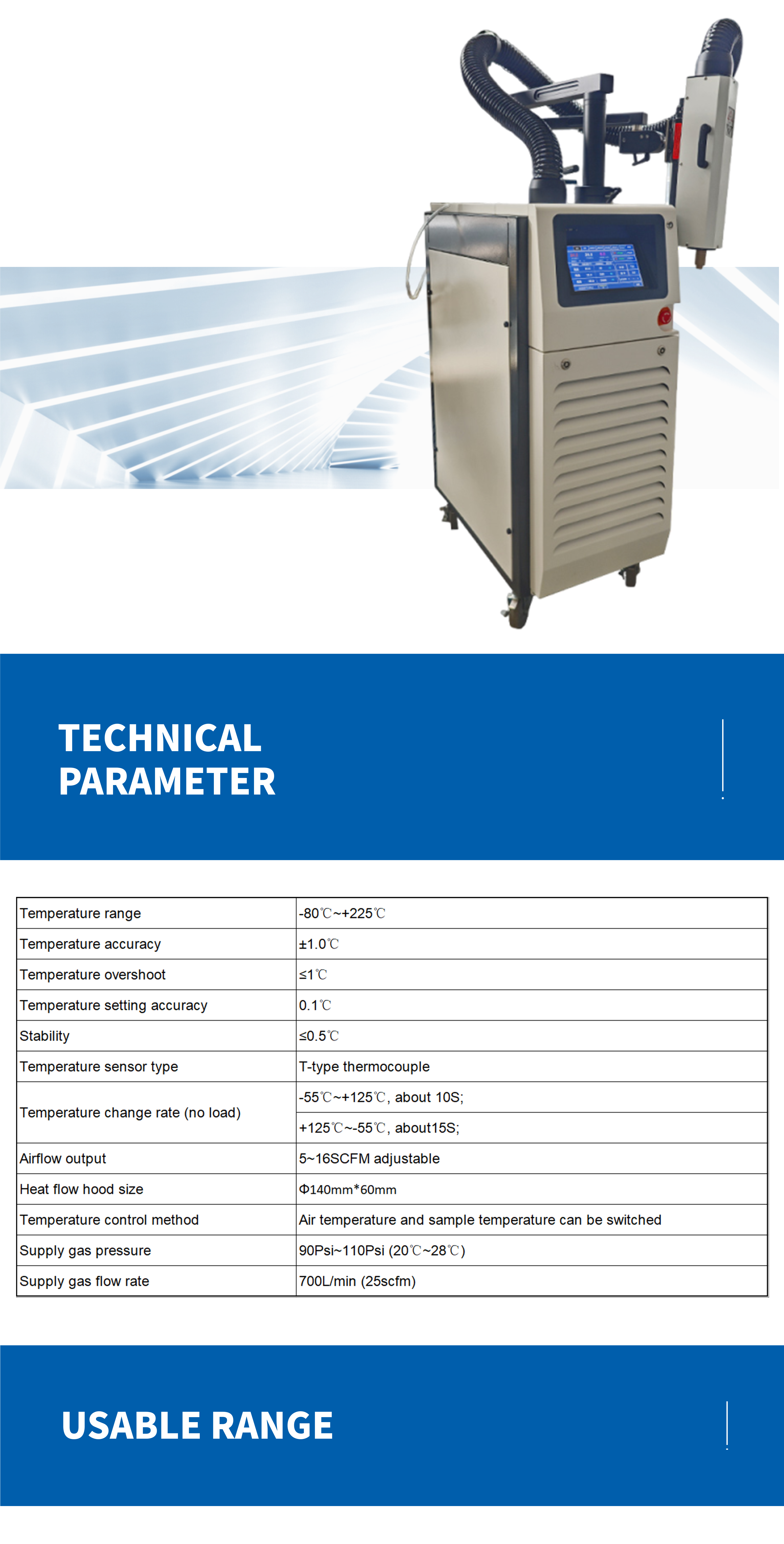

Technical parameters
| Temperature range | -80℃~+225℃ |
| Temperature accuracy | ±1.0℃ |
| Temperature overshoot | ≤1℃ |
| Temperature setting accuracy | 0.1℃ |
| Stability | ≤0.5℃ |
| Temperature sensor type | T-type thermocouple |
| Temperature change rate (no load) | -55℃~+125℃, about 10S; |
| +125℃~-55℃, about15S; | |
| Airflow output | 5~16SCFM adjustable |
| Heat flow hood size | Ф140mm*60mm |
| Temperature control method | Air temperature and sample temperature can be switched |
| Supply gas pressure | 90Psi~110Psi (20℃~28℃) |
| Supply gas flow rate | 700L/min (25scfm) |

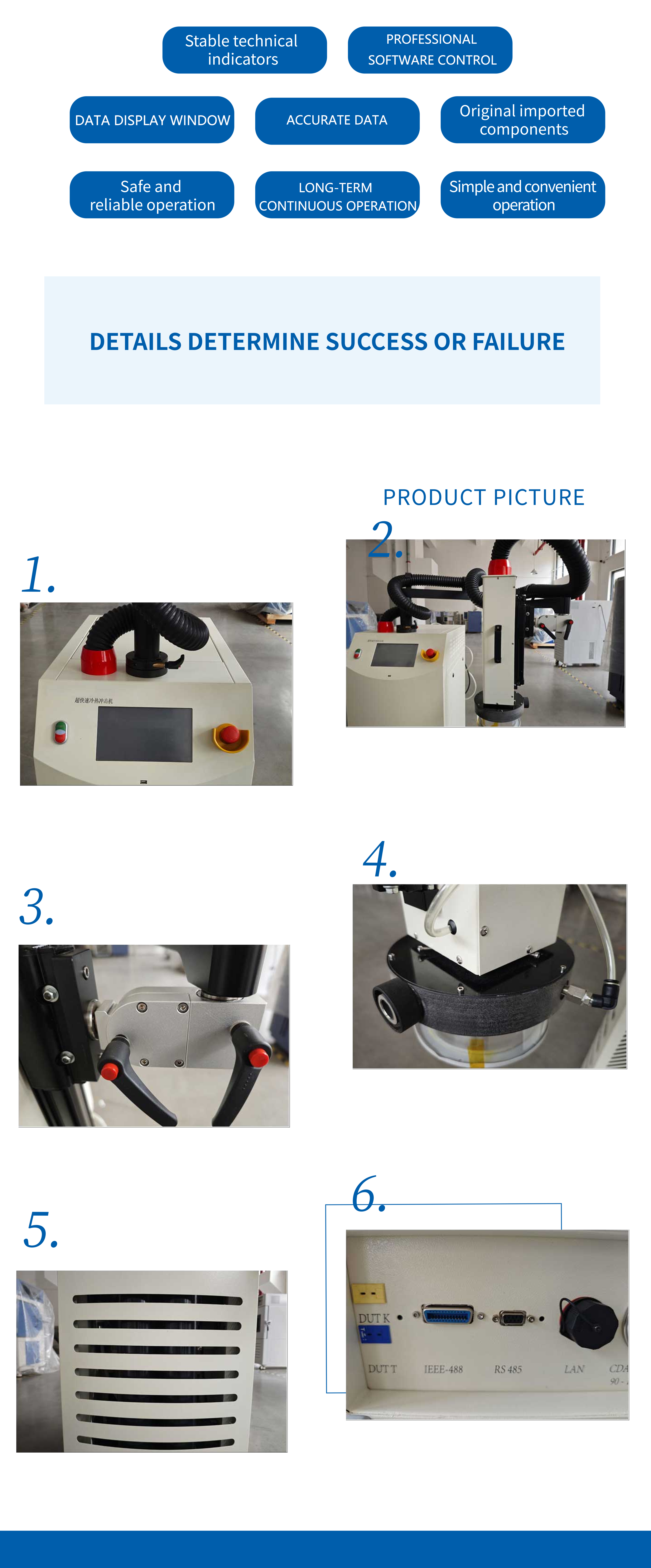

Product Details Diagram
