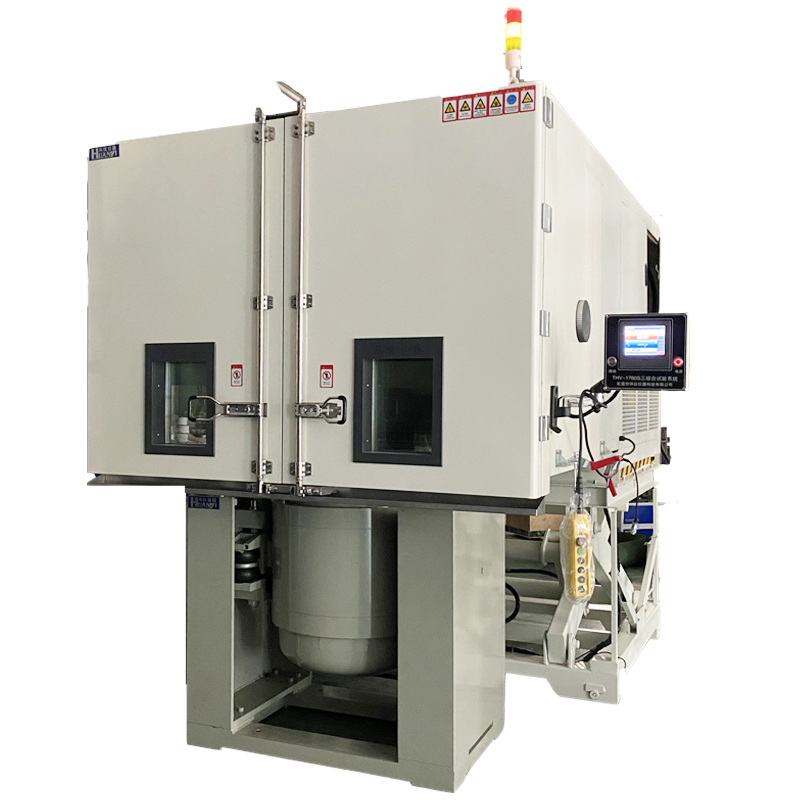

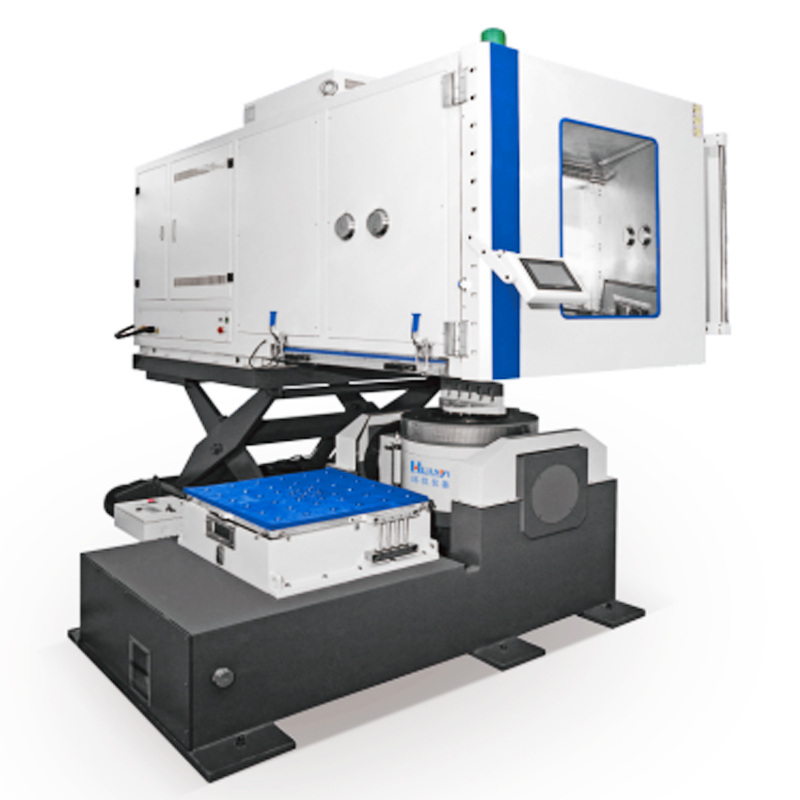

Temperature Humidity and Vibration Interation Test System
Features
1. Temperature and humidity, vibration composite environmental test system can be applied to the product temperature, humidity, vibration, impact and other environmental stress, to examine the reliability of the product in the case of comprehensive stress.
2. By the temperature and humidity test chamber and electrodynamic vibration test system combination.
3. Vibration controllers, sensors and amplifiers are imported from the United States.
4. Can be sinusoidal vibration (standard equipment), (random vibration (optional) and shock (optional) control.
5. Can be designed and manufactured to meet the requirements of low air pressure.
Standards
GB/T2423.1、GB/T2423.2、GB/T2423.3、GB/T2423.4、GJB150.3A、GJB150.4A、GJB150.9A、GB/T10589、GB/T10592、GB/T11158、GB/T10586、IEC 60068-2-1、IEC 60068-2-2、IEC 60068-2-78、IEC 60068-2-30、IEC 60068-2-64、IEC 60068-2-30、MIL-STD-810G、RTCA DO-160G、ISO 16750-4, etc.
Applications
Mainly used in aerospace, electronics, instrumentation, electrical products, material parts, complete machines and equipment industries to determine the reliability test of electrical and electronic products, instruments or other equipment during transportation, storage and use.
Technical Parameters
|
Model |
HTHV-408 |
HTHV-1000 |
|
Chamber Volume(L) |
408 |
1000 |
|
Internal size(WxHxD)cm |
85x80x60 |
100x100x100 |
|
Temperature control method |
Balanced temperature and humidity control (BTHC) |
|
|
Temp range |
-70℃~+150℃ |
|
|
Humid range |
20%~98%RH |
|
|
Humid deviation |
When humidity>75%RH, ±3.0%RH; when humidity≤75%RH,±5.0%RH |
|
|
Humid uniformity |
≤2%RH |
|
|
Humid fluctuation |
≤±2.5%RH |
|
|
Temp constancy |
≤0.5℃ |
|
|
Heating and cooling rate |
Selectable rate range: 1℃/min~15℃/min (Average throughout) |
|
|
Interior material |
SUS304 stainless steel |
|
|
External material |
High-grade steel paint treatment or SUS304 stainless steel |
|
|
Insulation material |
Germany Bayer fire-resistant grade high-strength PU polyurethane foam thermal insulation + ultra-fine glass fiber |
|
|
Refrigeration system |
Mechanical compressor binary compound refrigeration |
|
|
Cooling method |
Water-cooled / Air-cooled |
|
