Tensile Strength Tester Tensile Test Machine

The tensile (pressure) force testing machine is the latest economical testing machine developed and developed by the company. It is suitable for stretching, peeling, tearing, shearing, plugging, etc. In adhesive products, paper products, printing and packaging, electronics and other industries. The test machine is cost-effective, easy to operate, and easy to maintain. It is an ideal equipment for quality inspection and testing in various factories.

product details

product description

Product introduction

It is mainly used to test the mechanical properties of various materials. With different test fixtures, it can test the mechanical properties and related physical parameters of various materials under the conditions of tension, compression, bending, shearing, tearing, peeling, puncture, etc.Tensile testing machine testing items: tension, compression, three-point bending, four-point bending, shearing, tearing, peeling, puncture of finished shoes, carton holding pressure, foam cycle compression, spring tension and compression and various dynamic and static cycle tests of various materials.

Features

After continuous efforts and improvement by the engineering staff, the company's newly developed economical testing machine pull (pressure) force testing machine can now be directly connected to the computer, all test data can be directly imported into the computer. The most economical computerized pull (completed) A new reform of the pressure test machine.

Technical parameters

Model	HY-1301A	HY-1301B	HY-1201A	HY-1201B
Load cell capacity	5N, 10N, 50N, 100N, 500N, 1kN, 2kN, 5kN, optional	100N, 200N, 300N, 500N, 1kN, 2kN, 5kN, optional	10N, 50N, 100N, 200N, 1kN, 2kN, 5kN, 10KN, 20KN, optional	50kN/100kN
Accuracy grade	Level 0.5
Measuring range of test force	0.4%～100%FS
Relative error of test force	±0.5%
Displacement rate adjustment range	0.005～500mm/min
Relative error of displacement rate	≤±0.5% of indicated value			≤±1% of indicated value
Deformation measurement range	0.2%～100%FS			1/500000FS
Relative error of deformation value	≤±0.5% of indicated value
Force control rate adjustment range	/	0.005～5%FS/s	/	0.005～5%FS/s
Relative error of force control rate	/	≤±1% of indicated value	/	≤±1% of indicated value
Power supply	AC 220V±10%, 50Hz
Overall dimensions(W×D×H)mm	450×500×1260	450×500×1260	784×550×1700	890×600×1850
Weight(kg)	About 75	About 75	About 165	About 350

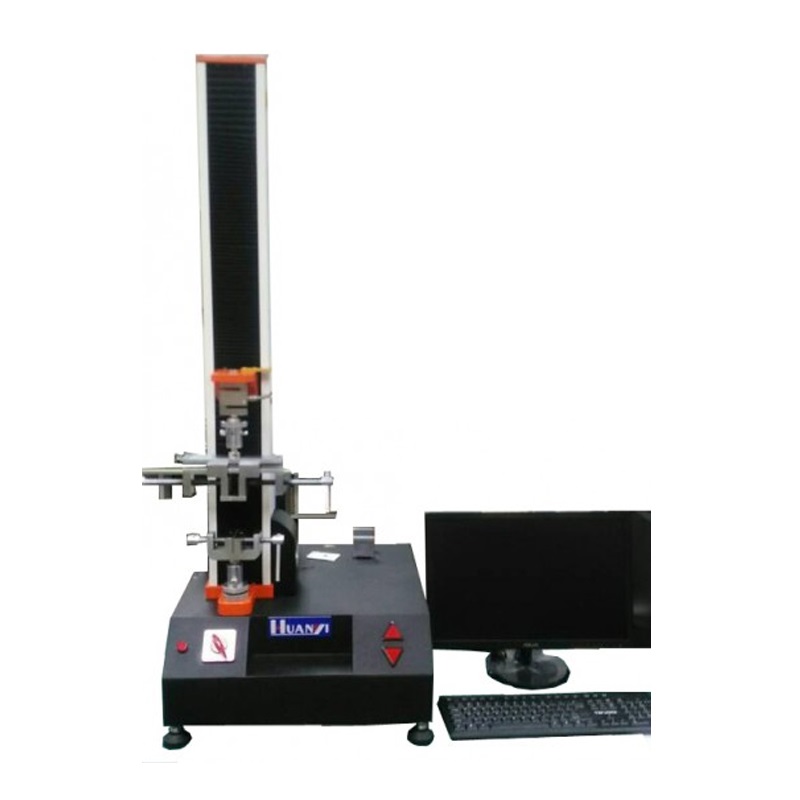

Tensile Strength Tester Tensile Test Machine (1)

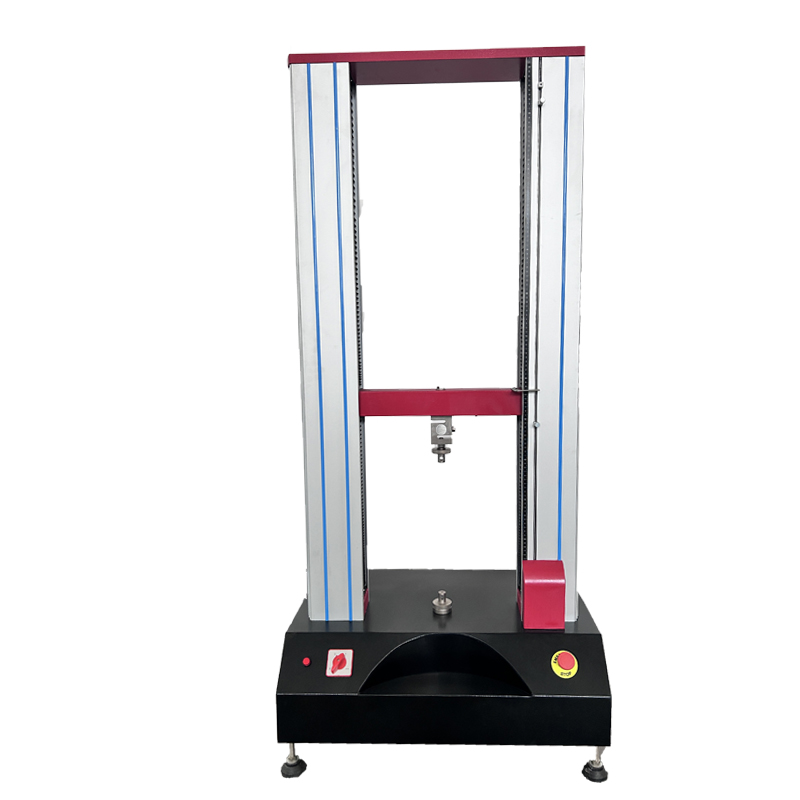

Tensile Strength Tester Tensile Test Machine (2)

Tensile Strength Tester Tensile Test Machine (3)

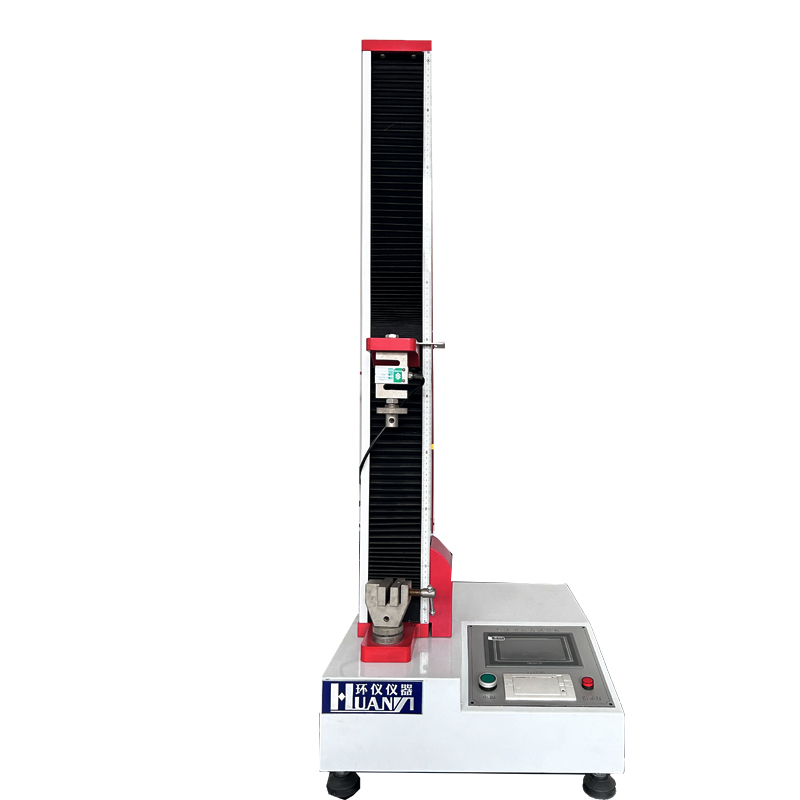

Tensile Strength Tester Tensile Test Machine (4)
