Tilt and Swing Test Bench

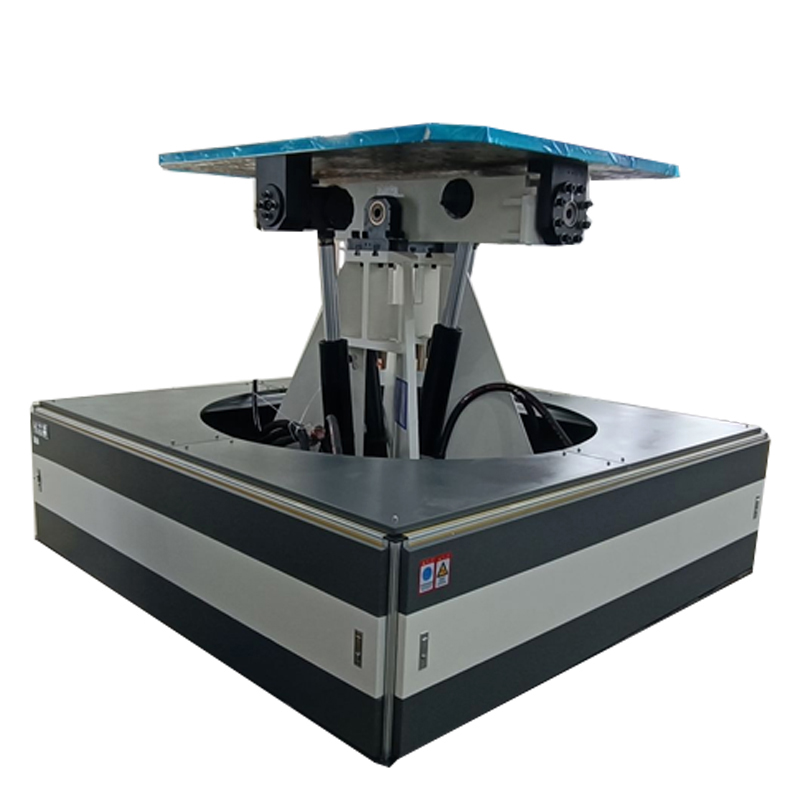

The tilt and swing test machine test bench mainly simulates the swing and tilt tests of various mechanical, electrical and electronic products installed on ships, seaplanes, traveling fire races and other equipment to determine the ability and structure of the product to withstand the specified severe levels of swing and tilt.

Fulfil the criteria GJB150.23, GB2423, GB/T 2424.20
Model 100
Model 300
Model 500
Model 1000
Model 2000
Model 3000
Model 5000
Model 8000

product details

product description

Features

· Based on Windows stable control system, it can automatically control the interface remotely.
· The operation interface is mainly based on the real-time display window of data curve, and also displays the test parameters, system status and test progress.
· It can realize the functions of sinusoidal signal, self-closed loop adjustment, various function control and alarm prompt.

Technical parameters

Model		HYRP-100	HYRP-300	HYRP-500	HYRP-1000	HYRP-1500	HYRP-2000	HYRP-3000	HYRP-5000	HYRP-8000	HYRP-10000
Max. load(kg)		100	300	500	1000	1500	2000	3000	5000	8000	10000
Height of specimen centre of gravity(mm)		300		500			700			900
Yaw	Angle	0~±10°
	Cycle	3s~7s
Roll	Angle	0~±45°
	Cycle	3s~30s
Pitch	Angle	0~±30°
	Cycle	4s~30s
Tilt angle		0~±45°
Pitch angle		0~±30°
Control method		Computer controlled measurement
Countertop dimensions(mm)		800x800	1000x1000	1500x1200	1600x1300		1700x1500	1800x1600	3200x2100	3500x2800	4000x3000
Power supply		AC380V±10V 50Hz
		20kVA	22kVA		37kVA	45kVA	55kVA	70kVA	90kVA	110kVA	150kVA
Environment		Temperature 0~40℃; Humidity ≤80%. (Condensation-free)
Site		Construction according to the drawings provided by the manufacturer
Fulfil the criteria		GJB150.23, GB2423, GB/T 2424.20
