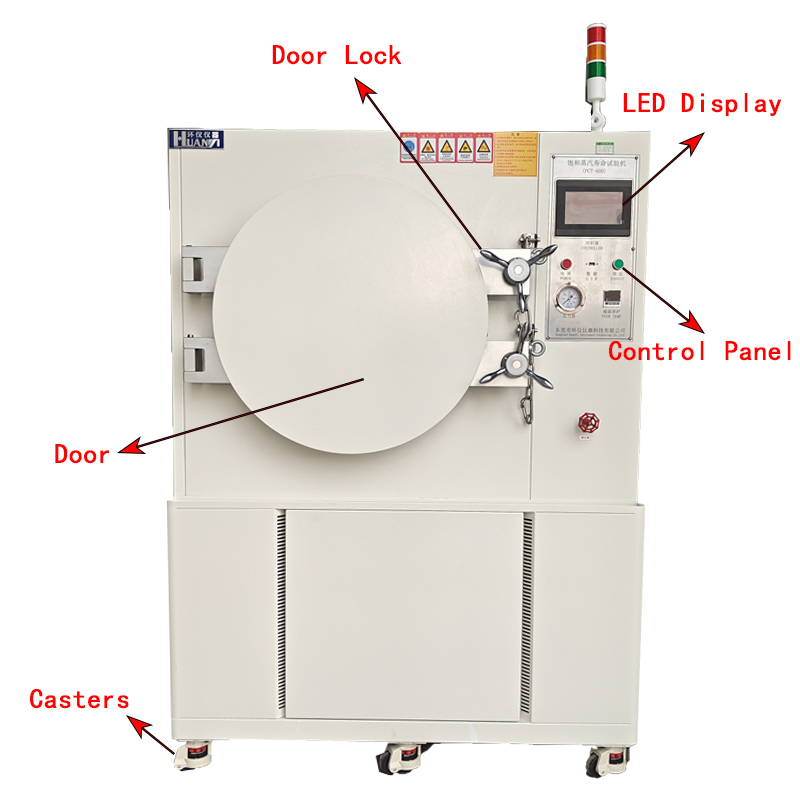

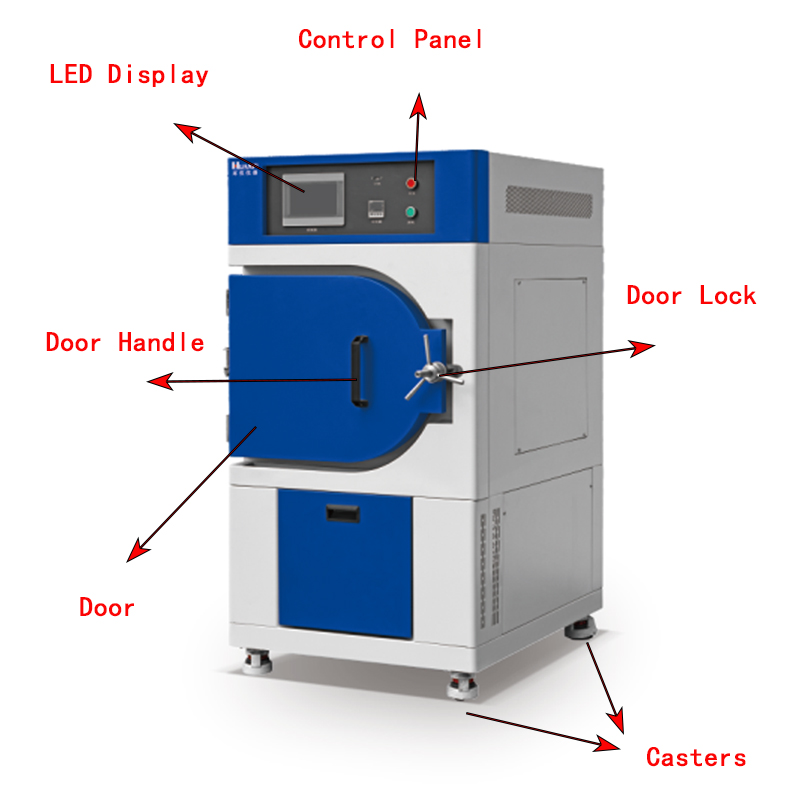

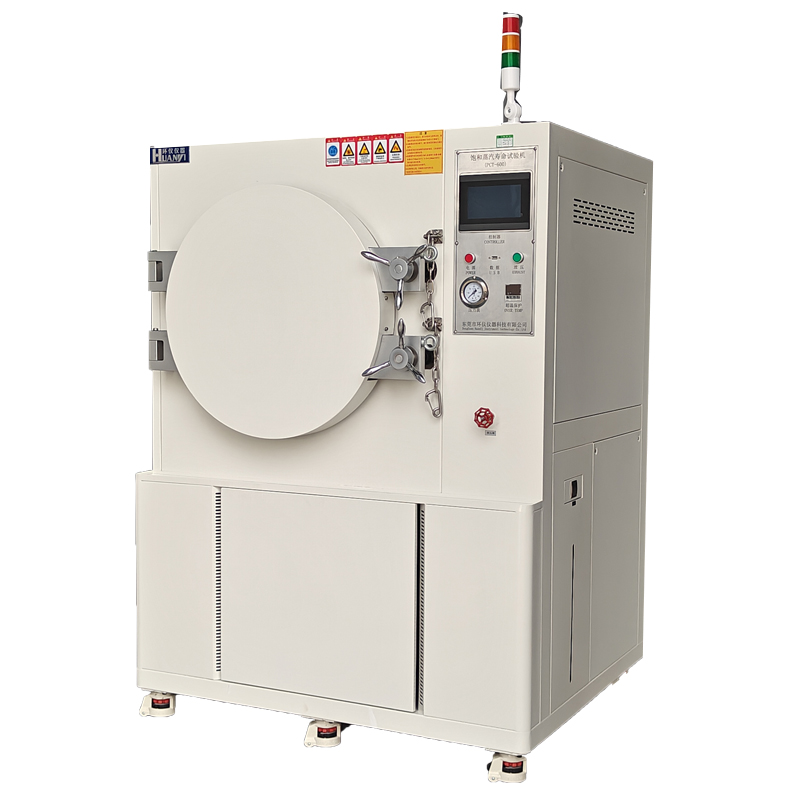

Unsaturated/Saturated Steam Life Test Chamber
Applications
Unsaturated/saturated steam life test chamber is suitable for testing the sealing performance of national defense, aerospace, automotive parts, electronic components, circuit boards, IC, LCD, lighting products and other products. Accelerated life testing of related products is used for in-process products. The design phase is used to quickly expose defects and weak links in the product. Test the wear resistance and air tightness of its products.
Features
1. Unsaturated/saturated steam life test chamber adopts SSR contactless heating control.
2. Water level protection, protection through water level detection in the furnace.
3. Safety protection pressure relief button, emergency safety device two-stage automatic pressure relief button.
Technical parameters
|
Model |
HY-PCT-300 |
HY-PCT-400 |
HY-HAST-300 |
HY-HAST-400 |
|
Internal size(WxHxD)cm |
Ф30x40 |
Ф40x50 |
Ф30x40 |
Ф40x50 |
|
External size(WxHxD)cm |
55x120x50 |
65x130x60 |
55x120x50 |
65x130x60 |
|
Exterior material |
Stainless steel #304 |
|||
|
Interior material |
Plastic spraying |
|||
|
Temp range |
+100℃-132℃(Optional Up to 145℃) |
|||
|
Operating temperature |
121℃/132℃ |
|||
|
Humid range |
100%RH Uncontrollable |
|||
|
Temp uniformity |
±1.5℃ |
|||
|
Structure |
Standard pressure vessel |
|||
|
Humidification system |
Electric heating tube |
|||
|
Water supply system |
Manual water addition (automatic water addition) |
|||
|
Pressure range |
0.2-2kg/cm² (Optional up to 3kg/cm²) |
|||
|
Power |
220V-240V ,50/60Hz, single phase |
|||
|
Max operating pressure |
3Kg/cm², can withstand high oxygen pressure above 6ATM |
|||
|
Temperature controller |
Uses PID microcomputer temperature controller |
|||
