UV Light Accelerated Aging Test Chamber UV weathering test chamber

Aging Test Chamber

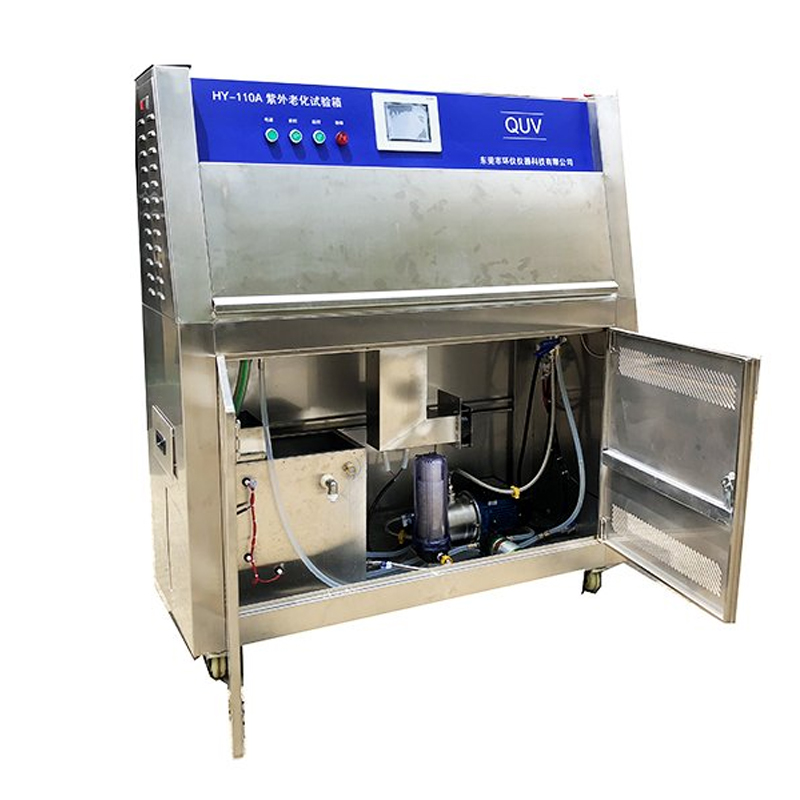

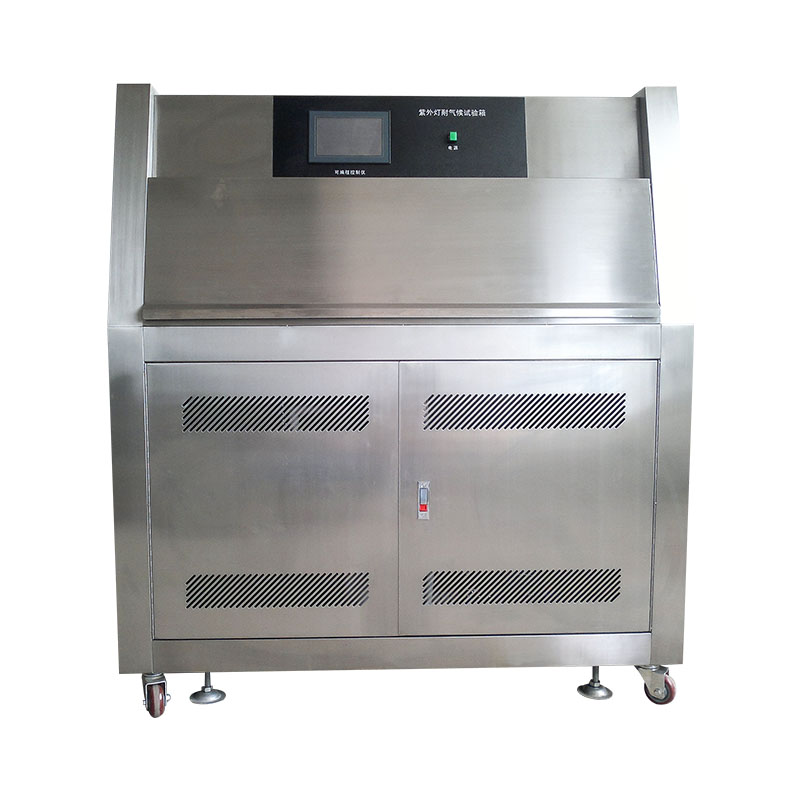

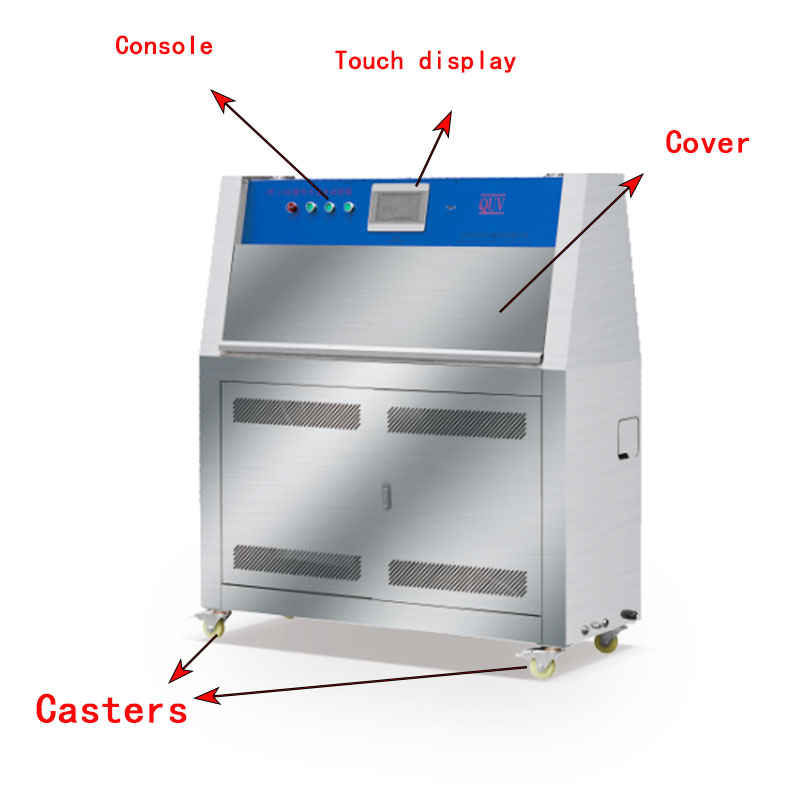

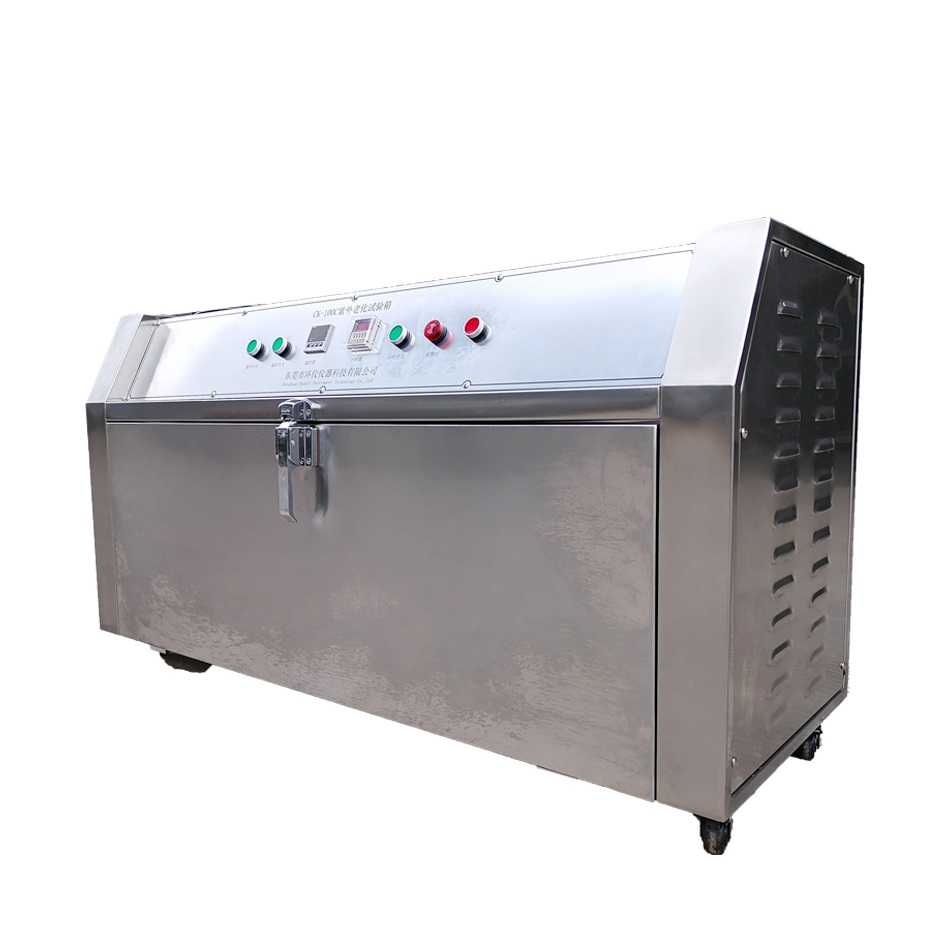

UV Light Accelerated Aging Test Chamber UV weathering test chamber

UV weathering test chamber is a common material aging test instrument, which is mainly used to simulate the influence of UV irradiation, high temperature, high humidity and other factors on material performance in natural environment. It can be widely used in automobile, construction, plastic, coating and other industries to evaluate and improve product quality.

    Applications

    The equipment uses ultraviolet fluorescent lamps to simulate sunlight, and can also simulate the influence of moisture by condensation or spraying. It is an essential test equipment in the fields of aviation, automobiles, home appliances, scientific research, etc., and is suitable for schools, factories, military industry, research institutes, and other units.

    Product characteristics

    -Highly simulated natural environment: The UV aging test chamber can simulate UV radiation under various natural environmental conditions, including sunlight, rain, temperature difference, etc., to provide comprehensive weather resistance testing for products.
    -Precise control of test parameters: The test chamber is equipped with an advanced control system that can accurately control parameters such as UV radiation intensity, temperature, humidity, etc. to ensure the accuracy and reliability of the test results.
    -Easy to operate: The equipment adopts a humanized design, and the operation interface is intuitive and easy to understand.
    -Durable and stable: The UV aging test chamber is made of high-quality materials to ensure that the equipment remains stable and durable during long-term use.

    Technical parameters

    Model

    HY-105 (Flat plate type)

    HY-110(Tower type)

    Internal size(WxHxD)cm

    113x40x50

    110x25x45

    External size(WxHxD)cm

    130x170x70

    130x140x52

    Temp range

    RT+10℃~70℃

    Humid range

    85~98%RH

    Distance from sample to

    the lamp center

    55mm

    Distance between the

    centers of the tubes

    100mm

    UV lamp wavelength range

    280~315nm (Type A)

    315~400nm (Type B)

    Standard test piece

    75X150mm or 150X300mm

    Exposure method

    Steam condensation exposure, radiation exposure

    Water tank requirements

    Water depth ≤ 25mm, and automatic water supply

    Standard test piece size

    75X150mm or 150X300mm
