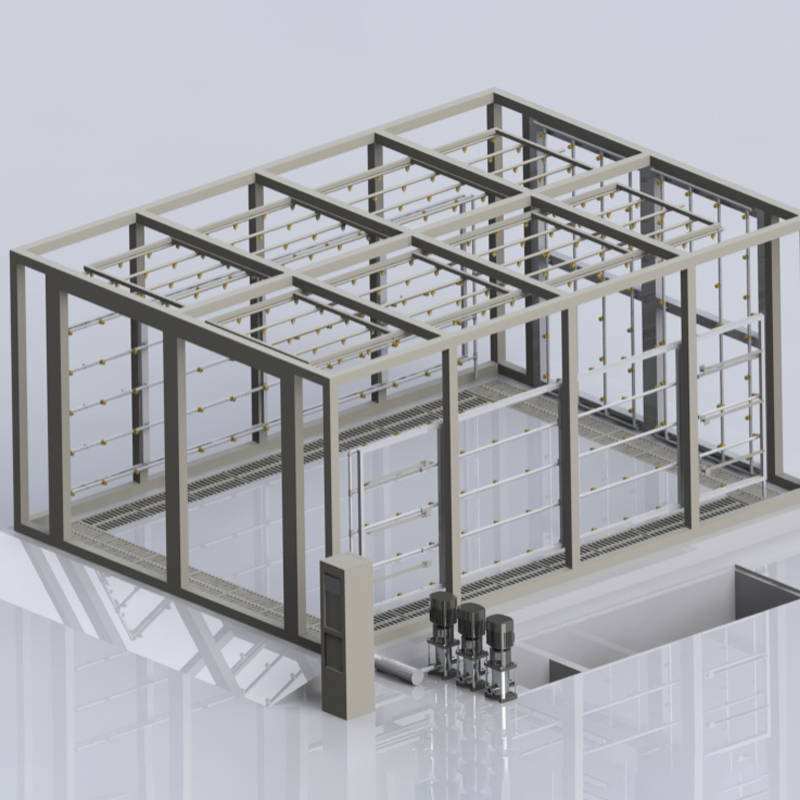

Vehicle Water Shower Test Room
Equipment Purpose
The automobile rain test room is mainly used in the process of vehicle offline, research and development, modification, overhaul, etc. of commercial vehicles, passenger vehicles, military vehicles, new energy vehicles and non-standard vehicles.
Features
1. Simple and beautiful design, leak-proof, rust-proof and shock-proof.
2. Flow pressure can be monitored and adjusted in real time to ensure that the spraying meets the corresponding standards.
3. Comprehensive spray angle, nozzle density and cost to ensure that there is no dead angle in the spraying, with high cost performance.
4. Simple, convenient, safe and easy to maintain.
* Adopt PLC electronic control system and automatic water replenishment design.
Technical Parameters
|
Internal size |
Customized according to user requirements |
|
Rainfall intensity |
5~45mm/min, adjustable |
|
Spray direction |
The vehicle has six sides. The top spray array considers the full spray test of the front and rear of the vehicle body. Can be manually switched on and off to cover the front and rear of the vehicle. |
|
Spray hole density |
Φ2.5~Φ4.5mm |
|
Water supply pressure |
400x400mm Note: Subject to actual installation |
|
Spray device pipe diameter |
1.8MPa±0.2MPa adjustable |
|
Pressure gauge |
Main pipe Φ140, branch pipe Φ100, spray pipe array 中28/中38 (SUS304) |
|
Flow meter |
Electronic pressure gauge, 4~20mA output |
|
Rain gauge |
Electronic flow meter, 4~20mA output |
|
Water supply |
Standard Φ100 rain gauge (cup) |
|
Filter device |
Vertical centrifugal pump (one spare and one use) |
|
Raining time |
Three-stage filtration (stainless steel filter grid and filter bag) 200um, 100um, 20um |
|
Vehicle passing method |
0~9999min, adjustable at will |
|
Reminder device |
Manual driving through-type entry and exit |
