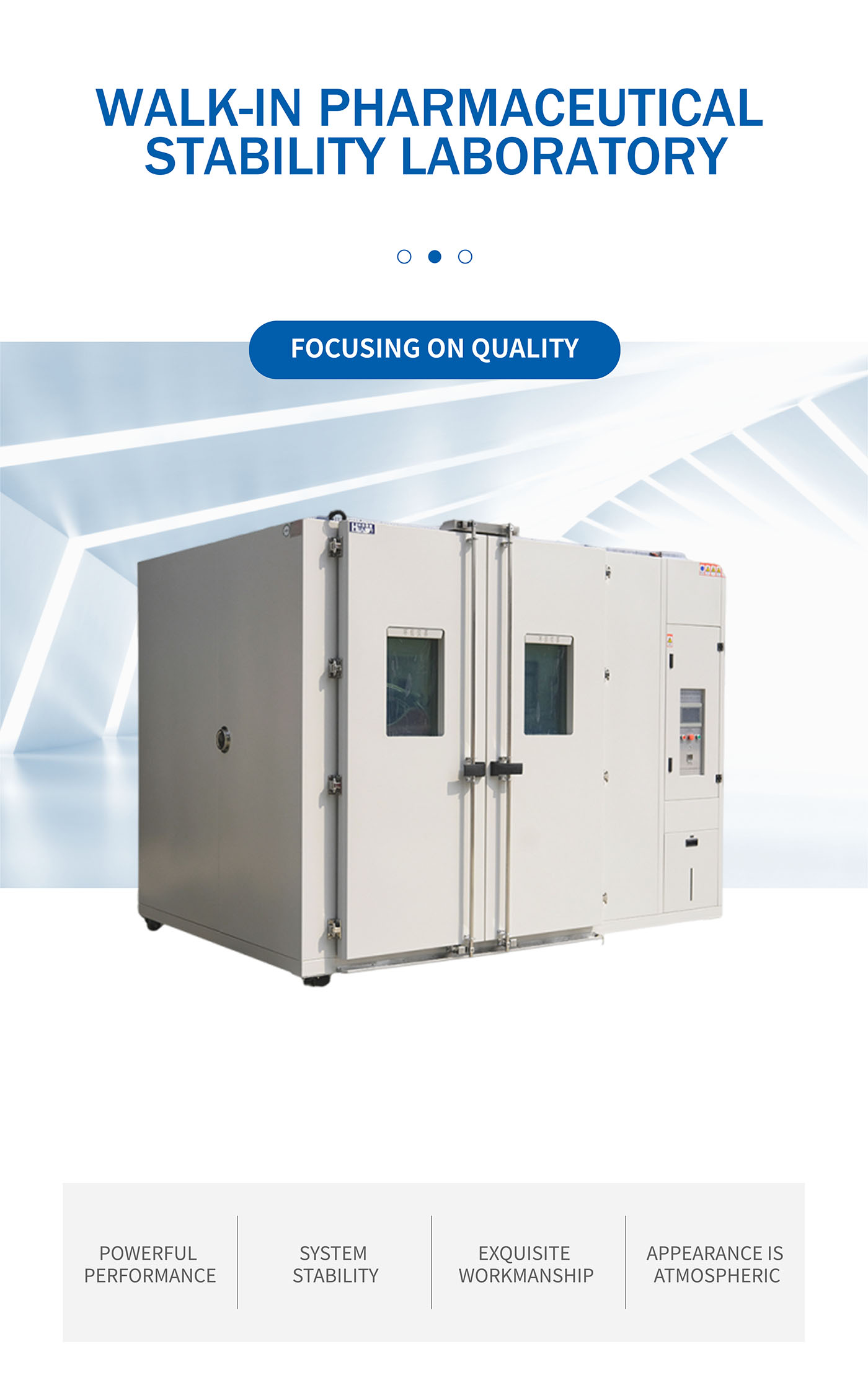

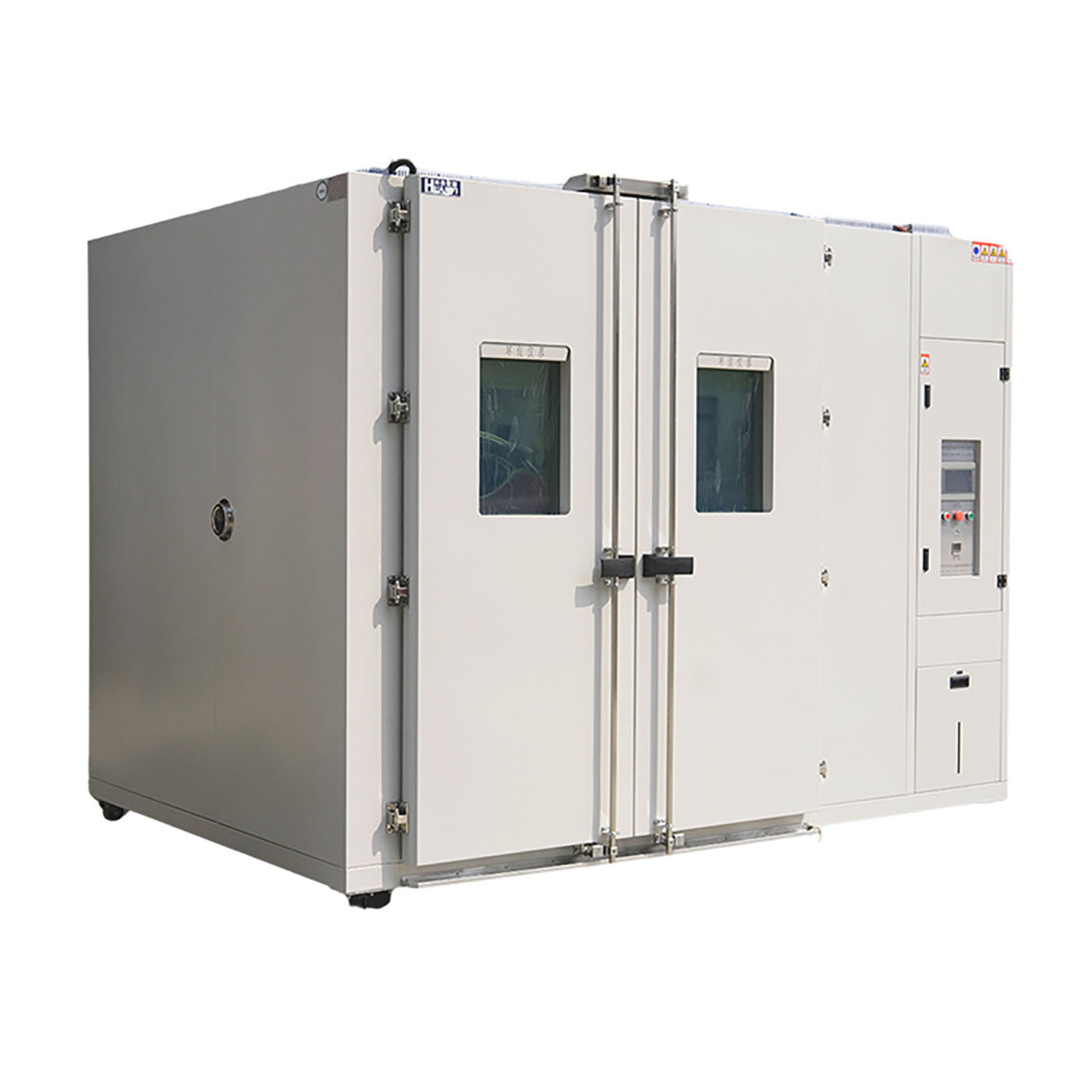

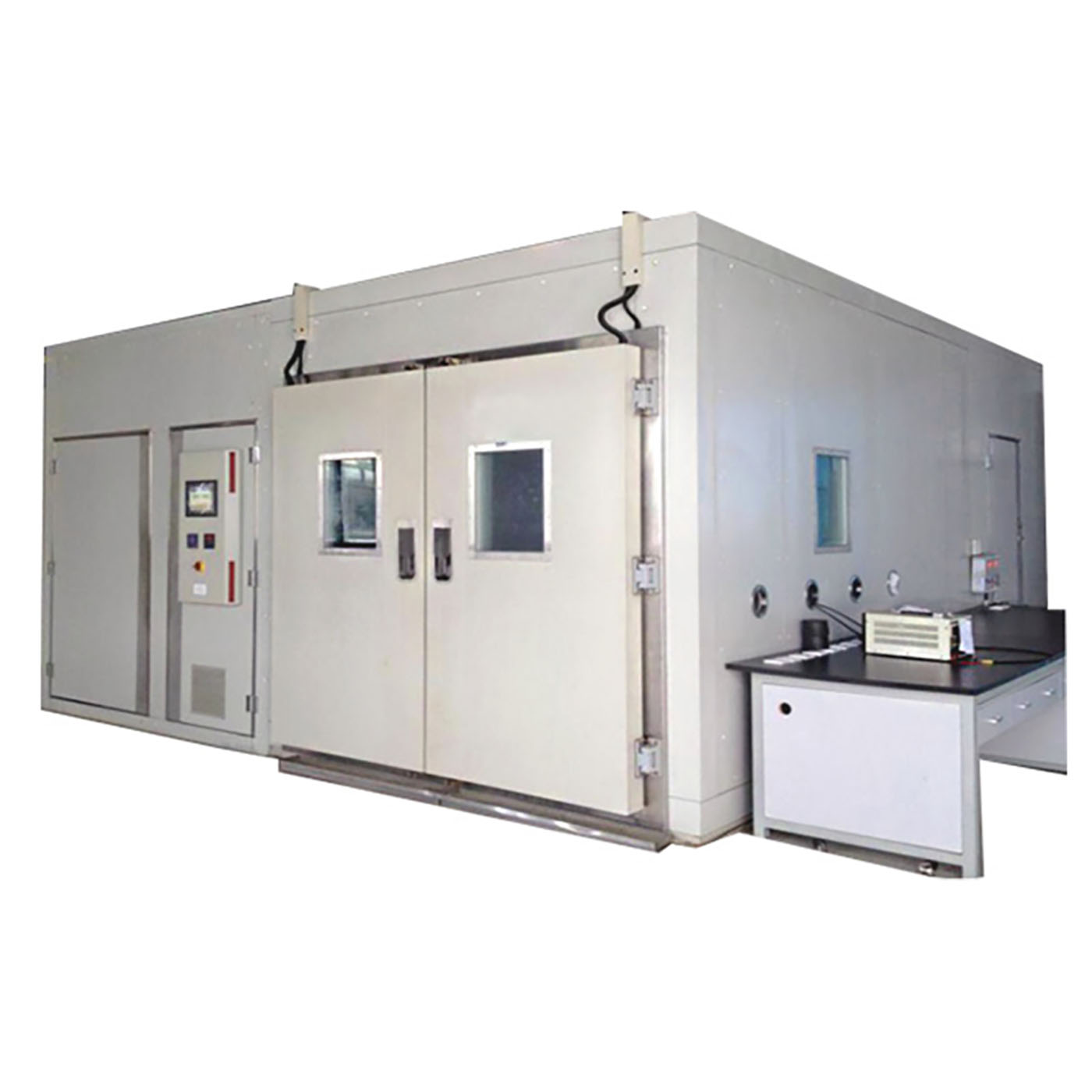

Walk-in Pharmaceutical Stability Laboratory

The machine is used for the in-depth research of the pharmaceutical industry, medicine, biotechnology industry and all related industries including life sciences. It is the main test equipment in the field of stability test system in the pharmaceutical industry, mainly simulating temperature, humidity and light tests in the environmental climate.

product details

product description

Video

Product Details

TThe drug stability test chamber uses scientific methods to create a temperature, humidity and light environment that is stable for a long time for batch drug failure evaluation. It is suitable for pharmaceutical companies to conduct accelerated tests, long-term tests, and high-humidity tests on drugs and new drugs. It is the best choice for pharmaceutical companies to store and stabilize large quantities of drugs, and is convenient for large quantities of drugs to conduct long-term moisture resistance cycle tests.
The drug stability test chamber is used for intensive research in the pharmaceutical industry, medicine, biotechnology industry and all related industries including life sciences. It is the main test equipment in the field of stability test systems in the pharmaceutical industry, mainly simulating temperature, humidity and light tests in environmental climates.

Meet the standards

1.2015 edition of the Pharmacopoeia drug stability test guidelines
2.GB 10586-2006 Technical requirements for wet heat test chambers

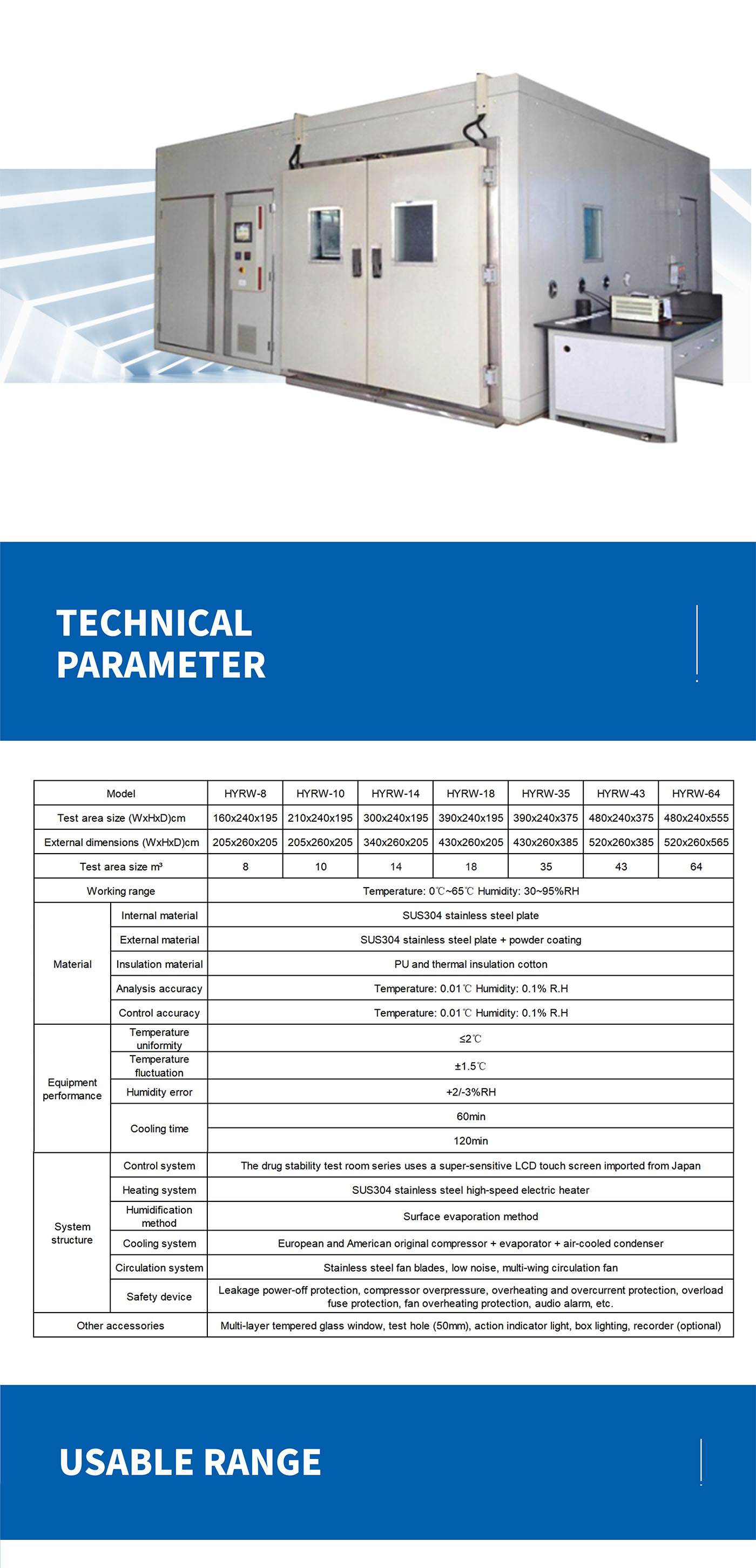

Technical parameters

Model		HYRW-8	HYRW-10	HYRW-14	HYRW-18	HYRW-35	HYRW-43	HYRW-64
Test area size (WxHxD)cm		160x240x195	210x240x195	300x240x195	390x240x195	390x240x375	480x240x375	480x240x555
External dimensions (WxHxD)cm		205x260x205	205x260x205	340x260x205	430x260x205	430x260x385	520x260x385	520x260x565
Test area size m³		8	10	14	18	35	43	64
Working range		Temperature: 0℃~65℃ Humidity: 30~95%RH
Material	Internal material	SUS304 stainless steel plate
	External material	SUS304 stainless steel plate + powder coating
	Insulation material	PU and thermal insulation cotton
	Analysis accuracy	Temperature: 0.01℃ Humidity: 0.1% R.H
	Control accuracy	Temperature: 0.01℃ Humidity: 0.1% R.H
Equipment performance	Temperature uniformity	≤2℃
	Temperature fluctuation	±1.5℃
	Humidity error	+2/-3%RH
	Cooling time	60min
		120min
System structure	Control system	The drug stability test room series uses a super-sensitive LCD touch screen imported from Japan
	Heating system	SUS304 stainless steel high-speed electric heater
	Humidification method	Surface evaporation method
	Cooling system	European and American original compressor + evaporator + air-cooled condenser
	Circulation system	Stainless steel fan blades, low noise, multi-wing circulation fan
	Safety device	Leakage power-off protection, compressor overpressure, overheating and overcurrent protection, overload fuse protection, fan overheating protection, audio alarm, etc.
Other accessories		Multi-layer tempered glass window, test hole (50mm), action indicator light, box lighting, recorder (optional)
